EOTech
EOTech 518.A65 HWS Holographic Weapon Sight
EOTech 518.A65 HWS Holographic Weapon Sight
Couldn't load pickup availability

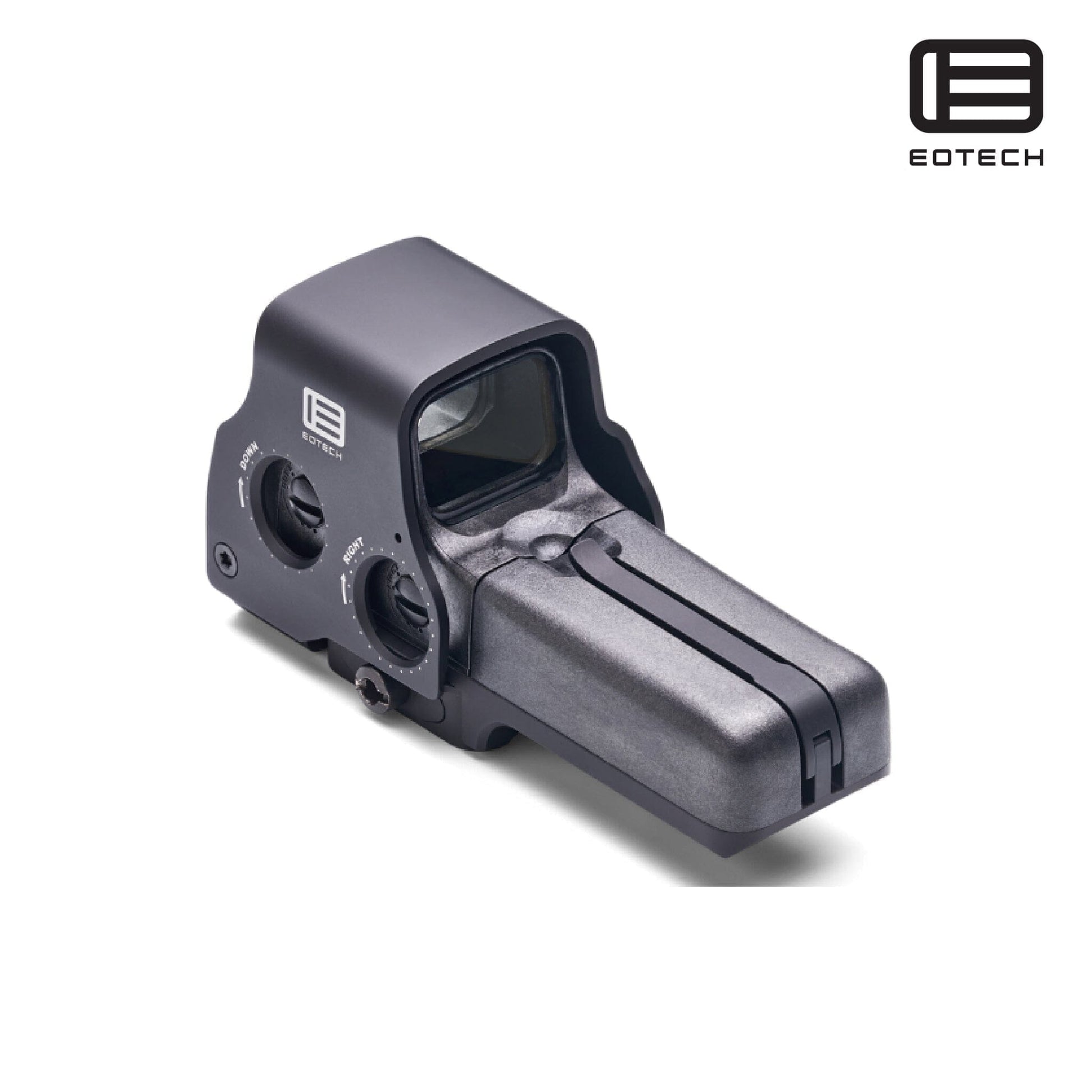

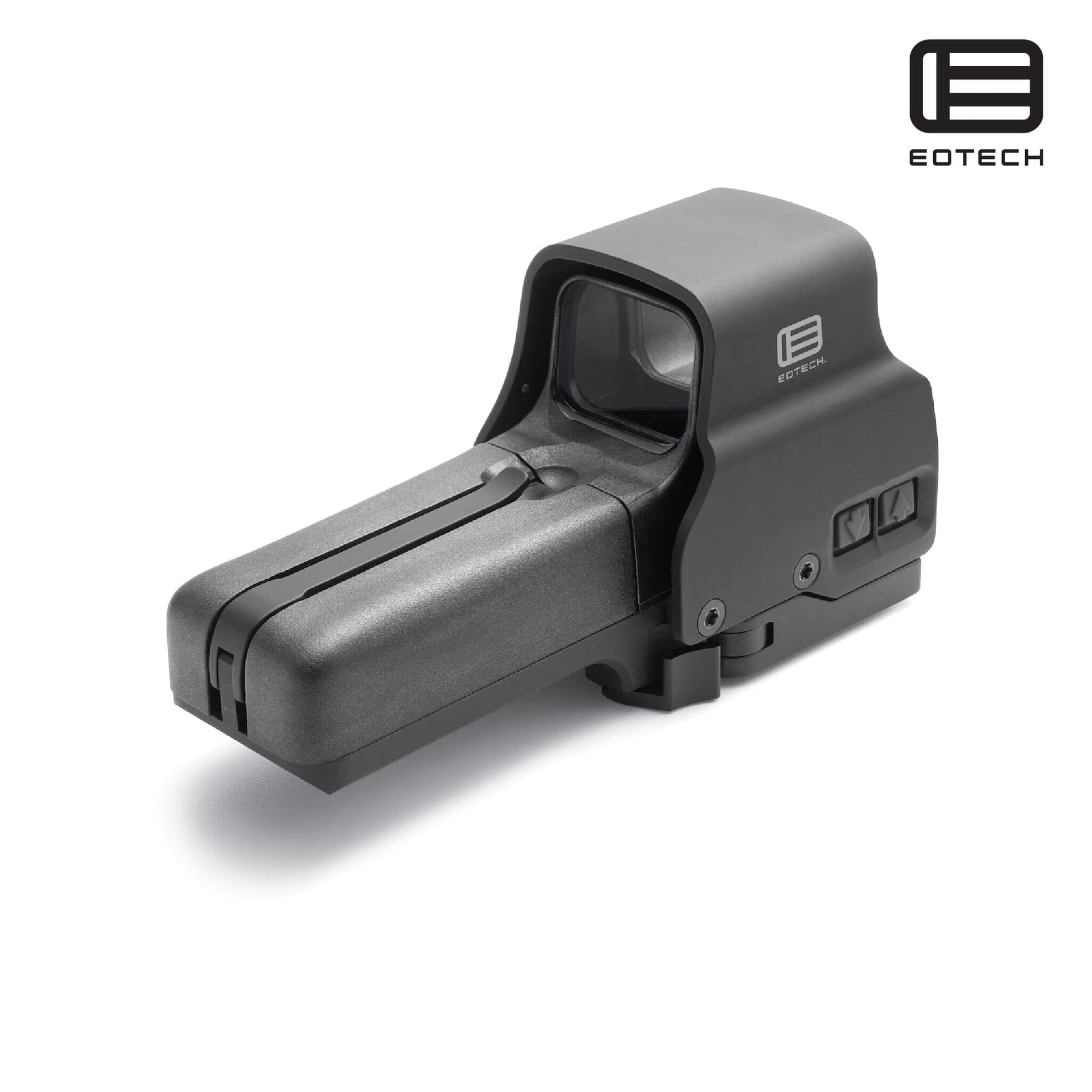

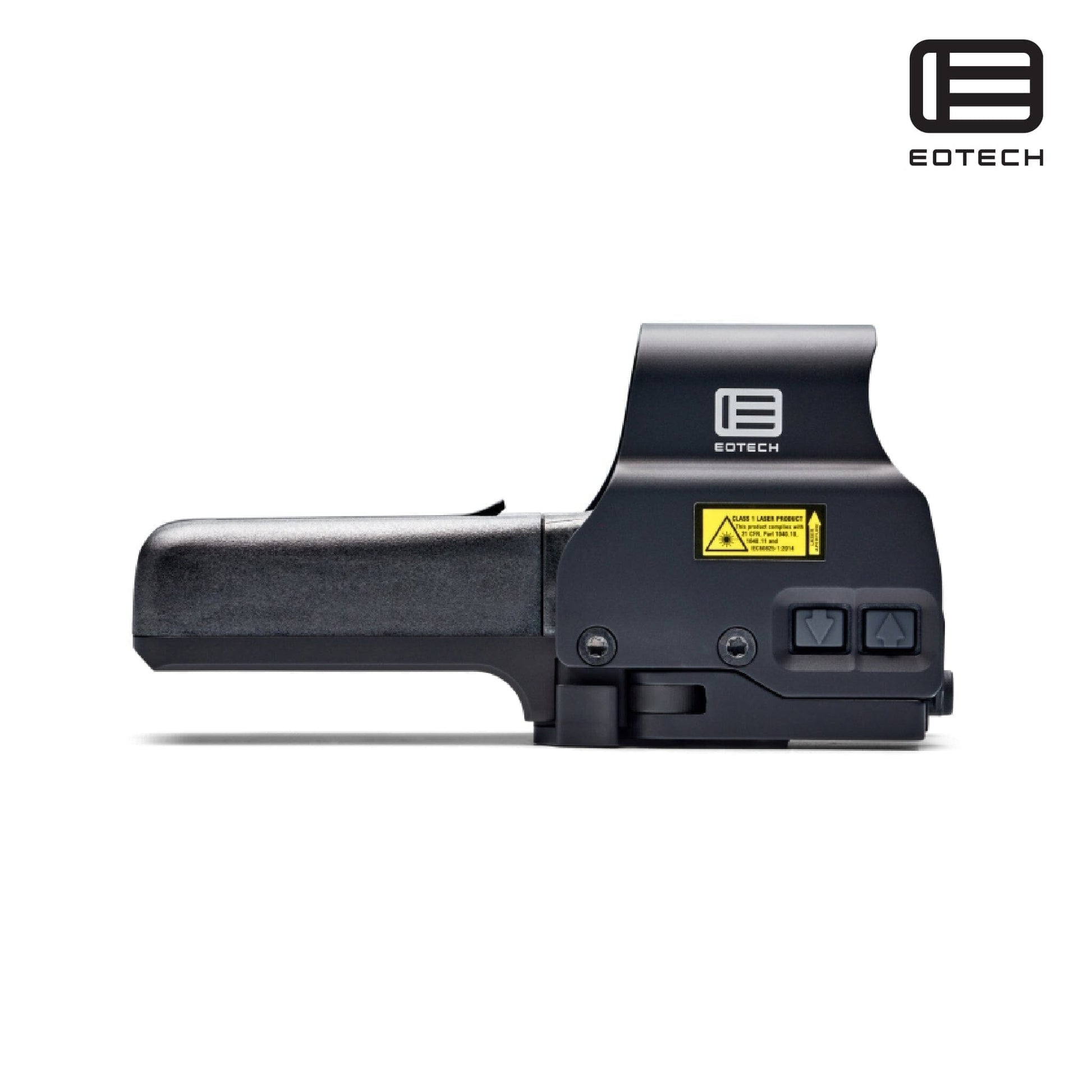

EOTech 518.A65 HWS Holographic Weapon Sight
(Black, AA-Powered, Non-NV Compatible)
Features

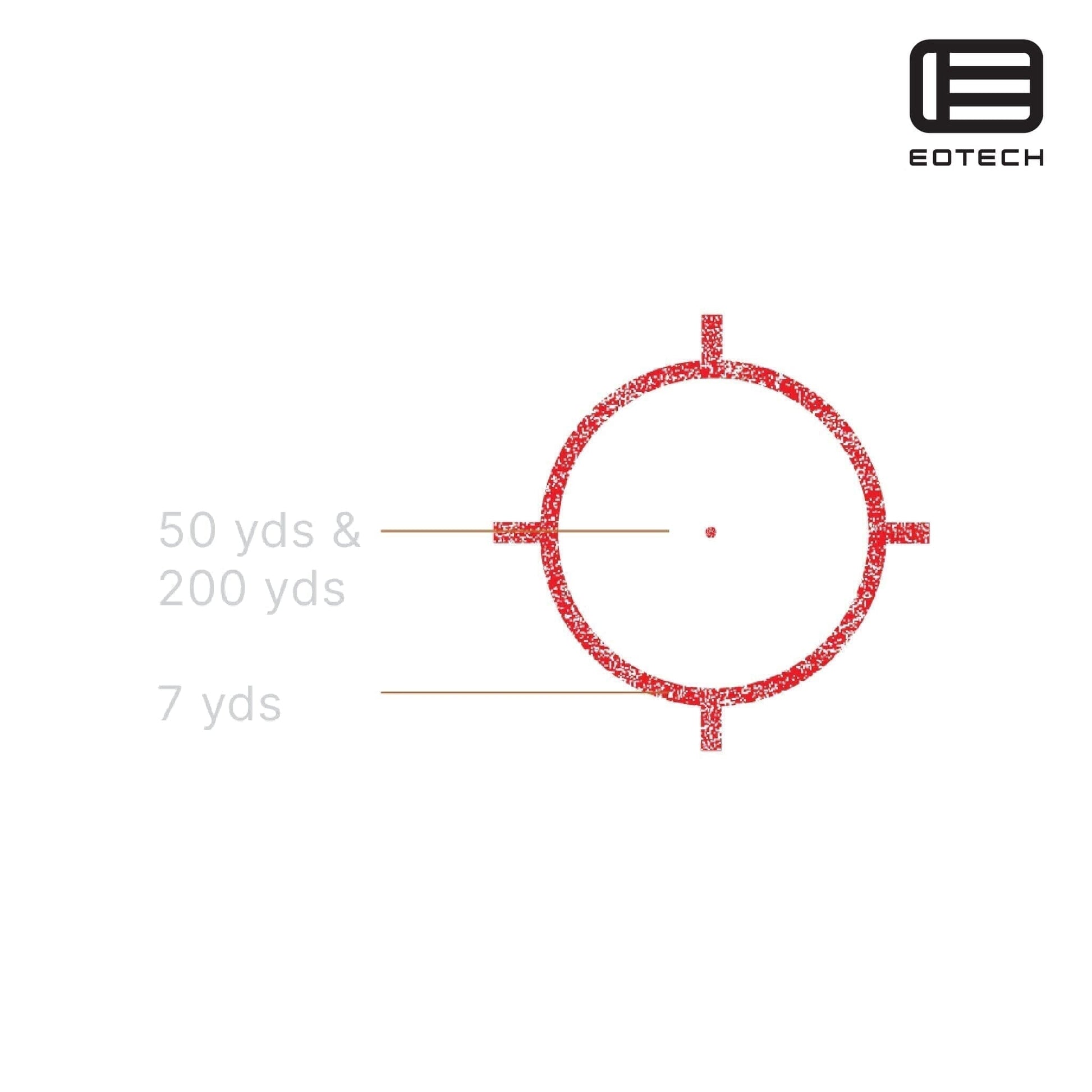

- 68 MOA Ring & 1 MOA Dot Reticle: Glass-etched holographic emitter projects a large 68 MOA speed-ring for rapid close-quarters acquisition paired with a precise 1 MOA center dot for fine aiming.
- Digital Push-Button Illumination: Ambidextrous side buttons cycle through 20 daylight-usable brightness levels—no night-vision modes.
- AA-Battery Powered: Runs on two 1.5 V AA cells (alkaline, lithium, or NiMH) in a side-release battery tray—field-swap without tools.
- True Two-Eyes-Open Shooting: Ultra-low 1.10″ rail-height footprint for lower-1/3 co-witness without obstructing your sight picture.
- Ambidextrous Lever-Release Mount: Quick-release clamp interfaces to 1″ Weaver or MIL-STD-1913 rails; tool-less install/removal while maintaining zero.
- Parallax-Free & Unlimited Eye Relief: True 1× holographic sight with no parallax error at practical engagement distances.
- Rugged, Weather-Resistant Construction: O-ring and nitrogen sealed to IP67 (submersible to 10 m); operates from –40 °F to +140 °F.
Technical Specifications for EOTech 518.A65 HWS Holographic Weapon Sight
|
Specification |
Details |
|
Product Title |
EOTech 518.A65 HWS® Holographic Weapon Sight (Black) |
|
Model / MPN |
518.A65 |
|
SKU |
518.A65 |
|
UPC |
672294600527 |
|
Reticle |
68 MOA ring with 1 MOA center dot |
|
Magnification |
1× |
|
Illumination Settings |
20 daylight-usable digital levels |
|
Night-Vision Compatible |
No |
|
Power Source |
2 × 1.5 V AA batteries (alkaline, lithium, or NiMH) |
|
Battery Life |
Lithium: ~2 500 hr; Alkaline: ~2 200 hr (at mid-brightness) |
|
Adjustment Graduation |
0.5 MOA per click |
|
Windage / Elevation Travel |
± 50 MOA each |
|
Eye Relief |
Unlimited |
|
Parallax |
Parallax-free |
|
Field of View @ 100 yd |
90 ft (27.4 m) |
|
Dimensions (L × W × H) |
5.6″ × 2″ × 2.9″ (142.2 × 50.8 × 73.7 mm) |
|
Weight |
13.8 oz (391 g) |
|
Mount Interface |
Ambidextrous QD lever-release clamp for 1″ Weaver/MIL-STD-1913 rails; 1.10″ rail-height footprint |
|
Water Resistance |
IP67 (submersible to 10 m) |
|
Operating Temperature |
–40 °F to +140 °F (–40 °C to +60 °C) |
|
Housing Material / Finish |
CNC-machined 6061-T6 aluminum, matte-black Cerakote |
|
Warranty |
2-Year EOTech Warranty |
SEO Keywords
EOTech 518.A65 HWS, AA-powered holographic sight, non-NV HWS, 68 MOA ring 1 MOA dot.
