EOTech
EOTech 558.A65 HWS Holographic Weapon Sight
EOTech 558.A65 HWS Holographic Weapon Sight
Couldn't load pickup availability
EOTech 558.A65 HWS Holographic Weapon Sight
(Black, AA-Powered, NV-Compatible)
Features

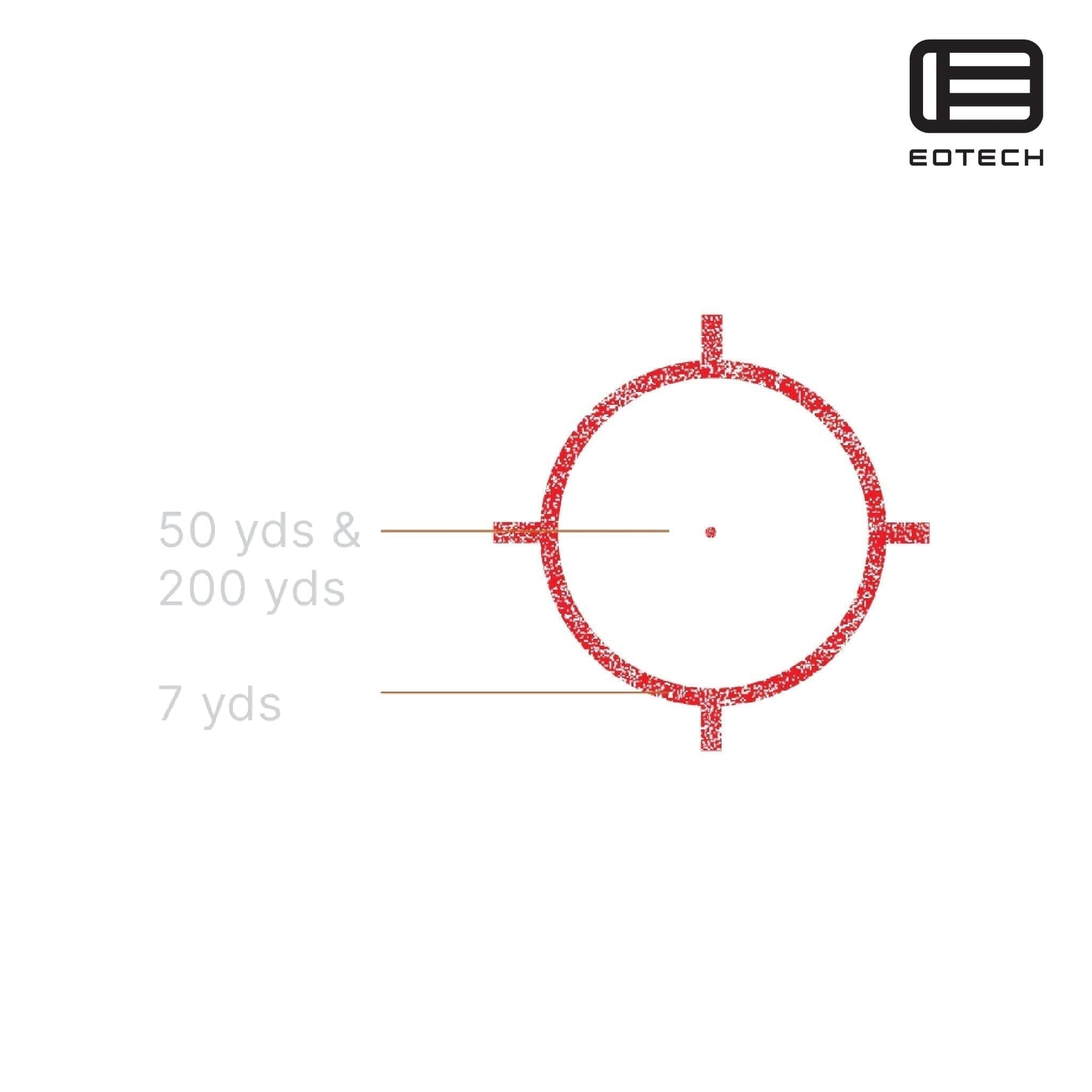

- 68 MOA Ring & 1 MOA Center Dot Reticle: Large speed-ring for rapid close-quarters acquisition with a precise 1 MOA center dot for fine aiming.
- NV-Compatible Illumination: 20 daylight + 10 night-vision compatible brightness levels; optimized reticle and controls for Gen I–III+ devices.
- AA-Battery Powered: Runs on two 1.5 V AA cells (alkaline, lithium, or NiMH) via a side-load battery tray—field-swap without tools.
- True Two-Eyes-Open Shooting: Ultra-low 1.10″ rail-height footprint for lower-1/3 co-witness without blocking your view.
- Quick-Detach QD Lever Mount: Tool-free QD lever clamp for 1″ Picatinny/Weaver rails installs/removes in seconds—maintains zero.
- Side-Load Battery Access: Change batteries from the side without removing the sight.
- Rugged, Weather-Resistant Construction: O-ring and nitrogen sealed to IP67 (submersible to 10 m); operates from –40 °F to +140 °F.
- Durable Housing & Finish: CNC-machined 6061-T6 aluminum with matte-black Cerakote resists recoil and harsh environments.
Technical Specifications for EOTech 558.A65 HWS Holographic Weapon Sight
|
Specification |
Details |
|
Product Title |
EOTech 558.A65 HWS® Holographic Weapon Sight (Black, AA-Powered, NV-Compatible) |
|
Model / MPN |
558.A65 |
|
SKU |
558.A65 |
|
UPC |
672294558653 |
|
Reticle |
68 MOA ring with 1 MOA center dot |
|
Magnification |
1× |
|
Illumination Settings |
20 daylight + 10 night-vision compatible |
|
Night-Vision Compatible |
Yes |
|
Power Source |
(2) 1.5 V AA batteries (alkaline, lithium, or NiMH) |
|
Battery Life |
Up to 2,500 hr (lithium); ~2,200 hr (alkaline) |
|
Adjustment Graduation |
0.5 MOA per click |
|
Windage / Elevation Travel |
± 50 MOA each |
|
Eye Relief |
Unlimited |
|
Parallax |
Parallax-free |
|
Field of View |
90 ft @ 100 yd |
|
Dimensions (L × W × H) |
5.6″ × 2.0″ × 2.5″ (142.2 × 50.8 × 63.5 mm) |
|
Weight |
11.5 oz (326 g) |
|
Mount Interface |
Quick-detach lever-release clamp for 1″ Picatinny/Weaver rails; 1.10″ rail-height footprint |
|
Water Resistance |
IP67 (submersible to 10 m) |
|
Operating Temperature |
–40 °F to +140 °F (–40 °C to +60 °C) |
|
Housing Material / Finish |
CNC-machined 6061-T6 aluminum, matte-black Cerakote |
|
Warranty |
2-Year EOTech Warranty |
