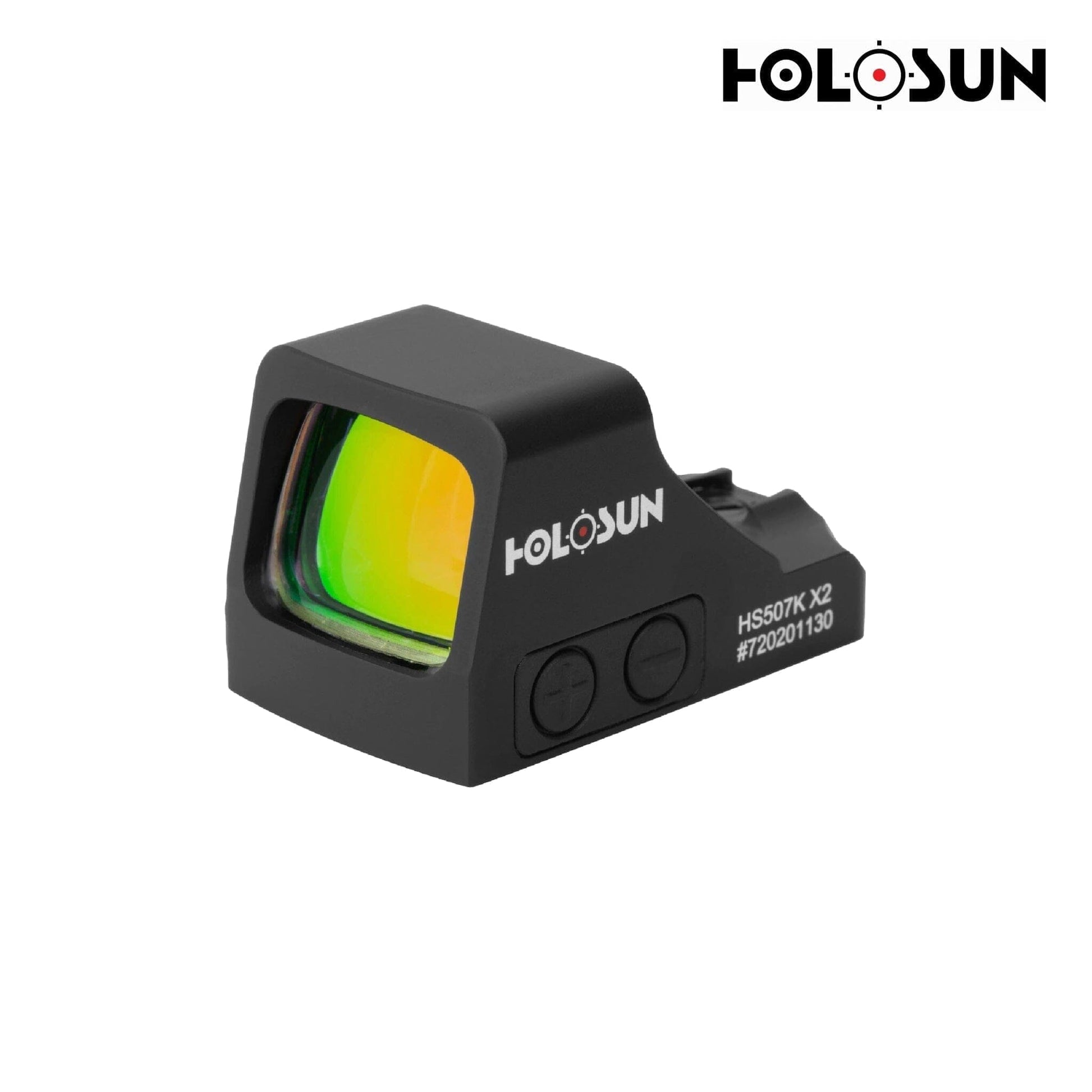

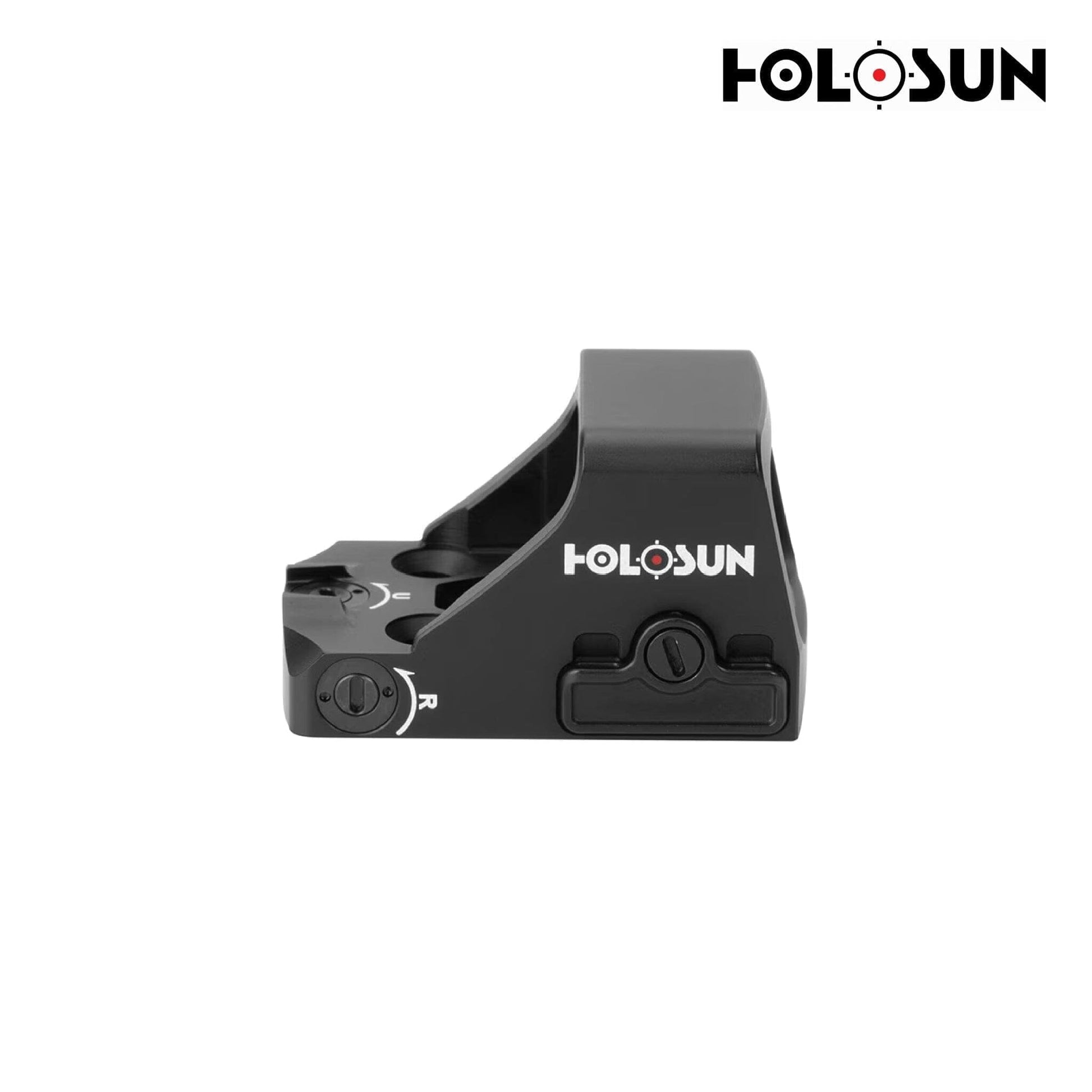

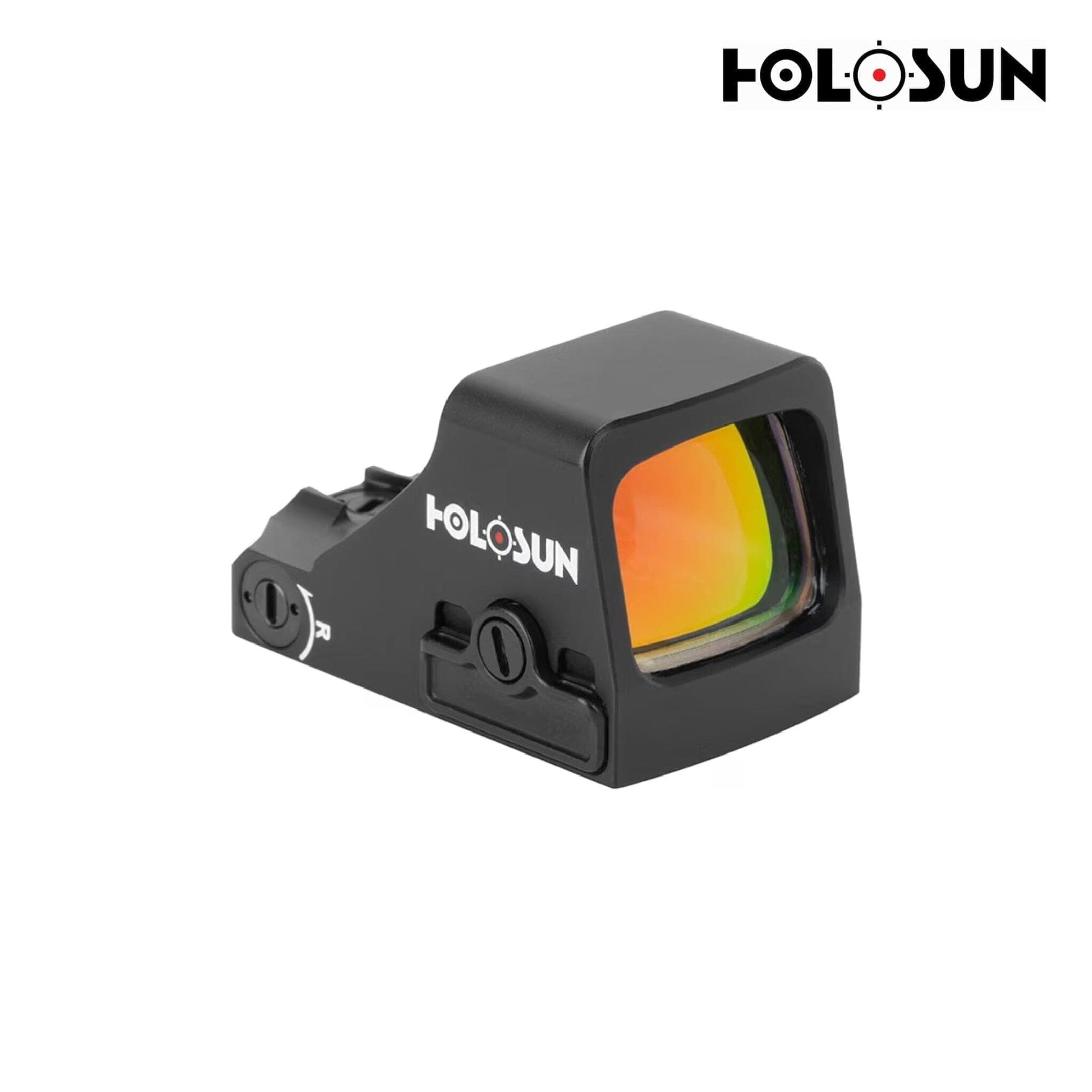

Holosun HS507K-X2 Reflex Red Dot Sight – MRS Reticle
Features

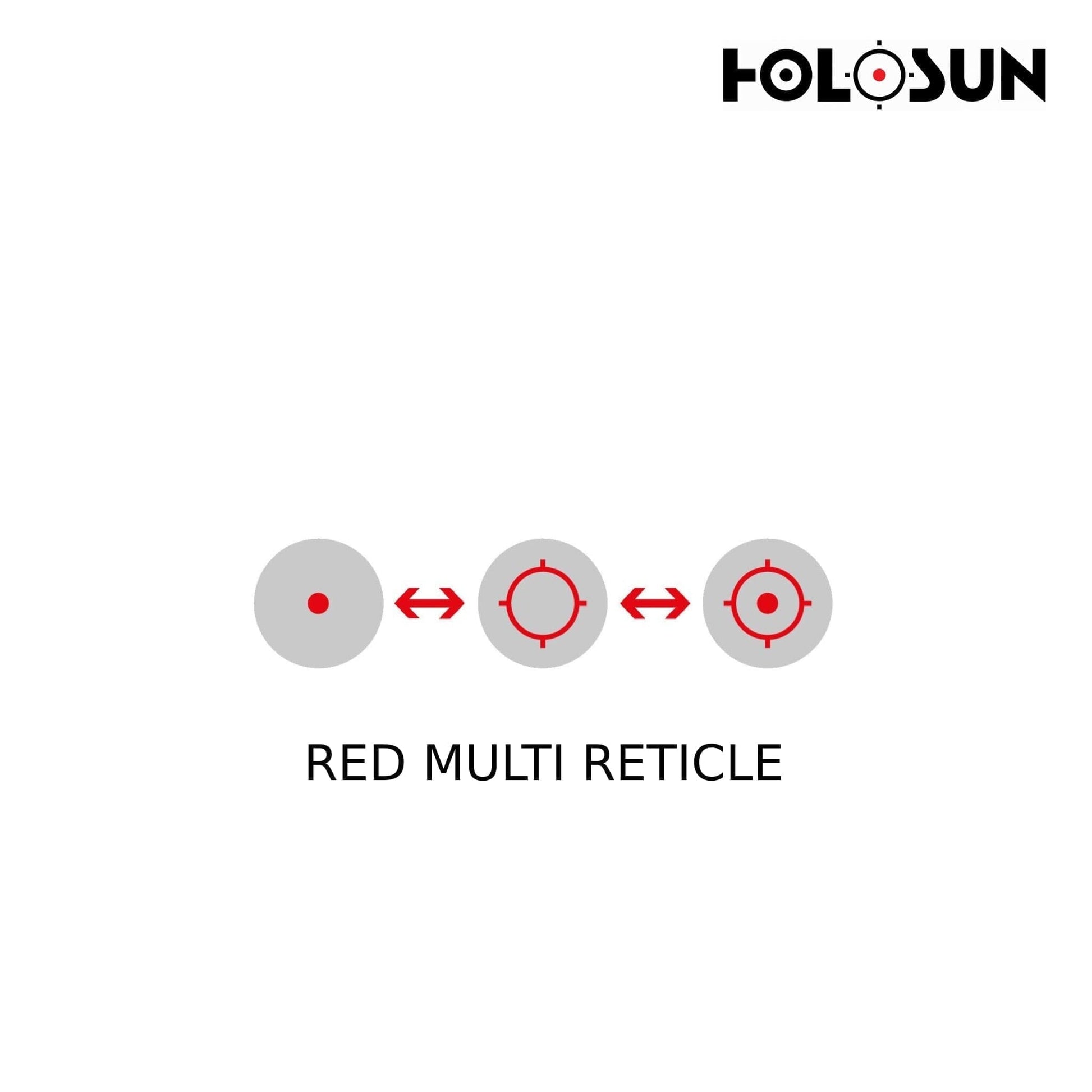

- Multi-Reticle System™ (MRS): Three selectable reticles—2 MOA dot, 32 MOA circle, or dot + circle—for fast acquisition or precise hold-overs.
- Shake Awake® Technology: Motion-activated on/off with last-setting memory powers the sight instantly on movement and conserves battery during inactivity.
- Lock-Mode Button: Prevents accidental reticle or brightness changes under recoil or in holster.
- Battery-Powered: Runs on a single CR1632 lithium cell; up to 50 000 hr of runtime at moderate brightness settings.
- Parallax-Free & Unlimited Eye Relief: True 1× magnification with a large 0.58″ × 0.77″ window for an unobstructed sight picture.
- Rugged 7075-T6 Aluminum Housing: CNC-machined, hard-coat anodized finish for superior strength and corrosion resistance.
- Tool-Less Battery Tray: Side-access CR1632 compartment allows rapid field changes without removing the optic.
- K-Series Footprint: Modified RMSc footprint for direct mounting in K-series pistol slides (e.g., SIG P365); no adapter included.
Holosun HS507K-X2 Reflex Red Dot Sight – MRS Reticle– Technical Specifications
|
Specification |
Details |
|
Product Title |
Holosun HS507K-X2 Reflex Red Dot Sight – MRS Reticle |
|
Model / MPN |
HS507K-X2 |
|
SKU |
HS507K-X2 |
|
UPC |
810047071211 |
|
Reticle Options (MRS) |
2 MOA dot; 32 MOA circle; dot + circle |
|
LED Wavelength |
650 nm |
|
Brightness Settings |
12 total (10 daylight; 2 NVG-compatible) |
|
Power Source |
1 × CR1632 lithium cell |
|
Battery Life |
Up to 50 000 hr (setting 6) |
|
Shake Awake® |
Yes |
|
Lock Mode |
Yes |
|
Magnification |
1× |
|
Window Size (W × H) |
0.58″ × 0.77″ (14.7 × 19.6 mm) |
|
Eye Relief |
Unlimited |
|
Parallax |
Parallax-free |
|
Adjustment Click Value |
1 MOA per click |
|
Windage & Elevation Travel |
±50 MOA |
|
Housing Material |
CNC-machined 7075-T6 aluminum, hard-coat anodize |
|
Finish / Color |
Matte black |
|
Footprint |
K-Series (modified RMSc) |
|
Mount Adapter Included |
No (RMS-pattern screws & tool included) |
|
Battery Tray |
Tool-less, side-access |
|
Weight |
1.0 oz (28 g) |
|
Dimensions (L × W × H) |
1.62″ × 1.07″ × 0.95″ (41.1 × 27.2 × 24.1 mm) |
|
Ingress Protection |
IP67 (dust-tight & 1 m waterproof) |
|
Operating Temperature |
–30 °C to 60 °C |
|
Country of Origin |
China |
Mount & Accessories
- Mounting Screws & Multi-Tool: Included for direct K-series slide mounting.
- Lens Cloth & Manual: Supplied for maintenance and setup.
