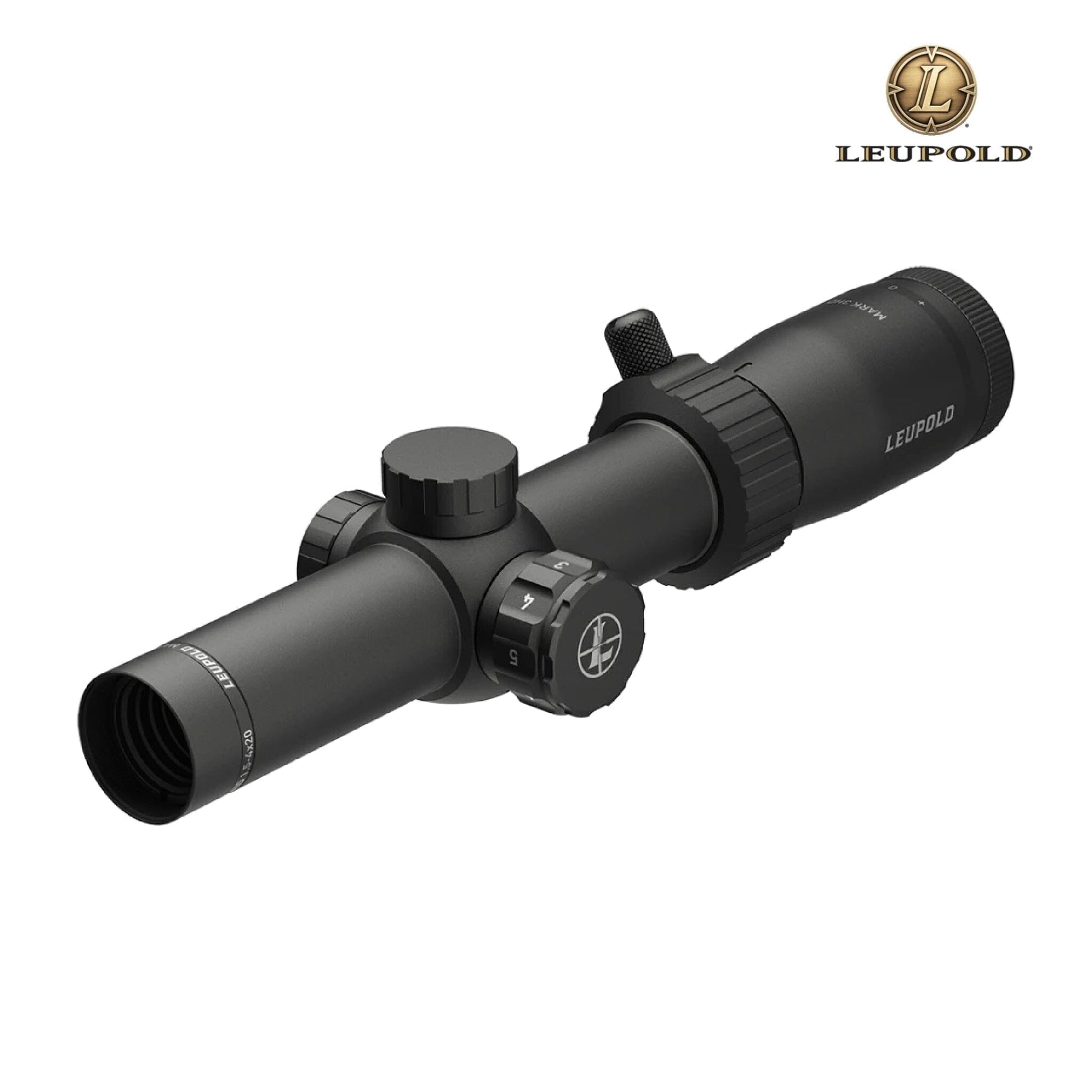

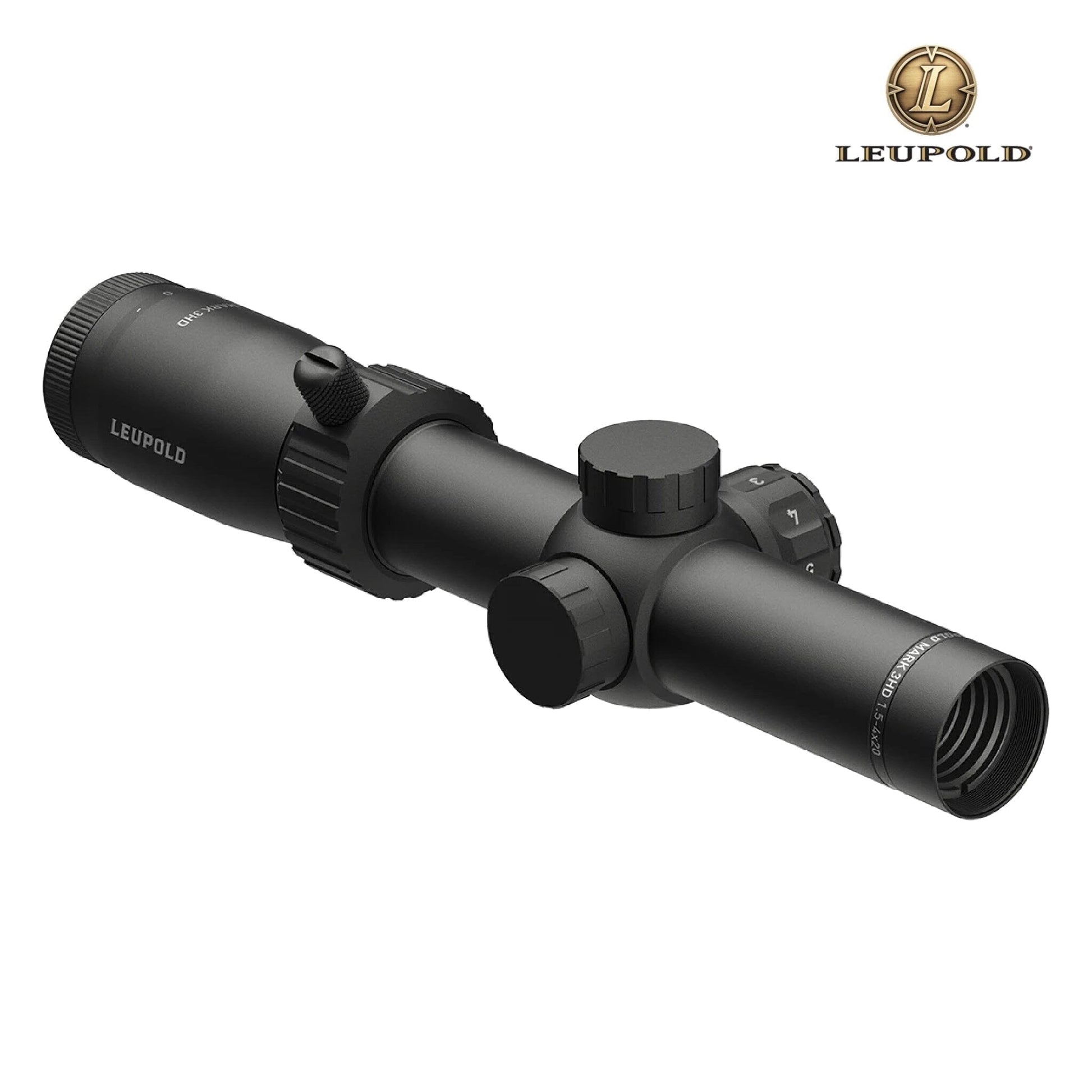

Leupold Mark 3HD 1.5–4×20 Rifle Scope Illuminated FireDot SPR Reticle
Leupold Mark 3HD 1.5–4×20 Rifle Scope Illuminated FireDot SPR Reticle
Couldn't load pickup availability
Leupold Mark 3HD 1.5–4×20 Rifle Scope Illuminated FireDot SPR Reticle
Features
- 3:1 Zoom Ratio: Rapid throw-lever change between 1.5× (wide field) and 4× (precision) for close-quarters to mid-range engagements.
- Elite Optical System™ (HD): Fully multi-coated lenses and prisms deliver outstanding light transmission, contrast, and edge-to-edge sharpness.

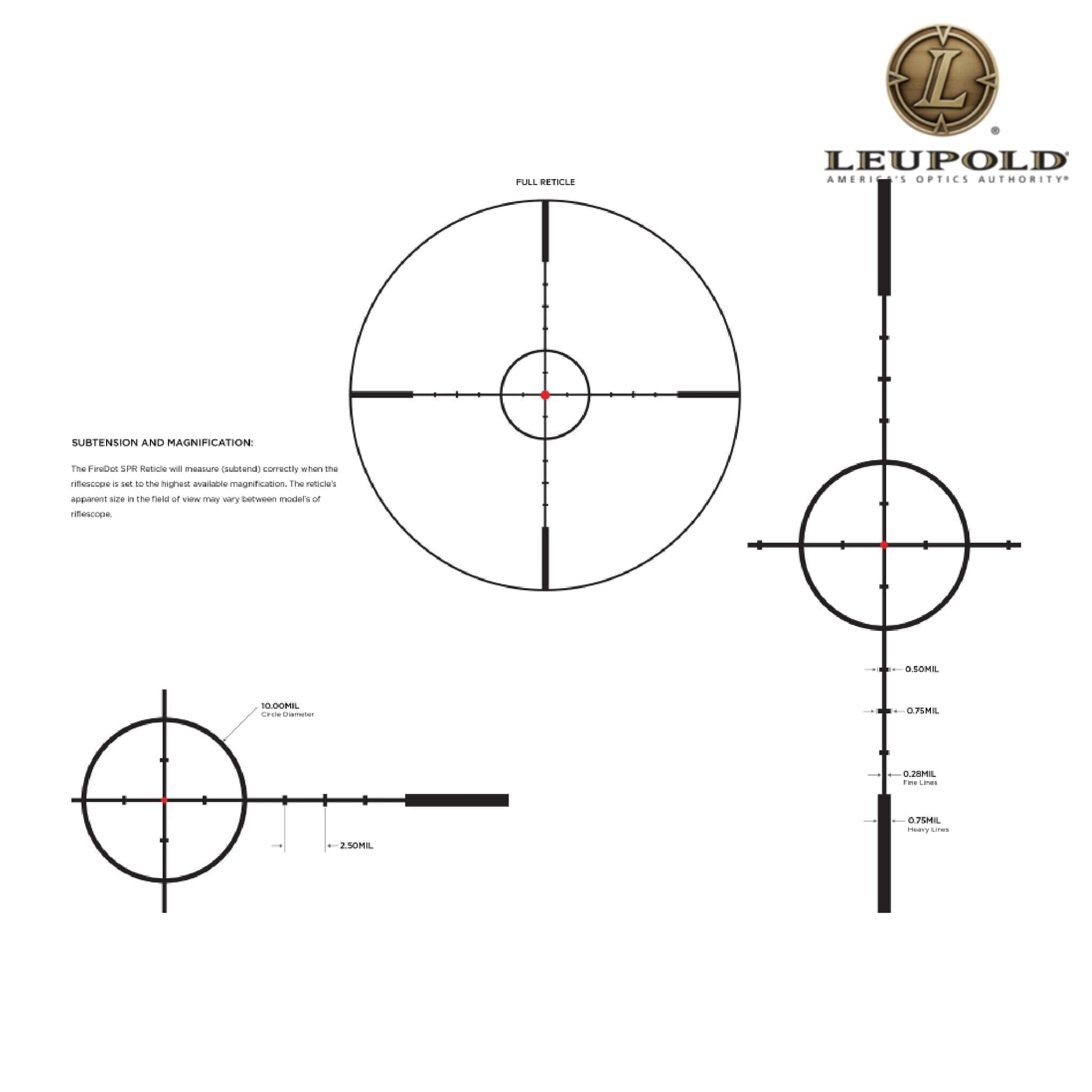

- FireDot® SPR Illuminated Reticle: Second-focal-plane SPR pattern calibrated in MIL-radians; glass-etched for crisp red-LED illumination with seven daylight-bright settings.
- Finger-Click Turrets: Exposed, zero-stop-capable finger-click elevation and windage dials with 0.1 MIL per click and ±33.5 MIL total adjustment—no thrown-lever clutter.
- Integrated Throw Lever: Slim lever for fast, reliable magnification changes.
- Rugged Construction: 30 mm main tube of 6061-T6 aluminum; waterproof, fog- and shock-proof (rated to .50 BMG recoil).
- Compact & Lightweight: Only 13.1 oz (371 g) for minimal added bulk on tactical platforms.
Technical Specifications for Leupold Mark 3HD 1.5–4×20 Rifle Scope Illuminated FireDot SPR Reticle
Specification |
Details |
Model / MPN |
180662 |
SKU |
180662 |
UPC |
030317028718 |
Magnification |
1.5 × ⇄ 4 × |
Objective Lens Diameter |
20 mm |
Main Tube Diameter |
30 mm |
Reticle |
FireDot SPR (FFP, LED-illuminated) |
Reticle Illumination |
Red LED; 7 daylight-bright settings |
Elevation Adjustment |
Finger-click turret; 0.1 MIL per click; ±33.5 MIL total |
Windage Adjustment |
Finger-click turret; 0.1 MIL per click; ±33.5 MIL total |
Parallax |
Fixed at 150 yd |
Eye Relief |
4.2″ (low) ⇄ 3.7″ (high) |
Field of View @ 100 yd |
74.2 ft (low) ⇄ 29.4 ft (high) |
Length |
9.4″ (239 mm) |
Weight |
13.1 oz (371 g) |
Finish / Housing Material |
Matte-black hard-coat anodize; 6061-T6 aluminum |
Waterproof / Fog-Proof / Shock |
Yes (IPX7; rated to .50 BMG recoil) |
Battery |
(1) CR2032; ~1 600 hr life @ low intensity |
Included Accessories
- Integrated magnification throw lever
- Removable zero-stop windage cap
- (1) CR2032 battery
- Lens covers
- User manual
