Leupold Mark 4HD 1–4.5×24 Rifle Scope M5C3 SFP FireDot TMR Reticle
Features
- Low-Power Variable: Quick‐throw magnification lever for fast changes between 1× (wide field) and 4.5× (precision).
- Elite Optical System™ (HD): Fully multi-coated lenses and prisms (Xtended Twilight® system) for exceptional light transmission and edge-to-edge clarity.

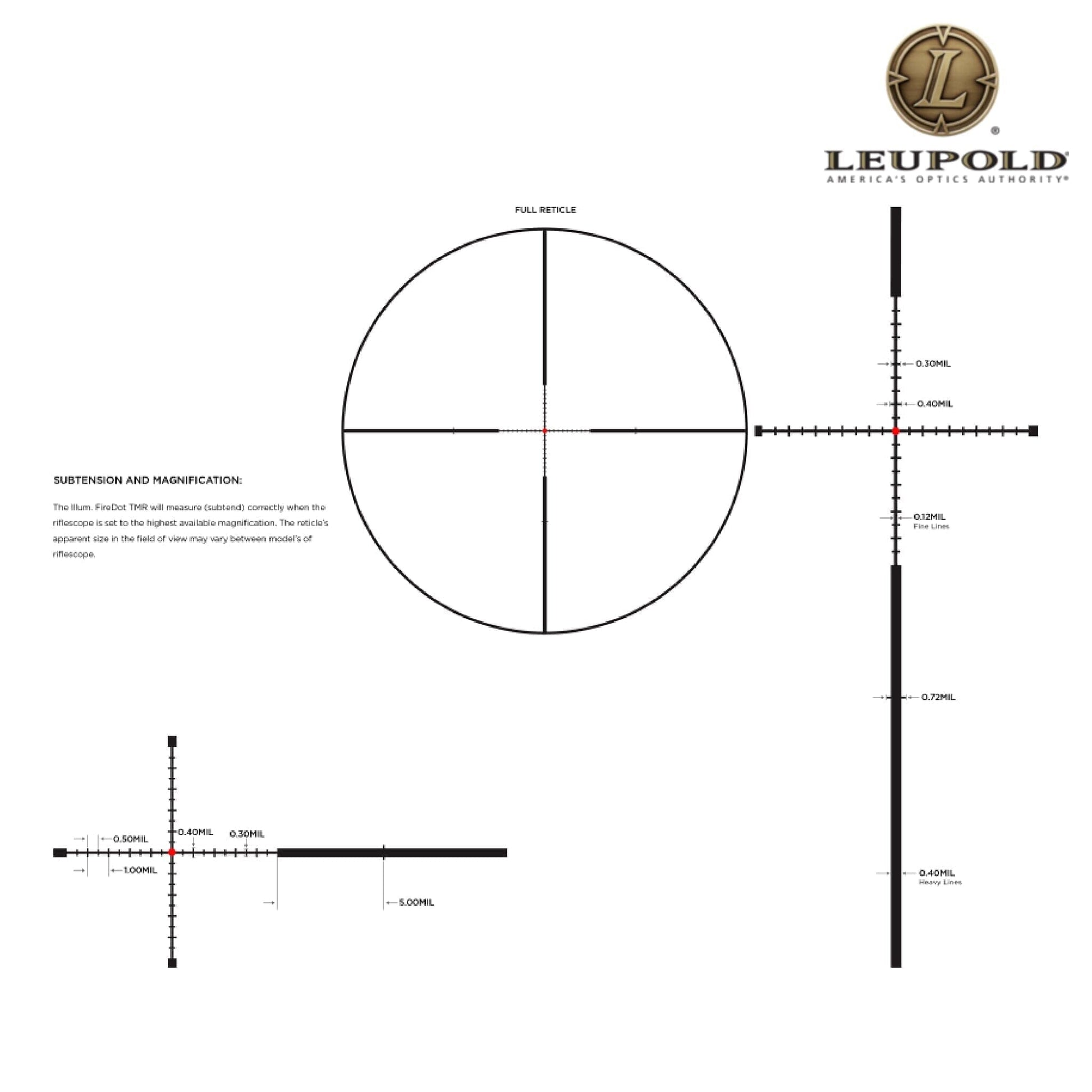

- FireDot® TMR Second Focal Plane Reticle: Glass-etched MIL-rad pattern with red-LED illumination (seven daylight-bright settings) for precise hold-over and wind-hold corrections at all magnifications.
- M5C3 Turret System: Exposed elevation turret with 0.1 MIL clicks; each revolution = 5 MIL, plus 3 MIL over-travel (total ±7.5 MIL); low-profile windage turret with 0.1 MIL clicks under ZeroLock® cap.
- Rugged 30 mm Main Tube: CNC-machined 6061-T6 aluminum; waterproof, fog- and shock-proof (rated to .50 BMG).
- Compact & Lightweight: Only 10.7″ (272 mm) long and 24.3 oz (688 g), ideal for AR-style and lightweight hunting platforms.
Technical Specifications for Leupold Mark 4HD 1–4.5×24 Rifle Scope M5C3 SFP FireDot TMR Reticle
Specification |
Details |
Model / MPN |
183316 |
SKU |
183316 |
UPC |
030317036348 |
Magnification |
1 × ⇄ 4.5 × |
Objective Lens Diameter |
24 mm |
Main Tube Diameter |
30 mm |
Reticle |
FireDot TMR (FFP, LED-illuminated) |
Reticle Illumination |
Red LED; 7 daylight-bright settings |
Elevation Adjustment |
M5C3 turret; 0.1 MIL per click; 5 MIL per revolution; 3 MIL over-travel (±7.5 MIL total) |
Windage Adjustment |
0.1 MIL per click under low-profile ZeroLock® cap |
Parallax |
Fixed at 100 yd |
Eye Relief |
3.7″ – 3.9″ (94 – 99 mm) |
Field of View @ 100 yd |
103 ft (1×) ⇄ 23 ft (4.5×) |
Length |
10.7″ (272 mm) |
Weight |
24.3 oz (688 g) |
Finish / Housing Material |
Matte-black hard-coat anodize; 6061-T6 aluminum |
Waterproof / Fog-Proof |
Yes (IPX7) |
Shock-Proof |
Yes (rated to .50 BMG recoil) |
Battery |
(1) CR2032; ~1 600 hr life |
Included Accessories
- Integrated magnification throw lever
- ZeroLock® windage cap
- Lens covers
- User manual
