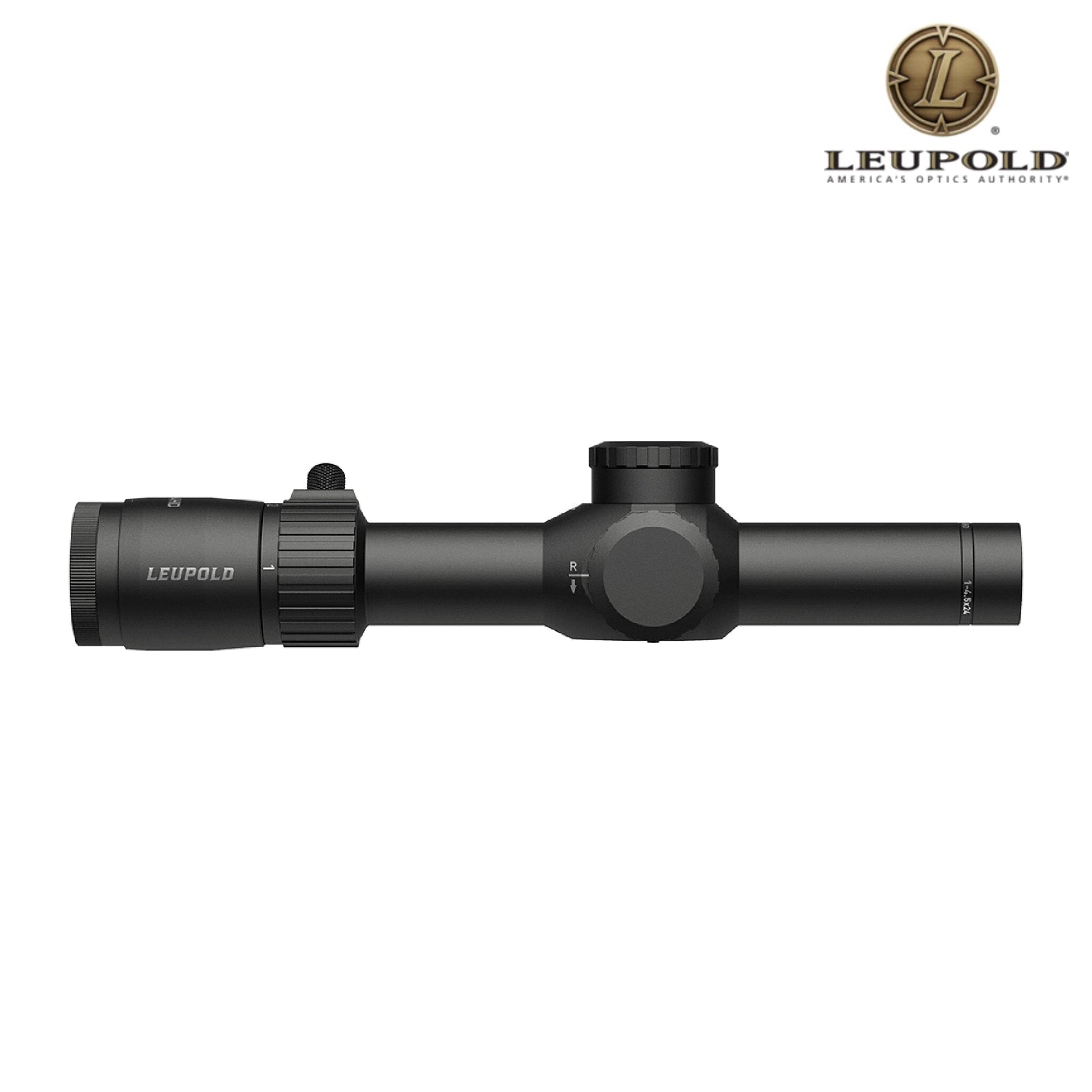

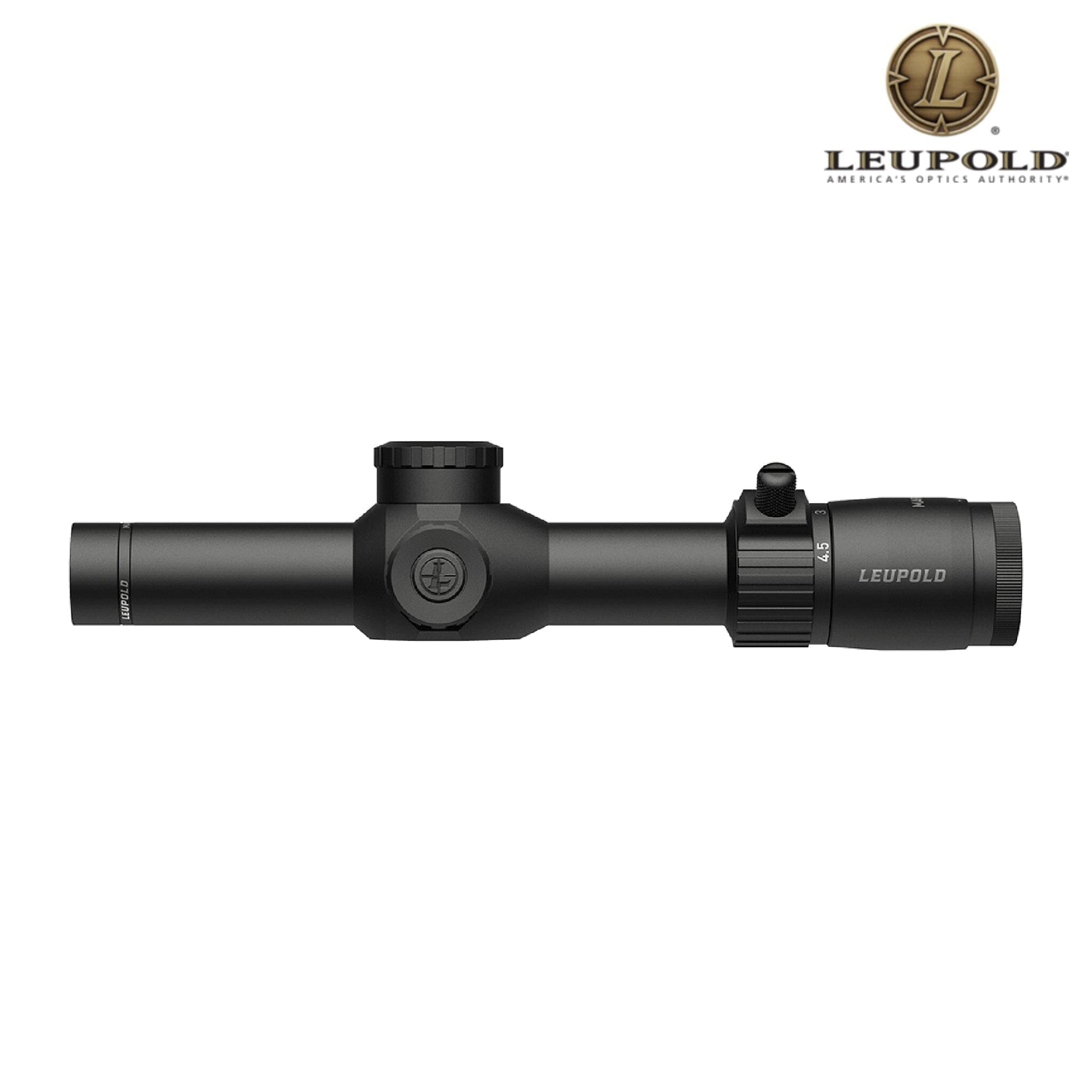

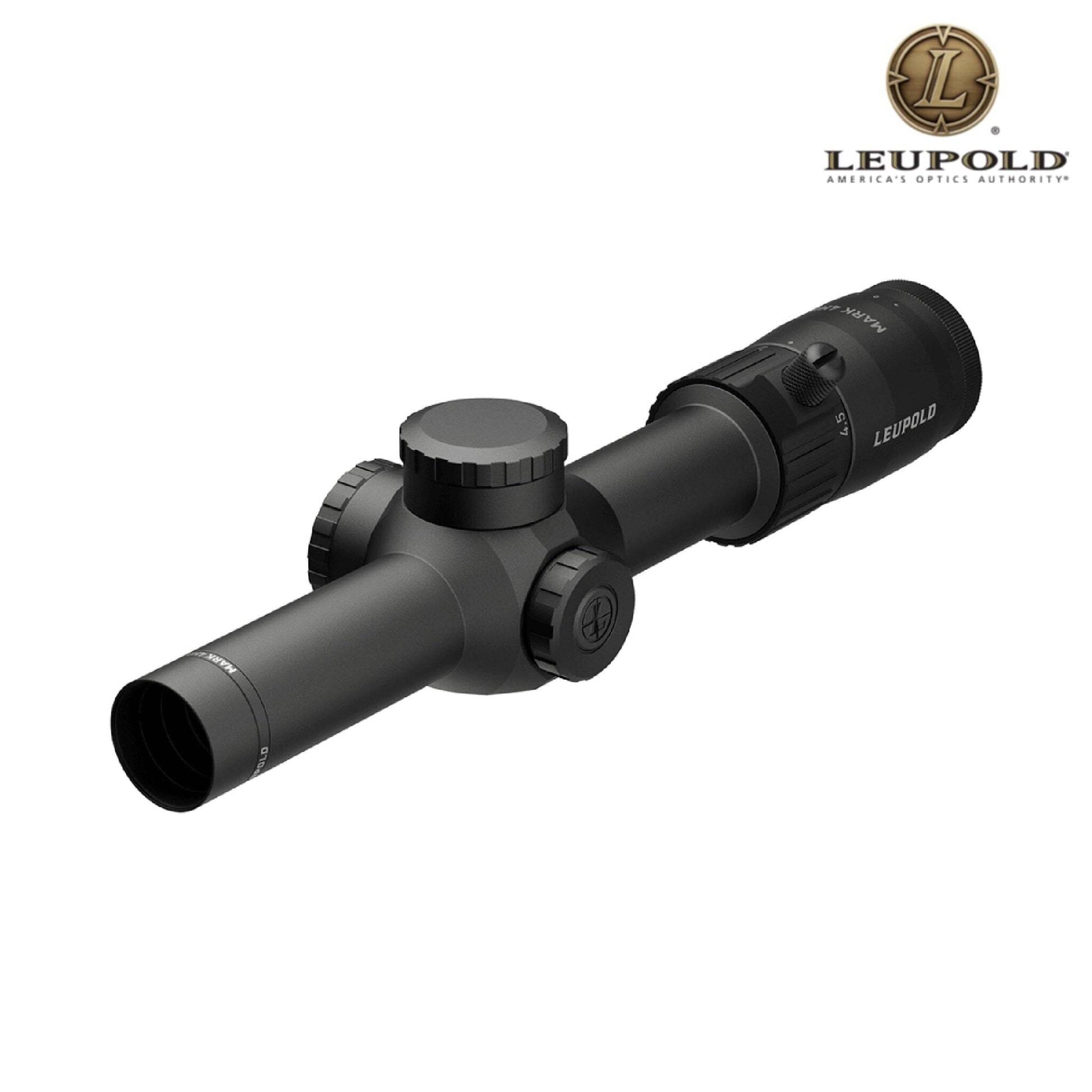

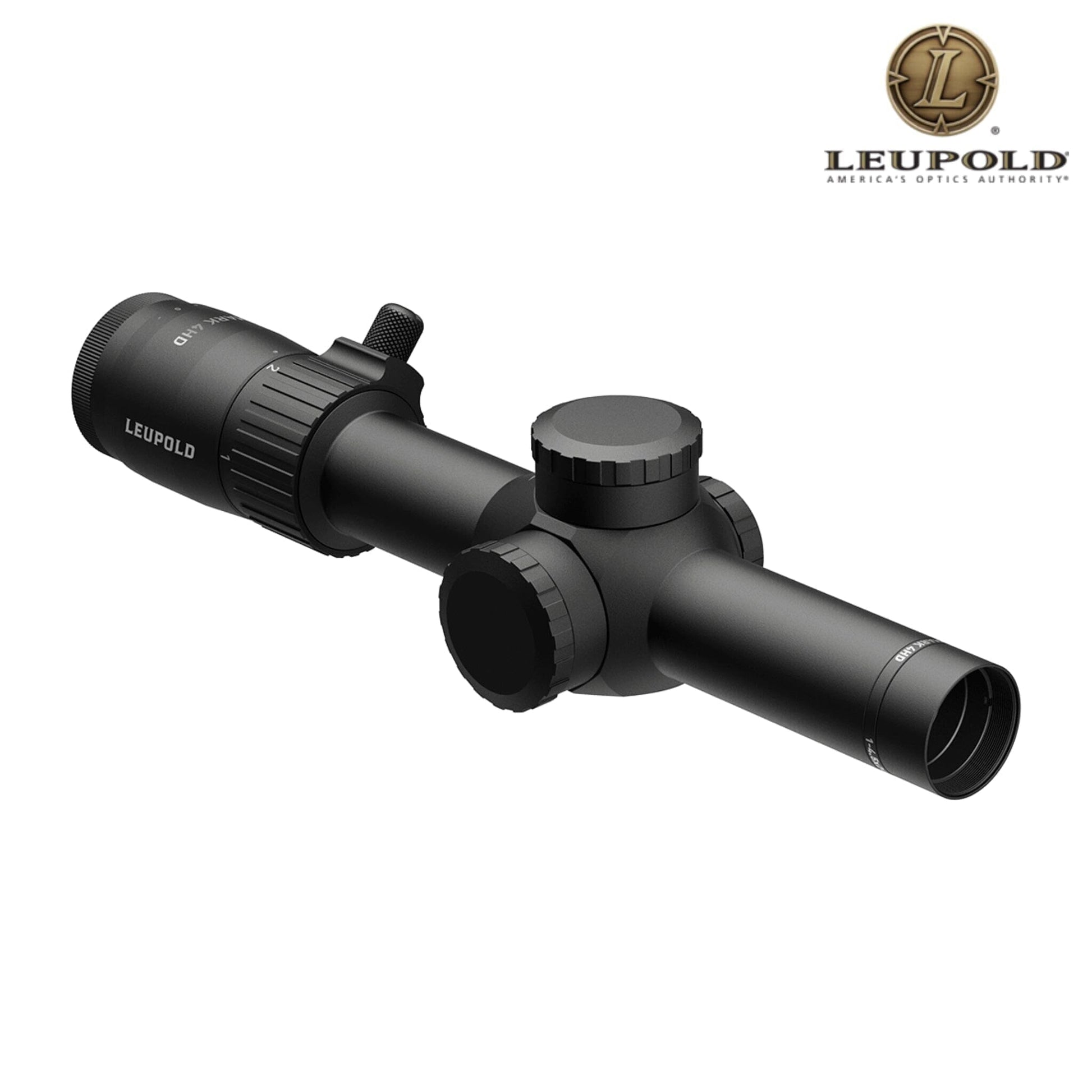

Leupold Mark 4HD 1-4.5x24 Rifle Scope SFP FireDot BDC Reticle
Leupold Mark 4HD 1-4.5x24 Rifle Scope SFP FireDot BDC Reticle
Couldn't load pickup availability
Leupold Mark 4HD 1–4.5×24 Rifle Scope SFP FireDot BDC Reticle
Features
- 4:1 Zoom Ratio: Slim throw-lever lets you sweep between 1× (wide field) and 4.5× (precision) in a flash.

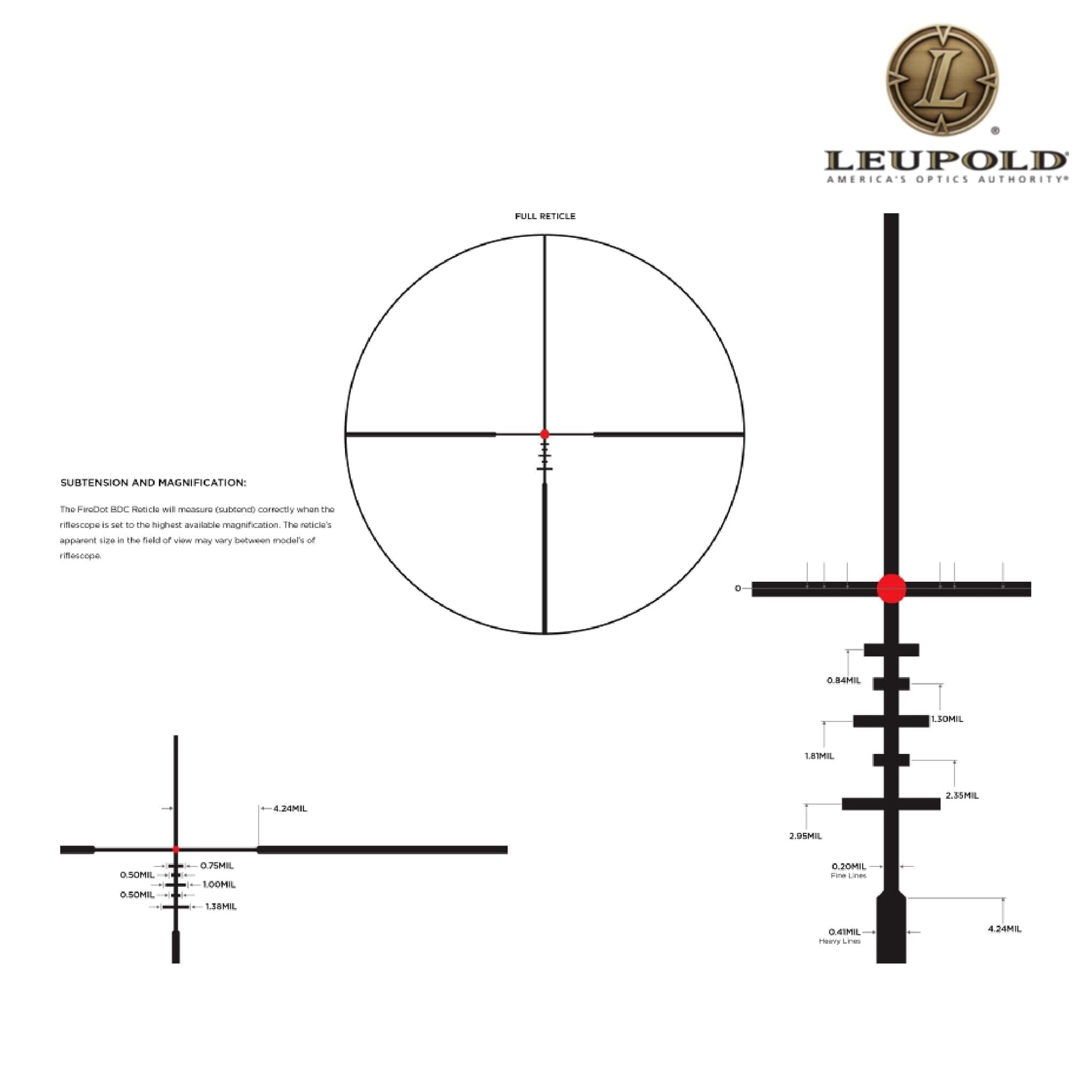

- Illuminated FireDot® BDC Reticle: Second-focal-plane glass-etched BDC pattern calibrated for standard 5.56 NATO ballistics; red-LED illumination with seven daylight-bright settings.
- Professional-Grade Optical System: Fully multi-coated lenses and prisms (Xtended Twilight®) maximize light transmission and edge-to-edge clarity.
- 25-Yard Side Focus: Quick-set parallax adjustment from 25 yd to infinity for tack-sharp reticle alignment at any range.
- Capped Windage & Elevation Turrets: 0.1 MIL per click tactile adjustments under protective covers; positive ZeroLock® caps prevent accidental shifts.
- Tool-Less Integrated Throw Lever: Low-profile lever for fast, reliable magnification changes.
- Rugged Construction: 30 mm main tube of 6061-T6 aluminum; waterproof, fog-proof, and shock-proof to .50 BMG recoil.
- Made in USA & Lifetime-Guaranteed: Built, machined, and assembled stateside under Leupold’s exacting standards.
Technical Specifications for Leupold Mark 4HD 1–4.5×24 Rifle Scope SFP FireDot BDC Reticle
Specification |
Details |
Model / MPN |
183315 |
SKU |
183315 |
UPC |
030317671853 |
Magnification |
1 × ⇄ 4.5 × |
Objective Lens Diameter |
24 mm |
Main Tube Diameter |
30 mm |
Reticle |
FireDot® BDC (SFP, LED-illuminated) |
Illumination Settings |
7 daylight-bright levels |
Elevation / Windage |
0.1 MIL per click; ±7.5 MIL total; capped turrets |
Parallax Focus |
Side focus, 25 yd – ∞ |
Eye Relief |
3.7″ – 3.9″ (94 – 99 mm) |
Field of View @ 100 yd |
118.8 ft (1×) ⇄ 25.2 ft (4.5×) |
Length |
9.4″ (239 mm) |
Weight |
13.1 oz (371 g) |
Finish / Housing Material |
Matte-black hard-coat anodize; 6061-T6 aluminum |
Waterproof / Fog-Proof |
Yes (IPX7) |
Shock Resistance |
Rated to withstand .50 BMG recoil |
Battery |
(1) CR2032; ~1 600 hr life |
Included Accessories
- Integrated throw lever
- (2) ZeroLock® turret caps
- Lens covers
- User manual
