Leupold

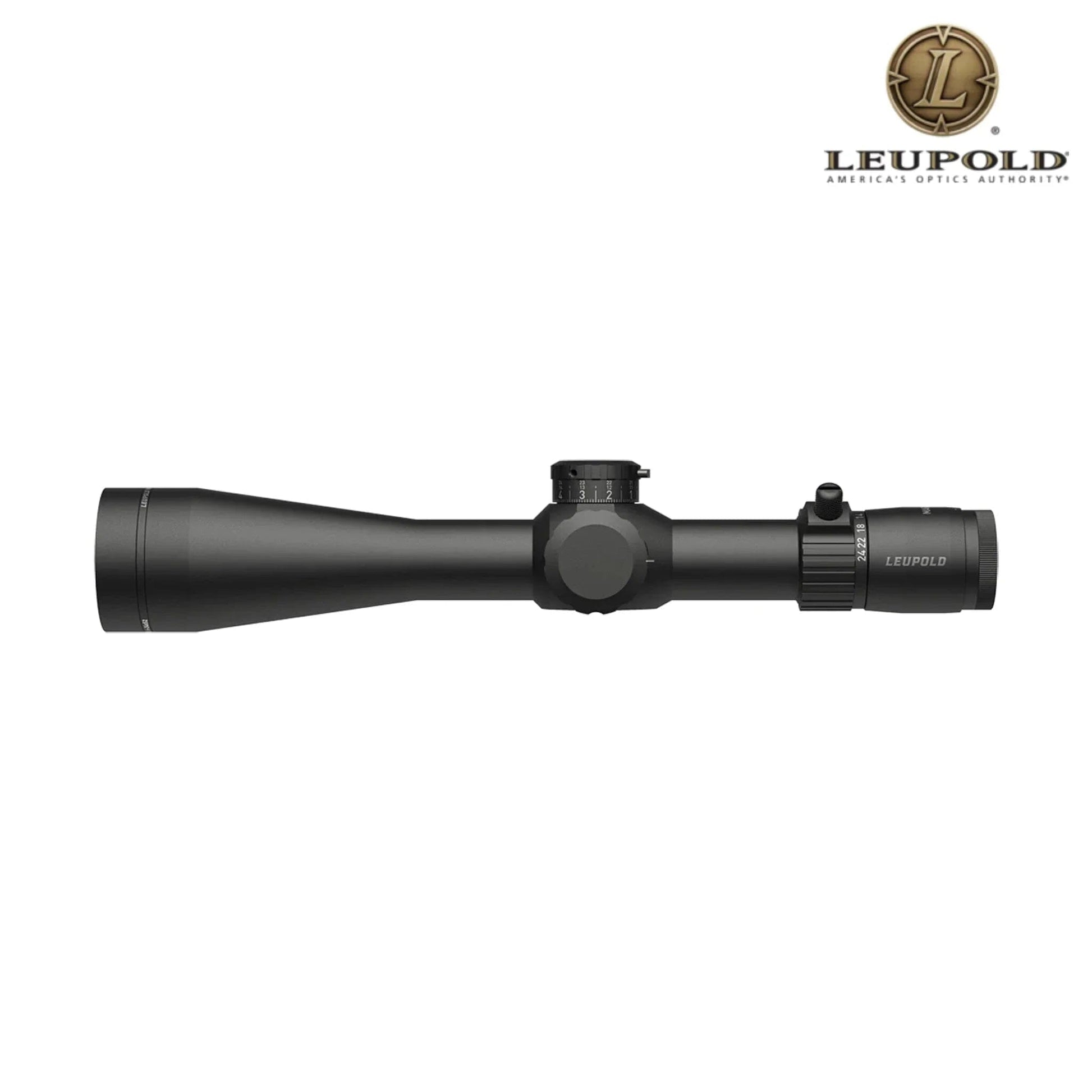

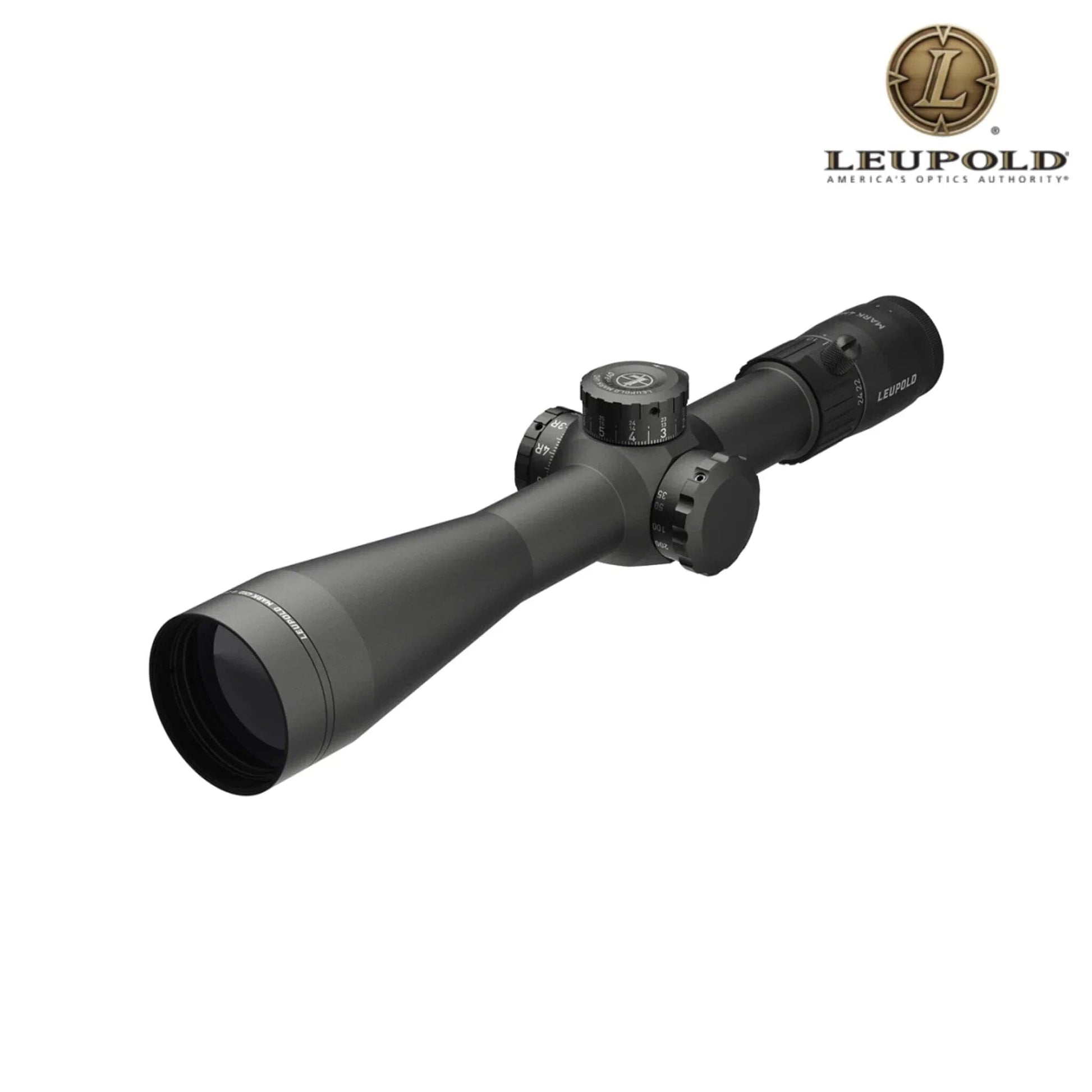

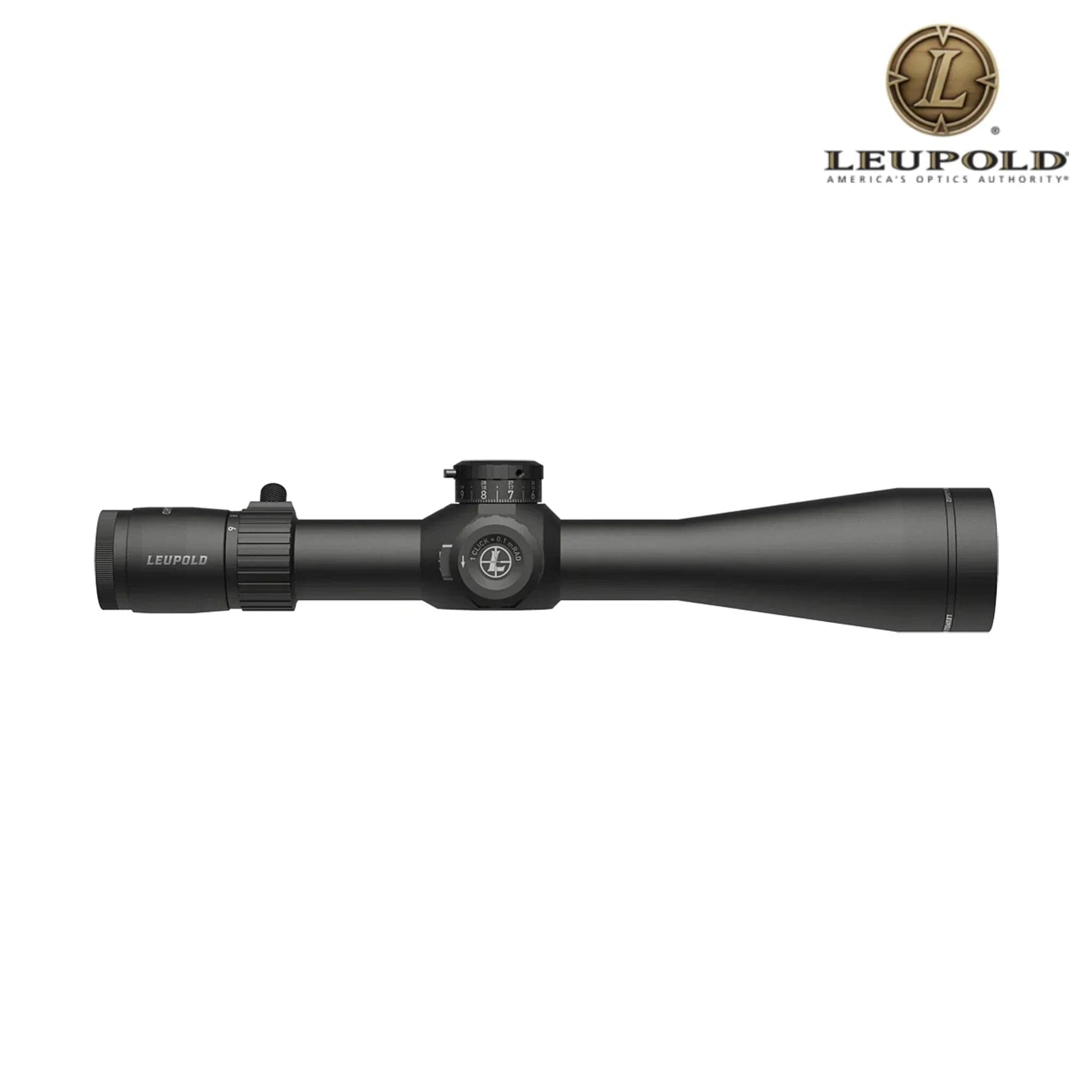

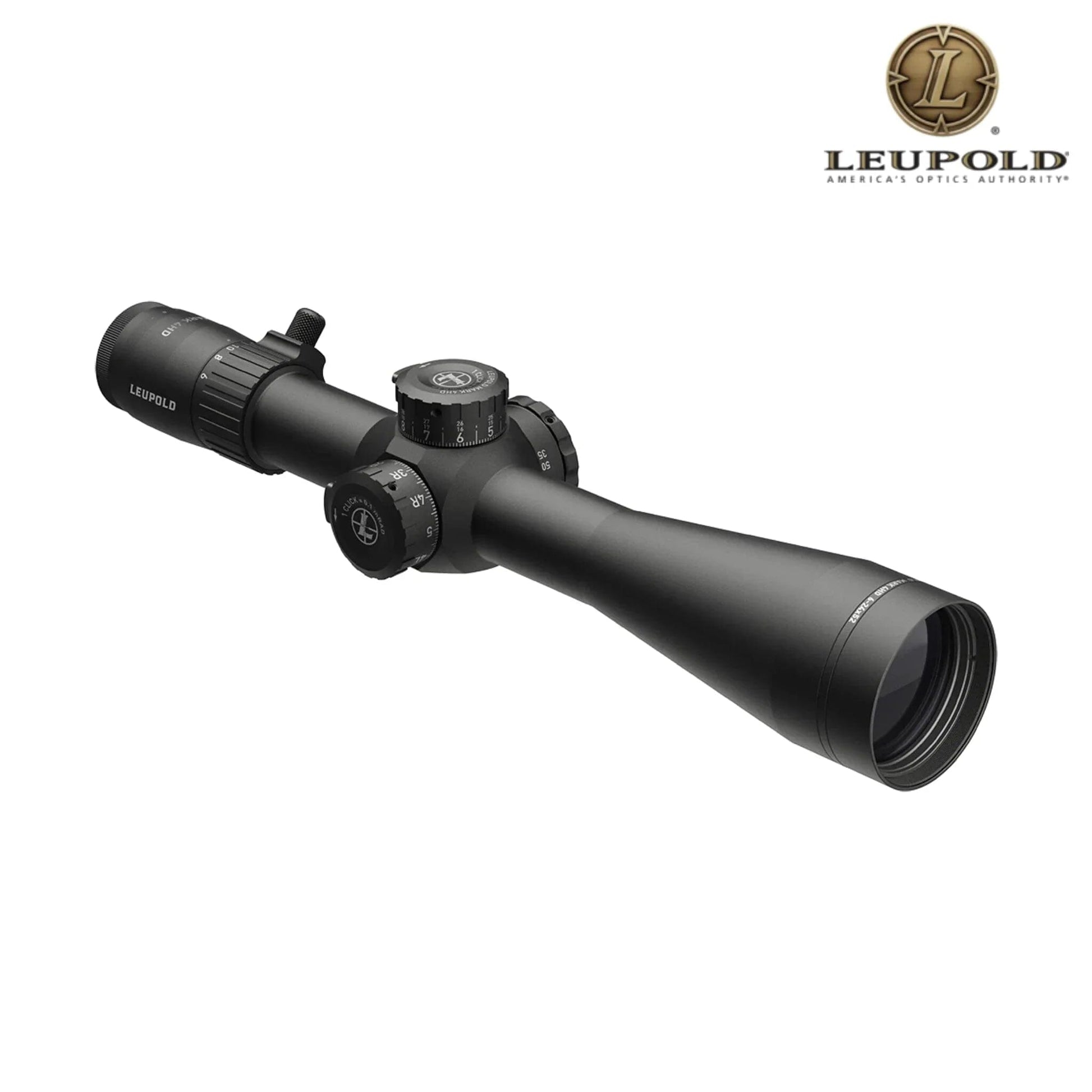

Leupold Mark 4HD 6-24x52 Rifle Scope M5C3 Side Focus FFP PR3-MIL Reticle

Leupold Mark 4HD 6-24x52 Rifle Scope M5C3 Side Focus FFP PR3-MIL Reticle

Regular price $1,499.99 USD
Regular price Sale price $1,499.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Leupold Mark 4HD 6–24×52 Rifle Scope M5C3 Side Focus FFP PR3-Mil Reticle

(Model 183824)

Features

  • 4:1 Zoom Ratio: High-speed throw lever for rapid transitions between 6× (wide field) and 24× (precision).

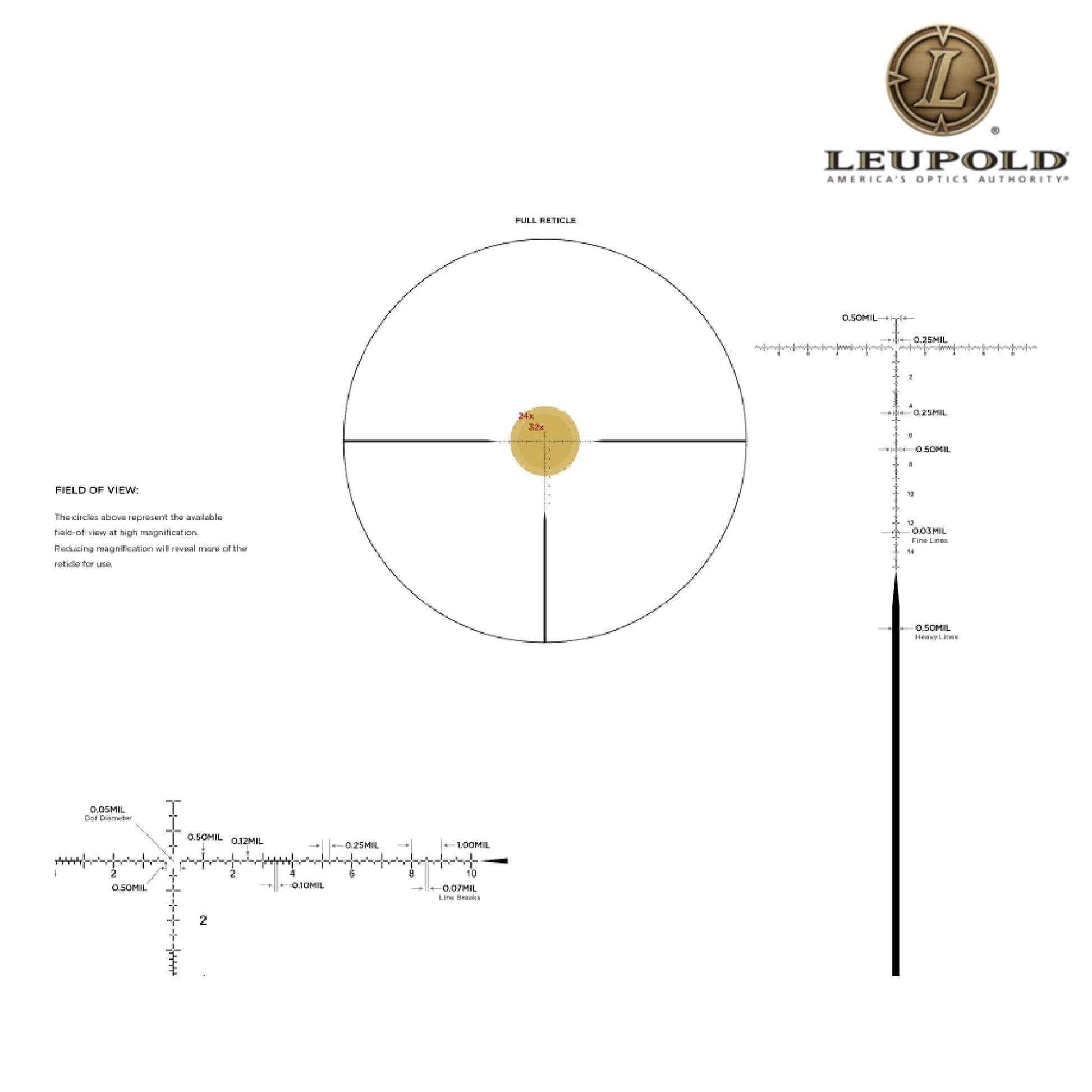

  • First-Focal-Plane PR3-Mil Reticle: Glass-etched Precision Rifle™ pattern calibrated in milliradians for true hold-over/hold-off at any magnification (non-illuminated).
  • M5C3 Turret System:
    • Elevation: Exposed ZeroLock® turret with 0.1 mrad per click; 10 mrad per revolution; 30 mrad total travel; positive ZeroStop® to return to zero.
    • Windage: Low-profile capped turret with 0.1 mrad per click; 24 mrad per revolution under lockable cap.
  • 25-Yard Side Focus: Quick-set parallax dial adjusts from 25 yd to ∞ for razor-sharp reticle alignment.
  • Elite Optics: Fully multi-coated lenses and prisms (Xtended Twilight® system) deliver exceptional light transmission, contrast, and edge-to-edge clarity.
  • Rugged Construction: CNC-machined 34 mm main tube of 6061-T6 aluminum with matte-black hard-coat anodize; IPX7 waterproof, nitrogen-purged, and rated to withstand .50 BMG recoil.
  • Made in USA & Lifetime Guarantee

Technical Specifications for Leupold Mark 4HD 6–24×52 Rifle Scope M5C3 Side Focus FFP PR3-Mil Reticle

Specification

Details

Model / MPN

183824

SKU

183824

UPC

030317036775

Country of Origin

USA

Magnification Range

6 × 24 ×

Objective Lens Diameter

52 mm

Main Tube Diameter

34 mm

Reticle

PR3-Mil (FFP, glass-etched; non-illuminated)

Elevation Adjustment

M5C3 ZeroLock®; 0.1 mrad/click; 10 mrad/rev; 30 mrad total

Windage Adjustment

0.1 mrad/click under cap; 24 mrad/rev

Parallax Focus

Side focus, 25 yd → ∞

Eye Relief

4.0″ – 3.8″ (102 – 97 mm)

Field of View @ 100 yd

17.3 ft (low) 4.7 ft (high)

Overall Length

14.6″ (371 mm)

Weight

27 oz (766 g)

Housing / Finish

6061-T6 aluminum; matte-black hard-coat anodize

Waterproof / Fog-Proof

IPX7 (1 m for 30 min)

Shock Resistance

Rated to withstand .50 BMG recoil

Included Accessories

  • High-speed throw lever
  • ZeroLock® windage cap
  • Flip-up protective lens covers
  • User manual
