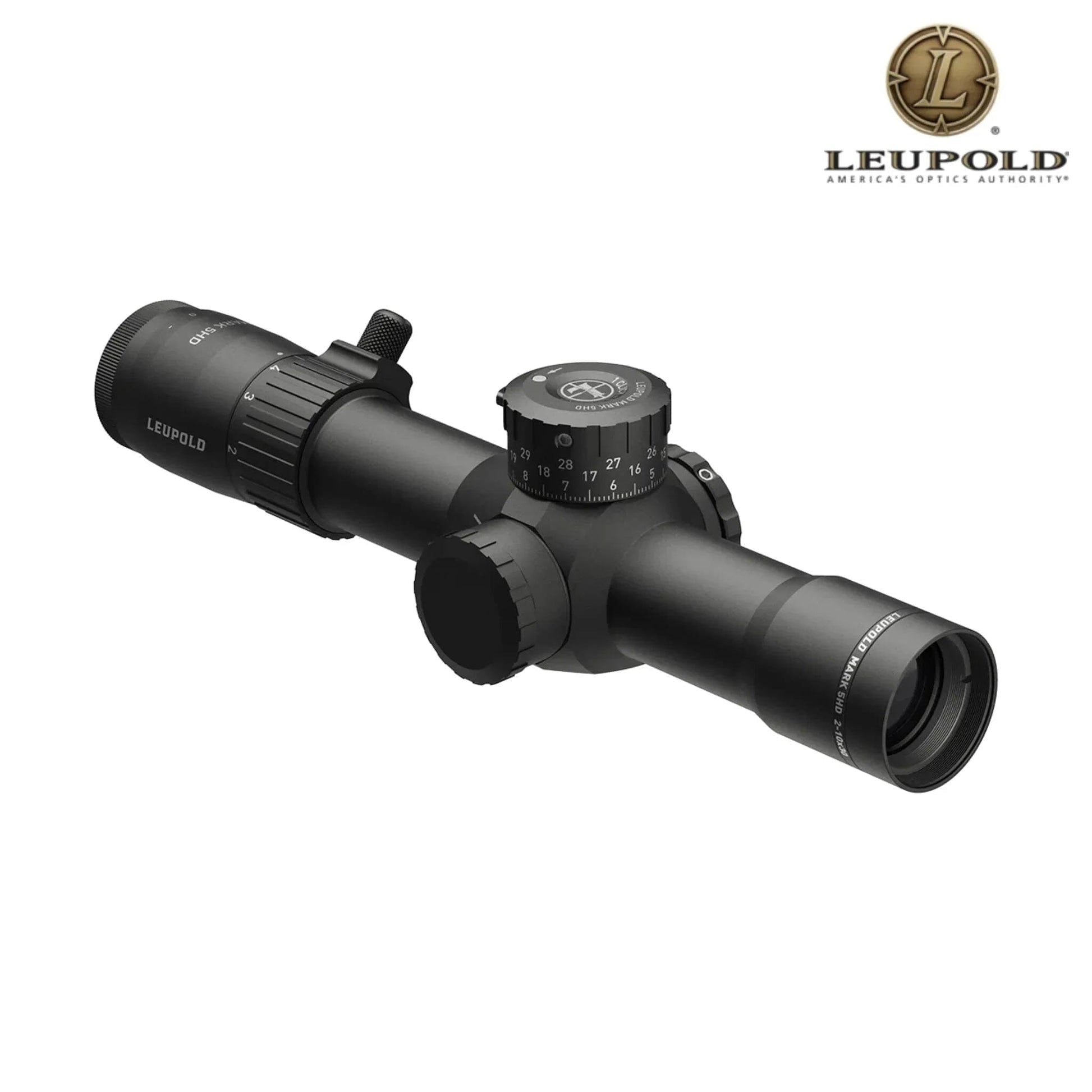

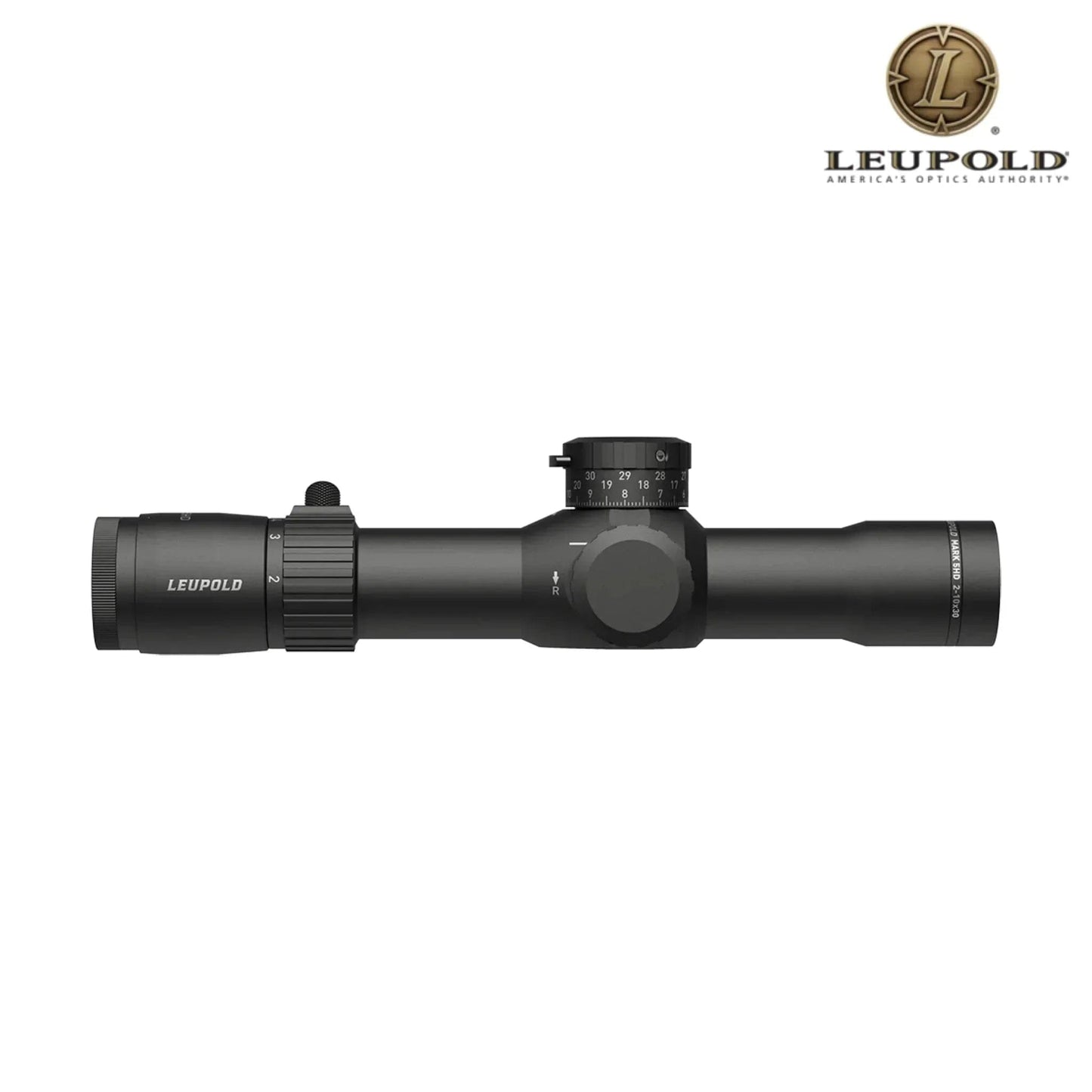

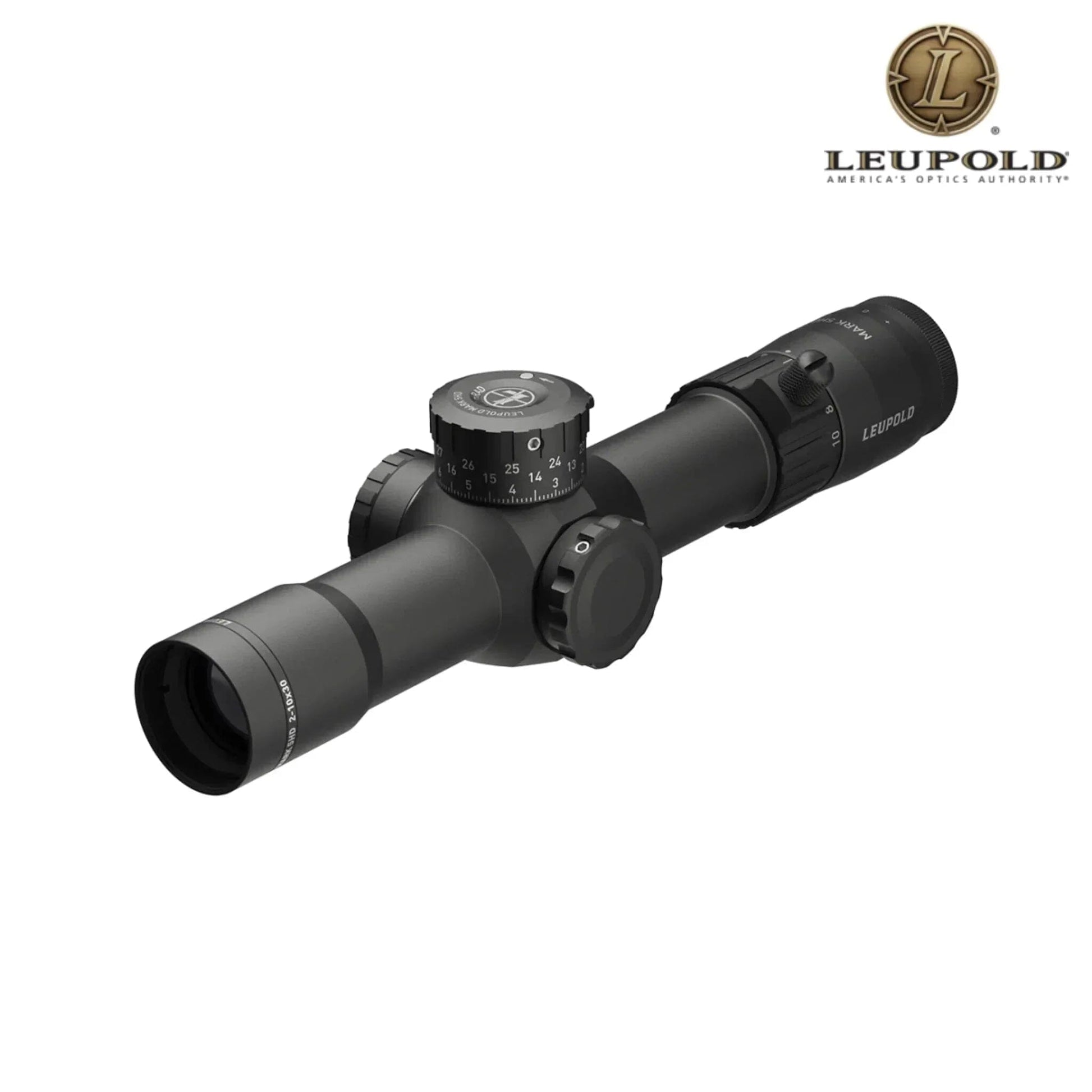

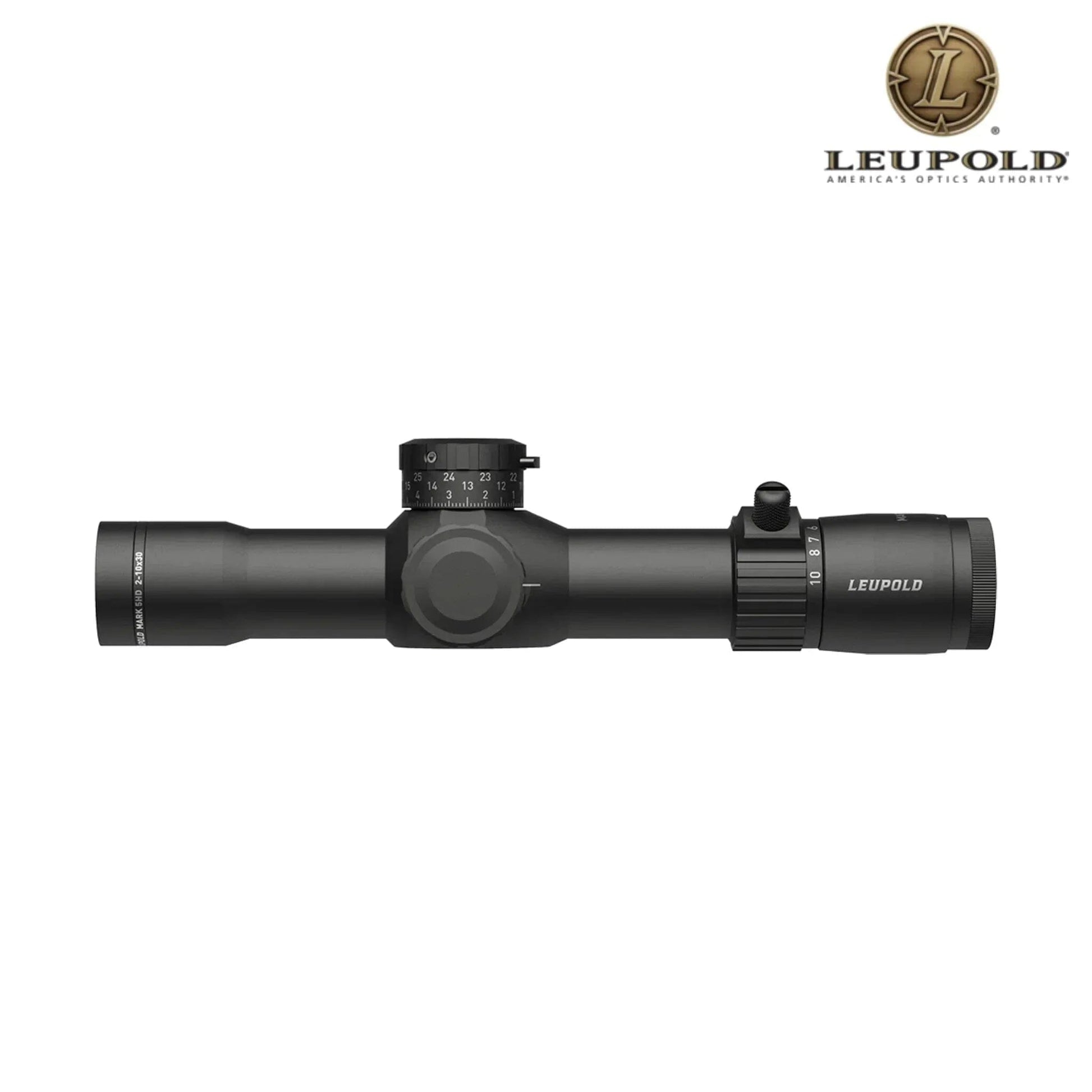

Leupold Mark 5HD 2–10×30 Rifle Scope M5C3 FFP TMR Reticle
Leupold Mark 5HD 2–10×30 Rifle Scope M5C3 FFP TMR Reticle
Couldn't load pickup availability
Leupold Mark 5HD 2–10×30 Rifle Scope M5C3 FFP TMR Reticle
(Model 179702)
Features
- 5:1 Zoom Ratio: Versatile 5× difference between low (2×) and high (10×) magnification for CQB to mid-range engagements.

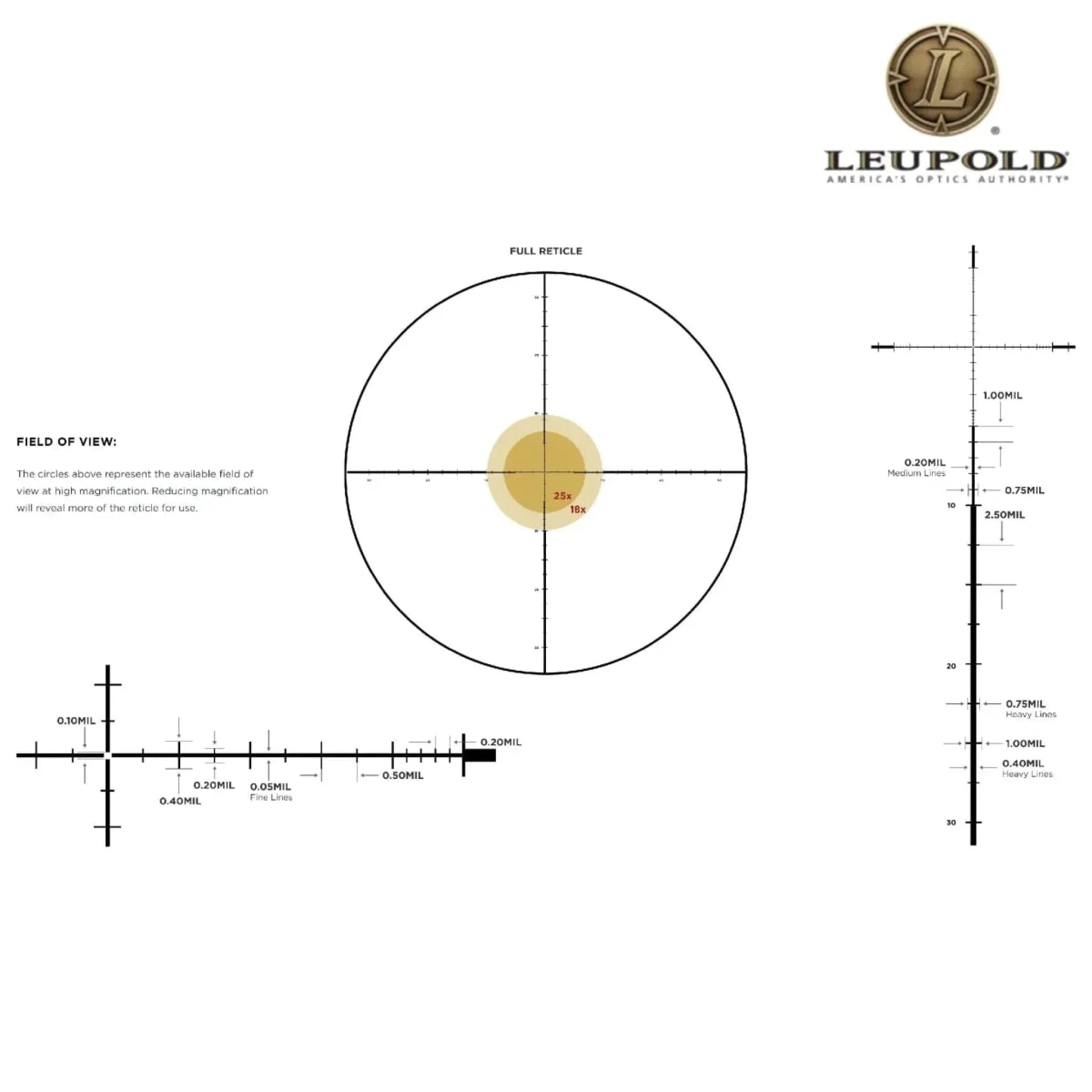

- First Focal Plane TMR™ Reticle: Glass-etched Tactical Milling Reticle (Mk) calibrated in milliradians; non-illuminated to conserve power and simplify use.
- M5C3 Turret System:
- Elevation: Exposed ZeroLock® elevation turret; 0.1 mrad per click; 10.5 mrad per revolution; 48 mrad total range (165 MOA); built-in ZeroStop™ to return exactly to zero.
- Windage: Low-profile capped windage turret; 0.1 mrad per click; 10 mrad per revolution; 23 mrad total range (80 MOA).
- Side Focus Parallax: Adjustable parallax from 30 m to infinity for precise reticle focus.
- Professional-Grade Optical System: Extra-low dispersion glass and fully multi-coated lenses/prisms (Xtended Twilight®) deliver outstanding light transmission, clarity, and contrast.
- Rugged Construction: CNC-machined 35 mm main tube of 6061‑T6 aluminum; matte-black hard-coat anodize; waterproof, fog-proof, and shock-proof to .50 BMG.
- Extended Eye Relief: 3.6″–3.7″ (92–94 mm) constant for comfortable head position and rapid acquisition.
- Made in USA & Lifetime Guarantee
Technical Specifications for Leupold Mark 5HD 2–10×30 Rifle Scope M5C3 FFP TMR Reticle
Specification |
Details |
Model / MPN |
179702 |
SKU |
179702 |
UPC |
030317026424 |
Country of Origin |
USA |
Magnification Range |
2 × ⇄ 10 × |
Objective Lens Diameter |
30 mm |
Main Tube Diameter |
35 mm |
Reticle Type |
TMR™ Mk (FFP, glass-etched; non-illuminated) |
BDC Dial Included |
No |
Custom Dial System® Compatible |
No |
Elevation Adjustment Value |
0.1 mrad (¼ MOA) per click |
Elevation Adjustment Range |
48 mrad (165 MOA) |
Elevation per Revolution |
10.5 mrad |
Elevation Dial Travel Limit |
30 mrad |
Windage Adjustment Value |
0.1 mrad per click |
Windage Adjustment Range |
23 mrad (80 MOA) |
Windage per Revolution |
10 mrad |
Parallax Adjustment |
Side focus, 30 m – ∞ |
Eye Relief |
3.6″ (low) – 3.7″ (high) (92 – 94 mm) |
Field of View @ 100 yd |
52.9 ft (low) – 10.5 ft (high) |
Overall Length |
11.2″ (284 mm) |
Weight |
24 oz (680 g) |
Finish / Housing Material |
6061‑T6 aluminum; matte-black hard-coat anodize |
Waterproof / Fog-Proof |
Yes (IPX7) |
Shock Resistance |
Rated to withstand .50 BMG recoil |
Included Accessories
- Low-profile throw-lever
- ZeroLock® windage cap
- Flip-up lens covers
- User manual
