Leupold Mark 5HD 5-25x56 Rifle Scope M5C3 FFP PR2-MIL Reticle Dark Earth
Leupold Mark 5HD 5-25x56 Rifle Scope M5C3 FFP PR2-MIL Reticle Dark Earth
Couldn't load pickup availability

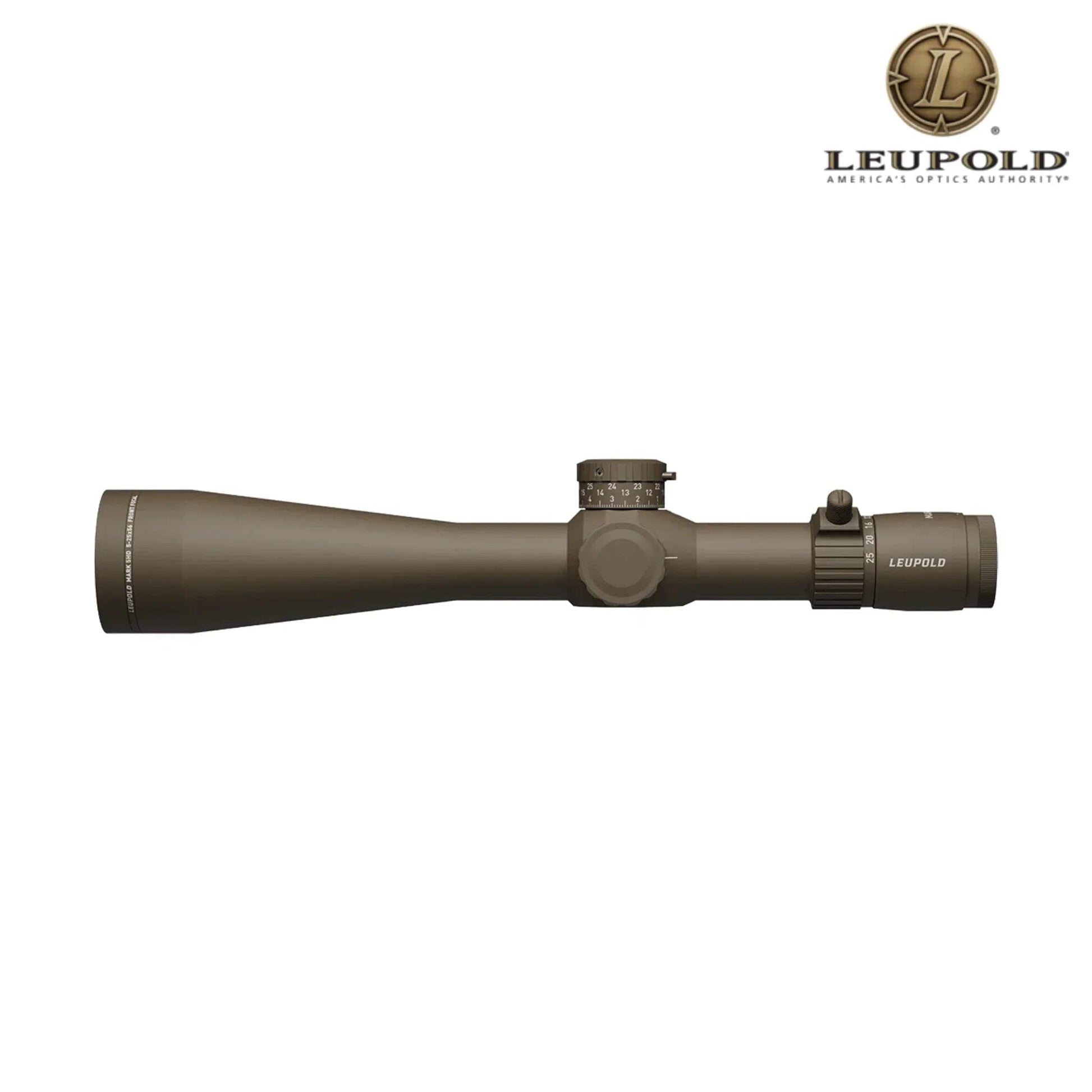

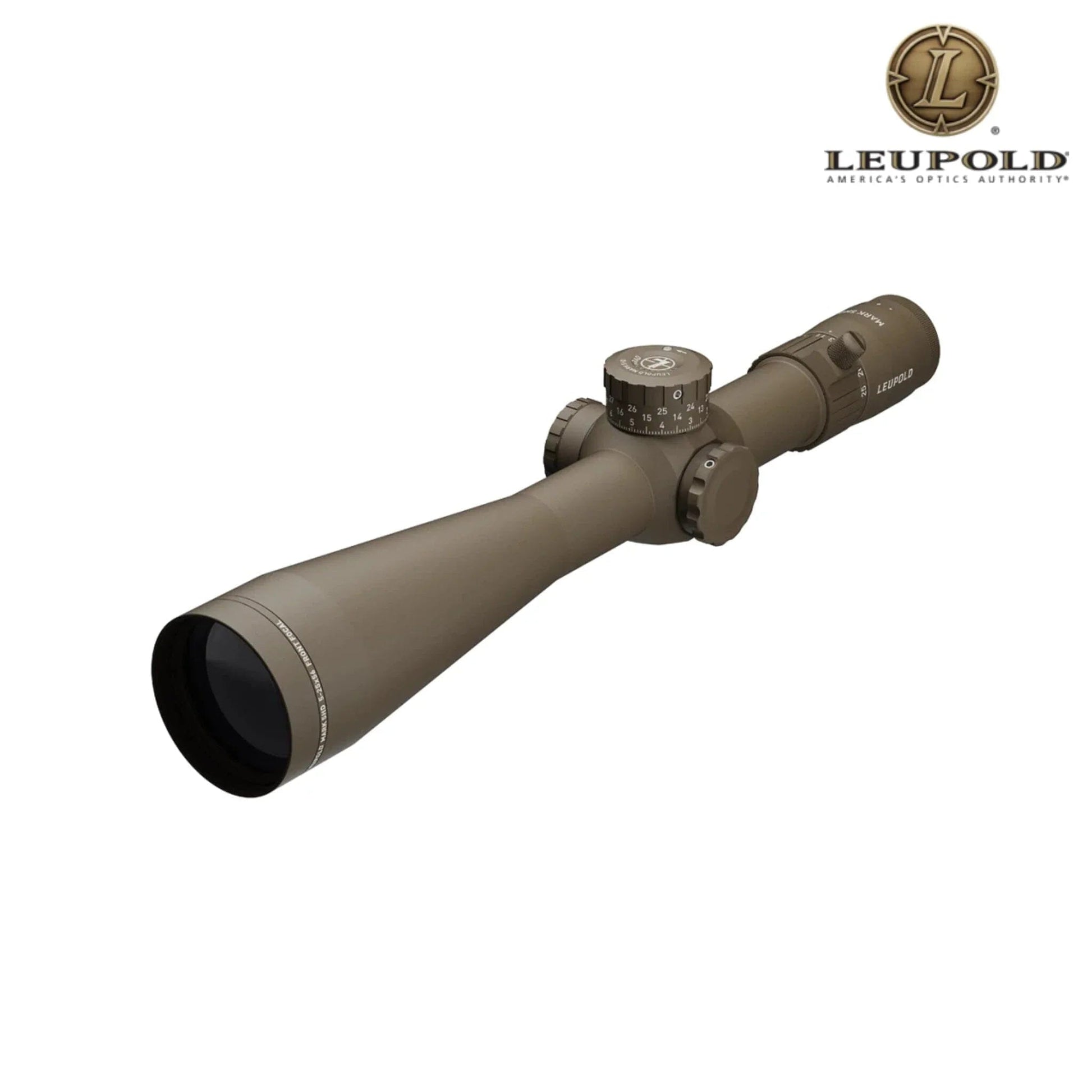

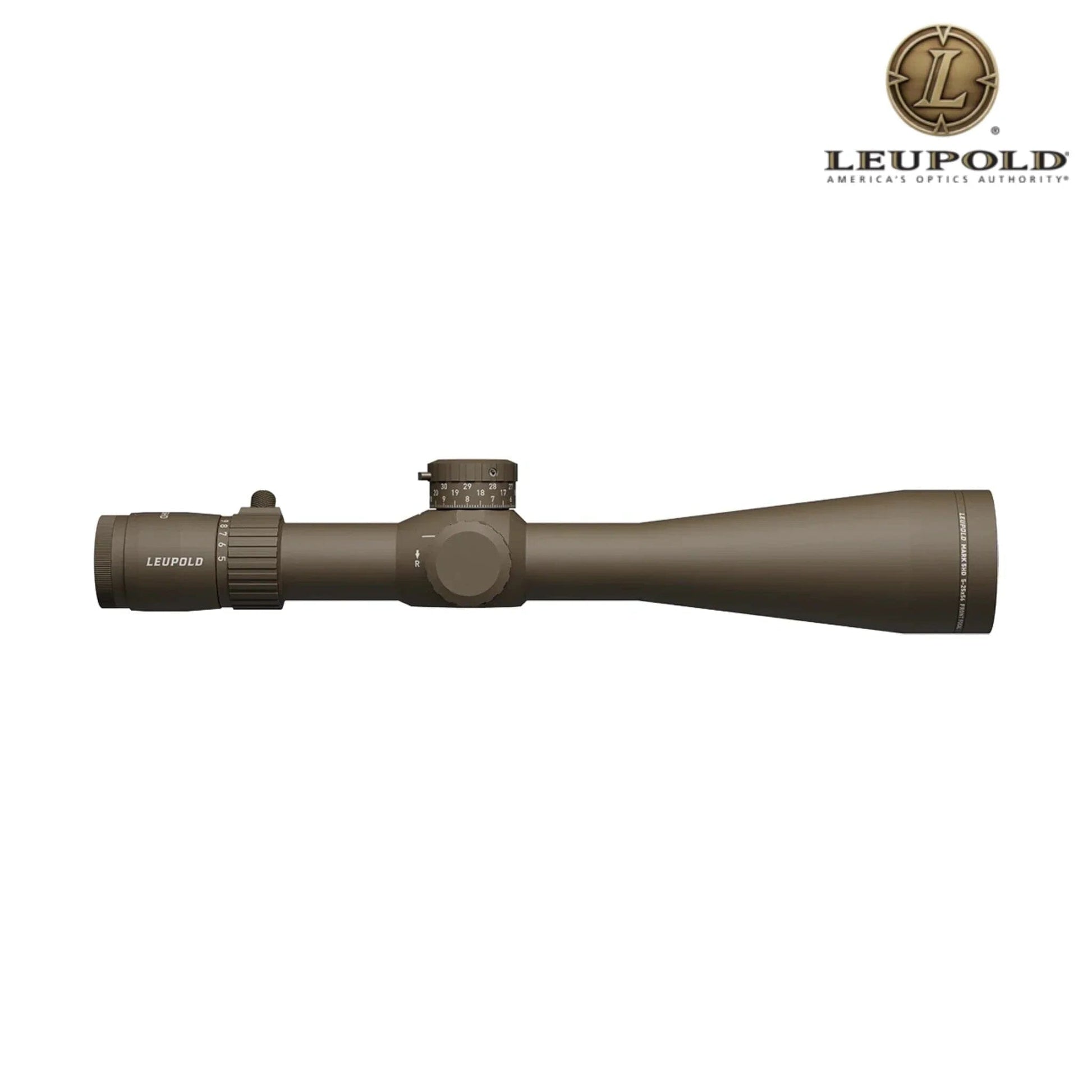

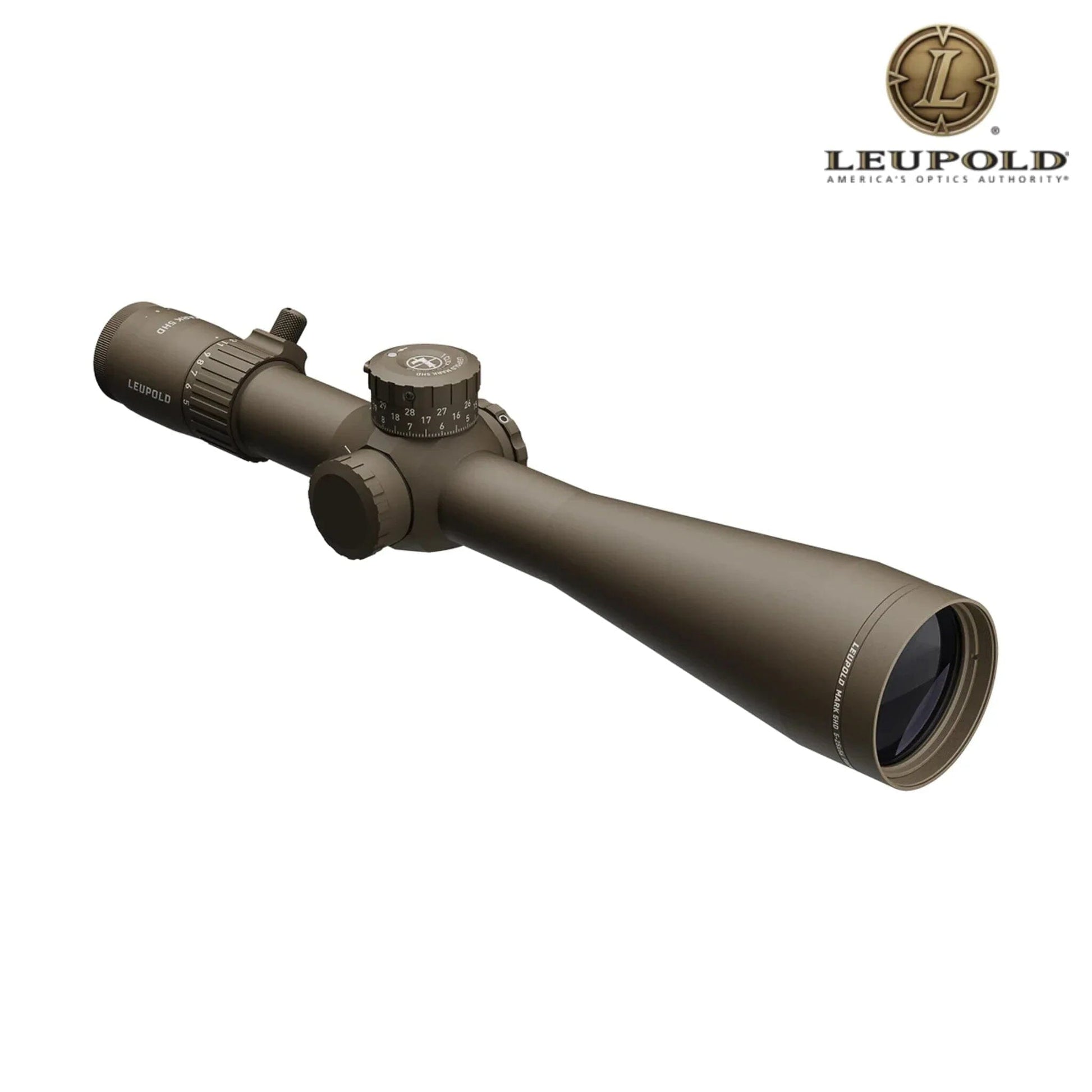

Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP PR2-MIL Reticle Dark Earth
(Model 185071)
Features
- 5:1 Zoom Ratio: High-speed throw-lever for smooth transitions between 5× (close-to-mid range) and 25× (long-range precision).

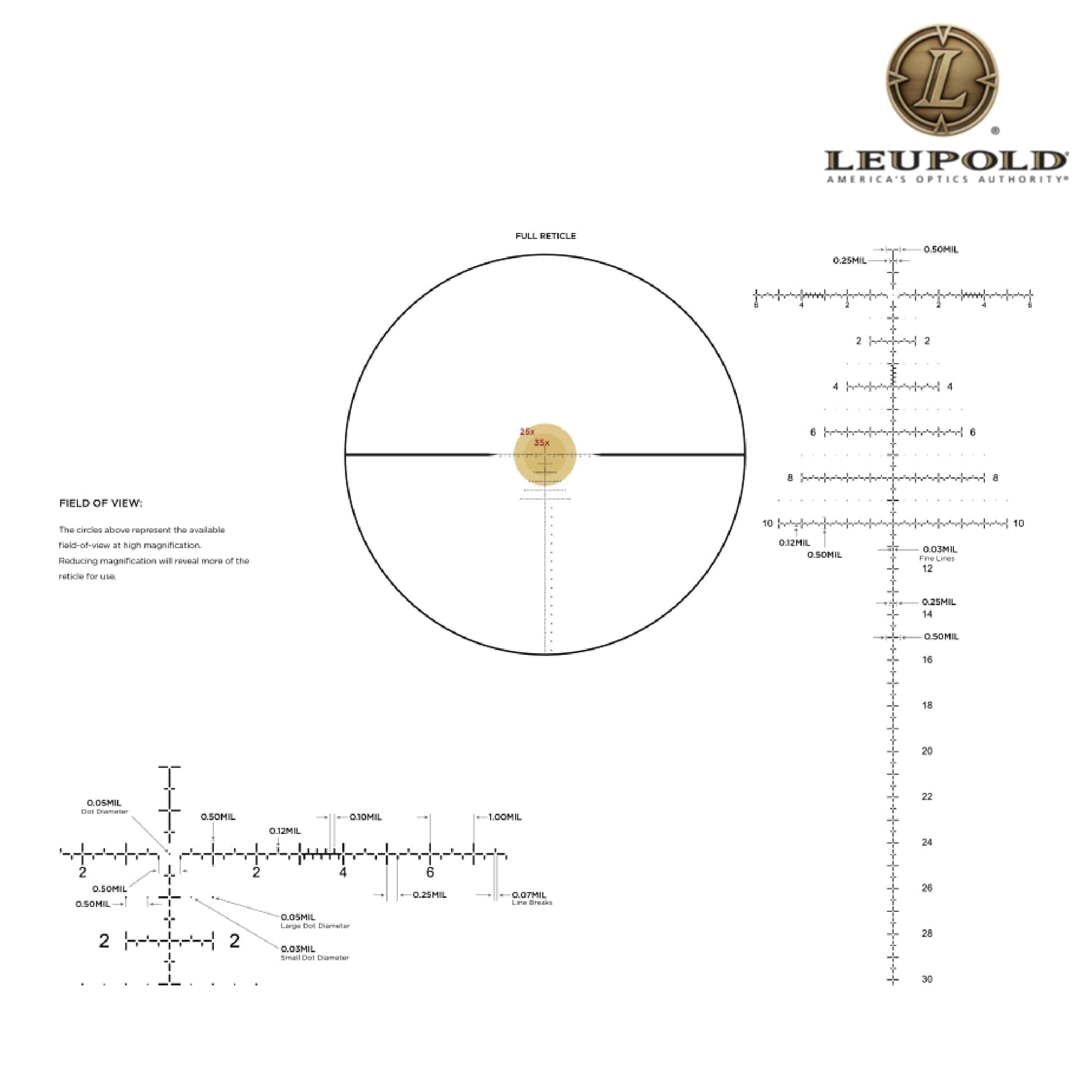

- First-Focal-Plane PR2-MIL™ Reticle: Glass-etched 2 mrad subtension grid with integrated ranging tree—true hold-over/hold-off at any magnification; non-illuminated for an uncluttered sight picture.

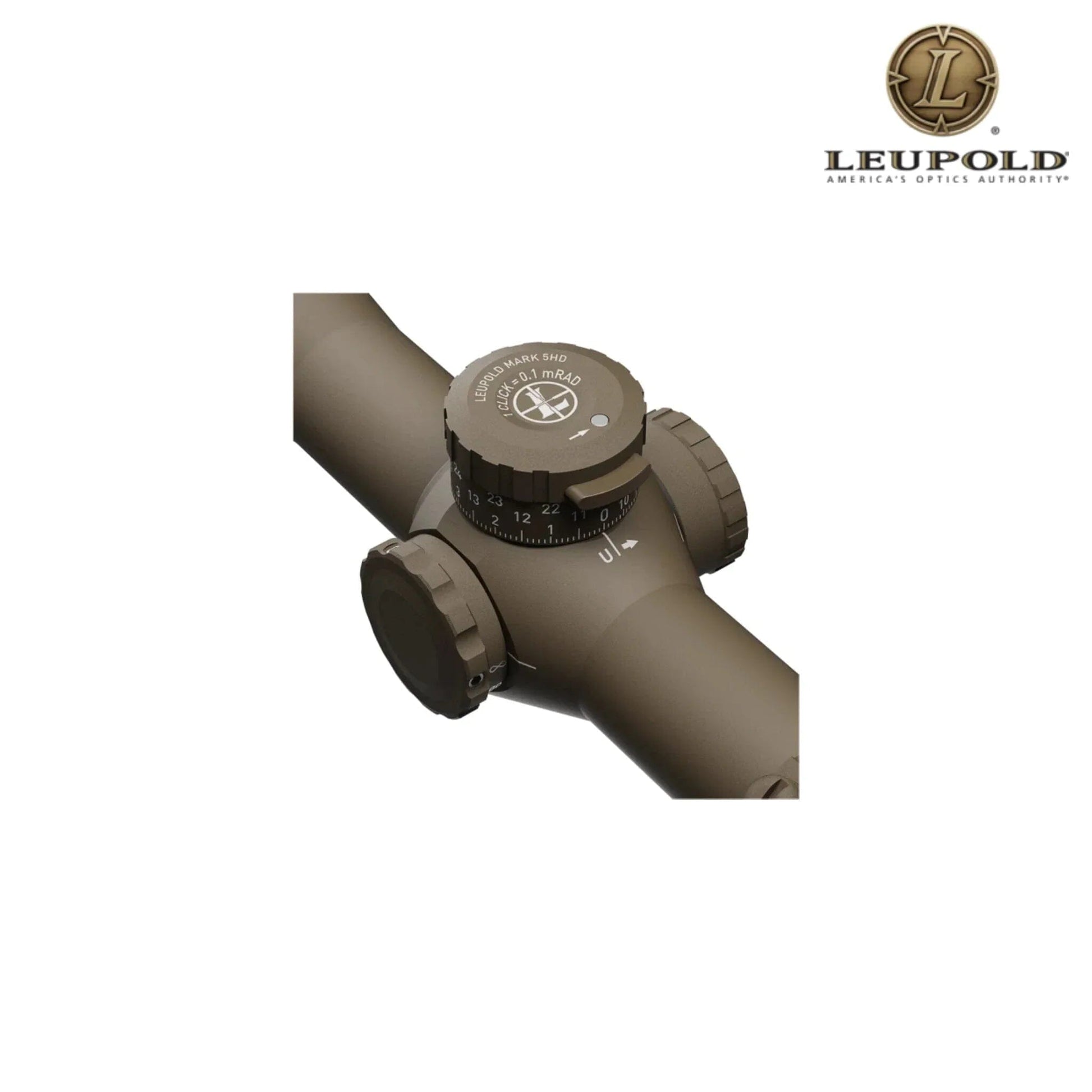

- M5C3 ZeroLock® Turret System:
- Elevation: Exposed, lockable turret; 0.1 mrad per click; 10 mrad per revolution; 30 mrad total travel; positive ZeroStop™ for instant, repeatable return to zero.
- Windage: Low-profile capped turret; 0.1 mrad per click; 24 mrad total travel; visual/tactile revolution indicator under cap.
- Precision Side Focus Parallax: Quick-set adjustment from 50 yd to ∞ for tack-sharp reticle alignment.
- Professional-Grade Optics: Xtended Twilight® fully multi-coated lenses and extra-low dispersion glass for exceptional resolution, contrast, and edge-to-edge clarity.
- Rugged Construction: CNC-machined 35 mm main tube of 6061-T6 aluminum with Flat Dark Earth hard-coat anodize; IPX7 waterproof/fog-proof; nitrogen-purged; rated to withstand .50 BMG recoil.
- Extended Eye Relief: 3.5″ (89 mm) at low magnification → 3.8″ (97 mm) at high for comfortable, repeatable head positioning.
- Lightweight Design: 30 oz (850 g) for easy mounting and carry without sacrificing durability.
- Made in USA & Lifetime Guarantee
Technical Specifications for Leupold MARK 5HD 5–25×56 Rifle Scope M5C3 FFP PR2-MIL Reticle Dark Earth
Specification |
Details |
Model / MPN |
185071 |
SKU |
LEU-185071 |
UPC |
030317040317 |
Country of Origin |
USA |
Magnification Range |
5 × ⇄ 25 × |
Objective Lens Diameter |
56 mm |
Main Tube Diameter |
35 mm |
Reticle |
PR2-MIL™ (FFP, glass-etched) |
Illumination Settings |
None |
Elevation Adjustment |
M5C3; 0.1 mrad/click; 10 mrad/rev; 30 mrad total; ZeroStop™ |
Windage Adjustment |
0.1 mrad/click; 24 mrad total; capped turret |
Parallax Focus |
Side focus, 50 yd → ∞ |
Eye Relief |
3.5″ (89 mm) ⇄ 3.8″ (97 mm) |
Field of View @ 100 yd |
20.4 ft (low) ⇄ 4.2 ft (high) |
Overall Length |
15.67″ (398 mm) |
Weight |
30 oz (850 g) |
Housing Material / Finish |
6061-T6 aluminum; Flat Dark Earth hard-coat anodize |
Waterproof / Fog-Proof |
Yes (IPX7) |
Shock Resistance |
Rated to withstand .50 BMG recoil |
Included Accessories
- Removable throw-lever
- Fast-focus eyepiece
- Flip-up lens covers
- Lens shade
- Lens cloth & adjustment wrench
- User manual
