Leupold VX-3HD 1.5-5×20 CDS-ZL Rifle Scope Duplex Reticle
Leupold VX-3HD 1.5-5×20 CDS-ZL Rifle Scope Duplex Reticle
Couldn't load pickup availability
Leupold VX-3HD 1.5-5×20 CDS-ZL Rifle Scope Duplex Reticle
(Model 180615)
Features
- Elite Optical System: Fully multi-coated lenses, extra-low dispersion glass, and glare-reduction coatings deliver exceptional brightness and clarity from dawn to dusk.
- 3:1 Zoom Ratio: Fast 1.5× → 5× range for close-to-mid-range versatility.

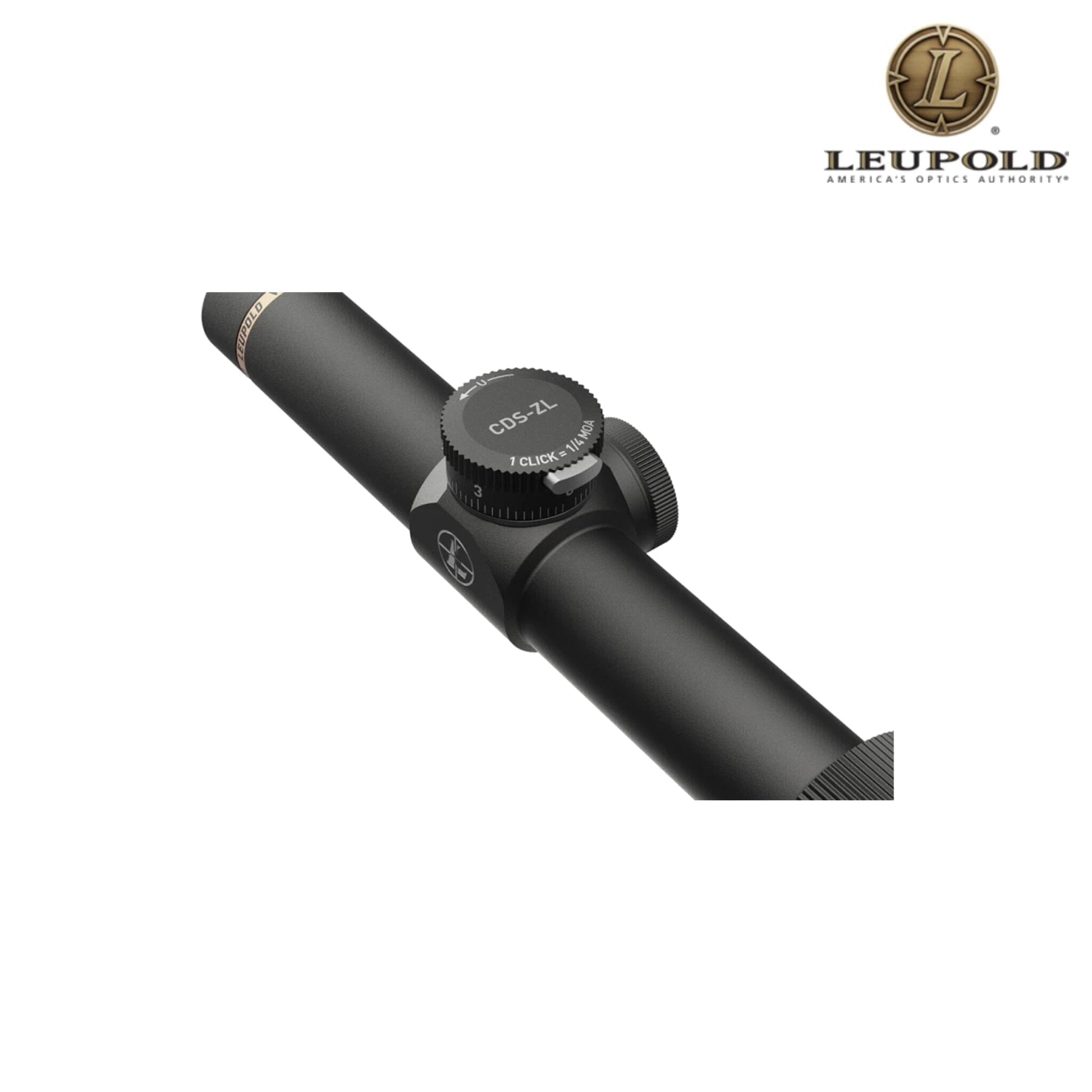

- CDS-ZL® ZeroLock®™ Dial: Push-button lockable elevation turret with one-revolution stop for quick, repeatable return to zero.

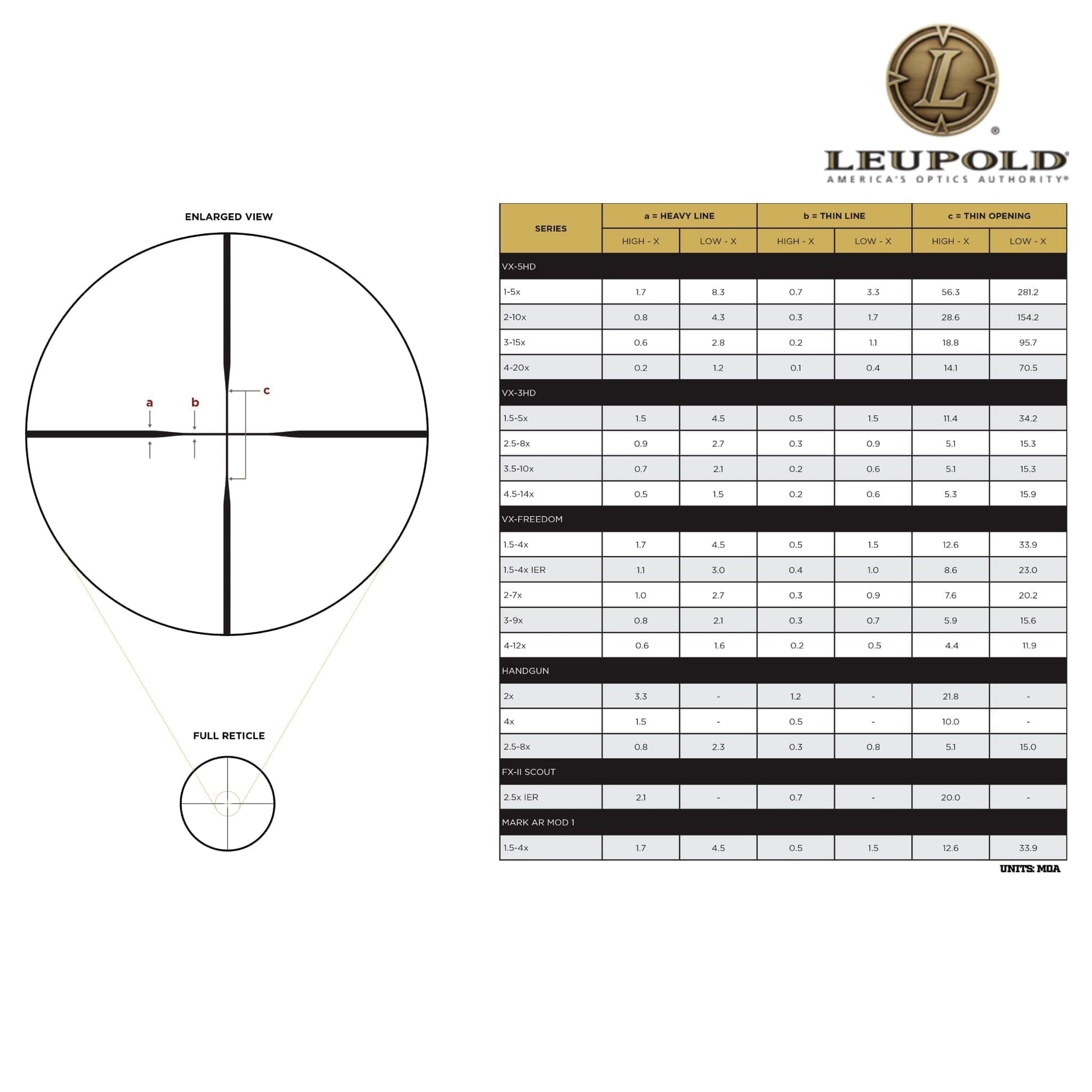

- Duplex® Reticle (SFP): Second-focal-plane, glass-etched Duplex reticle for clear aiming without illumination.
- Integrated Throw Lever: Removable lever for rapid magnification changes.
- Ergonomic Controls: Low-profile turrets and fast-focus eyepiece designed for gloved operation.
- Rugged & Lightweight: CNC-machined 1″ main tube; waterproof, fog-proof, and shock-proof in a 9.7 oz (275 g) package.
Technical Specifications for Leupold VX-3HD 1.5-5×20 CDS-ZL Rifle Scope Duplex Reticle
|
Specification |
Details |
|
Model / MPN |
180615 |
|
SKU |
LEU-180615 |
|
UPC |
030317028428 |
|
Magnification Range |
1.5 × ⇄ 5 × |
|
Objective Lens Diameter |
20 mm |
|
Main Tube Diameter |
1 in (25.4 mm) |
|
Reticle |
Duplex® (Second Focal Plane, non-illuminated) |
|
Eye Relief |
4.4″ (low) ⇄ 3.6″ (high) |
|
Field of View @ 100 yd |
67.6 ft (low) ⇄ 24.1 ft (high) |
|
Parallax Adjustment |
Fixed at 150 yd |
|
Turret Adjustment |
¼ MOA per click; 125 MOA total (elevation & windage) |
|
Length |
9.7″ (246 mm) |
|
Weight |
9.7 oz (275 g) |
|
Finish |
Matte-black hard-coat anodize |
|
Waterproof / Fog-Proof |
Yes (IPX7) |
|
Shock-Proof |
Yes |
Included Accessories
- Removable throw lever
- Lens covers
- User manual
