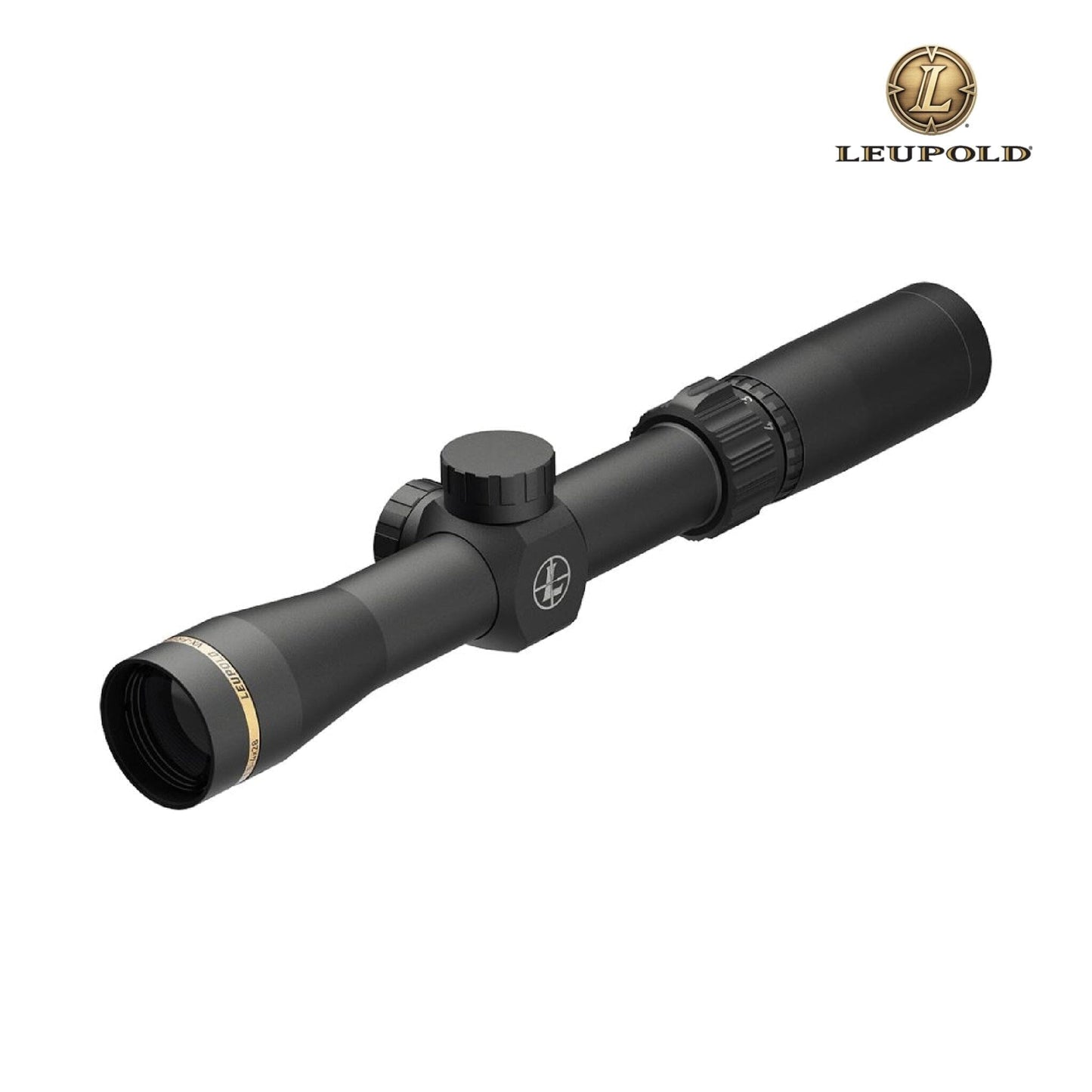

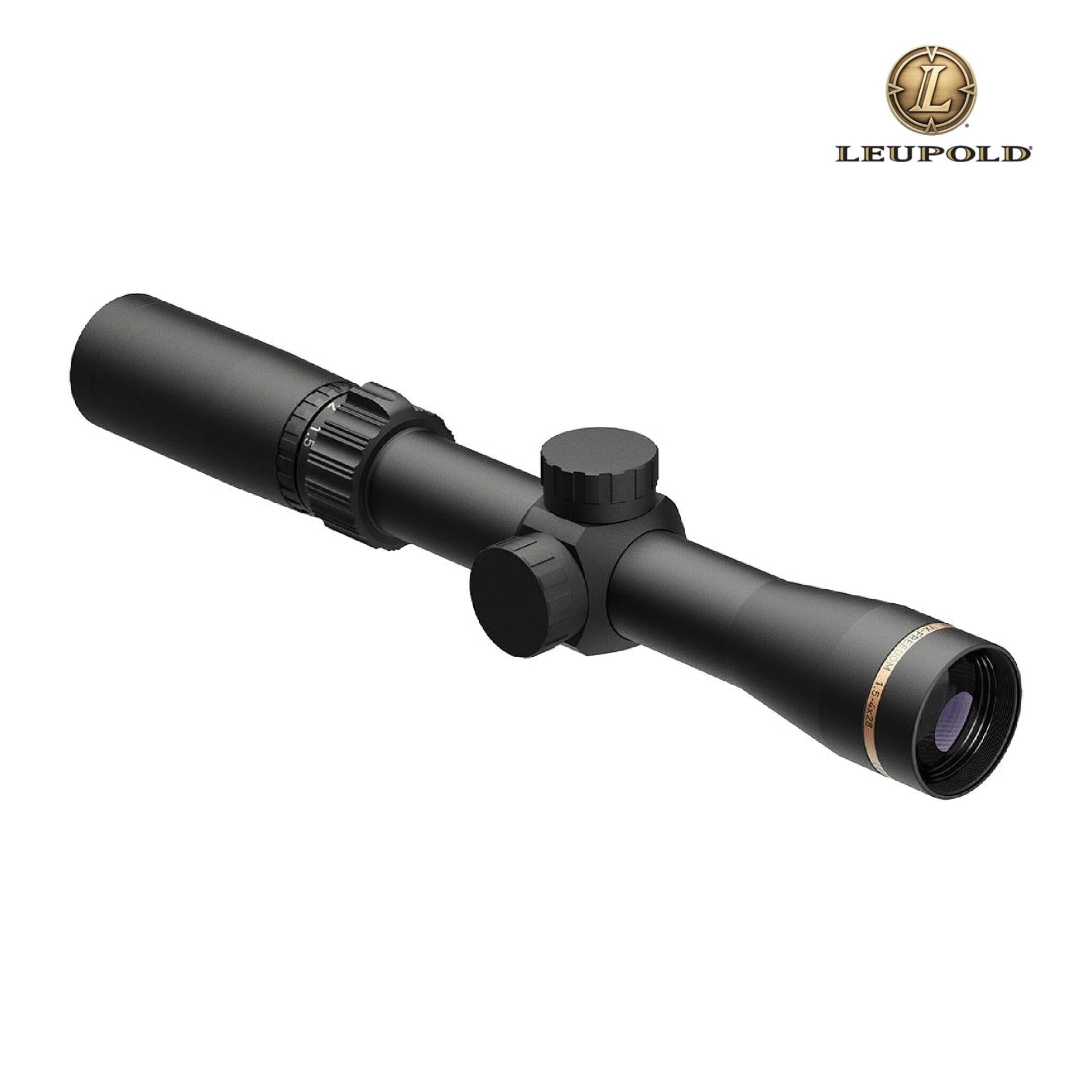

Leupold VX-Freedom 1.5–4×28 IER Scout Rifle Scope Duplex Reticle
Leupold VX-Freedom 1.5–4×28 IER Scout Rifle Scope Duplex Reticle
Couldn't load pickup availability
Leupold VX-Freedom 1.5–4×28 IER Scout Rifle Scope Duplex Reticle
(Model 175074)
Features
- 3:1 Zoom Ratio: Swift throw-lever for rapid transitions between 1.5× (wide field) and 4× (precision).
- Advanced Optical System: Fully multi-coated, extra-low dispersion glass with Twilight Light Management System for excellent light transmission, glare reduction, and edge-to-edge clarity.
- Second Focal Plane: Reticle remains constant in size at all magnifications—ideal for low-light hunting and intuitive aiming.
- Scratch-Resistant Lenses: Hardened surface coatings meet extreme military standards for added durability.
- Lockable Eyepiece: Traditional eyepiece lock ring secures your preferred focus setting.
- Extended Eye Relief (IER): 6.9″ (176 mm) at 1.5× → 6.0″ (152 mm) at 4× for comfortable head positioning on scout or chassis rifles.
- Durable Construction: CNC-machined 1″ (25.4 mm) main tube of 6061-T6 aluminum; matte-black hard-coat anodize; 100% waterproof, fog-proof, and shock-proof; lifetime guaranteed.
Technical Specifications for Leupold VX-Freedom 1.5–4×28 IER Scout Rifle Scope Duplex Reticle
Specification |
Details |
Model / MPN |
175074 |
SKU |
175074 |
UPC |
030317018979 |
Country of Origin |
USA |
Tube Diameter |
1″ (25.4 mm) |
Magnification Range |
1.5 × ⇄ 4 × |
Objective Lens Diameter |
28 mm |
Reticle |

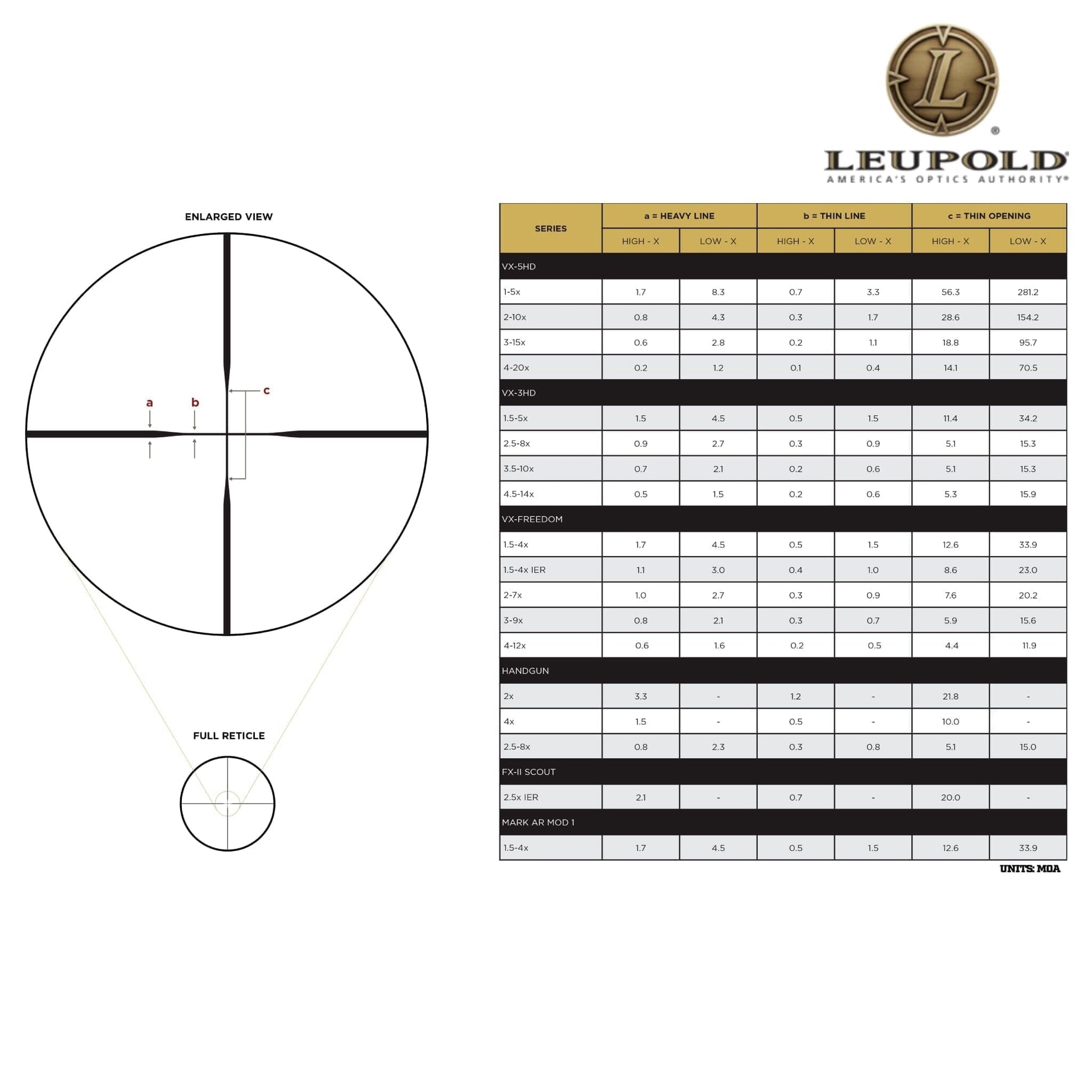

Duplex® (SFP, non-illuminated) |
Focal Plane |
Second |
Parallax-Free Distance |
Fixed at 150 yd |
Eye Relief |
6.9″ (176 mm) @ 1.5× ⇄ 6.0″ (152 mm) @ 4× |
Linear FOV @ 100 yd |
41.7 ft @ 1.5× ⇄ 17.3 ft @ 4× |
Angular FOV |
8° @ 1.5× ⇄ 3.3° @ 4× |
Elevation Adjustment |
¼ MOA per click; 15 MOA per rev; 125 MOA total |
Windage Adjustment |
¼ MOA per click; 15 MOA per rev; 125 MOA total |
Length |
11.1″ (282 mm) |
Weight |
9.6 oz (272 g) |
Finish |
Matte-black hard-coat anodize |
Waterproof / Fog-Proof / Shock-Proof |
Yes |
Included Accessories
- Removable fast-throw magnification lever
- Alumina® flip-up lens covers (28 mm)
- Cleaning cloth
- User manual
