Primary Arms PLx 6‑30×56 FFP Riflescope - ACSS Athena BPR MIL Reticle
Features

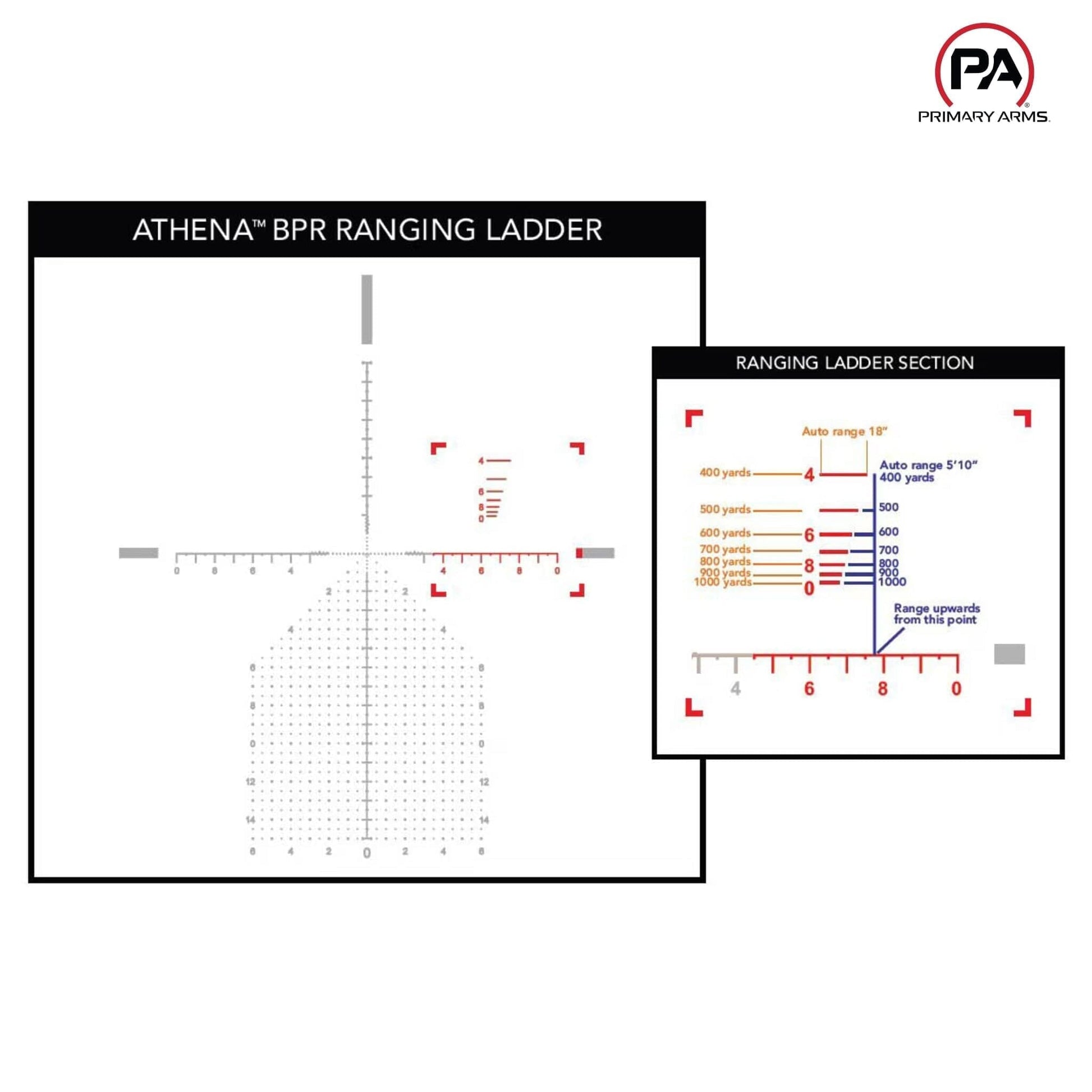

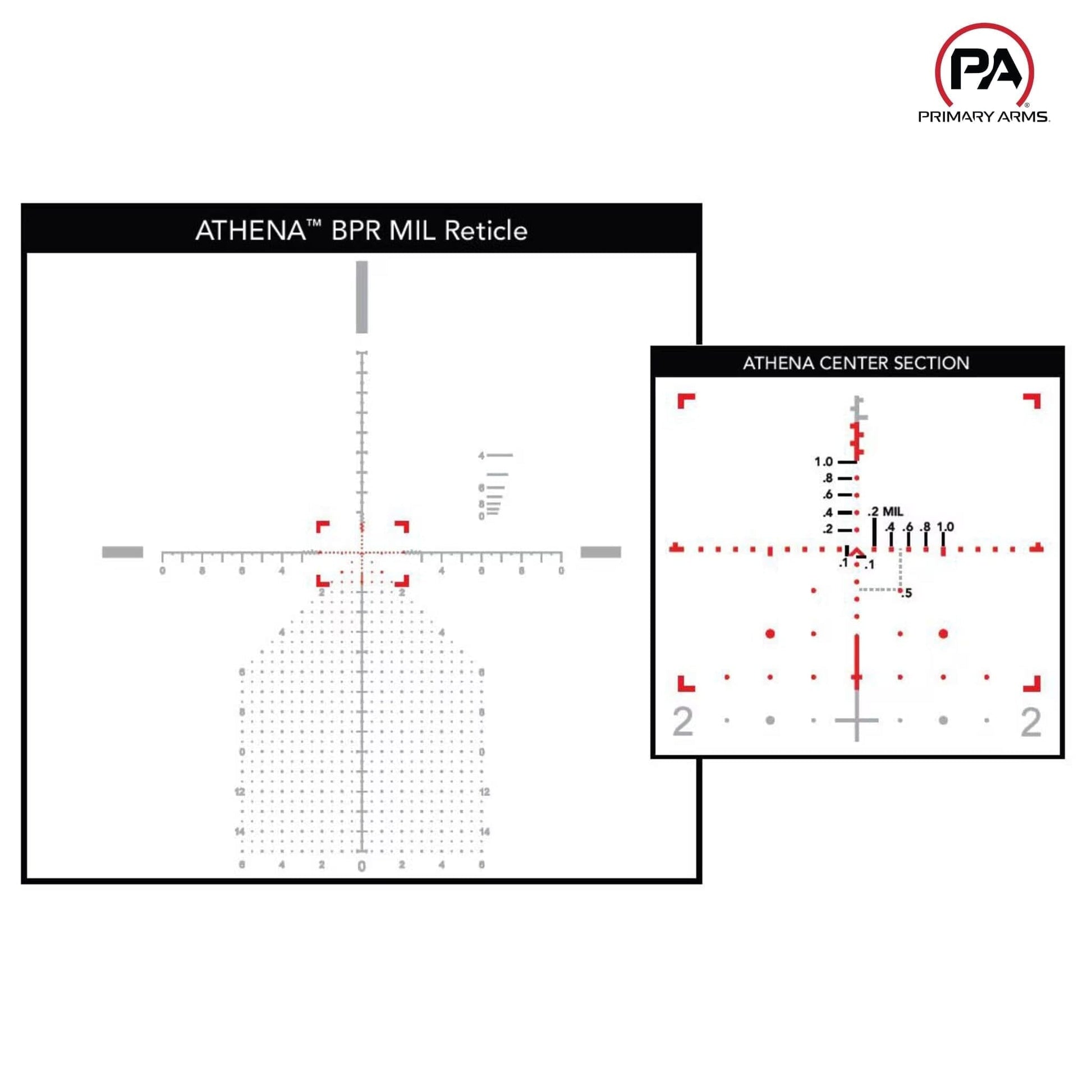

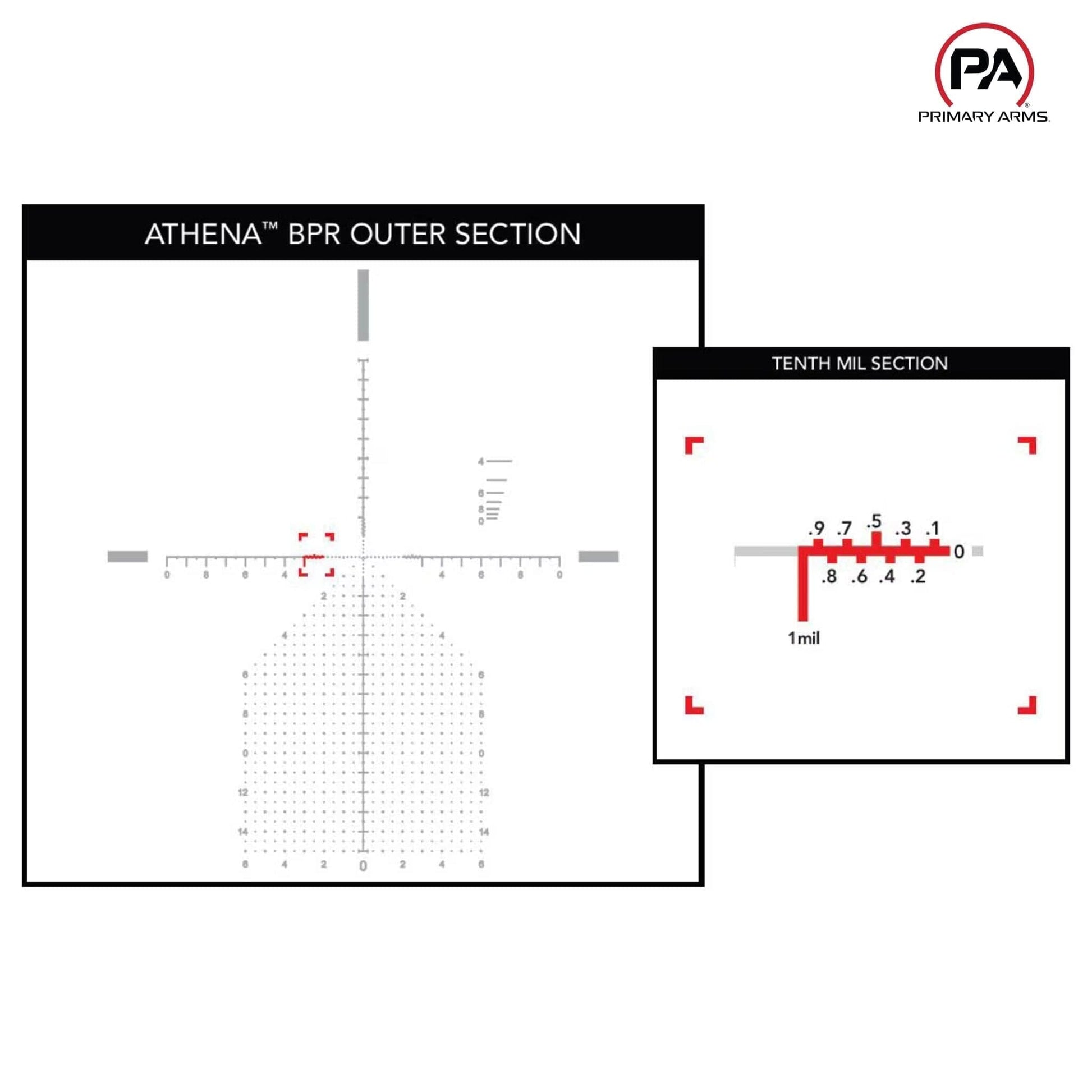

- ACSS Athena BPR MIL Reticle – First‑focal‑plane Battle‑Proven Reticle calibrated in MIL for 5.56 /.308 with BDC stadia, holding hashmarks, wind‑age Brackets, and rapid range bars for hold‑over to 1,000 m; fully illuminated with 11 brightness levels and 6 h auto‑off.
- High‑Definition ED Glass – Premium extra‑low dispersion Japanese glass, fully multi‑coated, delivers exceptional light transmission, contrast, and edge‑to‑edge sharpness in low‑light and bright‑day conditions.
- Precision SOS® Steel‑on‑Steel Turrets – 0.1 mrad (¼ MIL) click value with crisp tactile feedback; 30 mrad (103 MOA) total elevation travel; repeatable mechanical zero‑stop on elevation.
- Side Parallax / Focus – Adjustable parallax dial from 10 yd / m to infinity for laser‑sharp reticle-to‑target clarity at all distances.
- Wide 6×–30× Magnification – Versatile zoom range suited for both medium‑range target acquisition and extreme long‑range precision engagements.
- Rugged 34 mm Chassis – One‑piece 7075‑T6 aluminum tube in matte‑black hard‑anodized finish; O‑ring sealed and nitrogen‑purged for IPX7 waterproofing and fog‑proof performance.
- Forgiving Eye Relief – 3.5 in at 6× to 2.8 in at 30× ensures comfortable cheek weld and quick re‑acquisition.
Technical Specifications for Primary Arms PLx 6‑30×56 FFP Riflescope - ACSS Athena BPR MIL Reticle
Specification |
Details |
Manufacturer |
Primary Arms |
Model / Part Number |
610073 |
SKU / MPN |
PA-PLX5-6-30X56F-ATHENA |
UPC |
818500013068 |
Reticle |
ACSS Athena BPR MIL, illuminated (11 levels; 6 h auto‑off) |
Magnification Range |
6 × – 30 × |
Objective Lens Diameter |
56 mm |
Tube Diameter |
34 mm |
Field of View |
5.9 ft @ 100 yd @ 6×; 1.2 ft @ 100 yd @ 30× |
Eye Relief |
3.5 in @ 6×; 2.8 in @ 30× |
Exit Pupil |
9.3 mm @ 6×; 1.9 mm @ 30× |
Diopter Adjustment |
± 3 dpt |
Elevation Total Adjustment |
30 mrad (103 MOA) |
Windage Total Adjustment |
± 10 mrad (± 34 MOA) |
Click Value |
0.1 mrad (¼ MIL) per click |
Parallax Adjustment |
Side focus, 10 yd/m to ∞ |
Length |
15.2 in (386 mm) |
Weight |
32 oz (907 g) |
Finish |
Matte‑black Type II hard‑anodize |
Waterproof / Fogproof |
IPX7 (1 m submersion for 30 min); nitrogen‑purged |
Warranty |
Lifetime warranty |
Included Accessories
- Quick‑detach throw‑lever magnification ring

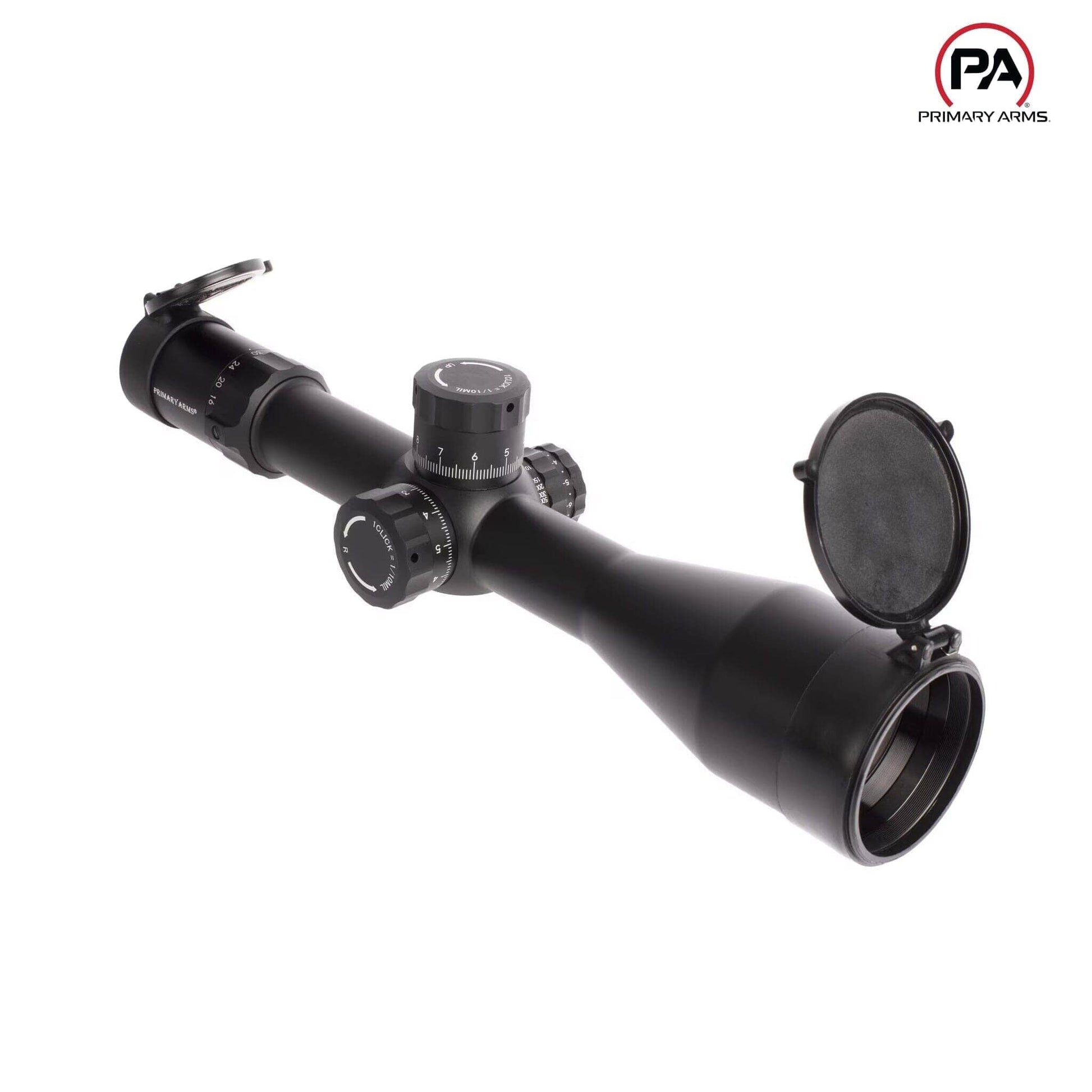

- Flip‑up lens covers
- CR2032 battery (installed)
- Instruction manual & warranty documentation
