Primary Arms
Primary Arms SLx 3X Micro Magnifier - ACSS Pegasus Ranging Reticle
Primary Arms SLx 3X Micro Magnifier - ACSS Pegasus Ranging Reticle
Couldn't load pickup availability

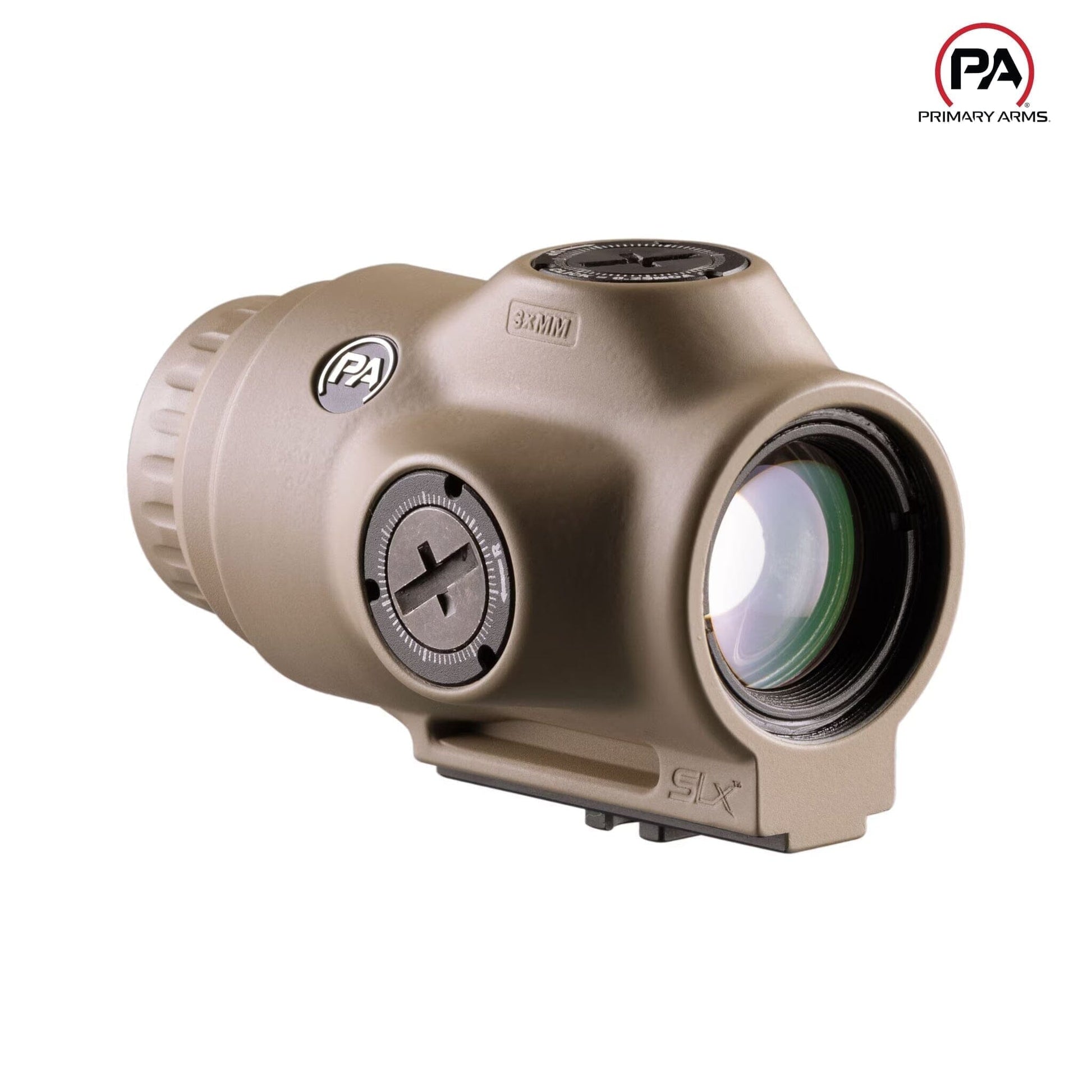

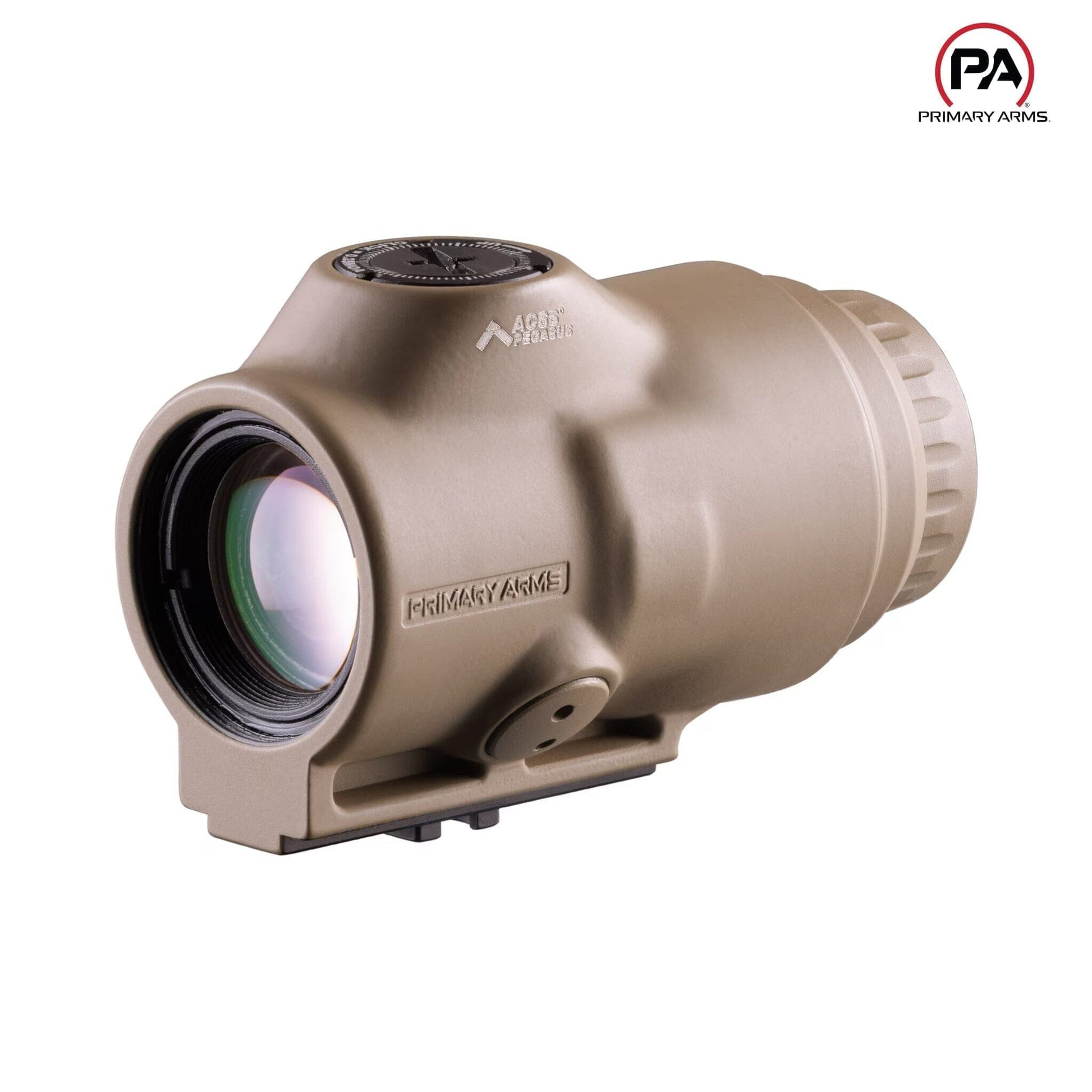

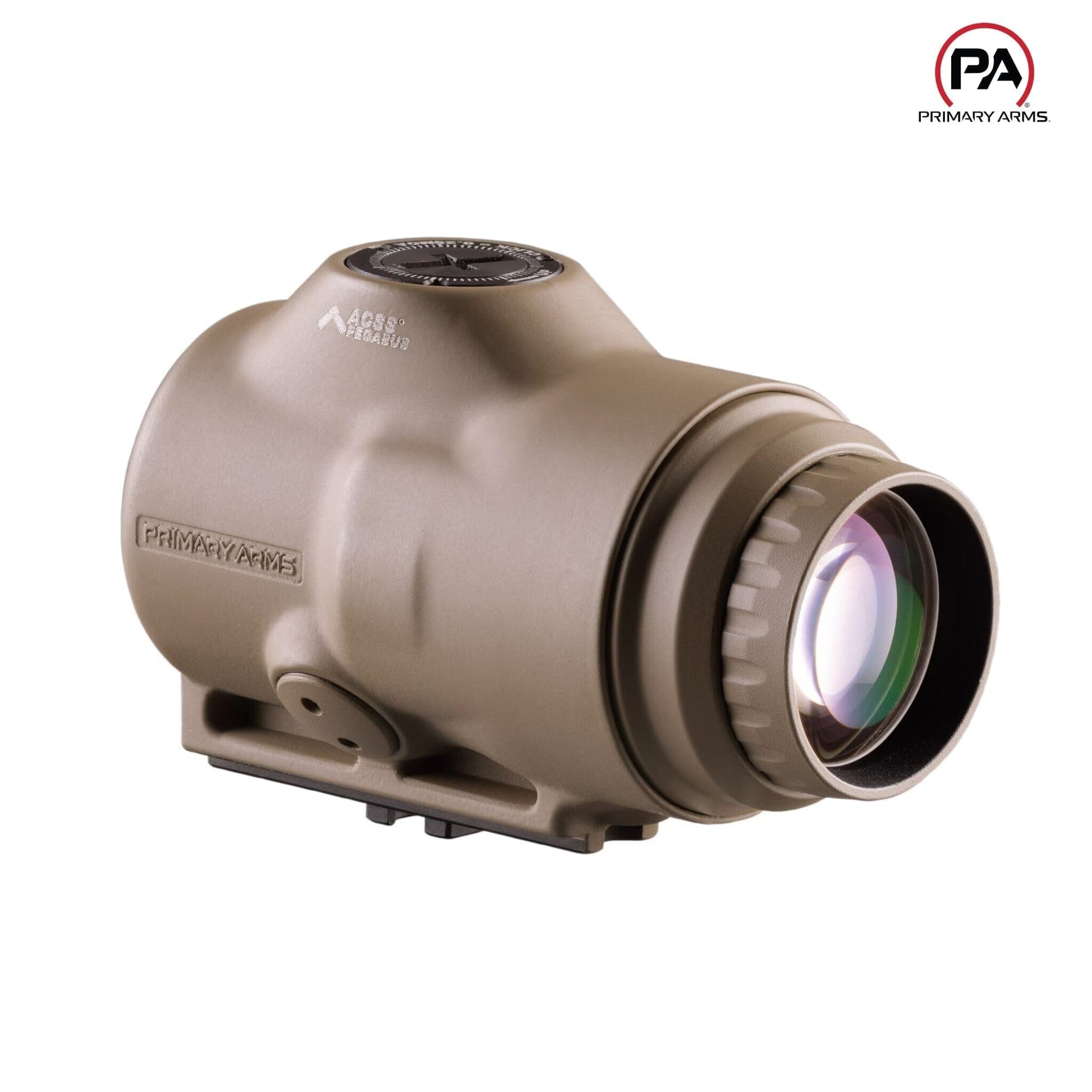

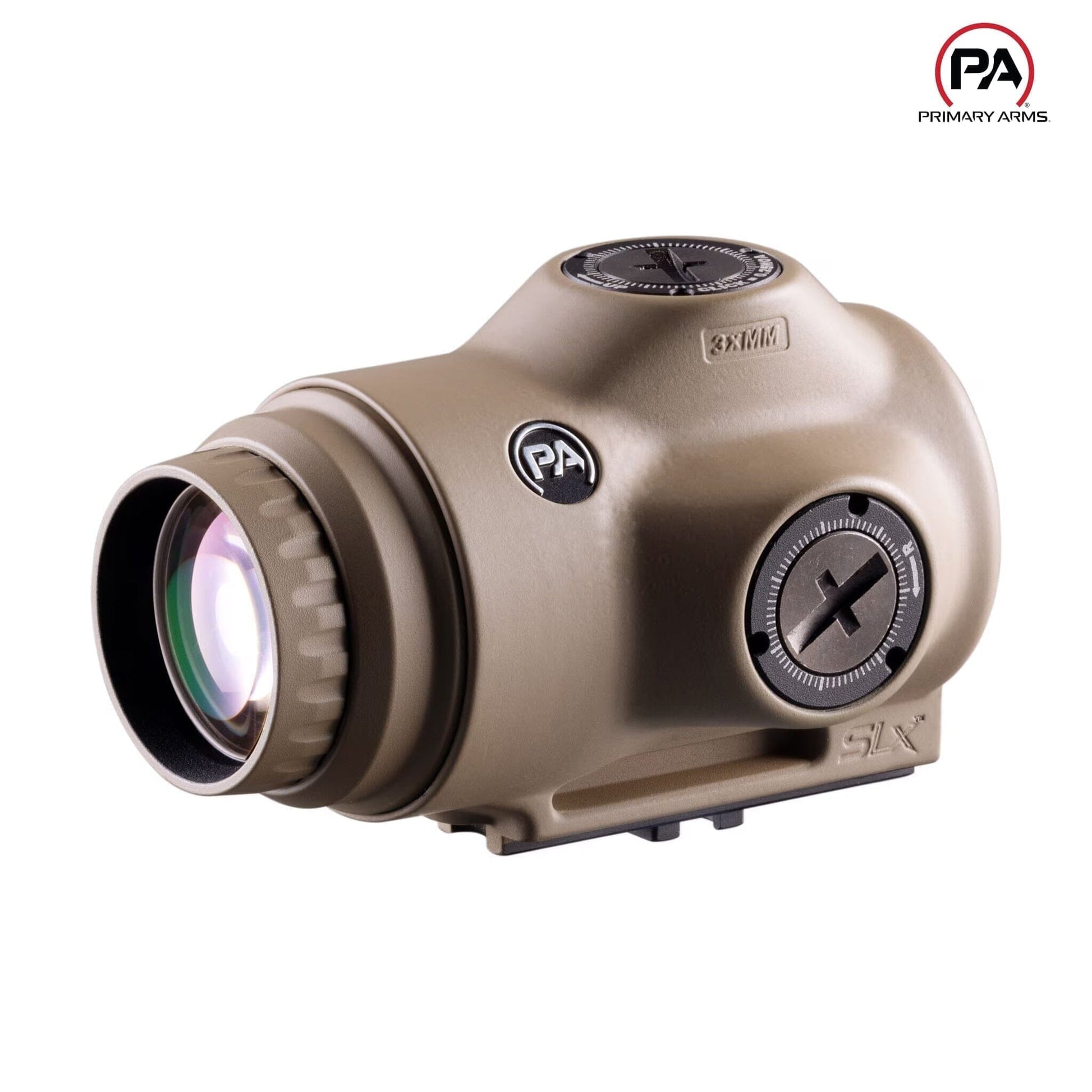

Primary Arms SLx 3× Micro Magnifier - ACSS Pegasus Ranging Reticle - FDE
Features
- ACSS Pegasus Ranging Reticle – Integrated first-focal-plane MRAD subtension grid and stadia calibrated for range estimation; fiber-optic-illuminated pegasus-style chevrons for rapid hold-over and wind calls, compatible with any MRAD red-dot or prism sight.
- Compact 3× Magnification – Extends effective engagement distance of 1× optics without sacrificing speed or adding bulk.
- 21 mm Objective & 7 mm Exit Pupil – Large objective maximizes light transmission; generous exit pupil delivers a bright, clear image even in low light.
- 2.4 in Eye Relief – Ample eye relief supports both-eyes-open shooting and comfortable cheek weld.
- 75 MOA Windage/Elevation Adjustment – 0.25 MOA-per-click turrets for precise zeroing and dialing, with 75 MOA total adjustment range.
- Rugged FDE Aluminum Housing – CNC-machined 6061-T6 aluminum tube finished in Flat Dark Earth Type III hard-anodize; O-ring sealed for waterproof, fog-proof, and shock-proof reliability.
- Lightweight & Fast-Deploying – Weighs 5.3 oz and measures 2.83 in long; pairs with QD or throw-lever mounts for rapid swing-into-place function.
Technical Specifications for Primary Arms SLx 3× Micro Magnifier - ACSS Pegasus Ranging Reticle - FDE
Specification |
Details |
Manufacturer |
Primary Arms |
MPN |
510014 |
SKU |
PA-SLX-3XMM-PEGASUS-FDE |
UPC |
818500018247 |
Magnification |
Fixed 3× |
Objective Lens Diameter |
21 mm |
Exit Pupil |
7 mm |
Eye Relief |
2.4 in (61 mm) |
Field of View |
35.2 ft @ 100 yd (10.7 m @ 91 m) |
Reticle |
ACSS Pegasus MRAD subtension grid (FFP), illuminated |
Windage/Elevation Adjustment |
75 MOA total |
Click Value |
0.25 MOA per click |
Length |
2.83 in (72 mm) |
Weight |
5.3 oz (150 g) |
Mount Compatibility |
Picatinny MIL-STD-1913 |
Housing Material |
6061-T6 aluminum, Type III hard-anodize |
Sealing |
O-ring sealed (waterproof/fog-proof) |
Warranty |
Lifetime warranty |
Included Accessories
- Flip-up lens caps
- Lens cleaning cloth
- Instruction manual & warranty documentation
SEO Keywords
Primary Arms SLx 3× magnifier, ACSS Pegasus reticle magnifier, SLx micro magnifier FDE, PA-SLX-3XMM-PEGASUS-FDE, 75 MOA adjustment.
