Accu-Tac PC-5 Picatinny QD Bipod - Black
Accu-Tac PC-5 Picatinny QD Bipod - Black
Couldn't load pickup availability

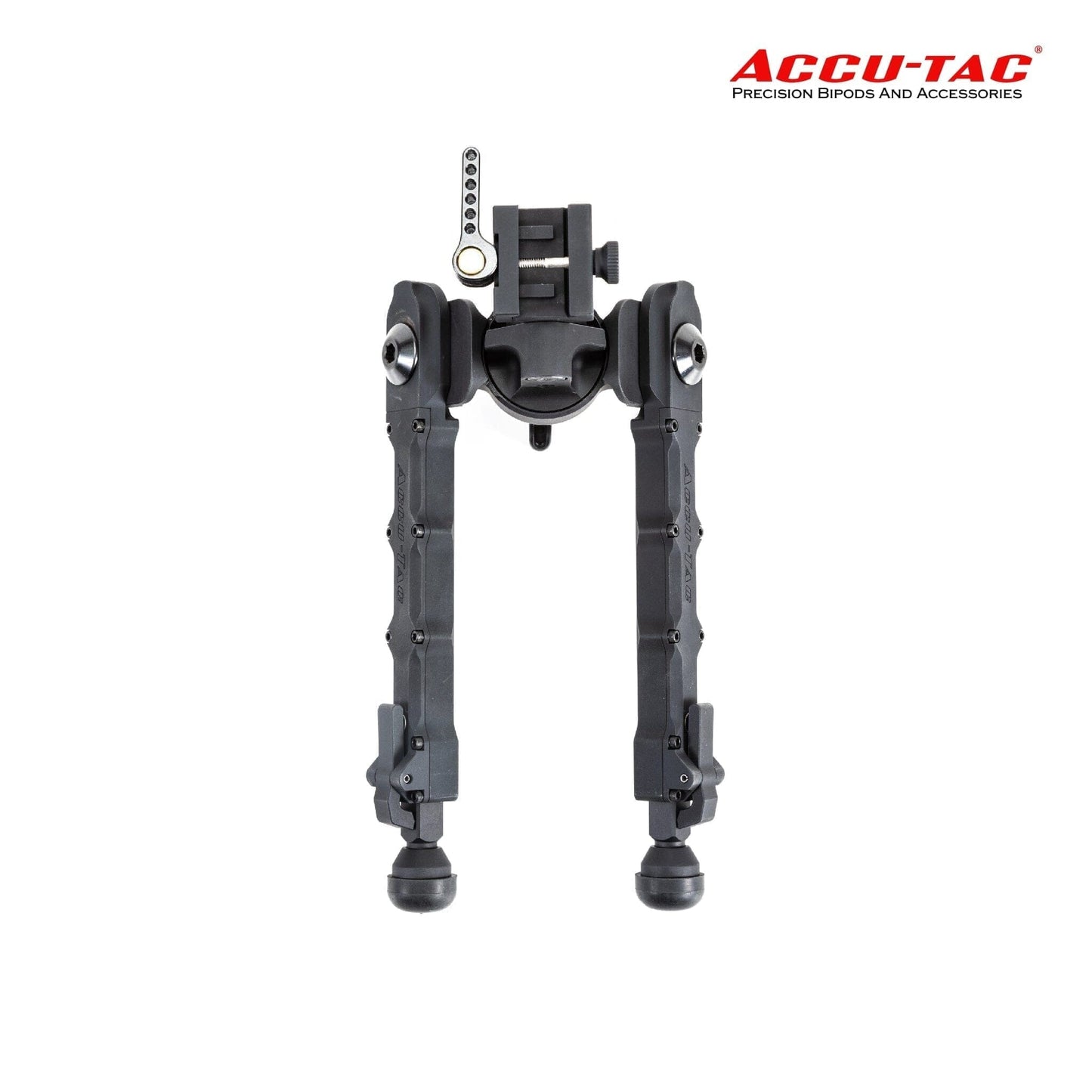

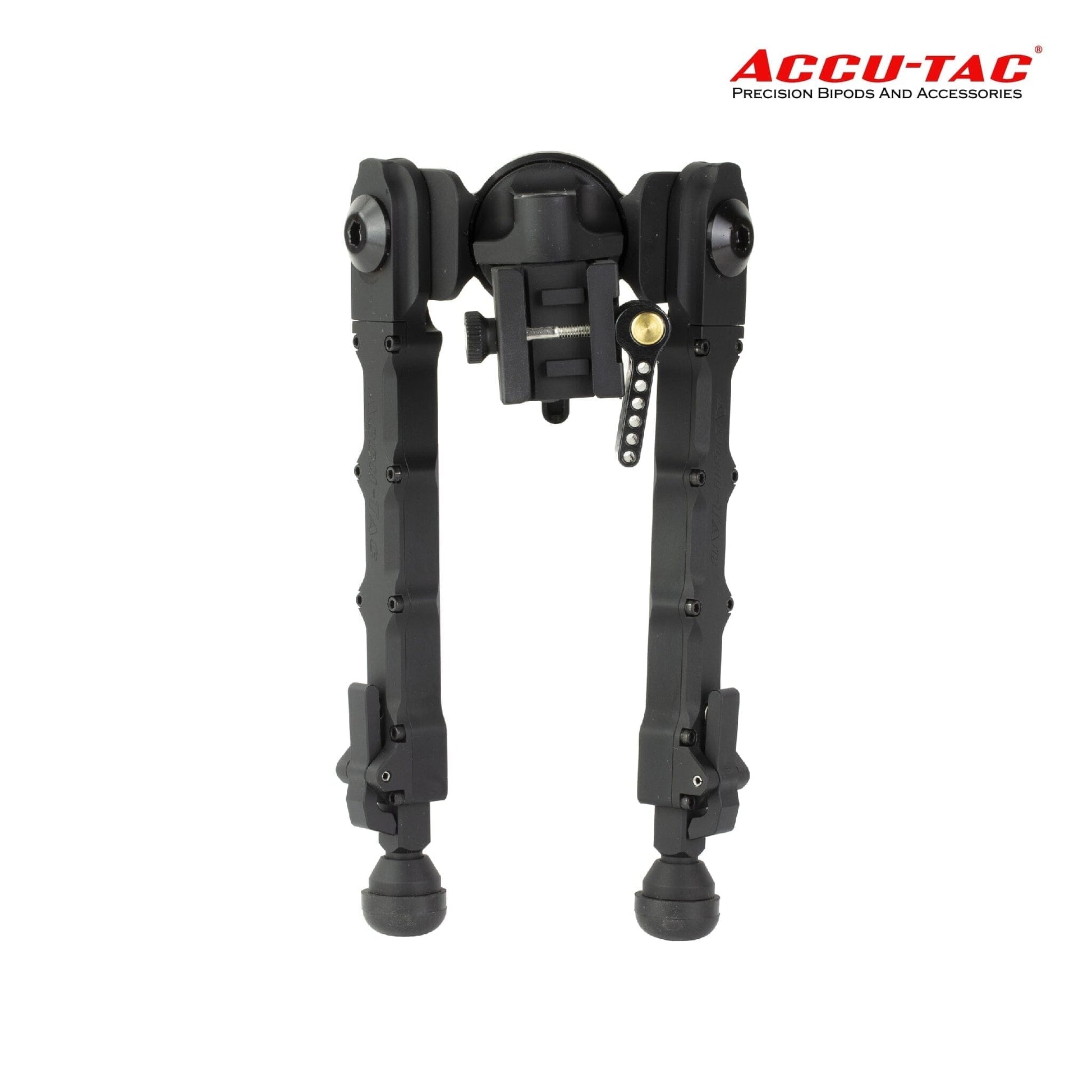

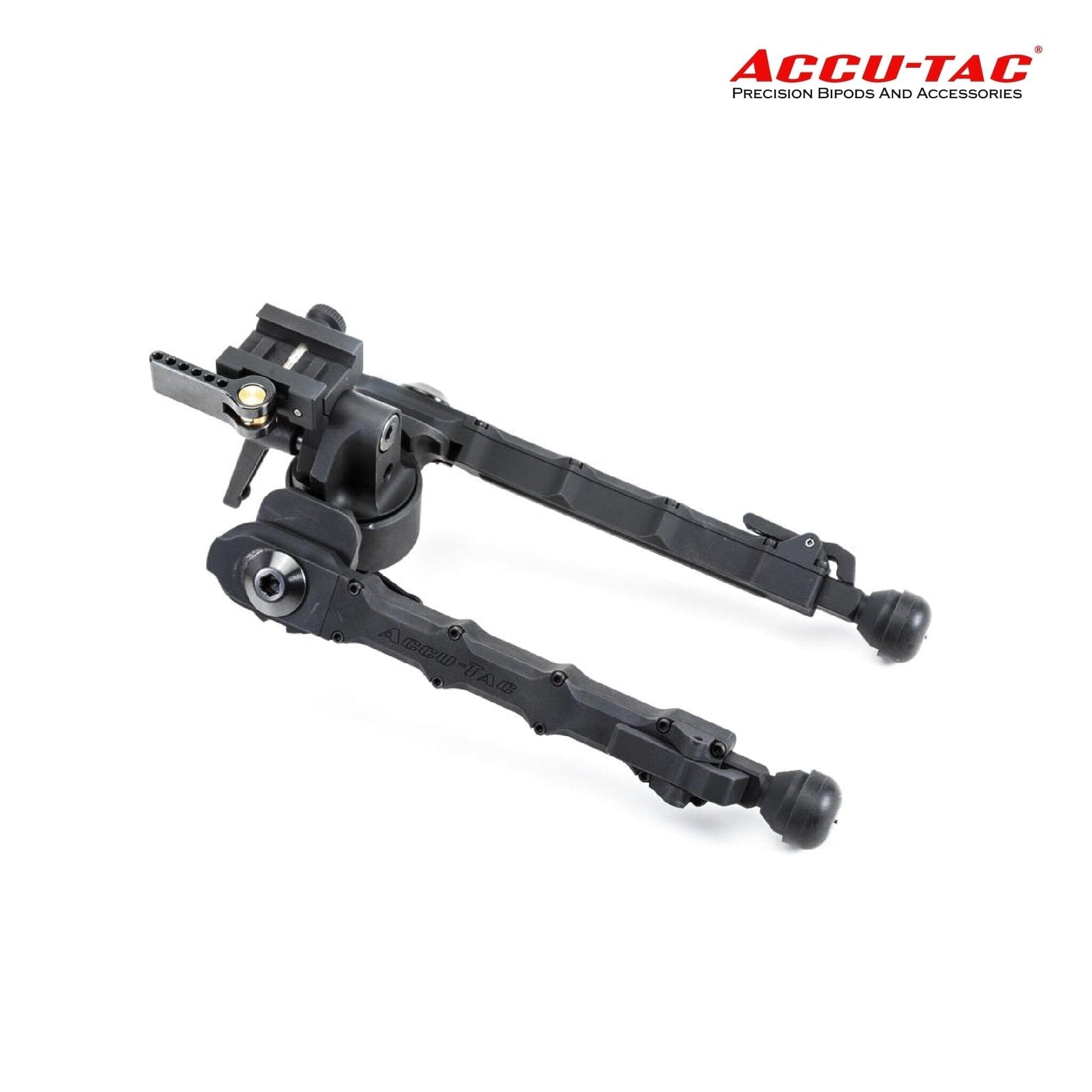

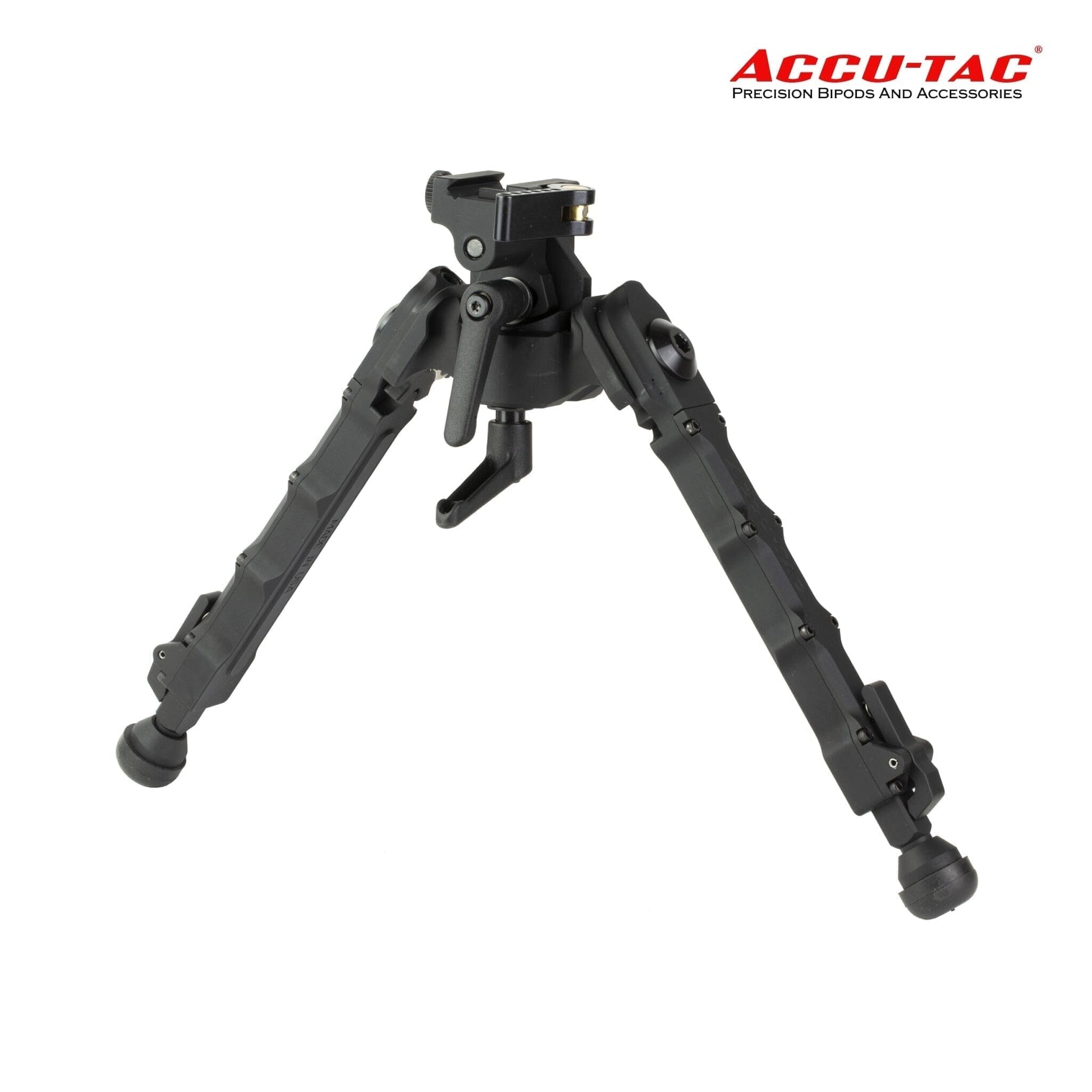

Accu-Tac PC-5 Picatinny QD Bipod - Black
Features
- Pan-&-Cant Capability: Independent pan (±10°) and cant (±15°) via sealed roller bearings for ultra-smooth alignment on uneven terrain.
- Quick-Detach Picatinny Mount: Tool-free clamp attaches to MIL-STD-1913 (Picatinny) rails in seconds and retains zero through repeated on/off cycles.
- Four Leg Angles & Nine Height Notches: Legs deploy to 0°, 45°, 90°, or folded; nine locking notches allow rapid height changes.
- CNC-Machined 6061-T6 Aluminum: Billet-machined body with hardened-steel hardware for exceptional strength and rigidity.
- Mil-Spec Hard-Anodize Finish: Type III matte-black coating resists corrosion, abrasion, and chemicals.
- Made in USA: Precision engineered and assembled domestically for uncompromising quality.
Technical Specifications for Accu-Tac PC-5 Picatinny QD Bipod - Black
|
Specification |
Details |
|
Model / MPN |
PCB-0500 |
|
SKU |
PCB-0500 |
|
UPC |
858520006350 |
|
Mount Interface |
Quick-detach clamp for MIL-STD-1913 (Picatinny) rail |
|
Materials |
6061-T6 aluminum; hardened-steel hardware |
|
Leg Angles |
0°, 45°, 90°, folded |
|
Height (Legs @ 45°) |
7.0″ / 177.8 mm |
|
Min Height (Legs @ 90°) |
8.75″ / 222.3 mm |
|
Max Height (Legs @ 90°) |
11.5″ / 292.1 mm |
|
Min Stance (45° legs) |
10.0″ / 254.0 mm |
|
Max Stance (90° legs) |
12.5″ / 317.5 mm |
|
Closed Width |
4.25″ / 107.9 mm |
|
Closed Length |
9.0″ / 228.6 mm |
|
Weight |
28.8 oz / 816 g |
|
Finish |
Type III hard-anodize (matte black) |
|
Warranty |
Accu-Tac Limited Warranty |
Included Accessories
- Pan- and cant-lock levers
- Allen key for clamp adjustment
- User manual
