Athlon ARES BTR GEN 3 HD 4.5-27×50 Rifle Scope APLR13 FFP IR MOA Reticle
Athlon ARES BTR GEN 3 HD 4.5-27×50 Rifle Scope APLR13 FFP IR MOA Reticle
Couldn't load pickup availability
Athlon Ares BTR GEN 3 HD 4.5–27×50 Rifle Scope APLR13 FFP IR MOA Reticle
Features
- 4.5–27× Variable Magnification: Low-profile throw lever for fast transitions between wide-field (4.5×) and extreme-range (27×) engagements.

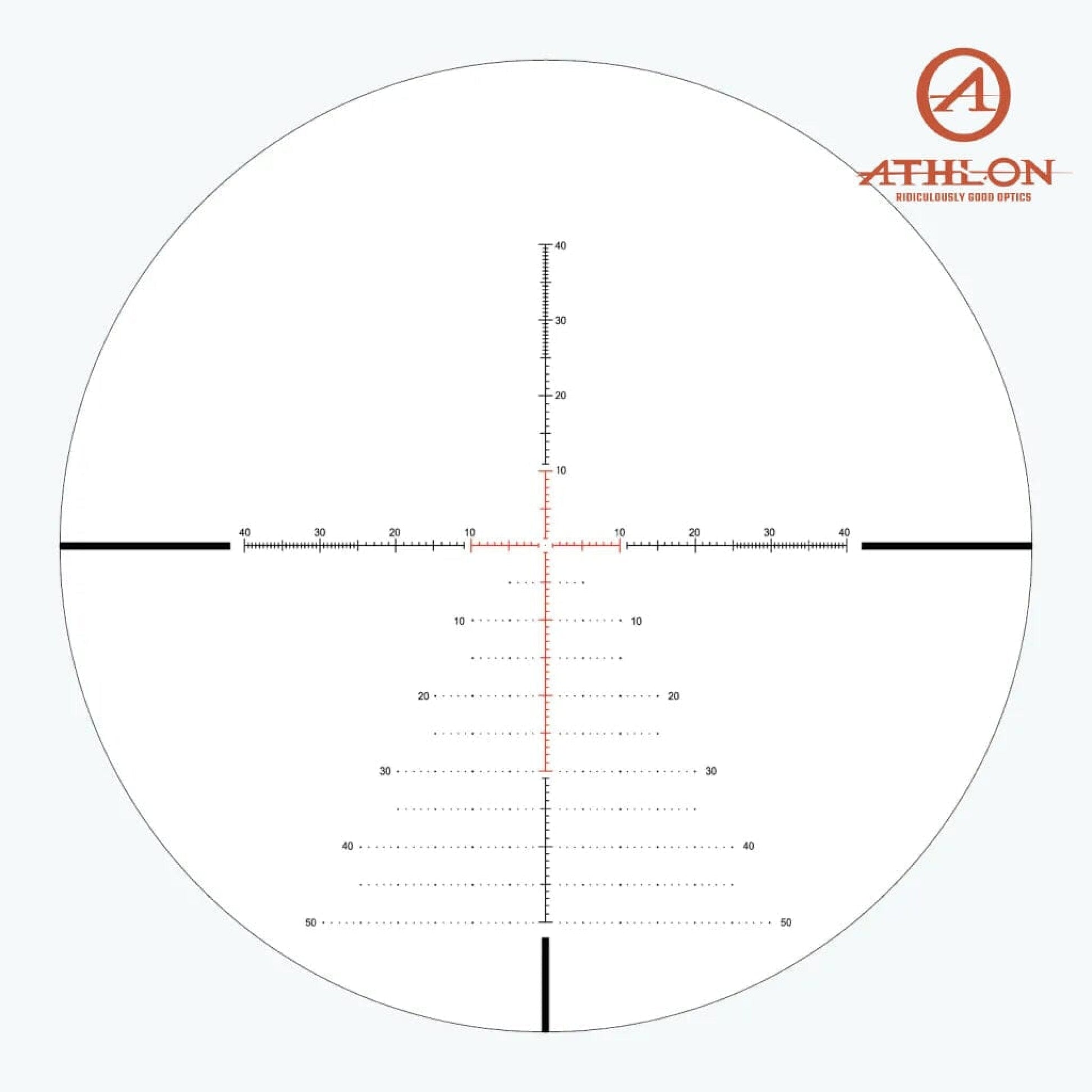

- First Focal Plane APLR13 IR MOA Reticle: True-subtension MOA hash marks at all powers; 10-level red-LED electroluminescent illumination for day/night use.
- HD Optics & Fully Multi-Coated Lenses: Extra-low dispersion elements and broadband coatings on every air-to-glass surface maximize light transmission and edge-to-edge clarity.
- Exposed Zero-Stop Turrets: 0.1 mil per click; 20 mil per revolution on elevation with positive zero-stop; 10 mil per revolution on windage.
- Side Focus Parallax: Quick-set knob from 10 yd to ∞ for a tack-sharp reticle at any distance.
- Extended Eye Relief & Fast-Focus Eyepiece: 3.5″–3.8″ constant eye relief across the zoom range; rapid ocular focus.
- Rugged Construction: 30 mm one-piece 6061-T6 aluminum tube; matte-black hard-coat anodize; nitrogen-purged; argon-filled; recoil-rated for all standard calibers.
- Weatherproof: IPX7 waterproof to 1 m for 30 min; fog-proof.
- Lifetime Warranty: Fully transferable, no-fault coverage.
Technical Specifications for Athlon Ares BTR GEN 3 HD 4.5–27×50 Rifle Scope APLR13 FFP IR MOA Reticle
Specification |
Details |
Manufacturer |
Athlon Optics |
Model / MPN |
212016 |
SKU |
212016-Athlon |
UPC |
813869023598 |
Magnification Range |
4.5 × ⇄ 27 × |
Objective Lens Diameter |
50 mm |
Tube Diameter |
30 mm |
Reticle |
APLR13 (FFP, illuminated IR MOA) |
Illumination Settings |
10-level red-LED EL |
Elevation Click Value |
0.1 mil per click |
Elevation Travel |
20 mil per rev; positive zero-stop |
Windage Click Value |
0.1 mil per click |
Windage Travel |
10 mil per rev |
Parallax Focus |
Side-focus, 10 yd → ∞ |
Eye Relief |
3.5″ → 3.8″ (89 → 97 mm) |
Field of View @ 100 yd |
22.7 ft → 3.8 ft |
Exit Pupil |
11.1 mm → 1.9 mm |
Overall Length |
15.3″ (388 mm) |
Weight |
27.3 oz (774 g) |
Finish |
Matte-black hard-coat anodize |
Waterproof / Fog-Proof |
Yes (IPX7) |
Shock-Proof |
Yes (all standard calibers) |
Included Accessories
- Low-profile throw lever
- Flip-cap lens covers (objective & ocular)
- Scope sunshade
- Lens cleaning cloth & LensPen® tool
- Allen wrenches (turret & lever)
- User manual & lifetime warranty card
