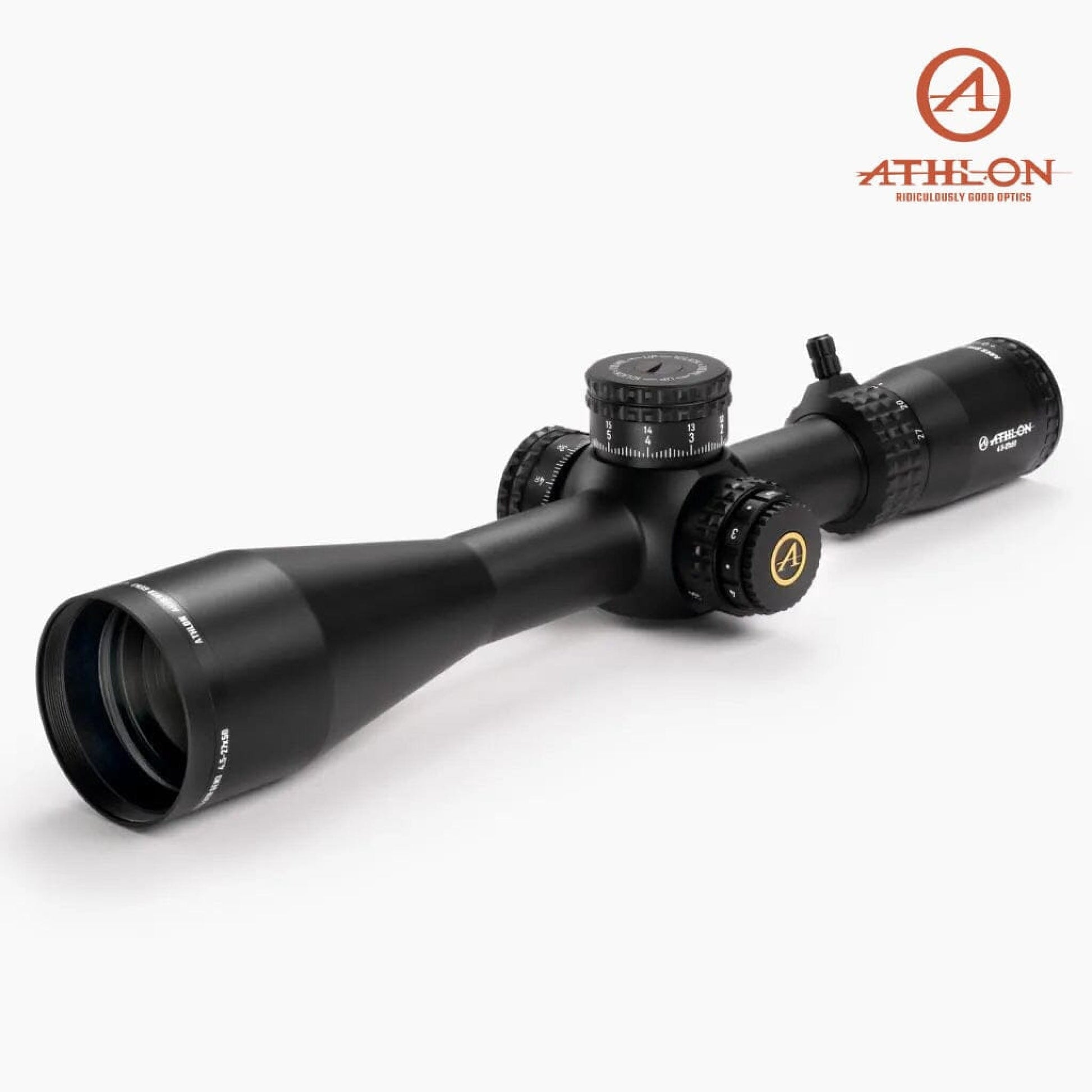

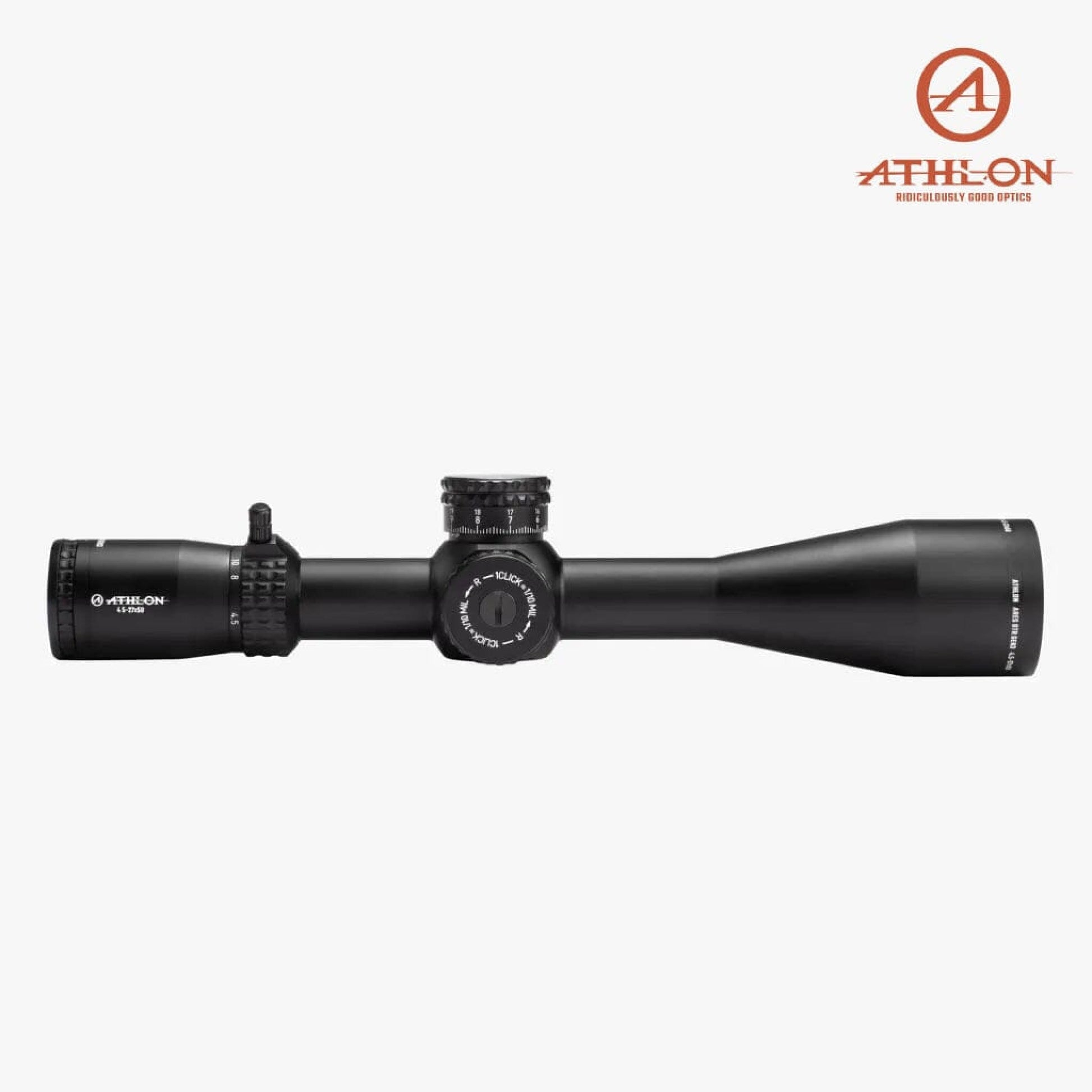

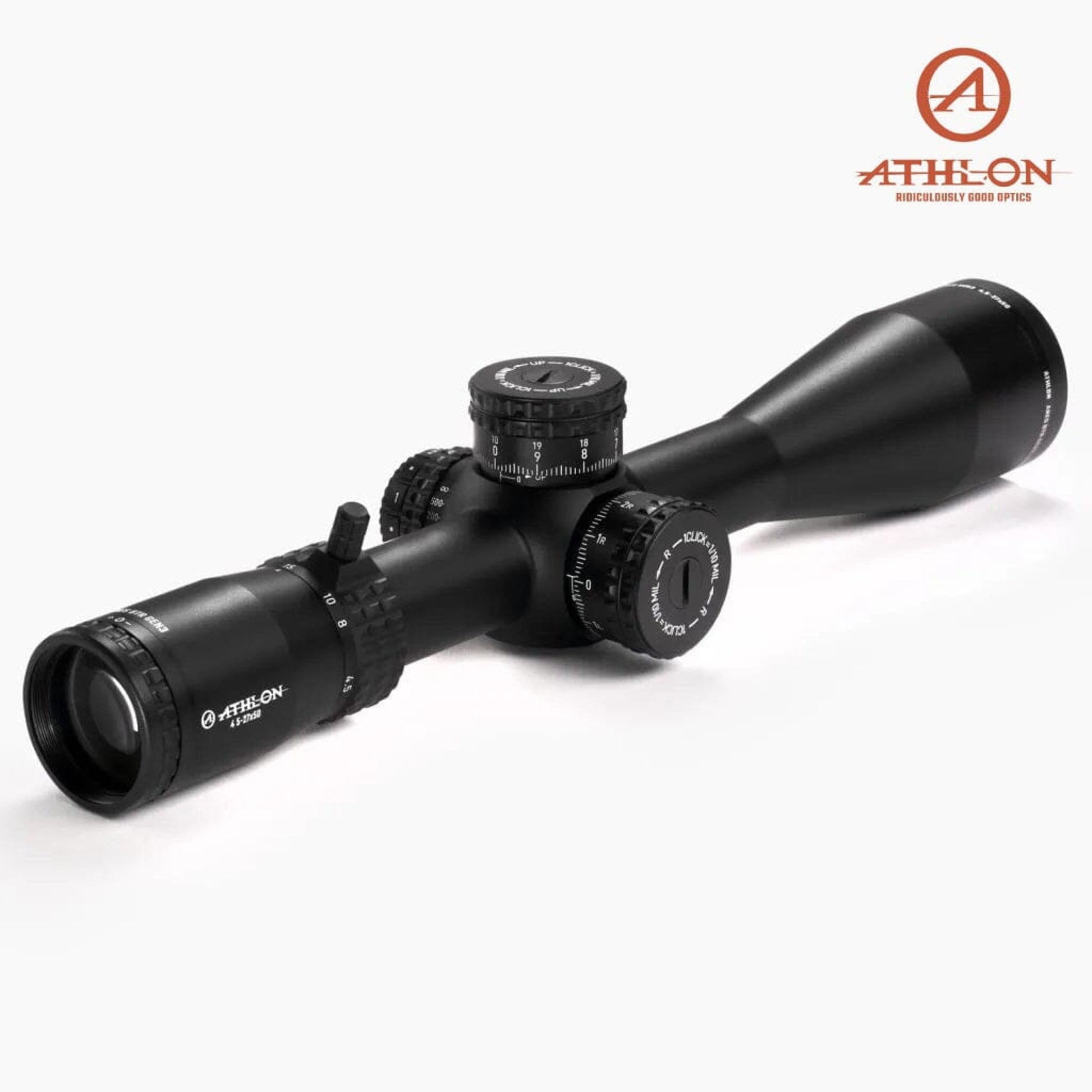

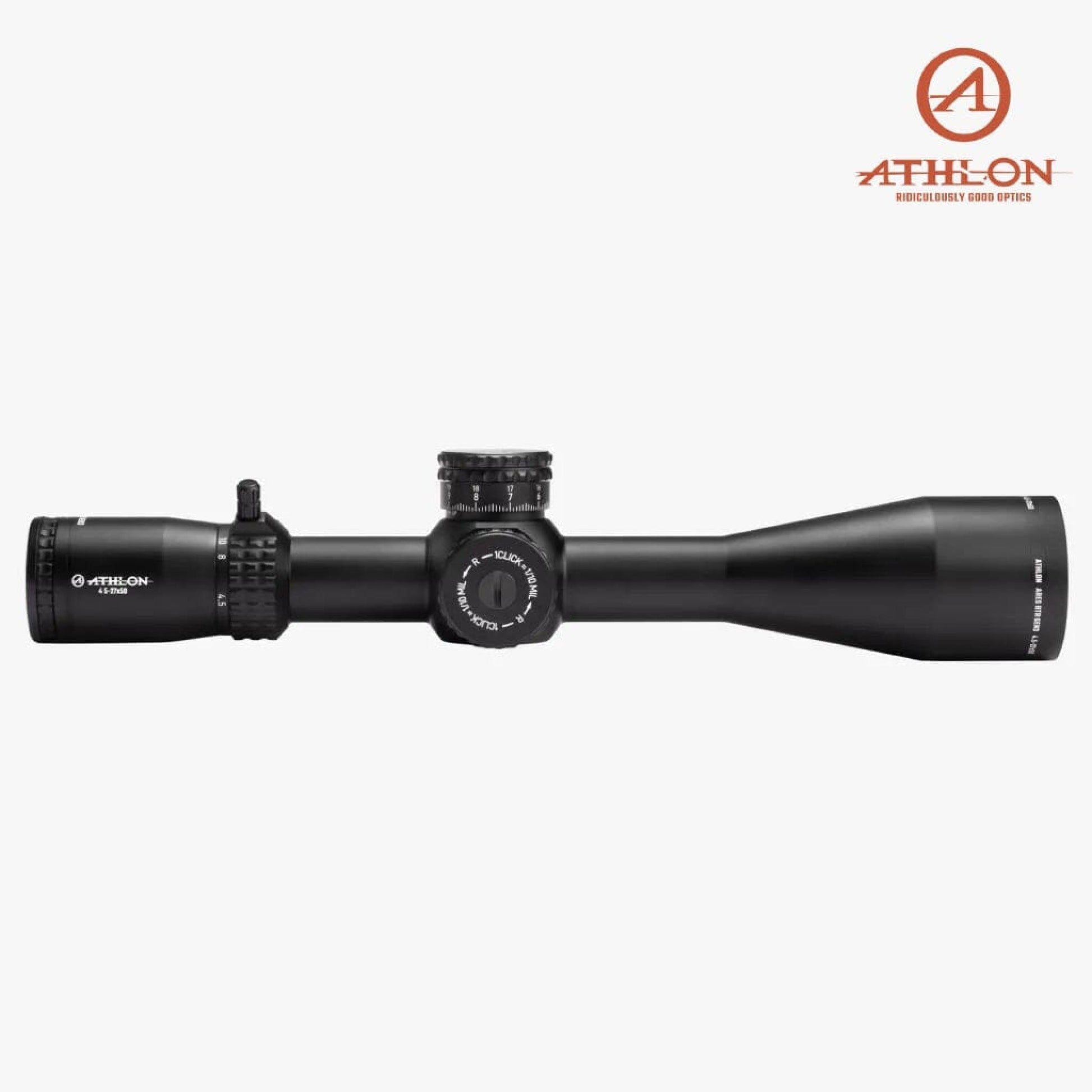

Athlon ARES BTR GEN 3 HD 4.5-27×50 Rifle Scope APRS13 FFP IR MIL Reticle
Athlon ARES BTR GEN 3 HD 4.5-27×50 Rifle Scope APRS13 FFP IR MIL Reticle
Couldn't load pickup availability
Athlon Ares BTR GEN 3 HD 4.5–27×50 Rifle Scope APRS13 FFP IR Mil-Reticle
Features
- 4.5–27× Variable Magnification: High-power zoom with low-profile throw lever for fast changes between 4.5× (wide view) and 27× (precision).

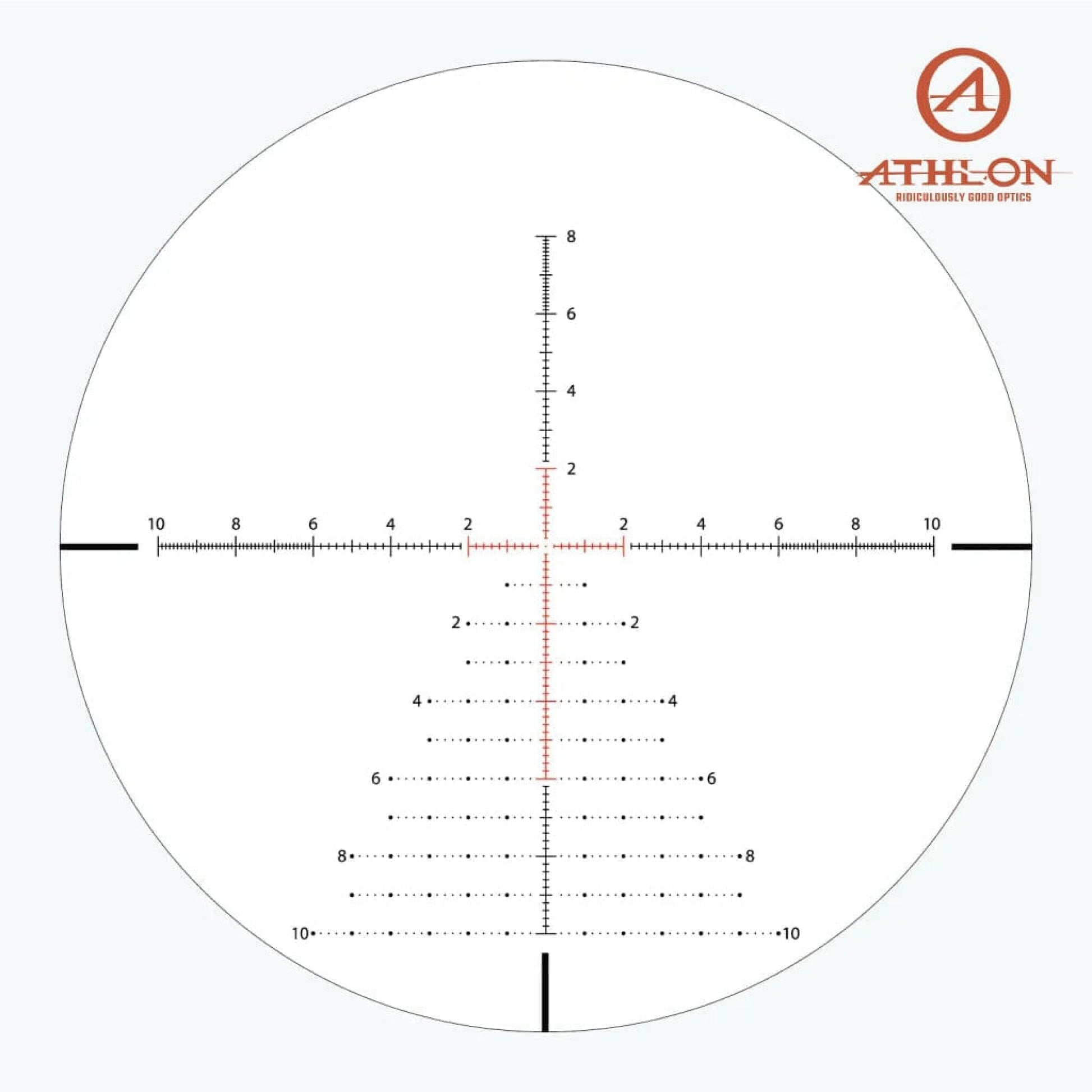

- First Focal Plane APRS13 IR Mil-Reticle: Illuminated mil-based reticle in the first focal plane; true subtensions at all magnifications with 10 red-LED EL settings for daytime and night vision use.
- HD Glass & Fully Multi-Coated Optics: Extra-low dispersion elements plus broadband, anti-reflection coatings on every air-to-glass surface for maximum light transmission, contrast, and edge-to-edge clarity.
- Zero-Stop Elevation Turret: Exposed + positive zero-stop; 0.1 mil per click; 20 mil per revolution.
- Side Focus Parallax: Quick-set from 10 yd to ∞ for tack-sharp reticle alignment at any range.
- Rugged Construction: 30 mm one-piece tube of 6061-T6 aluminum; hard-coat anodized matte finish; nitrogen-purged; argon-filled; shock rated for all standard rifle calibers.
- Weatherproof: IPX7 waterproof to 1 m for 30 minutes; fog-proof; recoil-resistant.
- Extended Eye Relief & Fast Focus: 3.5″–3.8″ eye relief across zoom; fast-focus eyepiece for rapid reticle sharpening.
- Made in USA & Lifetime Warranty: Fully transferable, no-fault coverage.
Technical Specifications for Athlon Ares BTR GEN 3 HD 4.5–27×50 Rifle Scope APRS13 FFP IR Mil-Reticle
Specification |
Details |
Manufacturer |
Athlon Optics |
Model / MPN |
212017 |
SKU |
212017-Athlon |
UPC |
813869023604 |
Magnification Range |
4.5 × ⇄ 27 × |
Objective Lens Diameter |
50 mm |
Tube Diameter |
30 mm |
Reticle |
APRS13 (FFP, illuminated IR Mil) |
Illumination Settings |
10-level red EL LED |
Elevation Click Value |
0.1 mil per click |
Elevation Travel |
20 mil per rev; positive zero-stop |
Windage Click Value |
0.1 mil per click |
Windage Travel |
10 mil per rev |
Parallax Focus |
Side focus, 10 yd → ∞ |
Eye Relief |
3.5″ → 3.8″ |
Field of View @ 100 yd |
22.7 ft → 3.8 ft |
Overall Length |
15.3″ |
Weight |
27.3 oz |
Exit Pupil |
11.1 mm → 1.9 mm |
Tube Material / Finish |
6061-T6 aluminum; matte-black anodize |
Waterproof / Fog-Proof |
Yes (IPX7) |
Shock-Proof |
Yes (all standard calibers) |
Included Accessories
- Low-profile throw lever
- Flip-cap lens covers
- Scope sunshade
- Lens cleaning cloth
- Allen wrenches (turret & lever)
- User manual & lifetime warranty card
