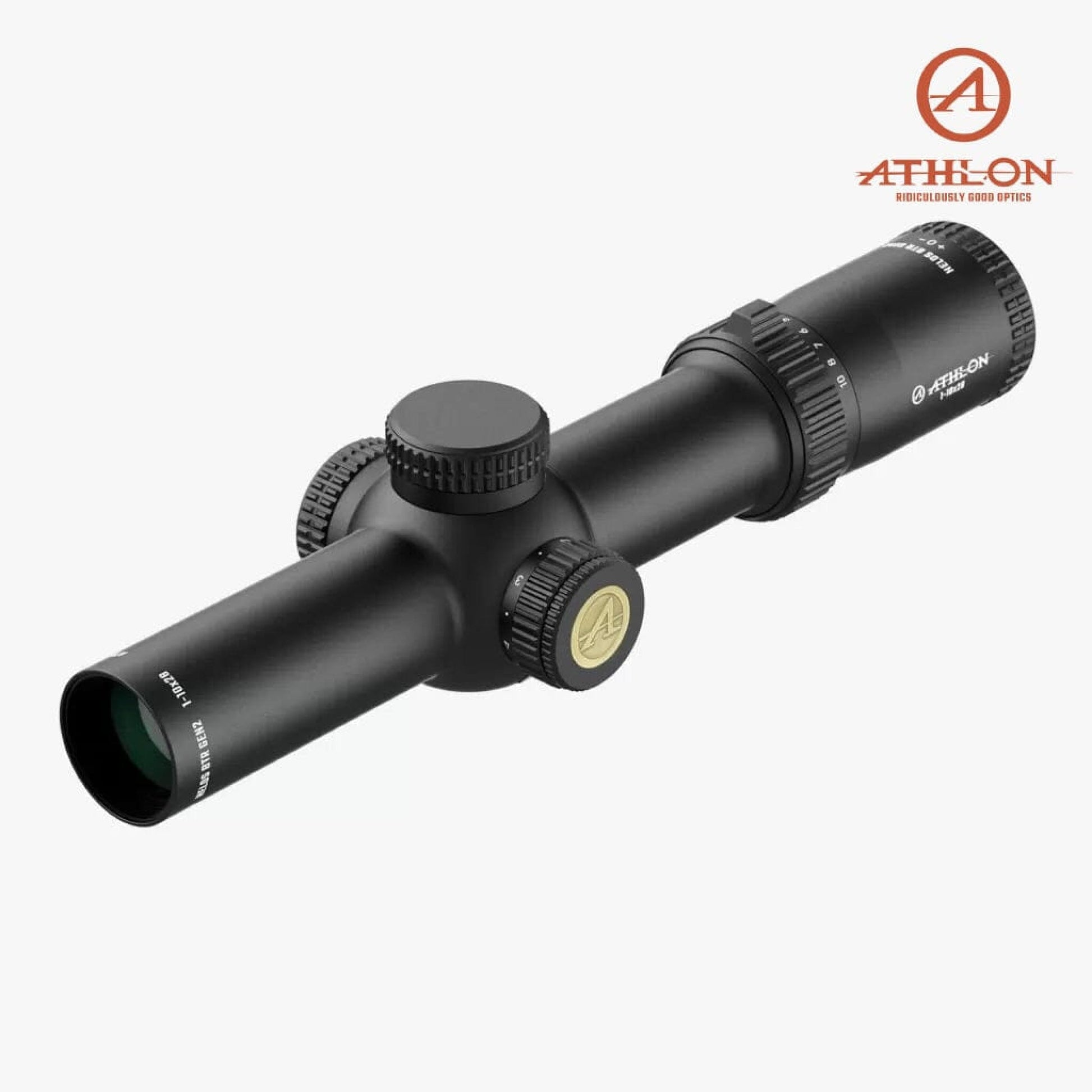

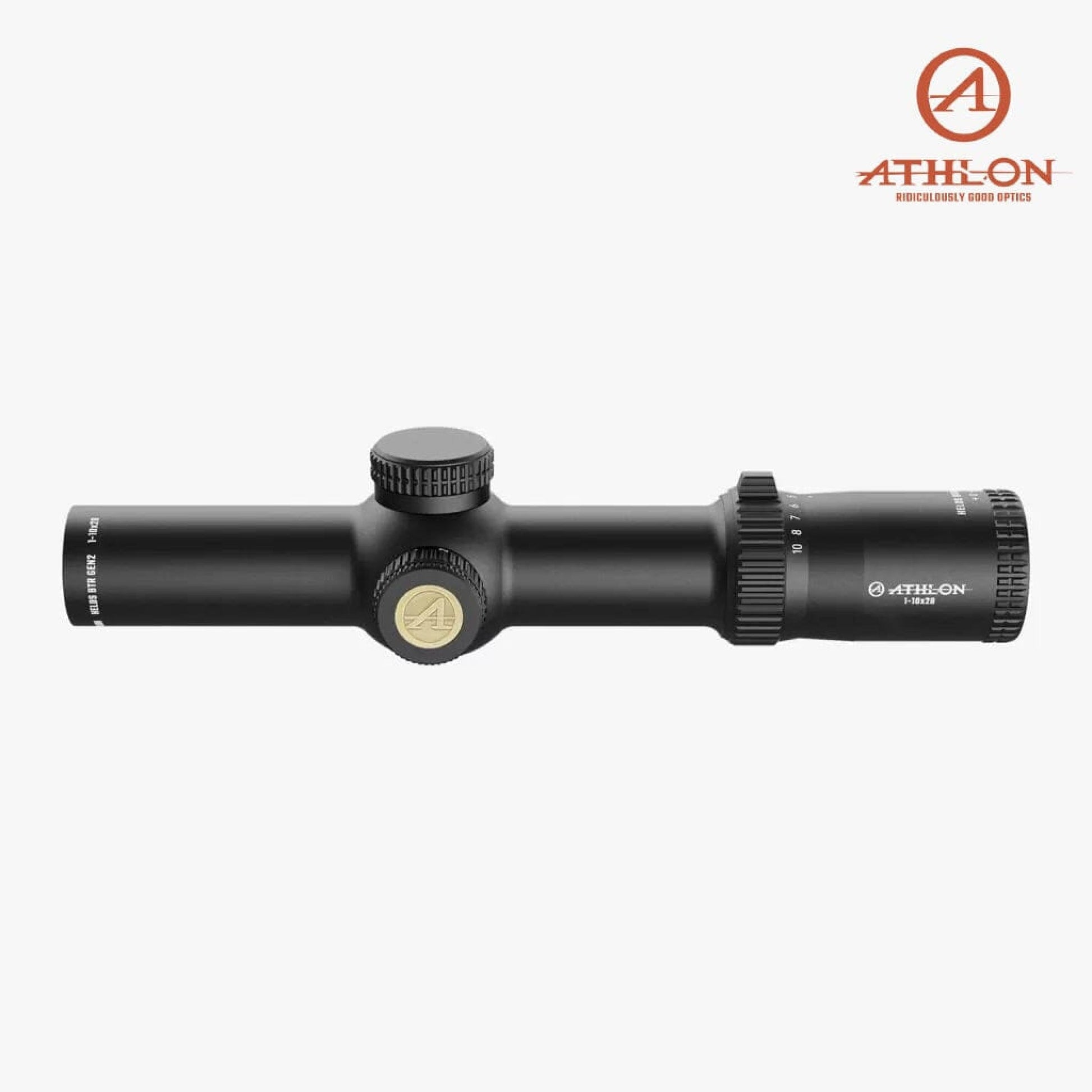

Athlon Helos BTR GEN2 1-10x28 Rifle Scope ATMR4 SFP IR MOA Reticle
Athlon Helos BTR GEN2 1-10x28 Rifle Scope ATMR4 SFP IR MOA Reticle
Couldn't load pickup availability
Athlon Helos BTR GEN2 1-10x28 Rifle Scope ATMR4 SFP IR MOA Reticle
Features
- 1–10× Magnification Range – Versatile low-power variable optic ideal for both close-quarters and mid-range engagements.

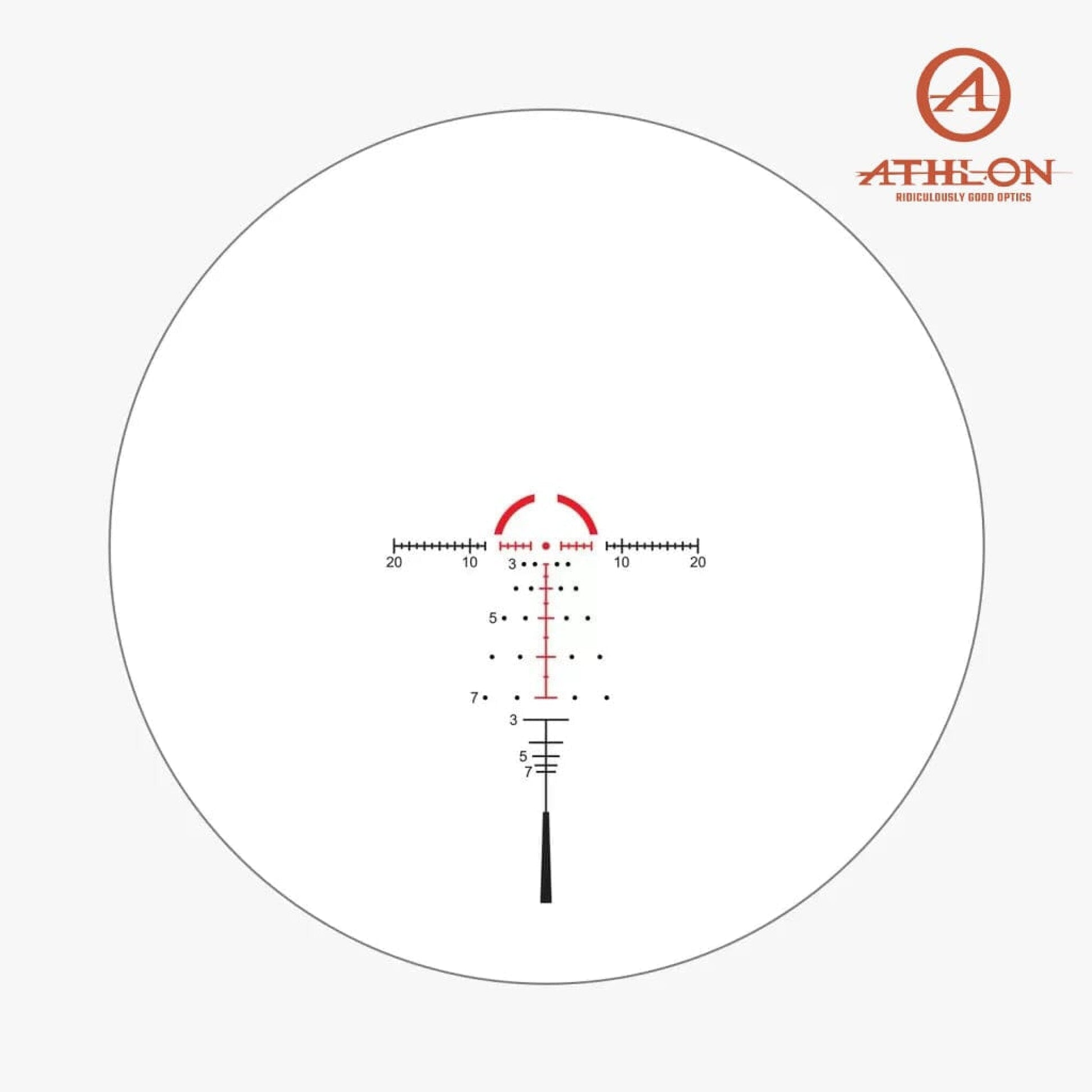

- Second Focal Plane (SFP) Reticle – ATMR4 MOA illuminated reticle stays the same size throughout the zoom range and is optimized for accurate holdovers at 10× magnification.
- Red LED Illumination – Ten brightness settings with off positions between each level for quick return-to-zero lighting control.
- Capped Turrets with 0.5 MOA Clicks – Easy and precise adjustments; turret design prevents accidental movement in the field.
- Fully Multi‑Coated Lenses + XPL Coating – Delivers enhanced light transmission and protection against dirt, oil, and scratches.
- Argon Purged – Improved thermal stability and fogproof performance in all weather conditions.
- Shockproof and Waterproof – Rugged construction designed to withstand heavy recoil and harsh environments.
- Aircraft-Grade Aluminum Housing – Lightweight yet durable tube construction with matte black finish.
Technical Specifications for Athlon Helos BTR GEN2 1-10x28 Rifle Scope ATMR4 SFP IR MOA Reticle
Specification |
Details |
Manufacturer |
Athlon Optics |
Model / MPN |
214103 |
SKU |
214103-Athlon |
UPC |
813869022171 |
Magnification Range |
1–10× |
Objective Lens Diameter |
28 mm |
Tube Diameter |
34 mm |
Reticle |
ATMR4 IR MOA (Second Focal Plane) |
Illumination |
Red LED – 10 settings |
Click Value |
0.5 MOA per click |
Total Elevation Travel |
100 MOA |
Total Windage Travel |
100 MOA |
Parallax |
Fixed at 100 yards |
Field of View @ 100 yds |
110 ft (1x) – 10 ft (10x) |
Eye Relief |
3.2″ (81 mm) |
Length |
10.3″ (262 mm) |
Weight |
18.3 oz (519 g) |
Lens Coating |
Fully Multi-Coated + XPL Protection |
Finish |
Matte Black |
Waterproof / Fogproof |
Yes – Argon Purged |
Warranty |
Limited Lifetime |
Country of Origin |
China |
Included Accessories
- Throw lever
- Flip-up lens caps
- CR2032 battery (pre-installed)
- User manual
- Warranty documentation
