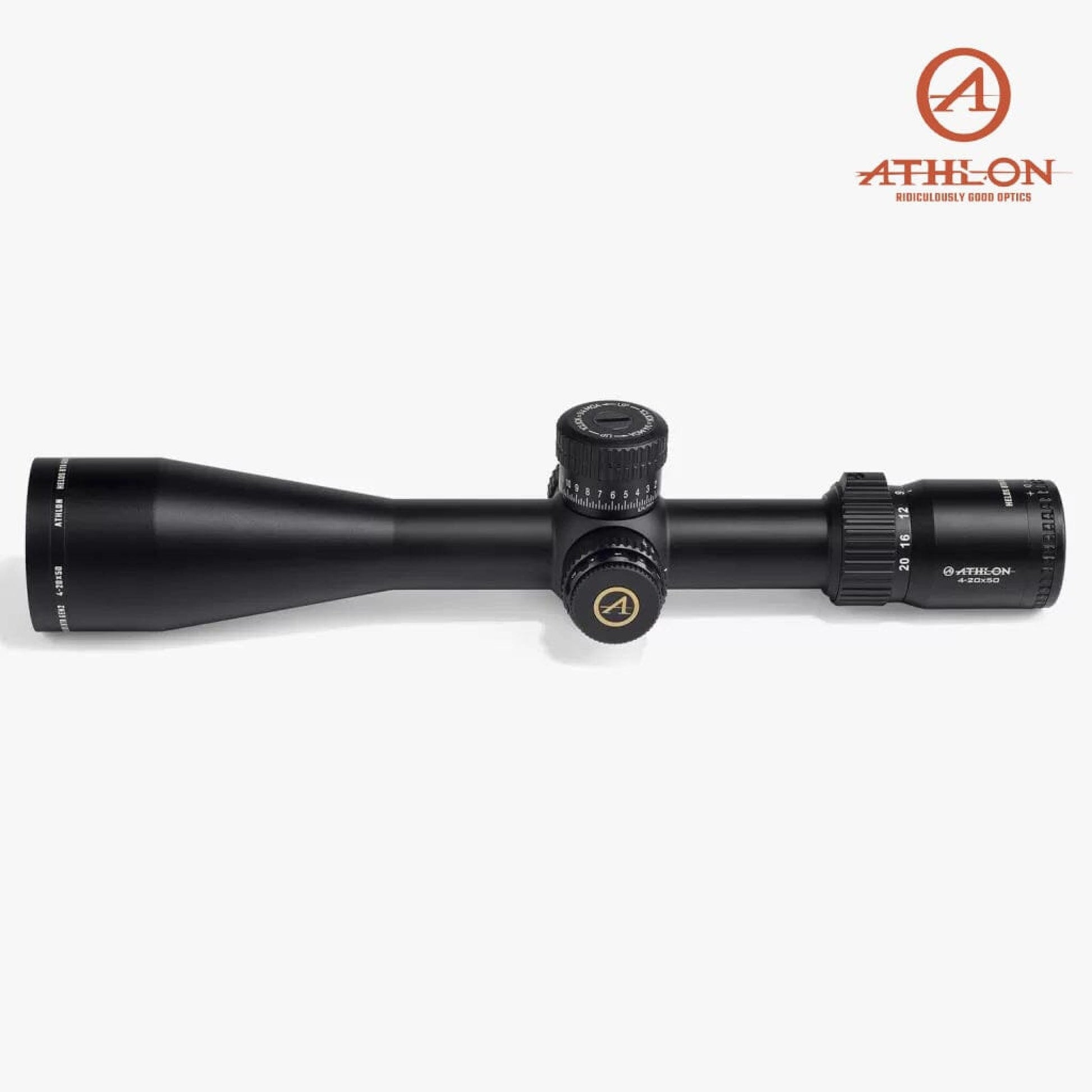

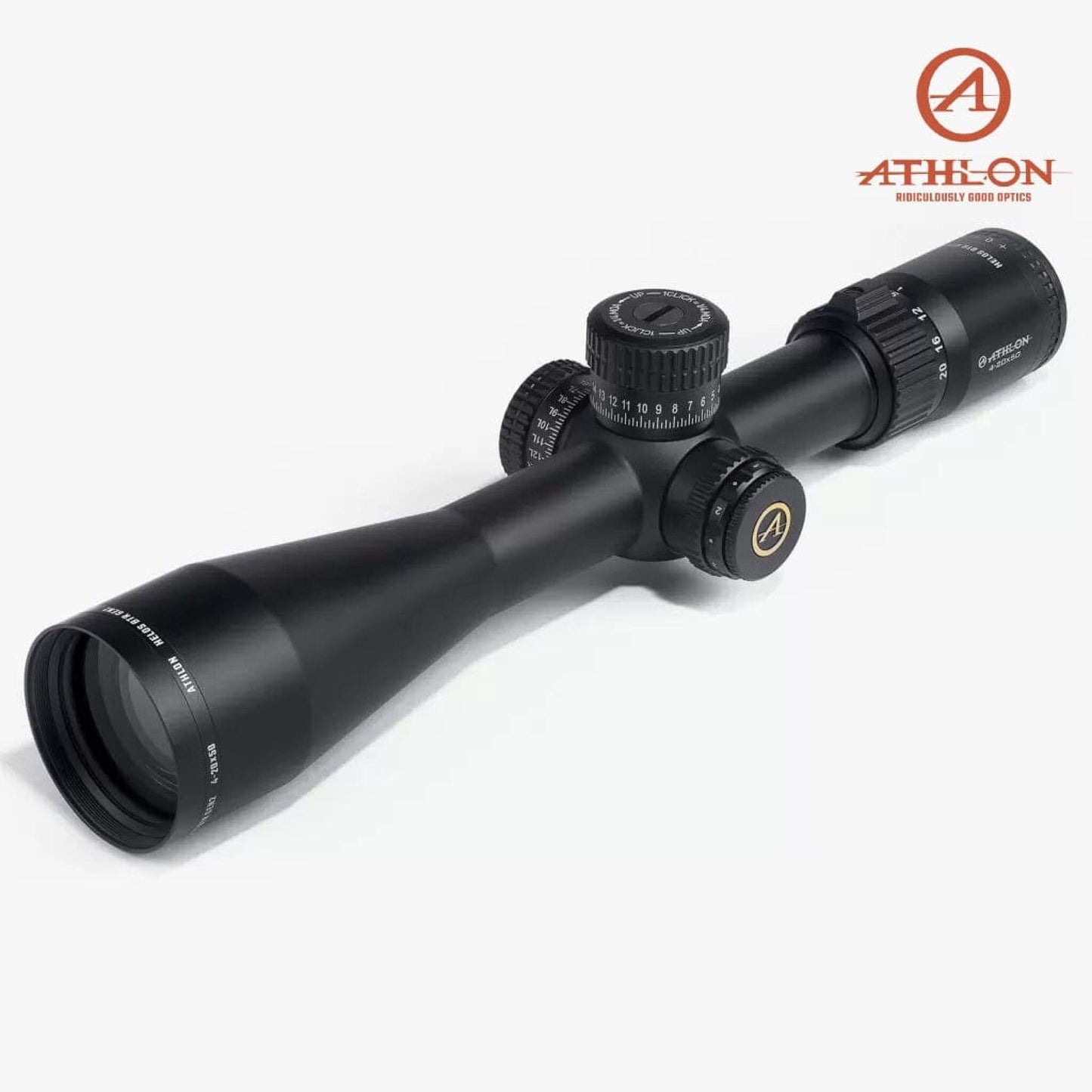

Athlon Helos BTR GEN2 4-20x50 Rifle Scope APLR6 FFP IR MOA Reticle
Athlon Helos BTR GEN2 4-20x50 Rifle Scope APLR6 FFP IR MOA Reticle
Couldn't load pickup availability
Athlon Helos BTR GEN2 4–20×50 Rifle Scope APLR6 FFP IR MOA Reticle
Features
- 4–20× Magnification Range – Ideal for mid- to long-range shooting, offering precise target engagement and versatility.

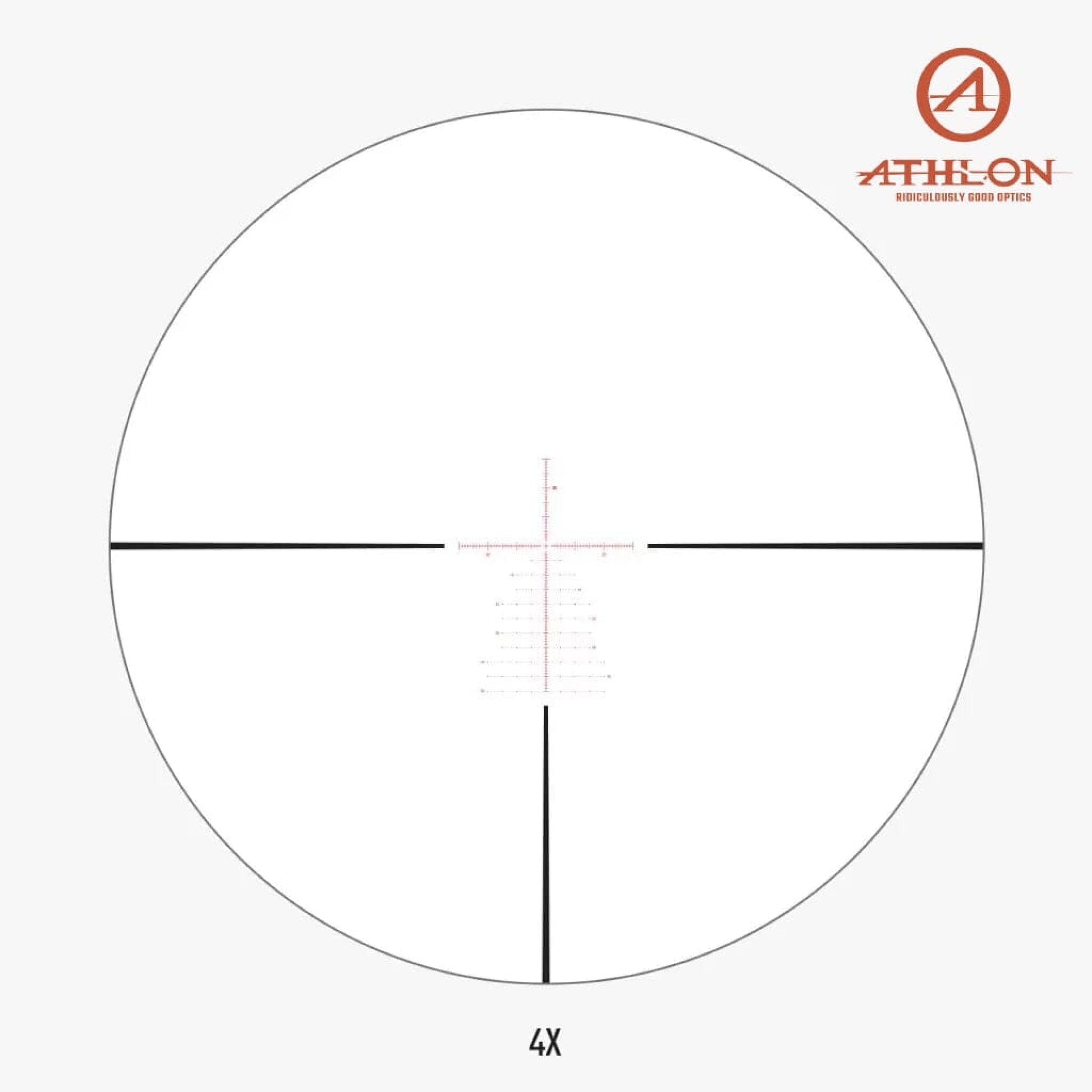

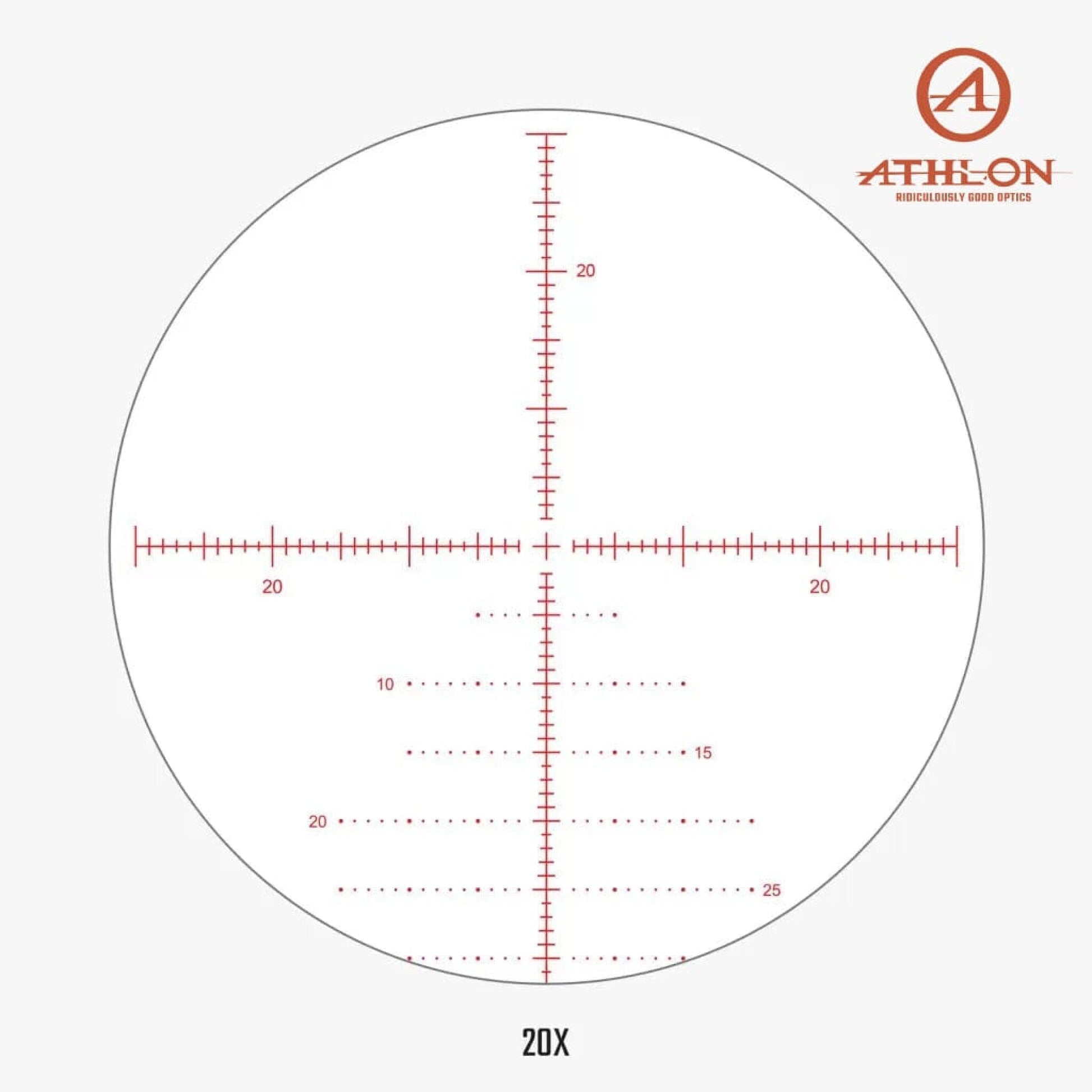

- First Focal Plane (FFP) Reticle – APLR6 MOA illuminated reticle maintains correct proportions across all magnification levels, enabling accurate ranging and holdovers.
- Red LED Illumination – 10 brightness settings with off positions between each level for fast, intuitive control.
- Locking Turrets with Zero Stop – Prevents unintentional adjustments and allows rapid return to original zero after dialing elevation.
- 0.25 MOA Click Value – Precise, tactile turret adjustments with ample internal adjustment range.
- Advanced Fully Multi-Coated Lenses with XPL Coating – Maximizes light transmission and protects against scratches, oil, and dirt.
- Side Parallax Adjustment – Adjustable from 10 yards to infinity, ensuring a clear image and precise focus at any range.
- 30 mm Aircraft-Grade Aluminum Tube – Durable, one-piece construction that is argon-purged for waterproof and fogproof performance.
- Matte Black Finish – Non-reflective and corrosion-resistant coating for tactical use.
Technical Specifications for Athlon Helos BTR GEN2 4–20×50 Rifle Scope APLR6 FFP IR MOA Reticle
Specification |
Details |
Manufacturer |
Athlon Optics |
Model / MPN |
214108 |
SKU |
214108-Athlon |
UPC |
813869022188 |
Magnification Range |
4–20× |
Objective Lens Diameter |
50 mm |
Tube Diameter |
30 mm |
Reticle |
APLR6 MOA, First Focal Plane, Illuminated |
Illumination Levels |
10 |
Click Value |
0.25 MOA per click |
Elevation Travel |
110 MOA total |
Windage Travel |
80 MOA total |
Parallax Adjustment |
Side focus – 10 yds to infinity |
Field of View @ 100 yds |
27.9 ft (4×) – 5.6 ft (20×) |
Eye Relief |
3.6″ (91 mm) |
Length |
13.3″ (338 mm) |
Weight |
27.6 oz (782 g) |
Lens Coatings |
Fully Multi-Coated + XPL Protective |
Construction |
Argon-purged, aircraft-grade aluminum |
Finish |
Matte Black |
Waterproof / Fogproof |
Yes |
Warranty |
Limited Lifetime |
Country of Origin |
China |
Included Accessories
- Throw Lever
- Flip-Up Lens Caps
- CR2032 Battery (Installed)
- User Manual
- Warranty Documentation
