Athlon Helos BTR GEN2 4–20×50 Rifle Scope APRS6 FFP IR MIL Reticle
Features
- 4–20× Magnification Range – Provides a wide zoom range for mid- to long-range precision shooting.

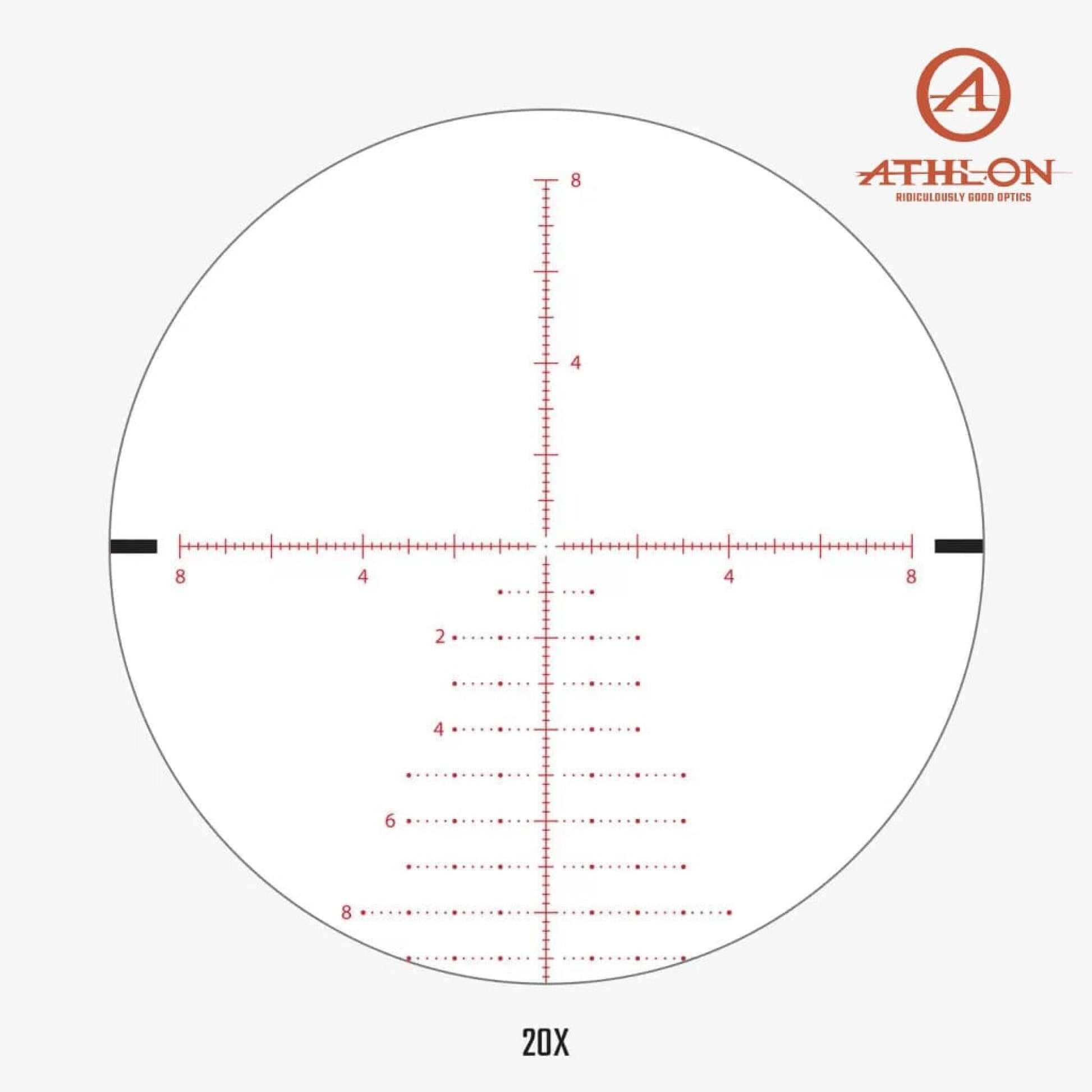

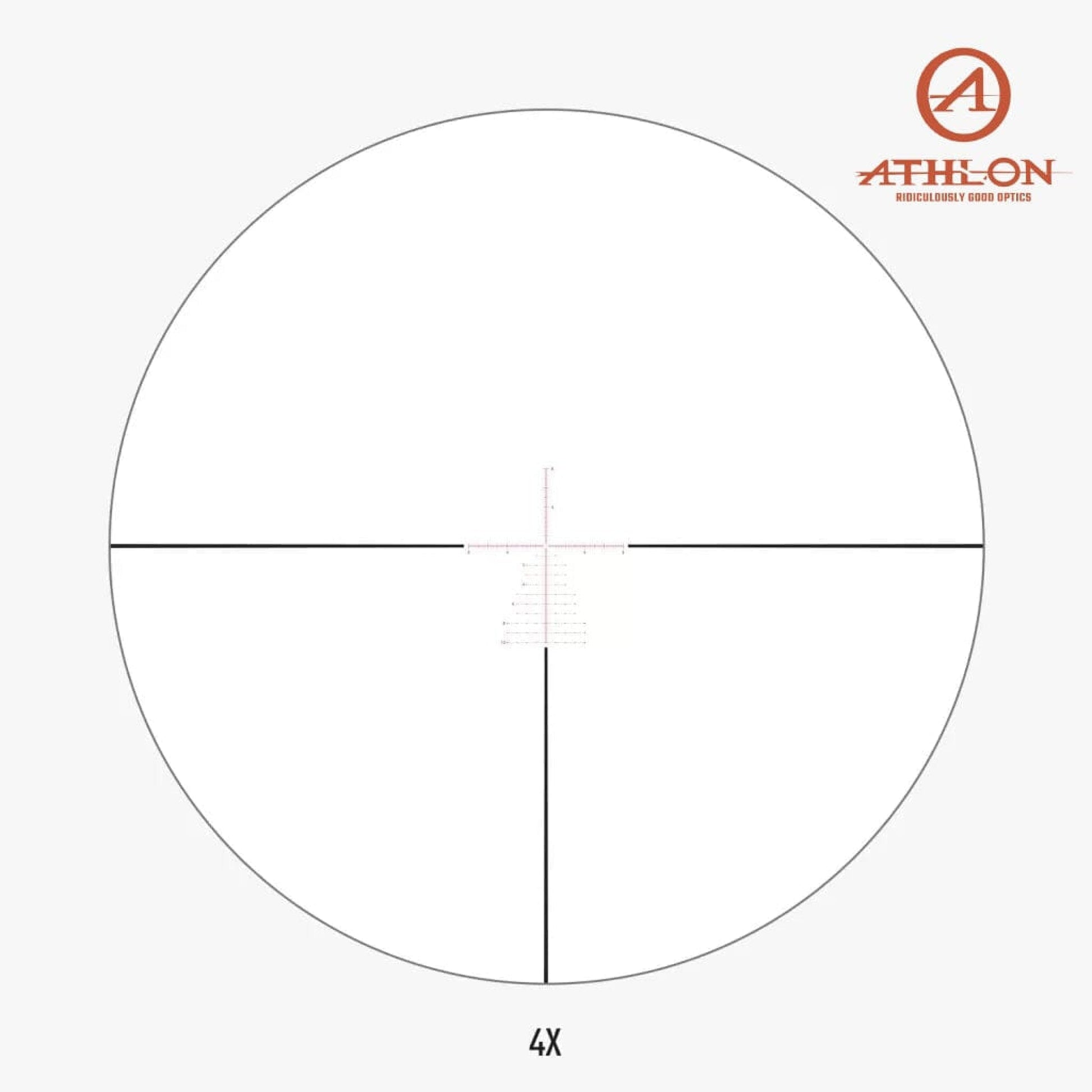

- First Focal Plane (FFP) Reticle – APRS6 MIL illuminated reticle maintains consistent subtensions across all magnification levels, ideal for ranging and holdovers.
- Red LED Illumination – Offers 10 brightness settings with intermittent off positions for fast and repeatable control.
- Locking, Push/Pull Turrets with Zero Stop – Secure turret design with a reliable zero stop for quick return-to-zero after dialing.
- 0.1 MIL Click Value – Delivers precise adjustments for both elevation and windage.
- Fully Multi-Coated Lenses with XPL Coating – Enhances clarity while protecting exterior glass from dirt, oil, and scratches.
- Side Parallax Adjustment – Adjustable from 10 yards to infinity for a sharp, parallax-free image.
- Durable Construction – Argon-purged, aircraft-grade aluminum housing provides waterproof, fogproof, and shockproof performance.
- Matte Black Finish – Non-reflective finish for tactical and field applications.
Technical Specifications for Athlon Helos BTR GEN2 4–20×50 Rifle Scope APRS6 FFP IR MIL Reticle
Specification |
Details |
Manufacturer |
Athlon Optics |
Model / MPN |
214109 |
SKU |
214109-Athlon |
UPC |
813869022195 |
Magnification Range |
4–20× |
Objective Lens Diameter |
50 mm |
Tube Diameter |
30 mm |
Reticle |
APRS6 MIL, First Focal Plane, Illuminated |
Illumination Levels |
10 |
Click Value |
0.1 MIL per click |
Elevation Travel |
29 MIL total |
Windage Travel |
25 MIL total |
Parallax Adjustment |
Side focus – 10 yards to infinity |
Field of View @ 100 yds |
27.9 ft (4×) – 5.6 ft (20×) |
Eye Relief |
3.6″ (91 mm) |
Length |
13.3″ (338 mm) |
Weight |
27.6 oz (782 g) |
Lens Coatings |
Fully Multi-Coated + XPL Protective |
Construction |
Argon-purged, aircraft-grade aluminum |
Finish |
Matte Black |
Waterproof / Fogproof |
Yes |
Warranty |
Limited Lifetime |
Country of Origin |
China |
Included Accessories
- Throw Lever
- Flip-Up Lens Caps
- CR2032 Battery (Installed)
- User Manual
- Warranty Documentation
