EOTech
EOTech 512.A65 HWS Holographic Weapon Sight
EOTech 512.A65 HWS Holographic Weapon Sight
Couldn't load pickup availability

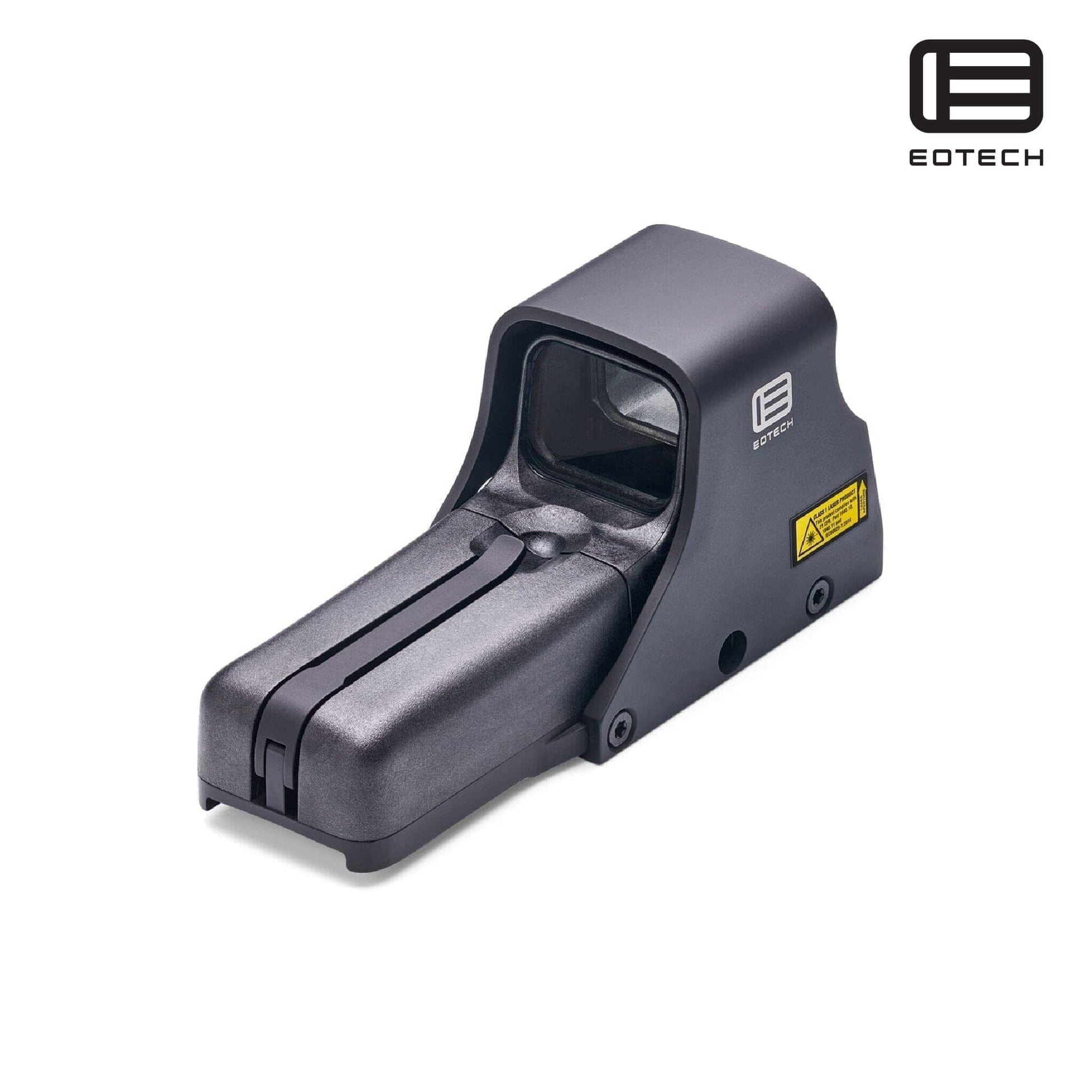

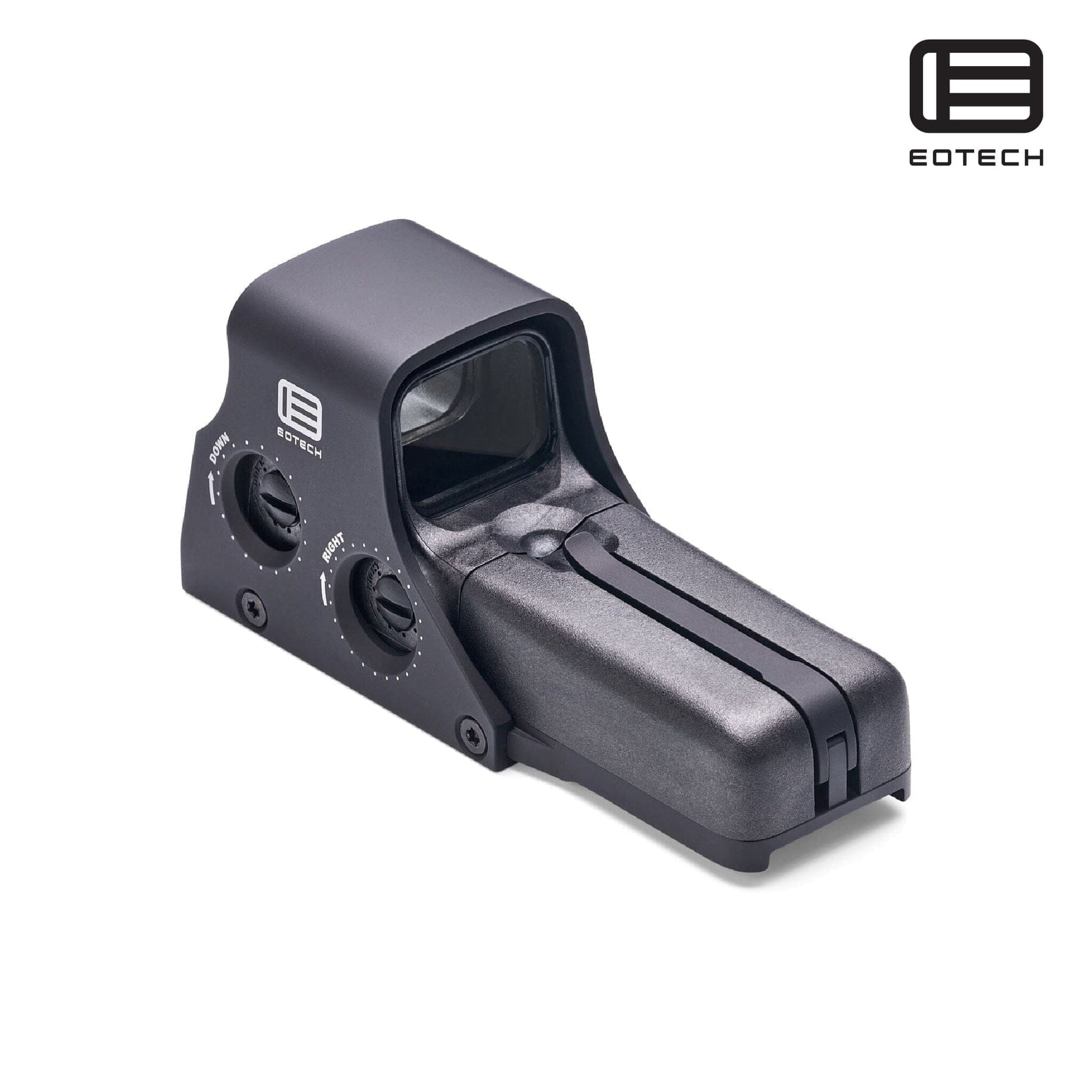

EOTech HWS 512 Holographic Weapon Sight
(Black, AA-Powered, Non-NV Compatible)
Features

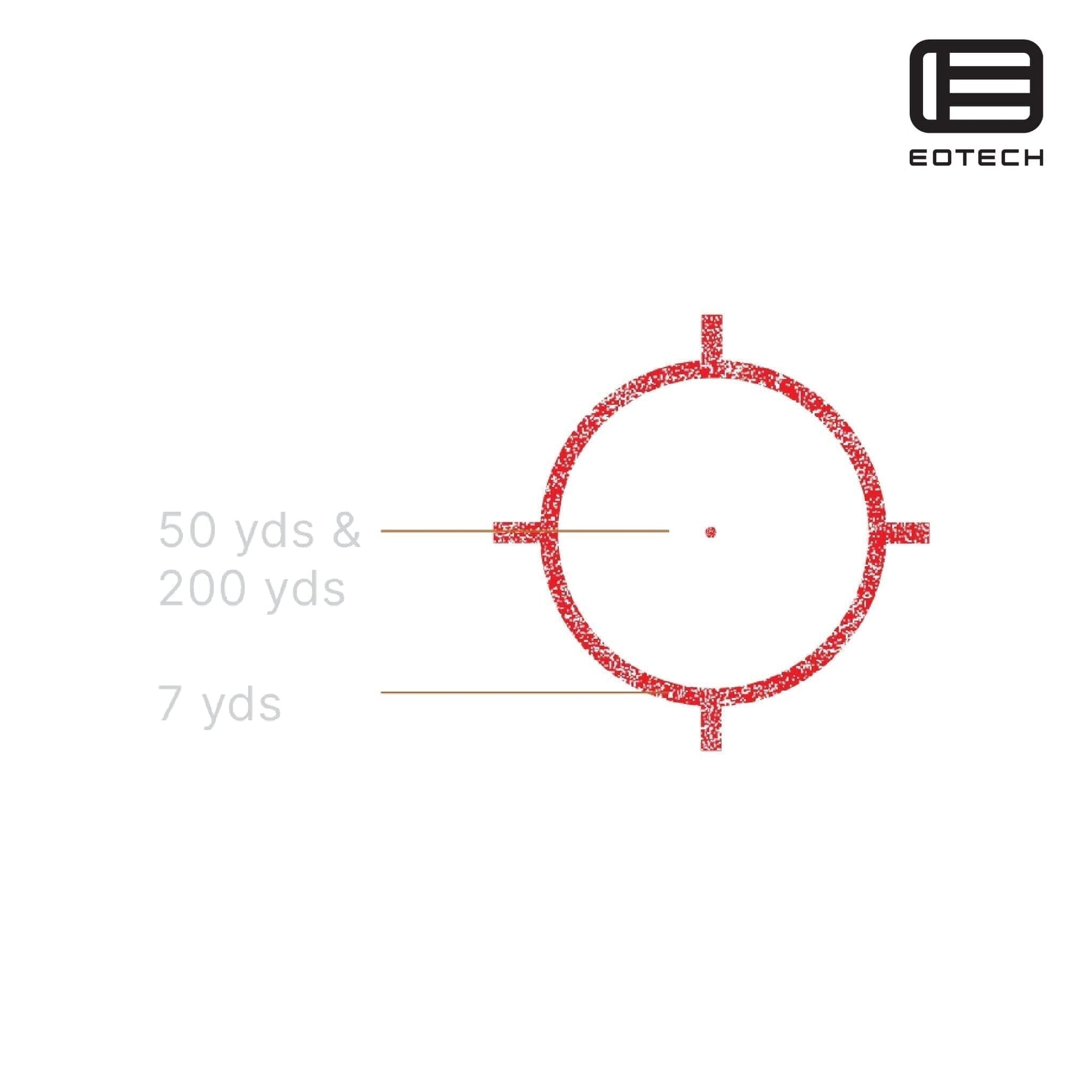

- 68 MOA Ring & 1 MOA Dot Reticle: Glass-etched holographic emitter projects a prominent speed-ring with a precise center dot for fast acquisition and fine aiming.
- Non-Night-Vision Compatible: Designed for daylight use only—no NV modes included.
- AA-Battery Powered: Runs on two 1.5 V AA cells (alkaline, lithium, or NiMH) via a side-load tray—field-swap without tools.
- Up to 2,500 hr Continuous Use: Lithium cells deliver up to 2,500 hr at nominal brightness (alkaline ~2,200 hr).
- Knobbed, Tool-Less Mounting Bolt: Secure clamp interfaces to 1″ Weaver or MIL-STD-1913 rails; installs/removes while maintaining zero.
- True Two-Eyes-Open Shooting: Ultra-low 1.10″ rail-height footprint permits lower-1/3 co-witness without blocking your view.
- Rugged, Weather-Resistant Construction: O-ring and nitrogen sealed to IP67 (submersible to 10 m); operates from –40 °F to +140 °F.
- Durable Housing & Finish: CNC-machined 6061-T6 aluminum with matte-black Cerakote resists recoil and harsh environments.
Technical Specifications for EOTech HWS 512 Holographic Weapon Sight
|
Specification |
Details |
|
Product Title |
EOTech HWS 512™ Holographic Weapon Sight (Black) |
|
Model / MPN |
512.A65 |
|
SKU |
512.A65 |
|
UPC |
672294512653 |
|
Reticle |
68 MOA ring with 1 MOA center dot |
|
Magnification |
1× |
|
Illumination Settings |
20 daylight-usable brightness levels |
|
Night-Vision Compatible |
No |
|
Power Source |
(2) 1.5 V AA batteries (alkaline, lithium, or NiMH) |
|
Battery Life |
Up to 2,500 hr (lithium); ~2,200 hr (alkaline) at nominal setting |
|
Adjustment Graduation |
0.5 MOA per click |
|
Windage / Elevation Travel |
±40 MOA each |
|
Eye Relief |
Unlimited |
|
Parallax |
Parallax-free |
|
Field of View |
90 ft @ 100 yd |
|
Dimensions (L × W × H) |
5.6″ × 2.0″ × 2.5″ (142.2 × 50.8 × 63.5 mm) |
|
Weight |
11.5 oz (326 g) |
|
Mount Interface |
Knobbed, tool-less clamp for 1″ Weaver/MIL-STD-1913 rails; 1.10″ rail-height footprint |
|
Water Resistance |
IP67 (submersible to 10 m) |
|
Operating Temperature |
–40 °F to +140 °F (–40 °C to +60 °C) |
|
Housing Material / Finish |
CNC-machined 6061-T6 aluminum, matte-black Cerakote |
|
Warranty |
2-Year EOTech Warranty |
