EOTech
EOTech G45.STSTAN 5x Magnifier with QD Mount Tan
EOTech G45.STSTAN 5x Magnifier with QD Mount Tan
Couldn't load pickup availability

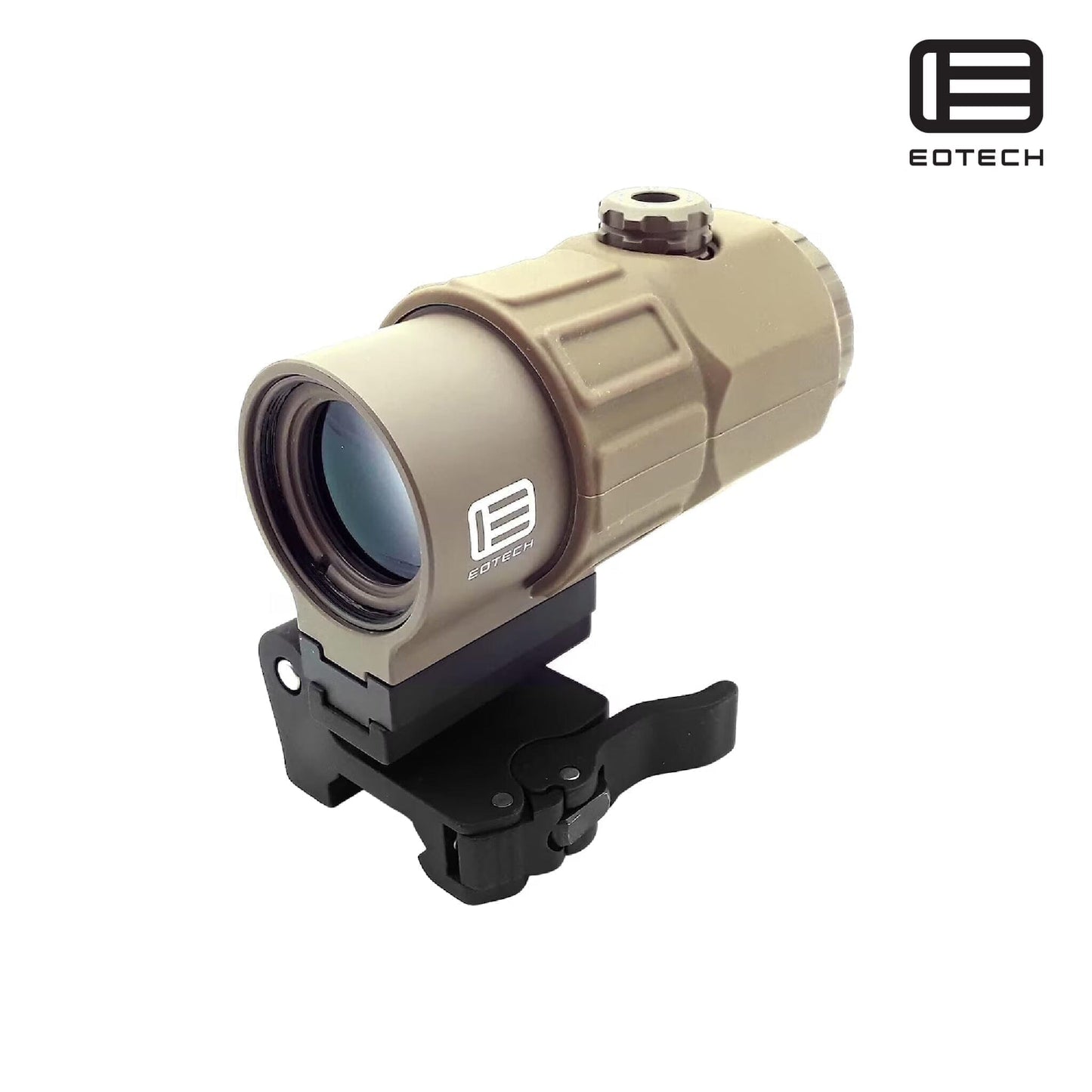

EOTech G45.STSTAN 5× Magnifier with QD STS Mount Tan
Features
- 5× Fixed Magnification: Rapidly transition from 1× to 5× for extended-range engagements.
- Switch-To-Side (STS) Quick-Detach Mount: Tool-free lever with integrated 7 mm riser allows instant flip-to-side and rapid return to zero
- Tool-Free Windage & Elevation Adjustments: Easily zero and fine-tune without additional tools.
- Tool-Free Diopter Focus: Adjustable diopter knob delivers a razor-sharp image without tools.
- Generous Eye Relief & Wide FOV: 2.6″ (66 mm) eye relief paired with a 4.4° field of view at 5×
- Fog-Resistant Internal Optics: Sealed optical path maintains clarity in humid or rapid-temperature-change environments.
- Waterproof & Weather-Resistant: O-ring sealed to IP67 (submersible to 10 m)
- Durable Housing & Finish: Hard-anodized aluminum with FDE Cerakote resists recoil and harsh conditions.
- Universal HWS Compatibility: Mounts seamlessly to all EOTech Holographic Weapon Sights via STS interface.
Technical Specifications for EOTech G45.STSTAN 5× Magnifier with QD STS Mount Tan
Specification |
Details |
Product Title |
EOTech G45.STSTAN 5× Magnifier with QD STS Mount (Tan) |
Model / MPN |
G45.STSTAN |
SKU |
G45.STSTAN |
UPC |
672294300472 |
Magnification |
5× |
Eye Relief |
2.6″ (66 mm) |
Field of View |
4.4° |
Dimensions (L × W × H) |
3.9″ × 2.3″ × 3.3″ (99 × 58.4 × 84 mm) |
Weight (with mount) |
12.8 oz (363 g) |
Adjustment |
Tool-free windage, elevation & diopter focus |
Water Resistance |
IP67 (submersible to 10 m) |
Sealing |
Fog-resistant internal optics |
Mount Interface |
STS quick-detach lever with 7 mm riser for 1″ Weaver / MIL-STD-1913 Picatinny rail |
Housing Material / Finish |
Hard-anodized aluminum with FDE Cerakote |
Operating Temperature |
–40 °F to +140 °F (–40 °C to +60 °C) |
Compatible Optics |
All EOTech Holographic Weapon Sights via STS mount |
Country of Origin |
Assembled in USA |
Warranty |
2-Year EOTech Warranty |
SEO Keywords
EOTech G45.STSTAN, 5× tan magnifier STS mount, FDE 5× STS magnifier, switch-to-side tan magnifier.
