EOTech HHS V Hybrid Sight EXPS3-4 with G45.STS Magnifier
Features

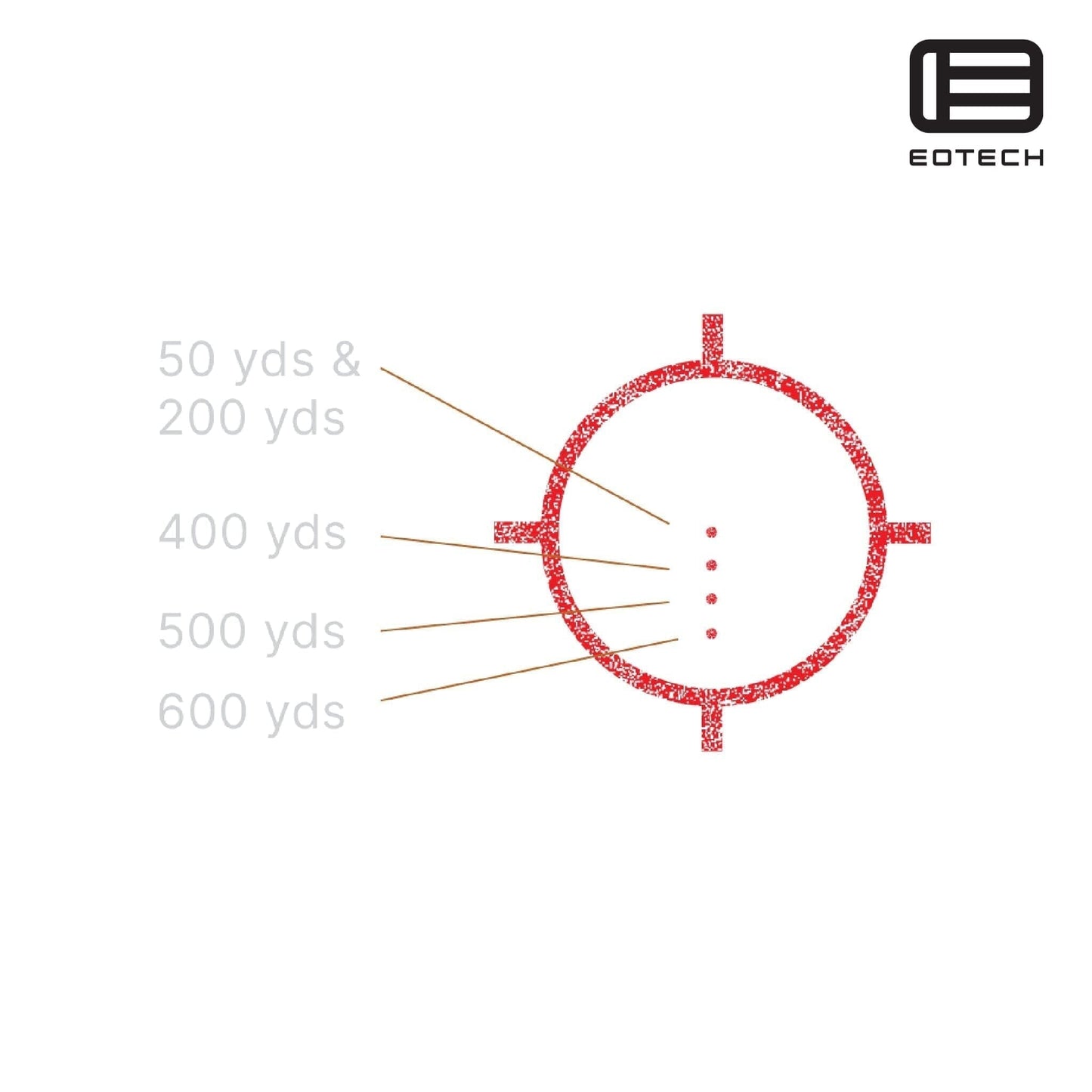

- 4-Dot Holographic Reticle: 68 MOA outer ring with four stacked 1 MOA dots for rapid acquisition and intuitive hold-over reference.
- Hybrid Configuration: Seamlessly integrates the EXPS3-4 1× HWS with the 5× G45.STS magnifier for instant transitions between close-quarters and medium-range engagements.
- Switch-To-Side (STS) Quick-Detach Mount: Tool-free lever with 7 mm riser lets you flip the magnifier off-axis and snap it back on zero in an instant.
- Side-Button Illumination (Sight): Ergonomic controls offer 20 daylight + 10 night-vision compatible brightness levels.
- Night-Vision Compatible: Both sight and magnifier optics optimized for use with Gen I–III+ NV devices.
- Long Battery Life: Up to 1,000 continuous hours on a single CR123A at nominal setting.
- Rugged, Weather-Resistant Build: O-ring sealed to IP67 (submersible to 10 m); operates from –40 °F to +140 °F.
Technical Specifications for EOTech HHS V Hybrid Sight EXPS3-4 with G45.STS Magnifier
|
Specification |
Details |
|
Product Title |
EOTech HHS V Hybrid Sight EXPS3-4 with G45.STS Magnifier (Black) |
|
Model / MPN |
HHS V |
|
SKU |
HHSV |
|
UPC |
672294600749 |
|
Reticle |
68 MOA ring with four 1 MOA dots |
|
Sight Magnification |
1× |
|
Magnifier Power |
5× |
|
Illumination Settings |
20 daylight + 10 night-vision compatible |
|
Night-Vision Compatible |
Yes |
|
Battery |
(1) CR123A lithium |
|
Battery Life |
Up to 1,000 continuous hours at nominal setting |
|
Adjustment Graduation |
0.5 MOA per click |
|
Windage / Elevation Travel |
±50 MOA each |
|
Eye Relief |
Unlimited (sight); 2.6″ / 66 mm (magnifier) |
|
Field of View |
90 ft @ 100 yd (sight); 4.4° (magnifier) |
|
Dimensions (L × W × H) |
7.7″ × 2.3″ × 3.3″ (195.6 × 58.4 × 83.8 mm) |
|
Weight |
24 oz / 680 g |
|
Water Resistance |
IP67 (submersible to 10 m) |
|
Operating Temperature |
–40 °F to +140 °F (–40 °C to +60 °C) |
|
Housing Material / Finish |
Hard-anodized aluminum, matte black |
|
Mount Interface |
Sight: tool-free QD lever for 1″ Weaver/MIL-STD-1913 rail (7 mm riser);Magnifier: STS quick-detach lever |
|
Warranty |
2-Year EOTech Warranty |
