EOTech HHS VI Hybrid Sight EXPS3-2 HWS with G43.STS Magnifier
EOTech HHS VI Hybrid Sight EXPS3-2 HWS with G43.STS Magnifier
Couldn't load pickup availability
EOTech HHS VI Hybrid Sight EXPS3-2 HWS with G43.STS Magnifier
Features
- Hybrid Configuration: Integrates the EXPS3-2 holographic sight (1×) with the G43.STS micro 3× magnifier for seamless transitions between close-quarters and medium-range engagements.

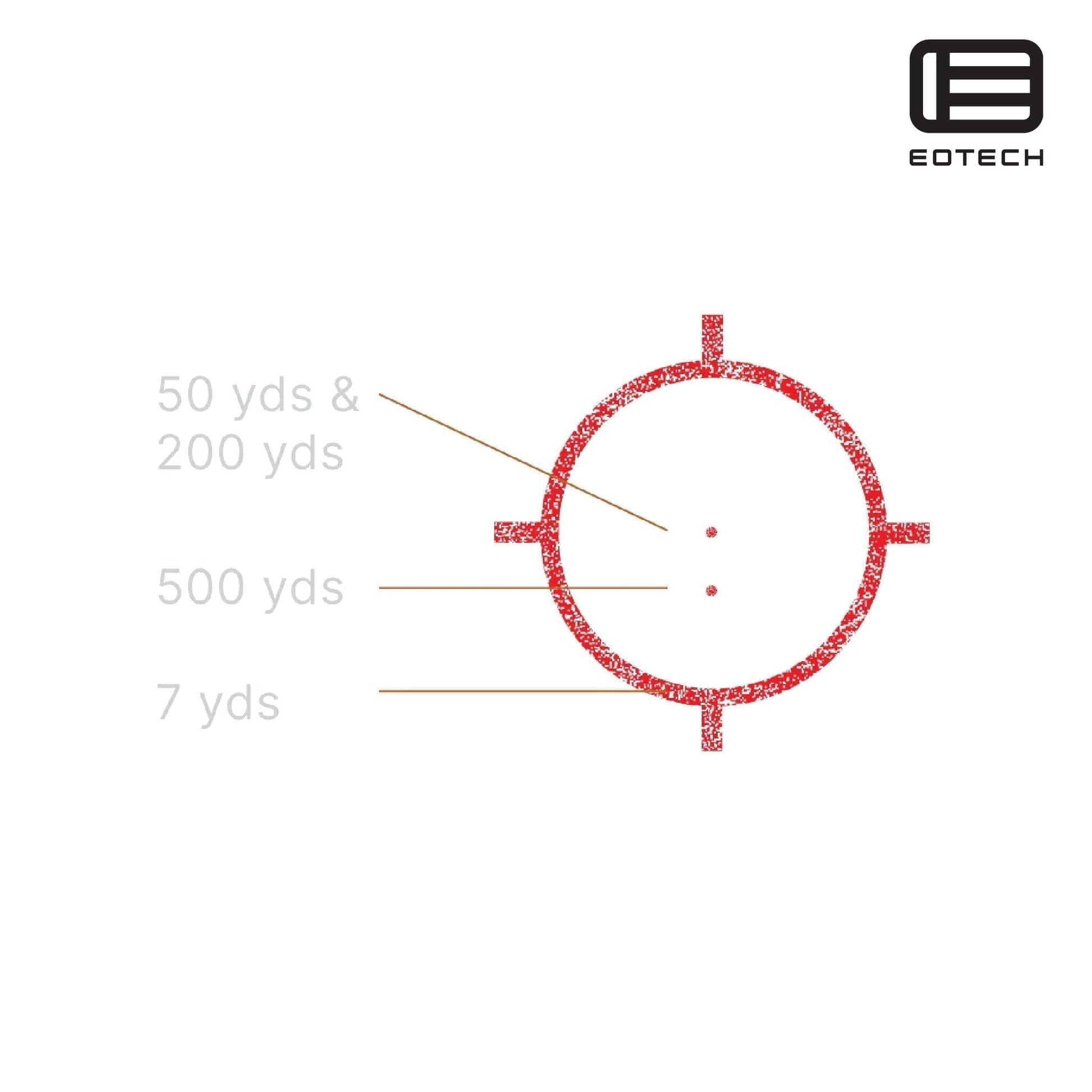

- Dual-Dot Reticle: 68 MOA outer ring with two 1 MOA center dots for rapid target acquisition and intuitive hold-over reference.
- Side-Button Illumination Controls: Ergonomic left/right switches on EXPS3-2 offer 20 daylight + 10 night-vision compatible brightness levels.
- Night-Vision Compatible: Reticle and controls optimized for use with Gen I–III+ NV devices.
- Switch-To-Side (STS) Quick-Detach Mount: Tool-free lever and 7 mm riser let you instantly flip the magnifier off-axis and snap it back on zero.
- True Two-Eyes-Open Shooting: Low-profile 7 mm riser on EXPS3-2 allows lower-1/3 co-witness with iron sights while retaining full field of view.
- Side-Load Battery Compartment (Sight): Change a single CR123A battery without removing the sight.
- Long Battery Life: Up to 1,000 continuous hours on nominal setting (EXPS3-2); magnifier requires no power.
- Rugged, Weather-Resistant Construction: O-ring sealed to IP67 (submersible to 10 m); operates from –40 °F to +140 °F.
- Durable Housing & Finish: Hard-anodized aluminum with matte black finish.
Technical Specifications for EOTech HHS VI Hybrid Sight EXPS3-2 HWS with G43.STS Magnifier
|
Specification |
Details |
|
Product Title |
EOTech HHS VI Hybrid Sight EXPS3-2 with G43.STS Magnifier (Black) |
|
Model / MPN |
HHS VI |
|
SKU |
HHS VI |
|
UPC |
672294600879 |
|
Reticle |
68 MOA ring with two 1 MOA center dots |
|
Sight Magnification |
1× |
|
Magnifier Power |
3× |
|
Illumination Settings |
20 daylight + 10 night-vision compatible |
|
Night-Vision Compatible |
Yes |
|
Battery |
(1) CR123A lithium (sight) |
|
Battery Life |
Up to 1,000 continuous hours at nominal setting |
|
Adjustment Graduation |
0.5 MOA per click |
|
Windage / Elevation Travel |
±50 MOA each |
|
Eye Relief |
Unlimited (sight); 2.5″ / 63.5 mm (magnifier) |
|
Field of View |
90 ft @ 100 yd (sight); 7.5° (magnifier) |
|
Dimensions (L × W × H) |
6.9″ × 2.3″ × 3.3″ / 175 × 58.4 × 83.8 mm |
|
Weight |
22.4 oz / 635 g |
|
Water Resistance |
IP67 (submersible to 10 m) |
|
Operating Temperature |
–40 °F to +140 °F / –40 °C to +60 °C |
|
Housing Material / Finish |
Hard-anodized aluminum, matte black |
|
Mount Interface |
EXPS3-2: tool-free QD lever for 1″ Weaver/MIL-STD-1913 rail (7 mm riser);G43.STS: STS quick-detach lever |
|
Warranty |
2-Year EOTech Warranty |
