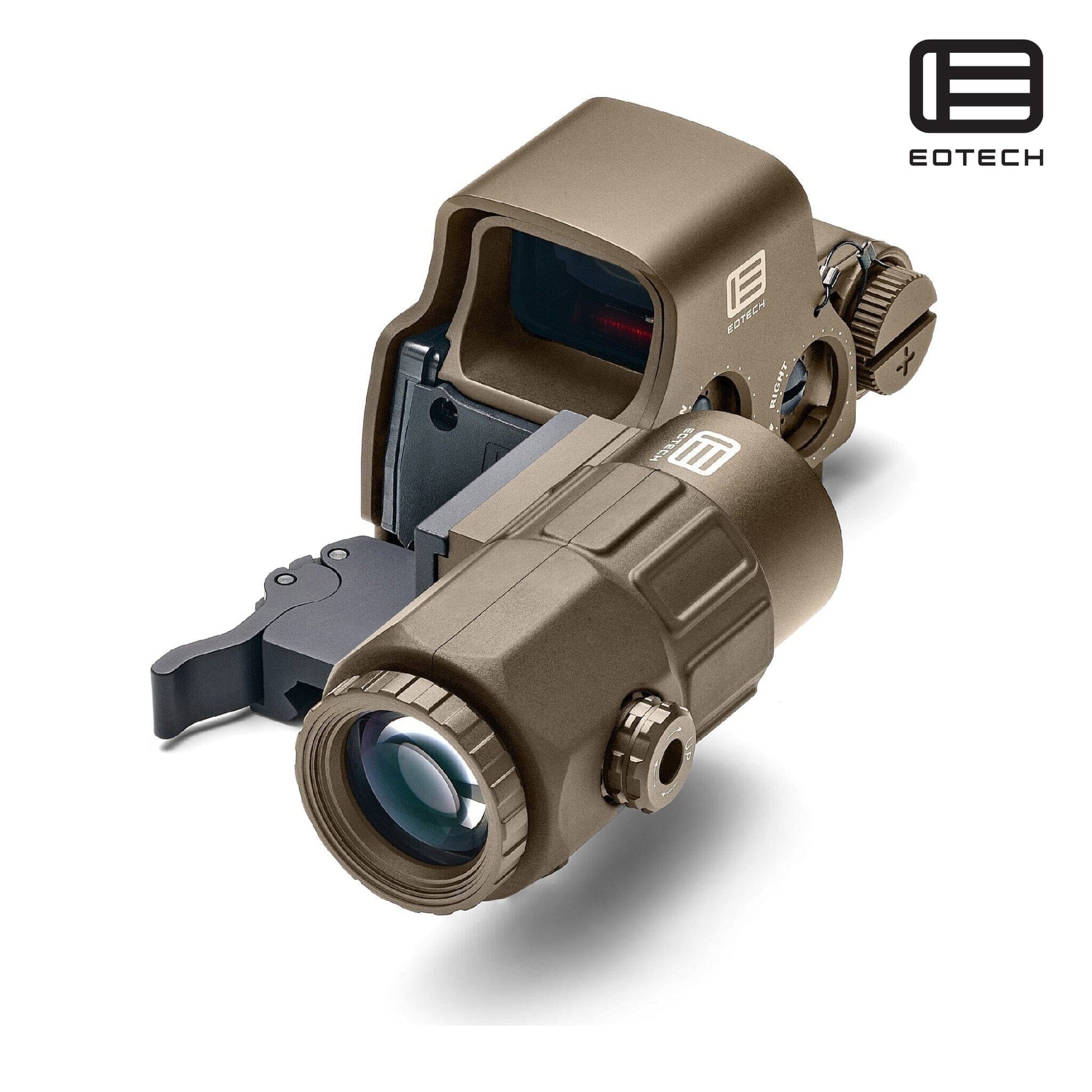

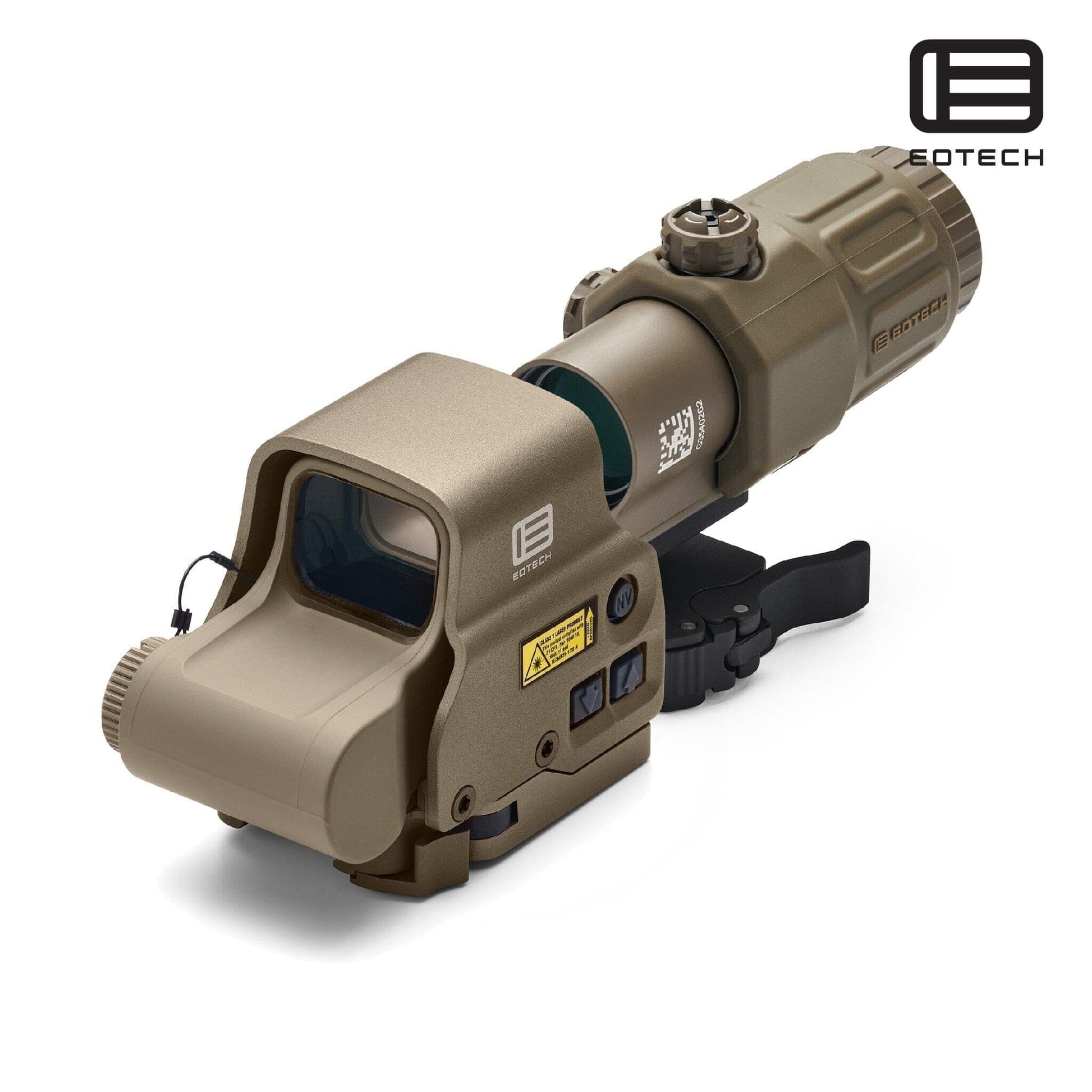

EOTech HHS VIII Hybrid Sight EXPS3-0 TAN with G33.STSTAN Magnifier
Features

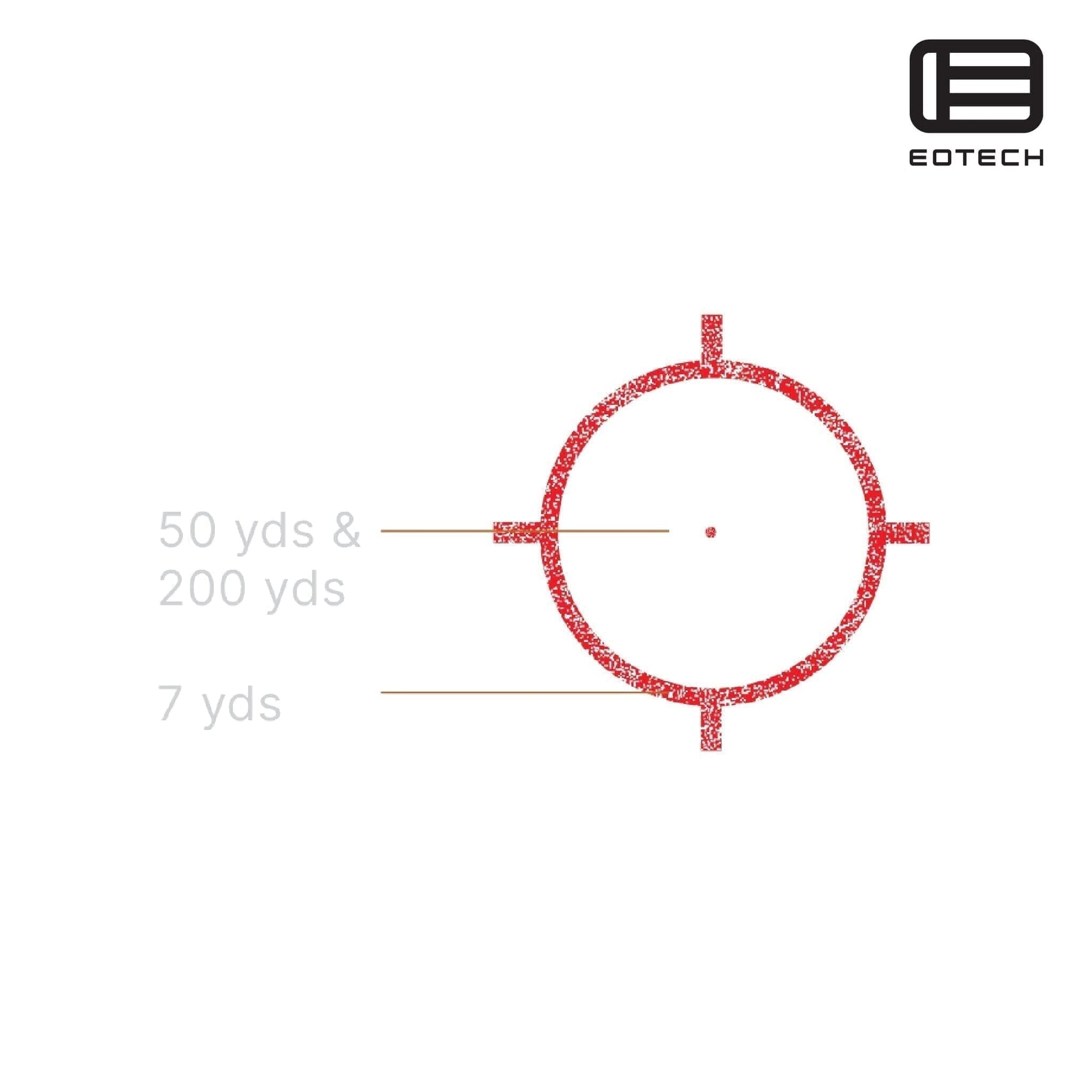

- Holographic EXPS3-0 Sight: True two-eyes-open shooting with a 68 MOA ring and 1 MOA center dot reticle; 20 daylight + 10 night-vision compatible illumination settings; quick-detach 7 mm riser for lower-1/3 co-witness.
- Switch-To-Side G33.STSTAN Magnifier: 3× fixed magnification with 2.2″ eye relief; tool-free windage/elevation adjustments and fold-away STS mount for instant transition between 1× and 3×.
- Tan Cerakote Aluminum Housing: Hard-coat finish resists corrosion, scratches, and harsh environments; matches FDE platforms.
- Rugged, Weather-Resistant Design: O-ring sealed to IP67 (submersible to 10 m); operates from –40 °F to +140 °F.
- Battery & Power Management: Runs on one CR123 lithium battery—up to 1,000 hours at nominal setting; top-load access on EXPS3-0 for rapid change without re-zeroing.
- Night Vision Compatible: Both sight and magnifier optics optimized for use with Gen I–III+ night-vision devices.
Technical Specifications for EOTech HHS VIII Hybrid Sight EXPS3-0 TAN with G33.STSTAN Magnifier
|
Specification |
Details |
|
Product Title |
EOTech HHS VIII Hybrid Sight EXPS3-0 TAN with G33.STSTAN Magnifier |
|
Model / MPN |
HHSVIIITAN |
|
Reticle |
68 MOA ring with 1 MOA dot |
|
Sight Magnification |
1× (holographic) |
|
Magnifier Power |
3× fixed |
|
Illumination Settings |
20 daylight + 10 night-vision compatible |
|
Power Source |
(1) CR123 lithium battery |
|
Battery Life |
Up to 1,000 hours at nominal setting 12 |
|
Night Vision Compatible |
Yes |
|
Adjustment Graduation |
0.5 MOA per click |
|
Windage/Elevation Travel |
±50 MOA each (sight) |
|
Eye Relief |
Unlimited (sight); 2.2″/55.9 mm (magnifier) |
|
Parallax |
Parallax-free |
|
Field of View |
Full-window holographic sight; 7.3° (magnifier) |
|
Dimensions (Sight + Mag) |
8.2″ × 2.3″ × 3.3″ (208.3 × 58.4 × 83.8 mm) |
|
Weight (Sight + Mag) |
22.4 oz (635 g) |
|
Water Resistance |
IP67 (submersible to 33 ft./10 m) |
|
Operating Temperature |
–40 °F to +140 °F (–40 °C to 60 °C) |
|
Housing Material / Finish |
Hard-anodized aluminum with FDE Cerakote |
|
Mount Interface |
1″ Weaver / MIL-STD-1913 Picatinny rail; STS quick-detach fold-away for magnifier |
|
SKU |
HHSVIIITAN |
|
UPC |
672294600954 |
|
Warranty |
2-Year EOTech Warranty |
