EOTech Vudu 1–10×28 FFP Rifle Scope SR-4 MOA Reticle Tan
Features

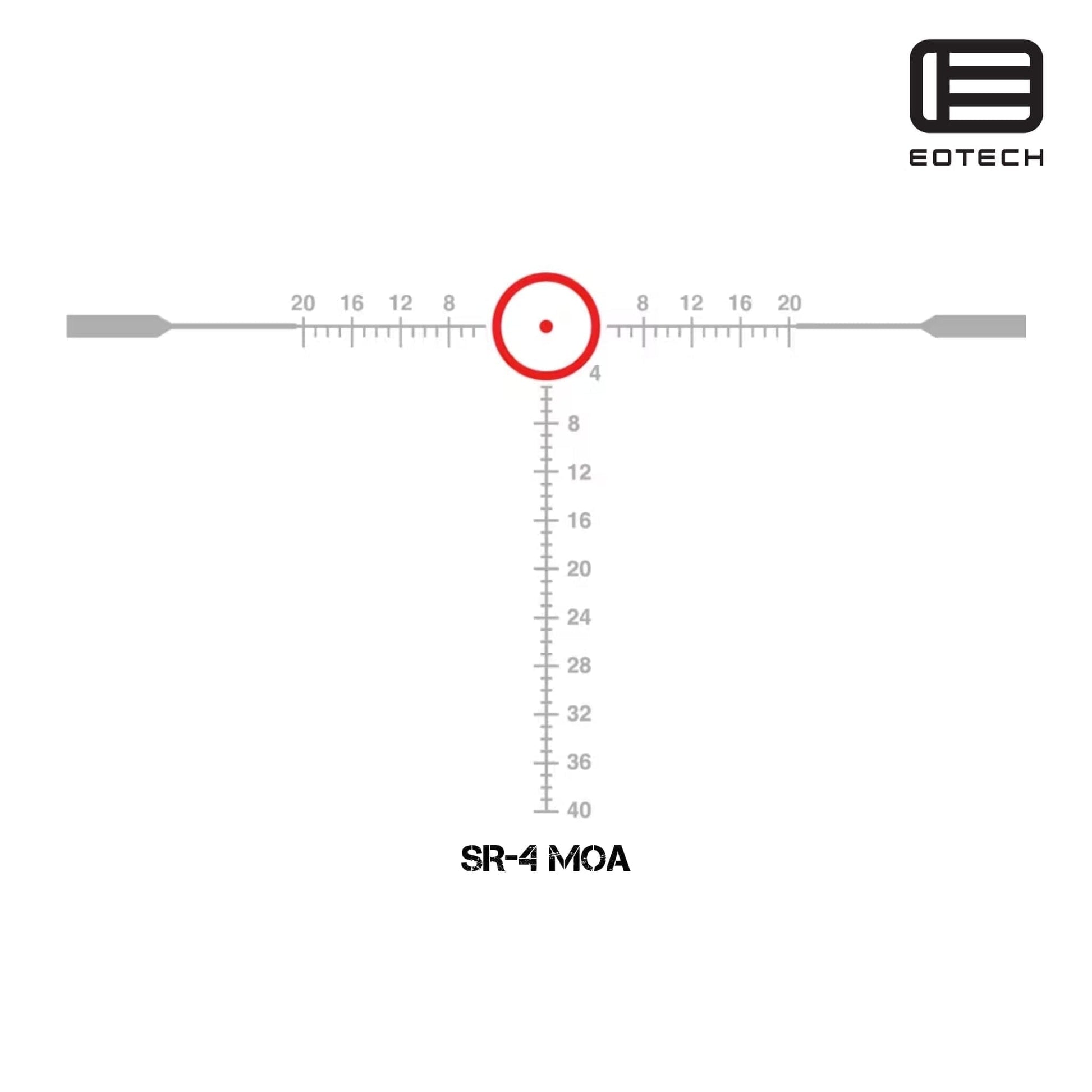

- First Focal Plane (FFP) SR-4 MOA Reticle: Illuminated speed-ring with hash-marked inner crosshair and 1 MOA center dot for accurate ranging and hold-overs at any magnification.
- Illuminated Reticle: LED-powered illumination with 10 brightness settings for daylight and low-light use.
- Wide Zoom Range: 1–10× magnification with removable throw lever for rapid adjustments under load .
- Robust Aircraft-Grade Construction: One-piece 34 mm main tube of forged 6061-T6 aluminum, hard-anodized FDE Cerakote for maximum strength and weather resistance.
- Locking Elevation Turret: Push/pull locking turret with 0.25 MOA clicks prevents accidental adjustment.
- Capped Windage Turret: Protects against unintended windage changes, 0.25 MOA per click.
- Fog-, Shock- & Water-Resistant: O-ring and nitrogen sealed to IP67 (submersible to 10 m); functional from –40 °F to +140 °F.
Technical Specifications for EOTech Vudu 1–10×28 FFP Rifle Scope SR-4 MOA Reticle Tan
|
Specification |
Details |
|
Product Title |
EOTech Vudu 1–10×28 FFP Rifle Scope (SR-4 MOA Reticle, Tan) |
|
Model / MPN |
VDU1-10FFSR4TAN |
|
SKU |
EOT-VDU1-10FFSR4TAN |
|
UPC |
672294110248 |
|
Magnification Range |
1–10× |
|
Objective Lens Diameter |
28 mm |
|
Main Tube Diameter |
34 mm |
|
Reticle |
SR-4 MOA FFP: illuminated speed-ring, hash-marked crosshair, 1 MOA center dot |
|
Reticle Focal Plane |
First Focal Plane |
|
Illumination |
LED-powered, 10 brightness levels |
|
Adjustment Graduation |
0.25 MOA per click |
|
Adjustment Rotation |
40 MOA per revolution |
|
Total Elevation Travel |
100 MOA |
|
Total Windage Travel |
80 MOA |
|
Eye Relief |
1×: 3.27–3.90 in (83–99 mm); 10×: 3.35–3.62 in (85–92 mm) |
|
Field of View @ 100 yd |
1×: 116.6 ft (35.5 m); 10×: 11.7 ft (3.6 m) |
|
Parallax |
Fixed at 100 yd |
|
Turret Type |
Locking elevation (push/pull), capped windage |
|
Throw Lever |
Removable |
|
Length |
10.63 in (270 mm) |
|
Weight |
21.3 oz (603 g) |
|
Waterproof Rating |
IP67 (submersible to 10 m) |
|
Operating Temperature |
–40 °F to +140 °F (–40 °C to +60 °C) |
|
Housing Material / Finish |
Forged 6061-T6 aluminum, FDE Cerakote |
|
Power Source |
(1) CR2032 battery |
|
Country of Origin |
Made in Japan |
