EOTech Vudu 1–10×28 FFP Rifle Scope SR-5 MRAD Reticle
Features
- First Focal Plane (FFP) Design: Reticle subtensions remain true at all magnifications for precise ranging and holdover.

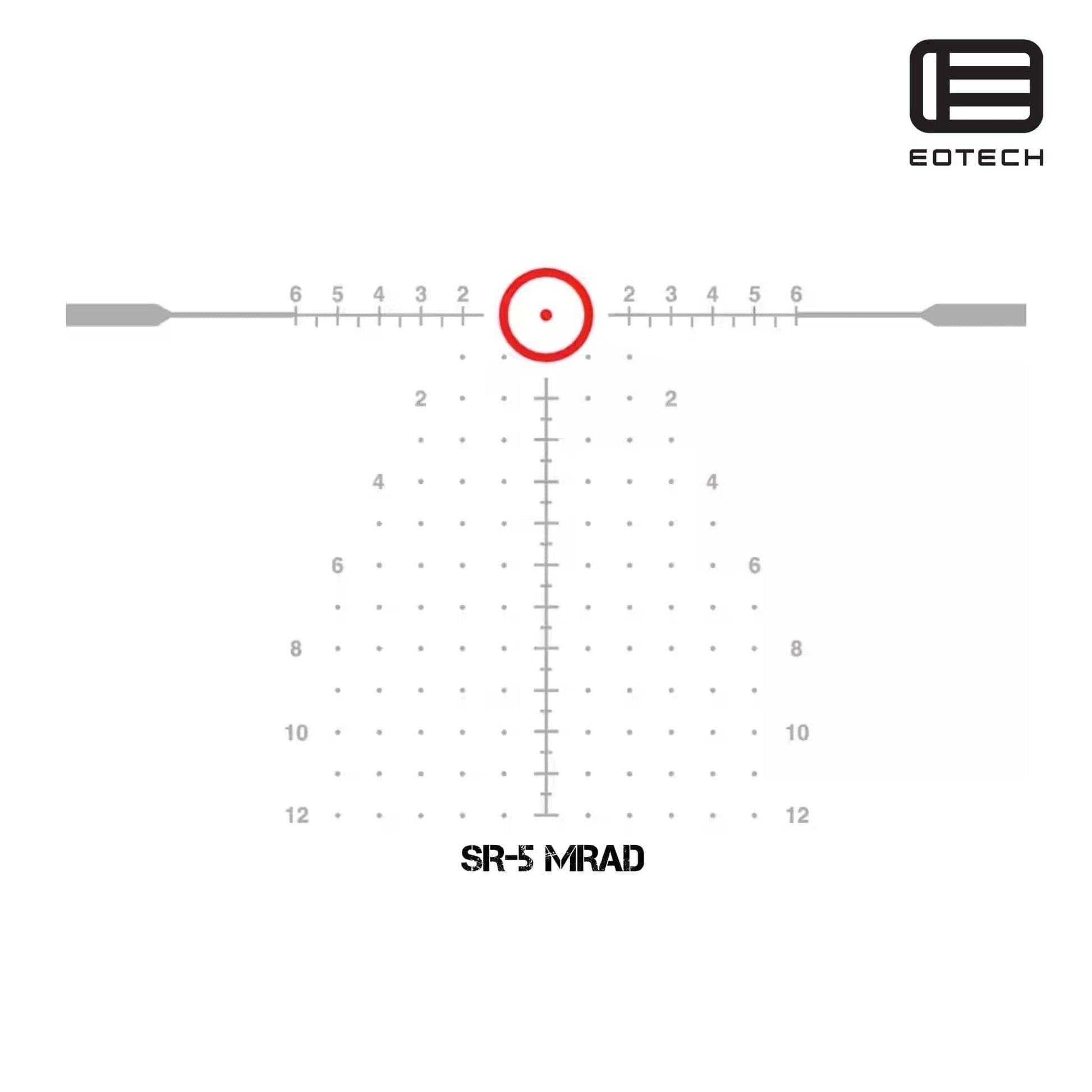

- SR-5 MRAD Illuminated Reticle: Iconic EOTECH speed-ring with hash-marked inner crosshair and Christmas-tree hold lines; 0.25 MRAD center dot; 10 brightness settings.
- Wide Zoom Range with Throw Lever: Rapid 1–10× adjustments via removable magnification lever, ideal for transitions from CQB to long-range shots.
- Aircraft-Grade Aluminum Construction: One-piece 34 mm main tube of forged 6061-T6 aluminum, hard-anodized matte black for maximum strength and durability.
- XC™ High-Density Glass Lenses: Anti-reflective coatings deliver edge-to-edge clarity and outstanding light transmission.
- Locking Elevation & Capped Windage Turrets: Push/pull locking elevation turret (0.1 MRAD per click, 15 MRAD per rev) and capped windage turret (0.1 MRAD per click) for secure zero.
- Fixed Parallax at 100 yds: Simplifies long-range engagements by eliminating parallax error.
- Rugged, Weather-Resistant: O-ring and nitrogen sealed to IP67 (submersible to 10 m); fog-proof, shock-proof, and operates from –40 °F to +140 °F.
- Battery-Powered Illumination: Single CR2032 battery delivers up to hundreds of hours of reticle illumination.
Technical Specifications for EOTech Vudu 1–10×28 FFP Rifle Scope SR-5 MRAD Reticle
|
Specification |
Details |
|
Product Title |
EOTech Vudu 1–10×28 FFP Rifle Scope (SR-5 MRAD Reticle) |
|
Model / MPN |
VDU1-10FFSR5 |
|
SKU |
VDU1-10FFSR5-EOTech |
|
UPC |
672294110187 |
|
Magnification Range |
1–10× |
|
Objective Lens Diameter |
28 mm |
|
Tube Diameter |
34 mm |
|
Reticle |
SR-5 MRAD FFP: illuminated speed-ring, hash-marked crosshair, Christmas-tree hold lines |
|
Illumination Settings |
10 levels |
|
Adjustment Graduation (Click) |
0.1 MRAD |
|
Adjustment Graduation (Rotate) |
15 MRAD |
|
Total Elevation Travel |
29 MRAD |
|
Total Windage Travel |
23 MRAD |
|
Parallax |
Fixed at 100 yds |
|
Eye Relief |
1×: 3.27–3.90″ (83–99 mm); 10×: 3.35–3.62″ (85–92 mm) |
|
Field of View @ 100 yds |
1×: 116.6 ft (35.5 m); 10×: 11.7 ft (3.6 m) |
|
Elevation Turret |
Push/pull locking, 0.1 MRAD per click |
|
Windage Turret |
Capped, 0.1 MRAD per click |
|
Throw Lever |
Removable |
|
Length |
10.63″ (270 mm) |
|
Weight |
21.3 oz (603 g) |
|
Housing Material / Finish |
Forged 6061-T6 aluminum, hard-anodized matte black |
|
Sealing |
O-ring & nitrogen sealed, IP67 (10 m) |
|
Operating Temperature |
–40 °F to +140 °F (–40 °C to +60 °C) |
|
Power Source |
(1) CR2032 |
