EOTech
EOTech Vudu 1-10x28 FFP Rifle Scope SR-5 MRAD Reticle Tan
EOTech Vudu 1-10x28 FFP Rifle Scope SR-5 MRAD Reticle Tan
Couldn't load pickup availability

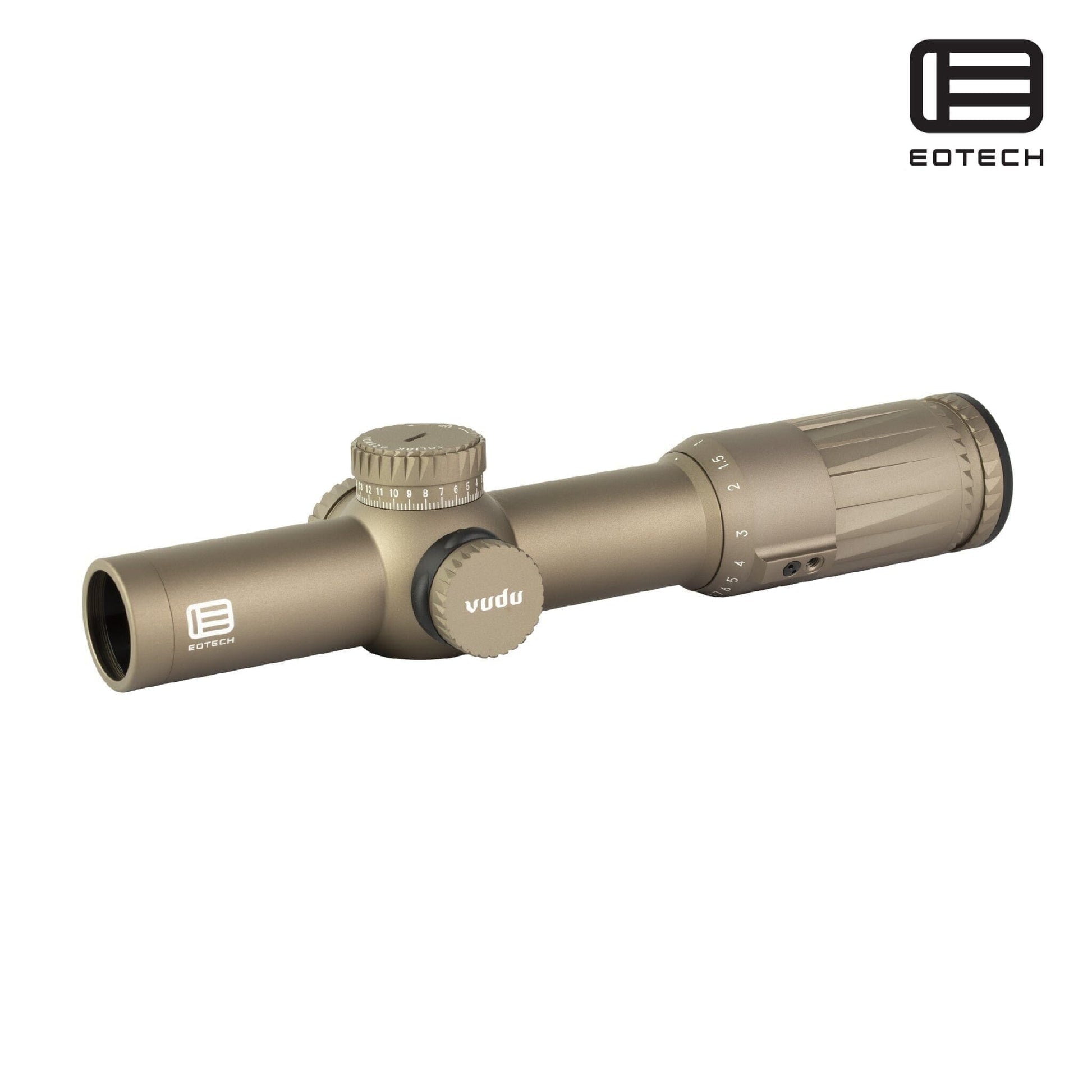

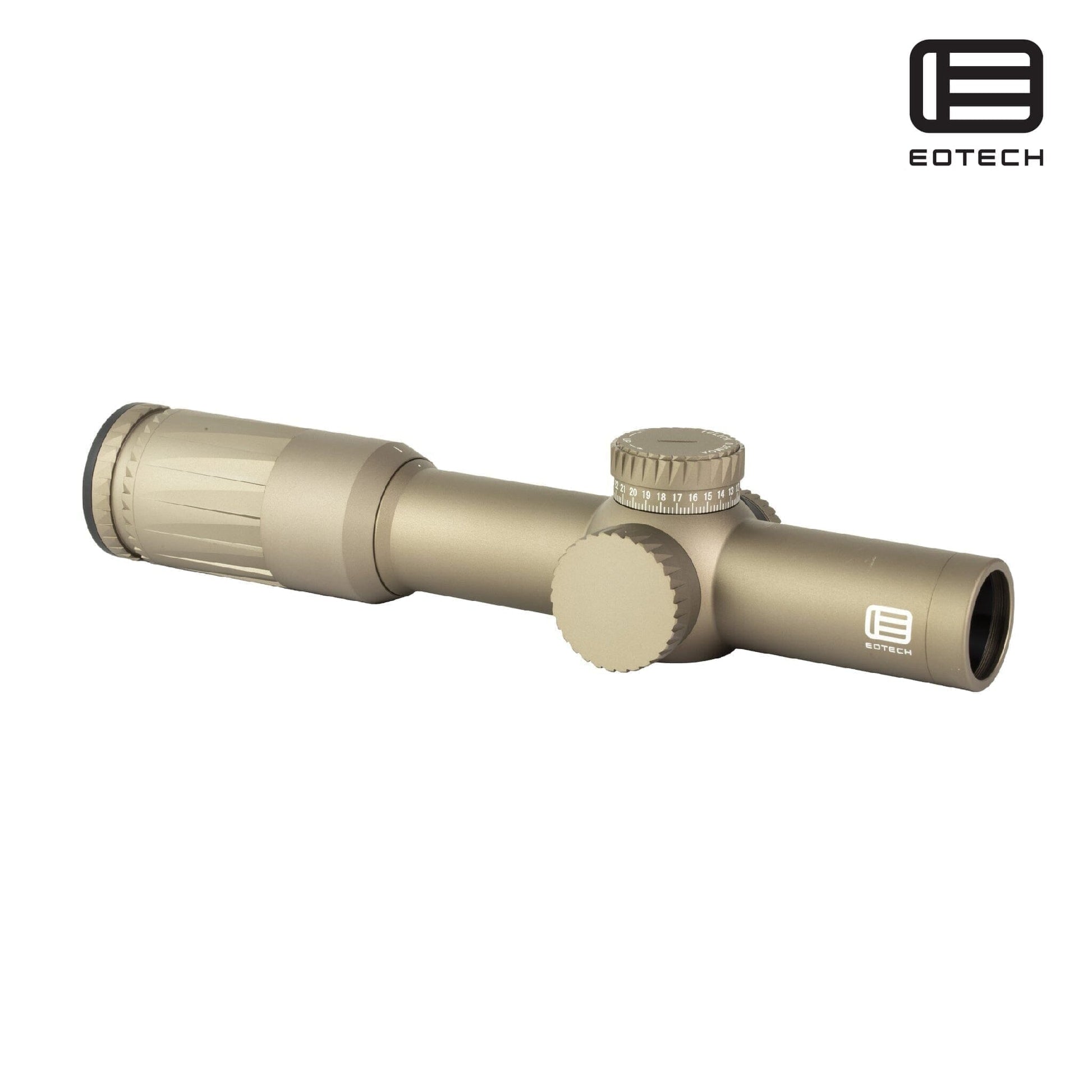

EOTech Vudu 1–10×28 FFP Rifle Scope SR-5 MRAD Reticle Tan
Features

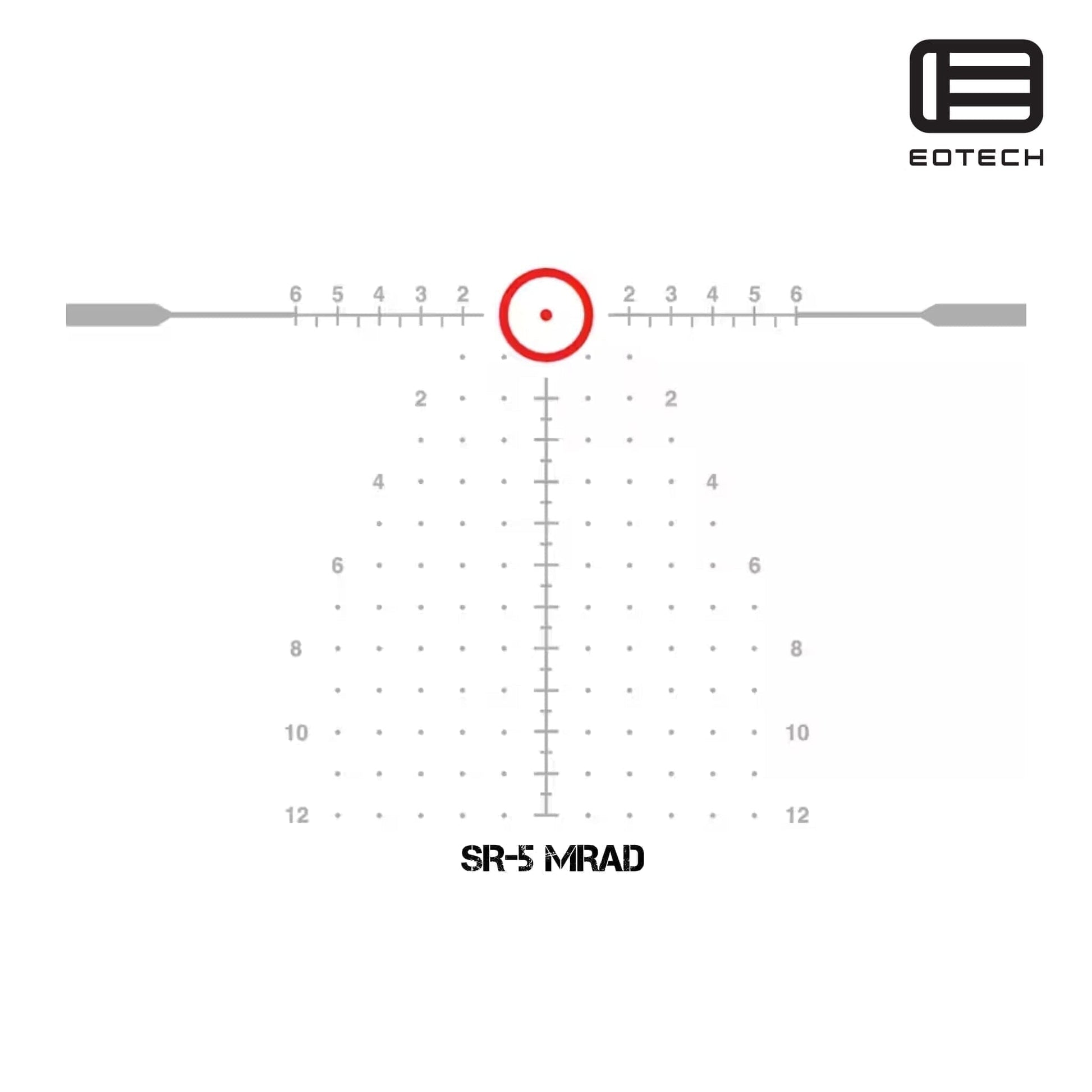

- First Focal Plane (FFP) SR-5 MRAD Reticle: Illuminated “speed-ring” with hash-marked Christmas-tree hold-lines and 0.1 MRAD center dot for precise ranging and hold-overs at any magnification.
- 10 Brightness Levels: Push-button LED illumination optimized for daylight and low-light conditions.
- Wide 1–10× Zoom Range: Removable throw lever on the single-piece eyepiece enables rapid magnification changes from close-quarters to extended-range.
- Aircraft-Grade 34 mm Main Tube: Forged 6061-T6 aluminum body with hard-anodized FDE Cerakote for maximum strength, corrosion resistance, and reduced glare.
- Locking Elevation & Capped Windage Turrets: Push/pull lockable elevation turret (0.1 MRAD per click, 15 MRAD per revolution) and capped windage turret (0.1 MRAD per click) maintain zero under recoil.
- Fixed Parallax at 100 yds: Eliminates parallax error for consistent accuracy at all ranges.
- Fog-, Shock- & Water-Resistant: O-ring and nitrogen-sealed to IP67 (submersible to 10 m); operates from –40 °F to +140 °F.
- Easy Maintenance: Includes lens cloth, operator’s manual, and throw lever in the package.
Technical Specifications for EOTech Vudu 1–10×28 FFP Rifle Scope SR-5 MRAD Reticle Tan
|
Specification |
Details |
|
Product Title |
EOTech Vudu 1–10×28 FFP Rifle Scope (SR-5 MRAD Reticle, Tan) |
|
Model / MPN |
VDU1-10FFSR5 |
|
SKU |
VDU1-10SR5DFTAN |
|
UPC |
672294110248 |
|
Magnification Range |
1–10× |
|
Objective Lens Diameter |
28 mm |
|
Main Tube Diameter |
34 mm |
|
Reticle |
SR-5 MRAD (FFP): illuminated speed-ring, hash-marked crosshair, Christmas-tree hold-lines |
|
Illumination Brightness |
10 settings |
|
Adjustment Graduation |
0.1 MRAD per click |
|
Adjustment Rotation |
15 MRAD per revolution |
|
Total Elevation Travel |
29 MRAD |
|
Total Windage Travel |
23 MRAD |
|
Parallax |
Fixed at 100 yd |
|
Eye Relief |
1×: 3.27–3.90 in (83–99 mm); 10×: 3.35–3.62 in (85–92 mm) |
|
Field of View @100 yds |
1×: 116.6 ft (35.5 m); 10×: 11.7 ft (3.6 m) |
|
Elevation Turret |
Push/pull locking |
|
Windage Turret |
Capped |
|
Throw Lever |
Removable |
|
Length |
10.63 in (270 mm) |
|
Weight |
21.3 oz (603 g) |
|
Waterproof Rating |
IP67 (submersible to 10 m) |
|
Operating Temperature |
–40 °F to +140 °F (–40 °C to +60 °C) |
|
Housing Material / Finish |
Forged 6061-T6 aluminum, FDE Cerakote |
|
Included Accessories |
Operator Manual, Reticle Manual, Throw Lever, Lens Cloth |
