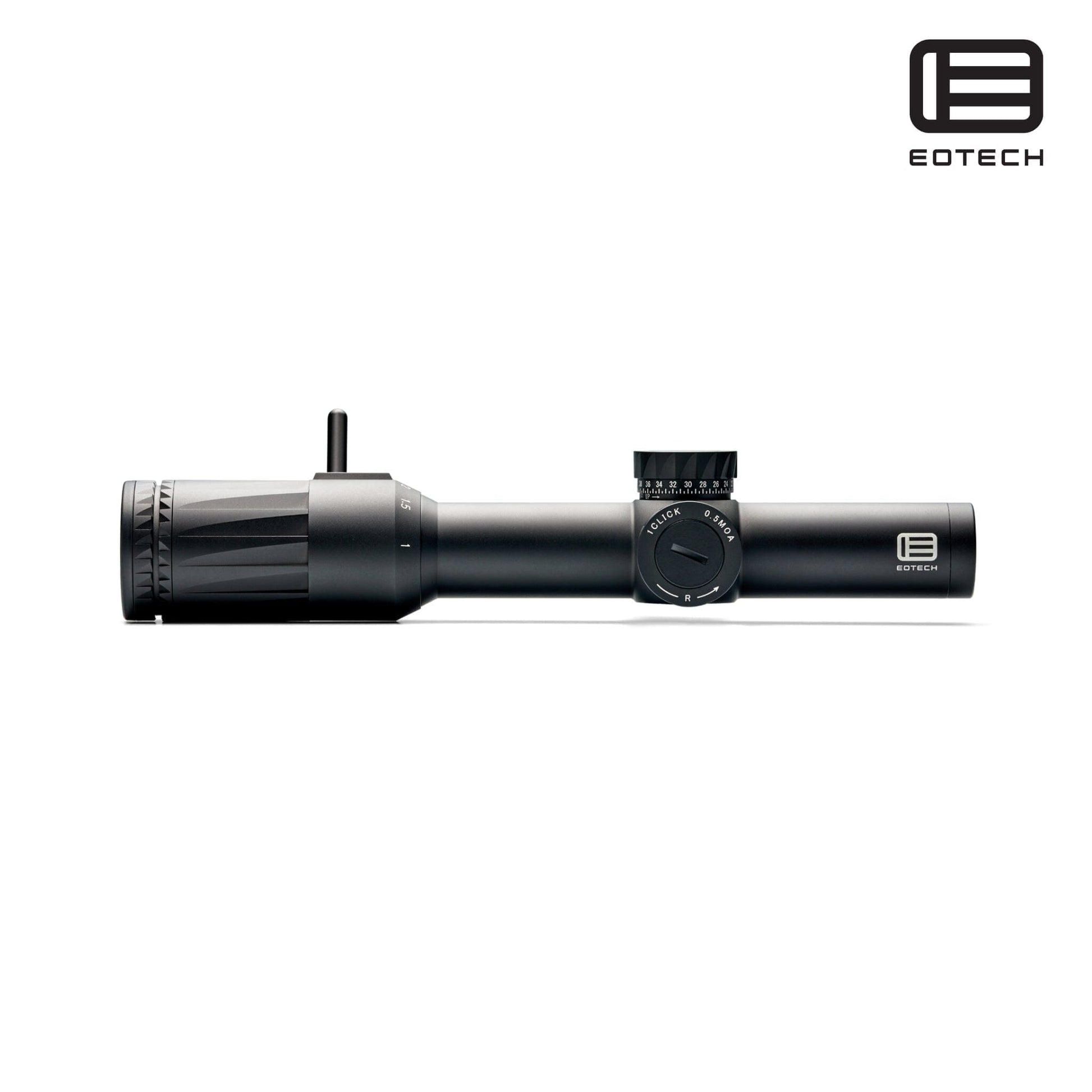

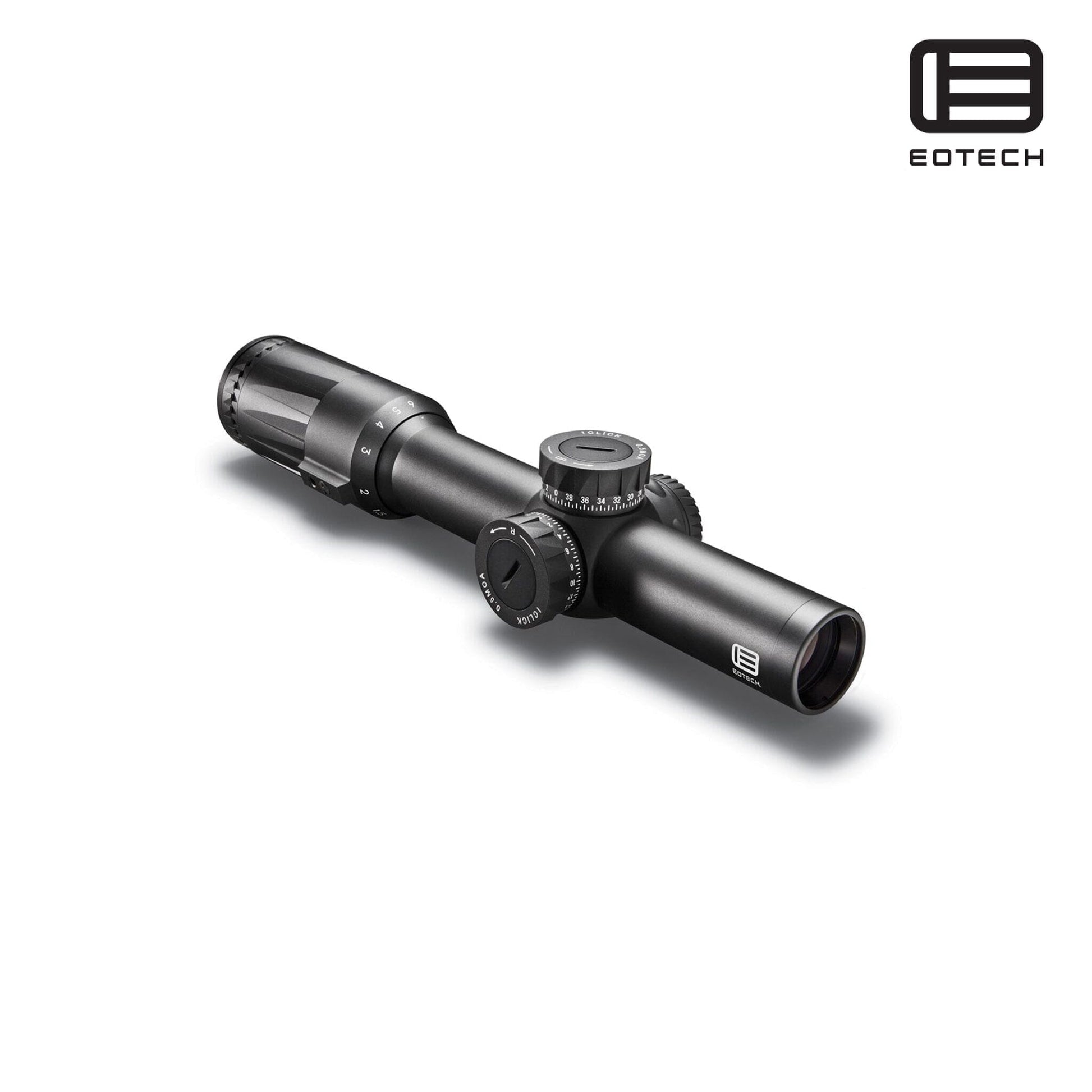

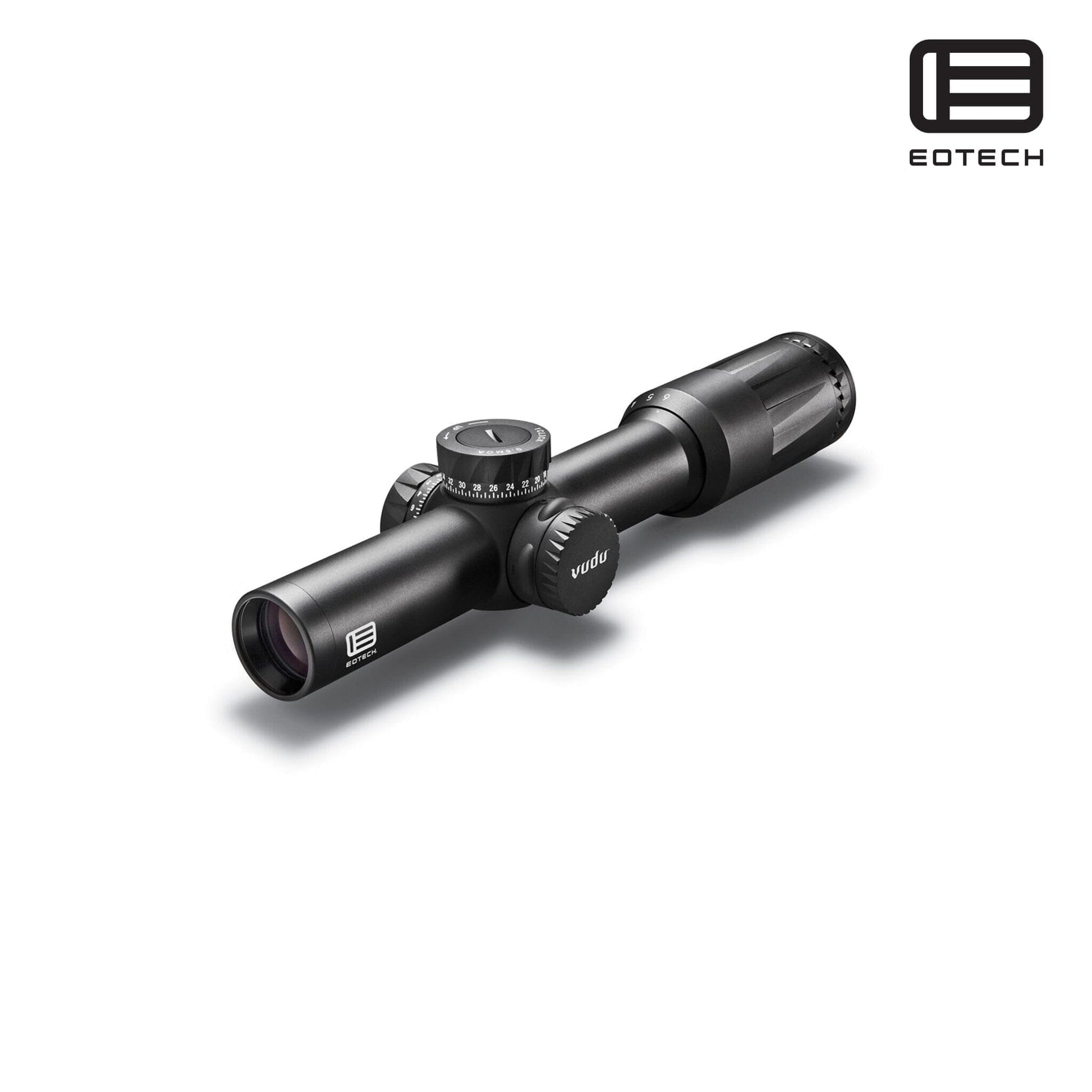

EOTech Vudu 1–6×24 FFP Rifle Scope SR3 MOA 5.56 BDC Reticle
EOTech Vudu 1–6×24 FFP Rifle Scope SR3 MOA 5.56 BDC Reticle
Couldn't load pickup availability
EOTech Vudu 1–6×24 FFP Rifle Scope SR3 MOA 5.56 BDC Reticle
Features

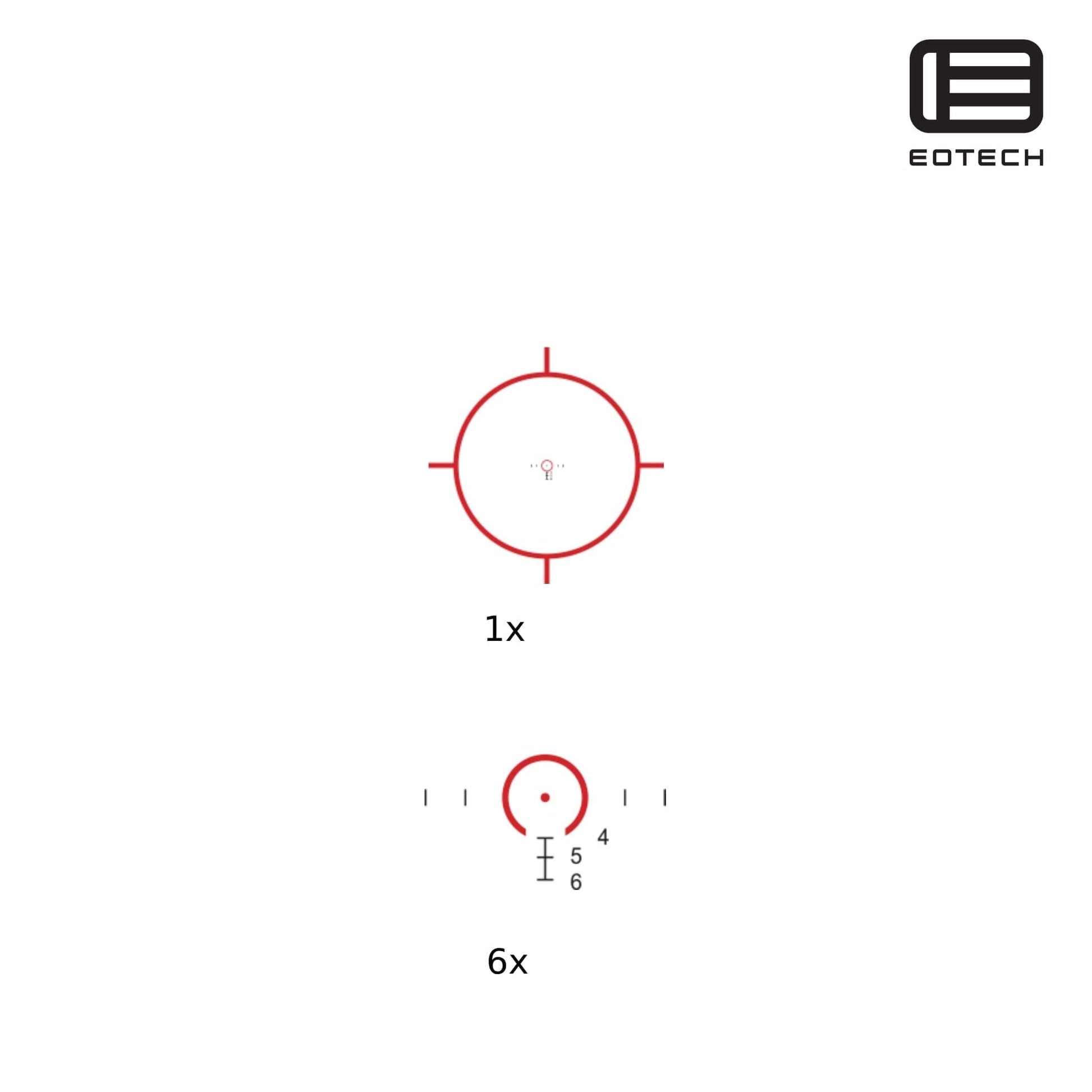

- First Focal Plane SR3 MOA Reticle: Illuminated speed-ring with an inner BDC reticle calibrated for 5.56 mm (75 gr BTHP) out to 600 yd—speed-ring visible at low power for rapid target acquisition, inner BDC appears at higher magnifications for precise hold-overs.
- 1–6× Variable Zoom: Removable throw-lever on the eyepiece allows fast magnification transitions between close-quarters and medium-range engagements.
- Premium Optical System: XC™ high-density, low-dispersion glass with anti-reflective coatings delivers edge-to-edge clarity and high light transmission.
- Precision Turrets: Push/pull locking elevation turret (0.2 MOA per click; 15 MOA per revolution) and capped windage turret (0.2 MOA per click; 15 MOA per revolution) maintain zero under recoil.
- Rugged, Weather-Resistant Construction: Forged 30 mm, aircraft-grade 6061-T6 aluminum tube, hard-anodized matte black; O-ring and nitrogen sealed to IP67 (submersible to 10 m), shock- and fog-proof.
- Fixed Parallax: Parallax set at 100 yds for consistent precision at all ranges.
- Compact & Lightweight: Streamlined design minimizes bulk while withstanding harsh field conditions.
Technical Specifications for EOTech Vudu 1–6×24 FFP Rifle Scope SR3 MOA 5.56 BDC Reticle
|
Specification |
Details |
|
Product Title |
EOTech Vudu 1–6×24 FFP Rifle Scope (SR3 MOA 5.56 BDC Reticle) |
|
Model / MPN |
VDU1-6FFSR3G |
|
SKU |
VDU1-6FFSR3G |
|
UPC |
672294110231 |
|
Magnification Range |
1–6× |
|
Objective Lens Diameter |
24 mm |
|
Tube Diameter |
30 mm |
|
Reticle |
SR3 MOA First Focal Plane: illuminated speed-ring + 5.56 BDC inner MOA hash marks (to 600 yd) |
|
Illumination |
LED-powered; daylight-bright reticle |
|
Adjustment Graduation |
0.2 MOA per click; 15 MOA per revolution |
|
Total Elevation Travel |
29 MOA |
|
Total Windage Travel |
23 MOA |
|
Parallax |
Fixed at 100 yds |
|
Eye Relief |
1×: 3.27–3.94″ (83–100 mm); 6×: 3.23–3.94″ (82–100 mm) |
|
Field of View @ 100 yds |
1×: 102.4 ft (31.2 m); 6×: 16.7 ft (5.1 m) |
|
Length |
10.63″ (270 mm) |
|
Weight |
20.1 oz (570 g) |
|
Housing Material / Finish |
Forged 6061-T6 aluminum, hard-anodized matte black |
|
Sealing |
O-ring & nitrogen sealed, IP67 (10 m) |
|
Operating Temperature |
–40 °F to +140 °F (–40 °C to +60 °C) |
|
Included Accessories |
Throw-lever; lens-cleaning cloth; operator’s manual |
SEO Keywords
EOTech Vudu 1–6×24 SR3, SR3 MOA 5.56 BDC riflescope, first focal plane Vudu, 1–6× precision scope.
