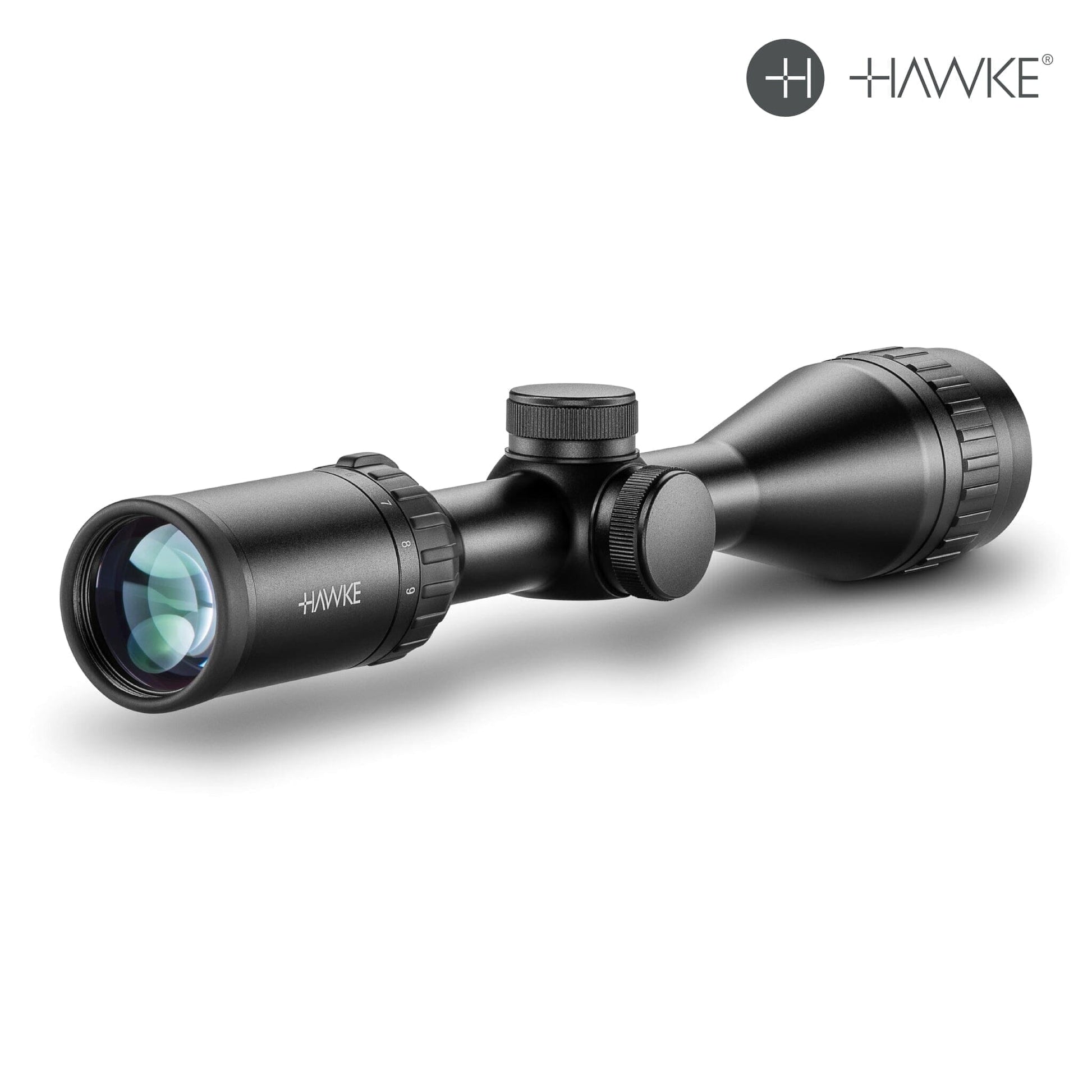

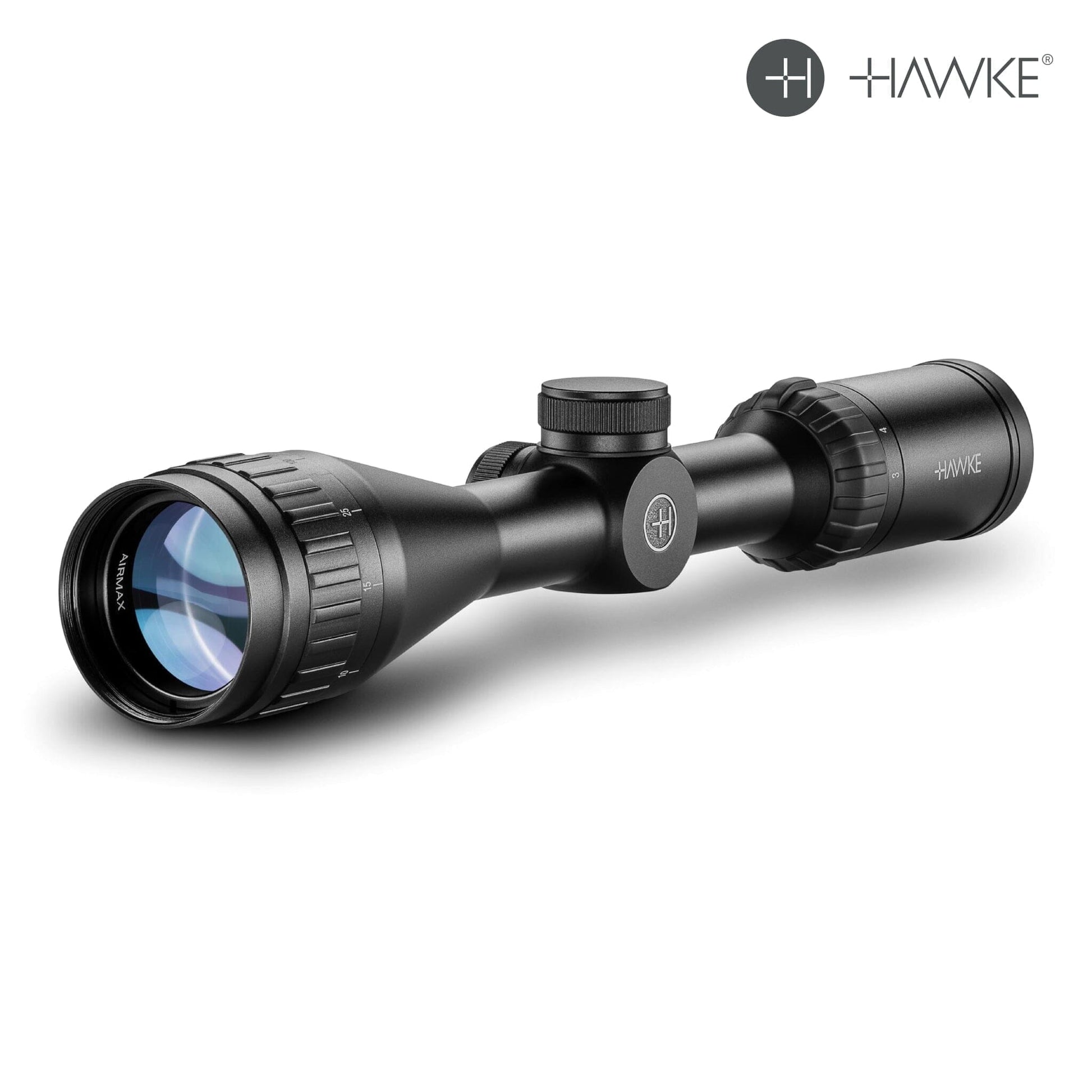

Hawke AIRMAX 3–9×40 AO Rifle Scope AMX Reticle
Features

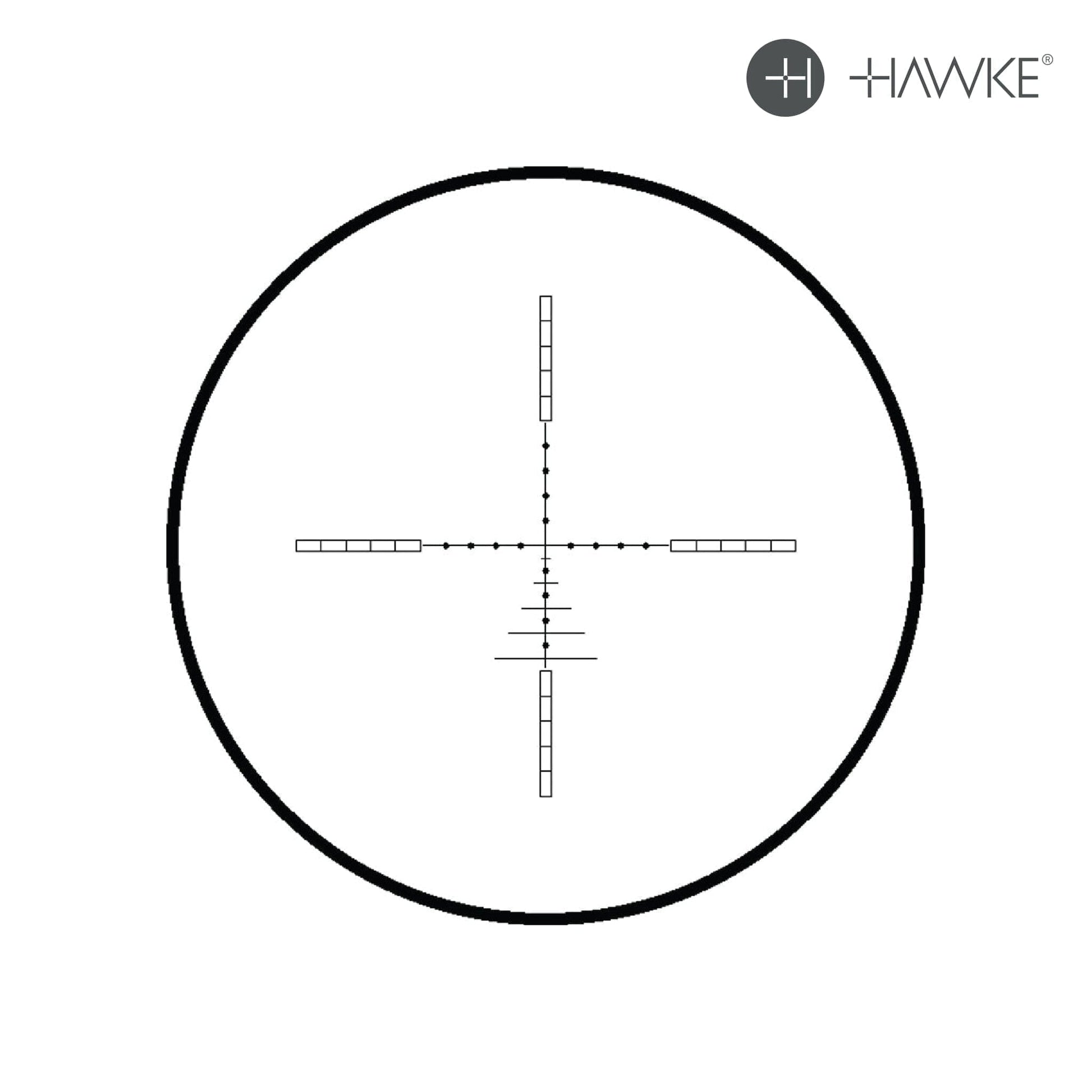

- AMX Reticle™ (SFP): Glass-etched mil-based ranging reticle with lower-post half-Mil graduations for precise hold-overs; non-illuminated for airgun use.
- H2 Wide-Angle Optics: 16-layer fully multi-coated lenses deliver edge-to-edge clarity and optimized light transmission, providing up to 20 % more field of view than standard scopes.
- Adjustable Objective (AO): Parallax correction from 7.5 yd (7 m) to infinity ensures a crisp image at all ranges.
- 1 in Mono-Tube Chassis: CNC-machined 6061-T6 aluminum, nitrogen-purged for waterproof, fog-proof performance and shockproof durability.
- Capped Low-Profile Turrets: ¼ MOA (0.7 cm @ 100 m) per-click windage and elevation with ± 60 MOA total travel; snag-free caps protect settings.
- Fast-Focus Eyebell & Zoom Ring: High-torque, slip-free zoom ring and quick-focus eyepiece allow rapid target acquisition and parallax adjustment.
Technical Specifications for Hawke AIRMAX 3–9×40 AO Rifle Scope AMX Reticle
|
Specification |
Details |
|
Product Title |
Hawke AIRMAX™ 3–9×40 AO Rifle Scope – AMX Reticle |
|
Model / MPN |
13110 |
|
SKU |
13110 |
|
UPC |
5054492131105 |
|
Magnification |
3–9× |
|
Objective Lens Diameter |
40 mm |
|
Tube Diameter |
1 inch (25.4 mm) |
|
Reticle Type |
AMX, Second Focal Plane (SFP) |
|
Reticle Subtensions |
1 Mil spacing; 0.5 Mil lower-post graduations |
|
Exit Pupil |
13.3 – 4.4 mm |
|
Eye Relief |
3.5 in (89 mm) |
|
Field of View @ 100 yd |
37.2 – 13.6 ft (11.3 – 4.1 m) |
|
Parallax Adjustment |
Adjustable Objective; 7.5 yd (7 m) to ∞ |
|
Click Value |
¼ MOA (0.7 cm @ 100 m) per click |
|
Total Adjustment Range |
± 60 MOA (windage & elevation) |
|
Optical Coating |
16-layer fully multi-coated |
|
Chassis Material |
6061-T6 aluminum, hard-coat anodized |
|
Finish / Color |
Matte black |
|
Dimensions (L × Dia.) |
269 mm × 25.4 mm |
|
Weight |
16.3 oz (462 g) |
|
Waterproof / Fogproof |
Yes (nitrogen-purged & sealed) |
|
Shockproof |
Yes |
|
Operating Temperature |
–10 °C to 50 °C |
|
Country of Origin |
China |
