Hawke AIRMAX 30 FFP SF 4-16x50 Rifle Scope AMX Reticle
Hawke AIRMAX 30 FFP SF 4-16x50 Rifle Scope AMX Reticle
Couldn't load pickup availability

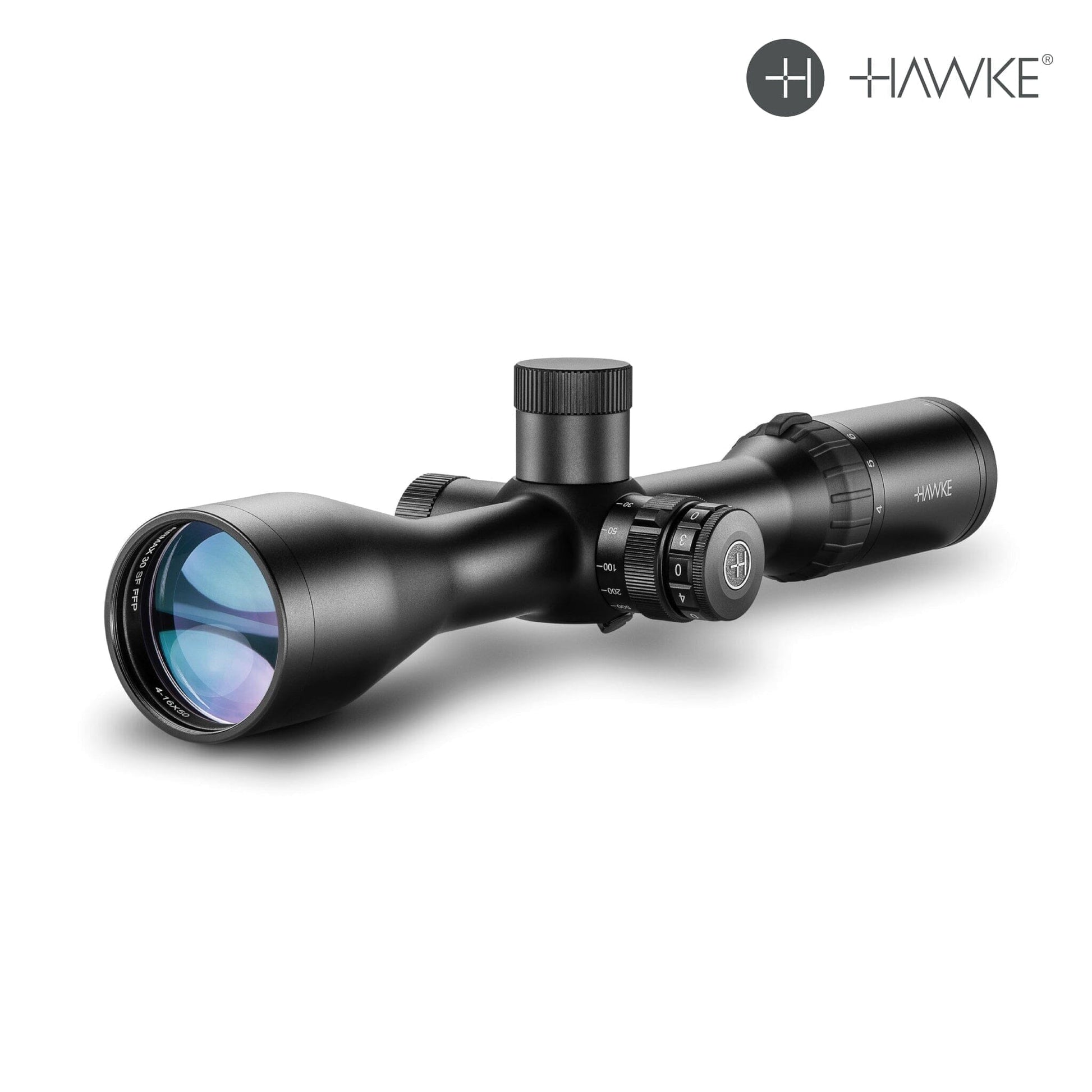

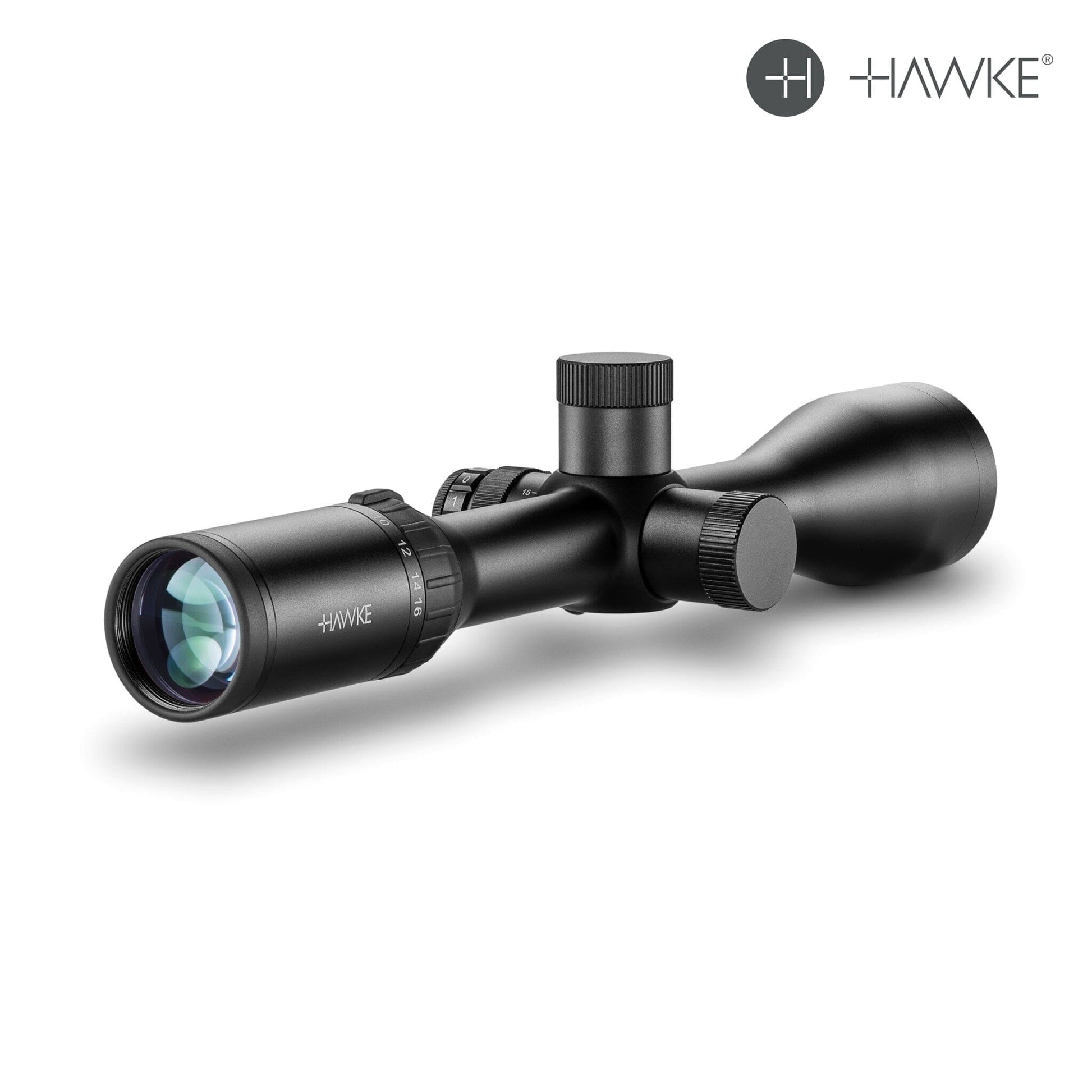

Hawke AIRMAX 30 FFP SF 4-16×50 Rifle Scope AMX IR Reticle
Features

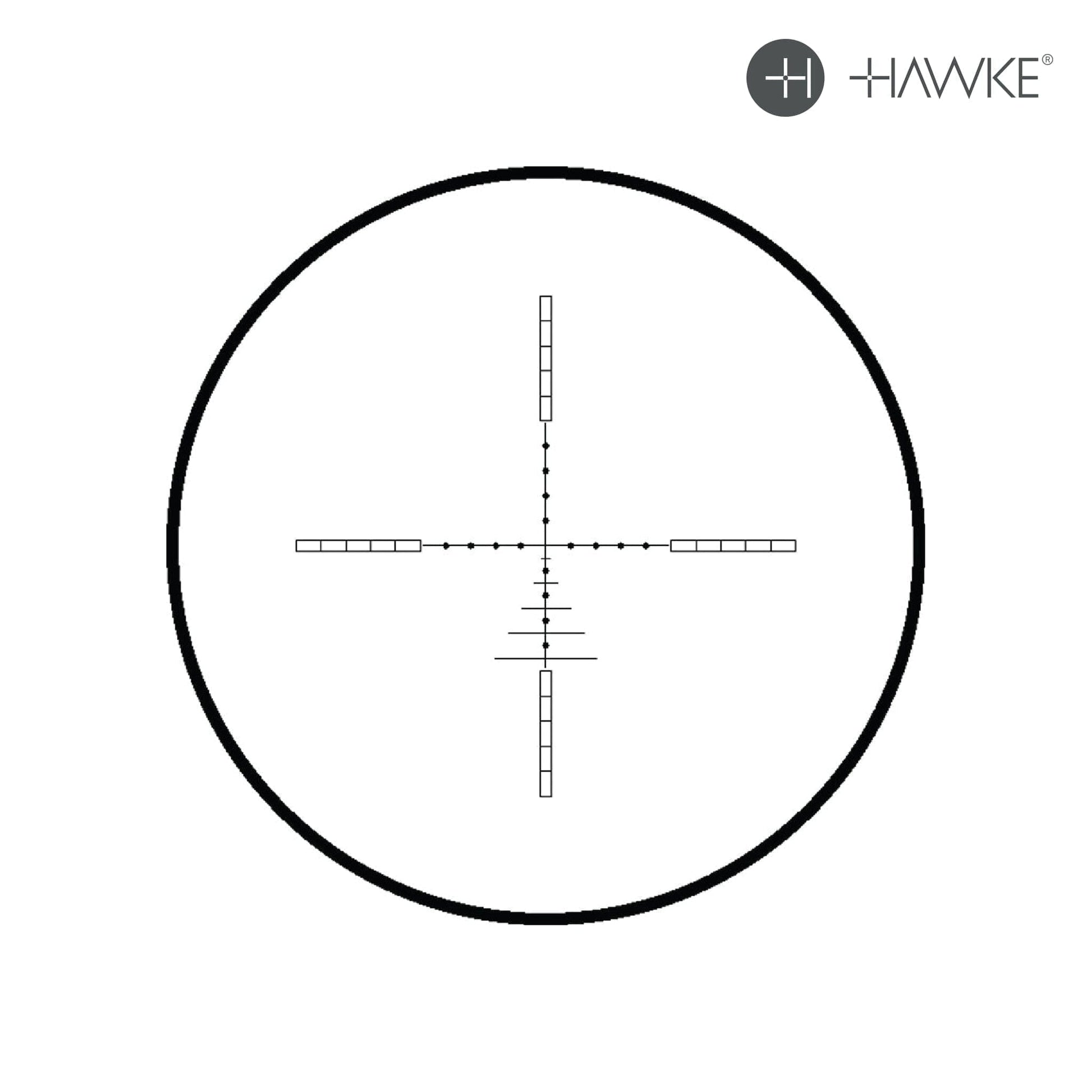

- First Focal Plane AMX IR Reticle™: Glass-etched mil-spaced ranging reticle with lower-post ½ MRAD graduations and infrared-illuminated aiming points—holdovers remain accurate at any magnification.
- H2 Wide-Angle Optics: 16-layer fully multi-coated lenses deliver edge-to-edge clarity, optimized for airgun trajectories.
- Side-Focus Parallax Correction: Adjustable from 10 yd to infinity via low-profile side wheel for crisp target definition.
- Capped Low-Profile Turrets: 0.1 MRAD (¼ inch @ 100 yd) per-click windage & elevation with 21 MRAD total travel—protected by snag-free caps.
- 30 mm Mono-Tube Chassis: CNC-machined 6061-T6 aluminum tube, nitrogen-purged for waterproof/fogproof performance and shockproof durability.
- Fast-Focus Eyebell & High-Torque Zoom: Quick-adjust eyepiece and slip-free zoom ring for rapid magnification changes.
- Red Illumination: Six brightness levels with “off” positions between each for stealth and clear day-to-night dialing.
Technical Specifications for Hawke AIRMAX 30 FFP SF 4-16x50 Rifle Scope AMX Reticle
|
Specification |
Details |
|
Product Title |
Hawke AIRMAX 30 FFP SF 4-16×50 Rifle Scope AMX IR Reticle |
|
Model / MPN |
13350 |
|
SKU |
13350 |
|
UPC |
5054492133505 |
|
Magnification |
4 – 16× |
|
Objective Lens Diameter |
50 mm |
|
Tube Diameter |
30 mm mono-tube |
|
Reticle |
AMX IR (glass-etched, 1 × FFP, red-illuminated) |
|
Field of View @ 100 yd |
32.5 – 8.1 ft (9.9 – 2.5 m) |
|
Exit Pupil |
12.5 – 3.1 mm |
|
Eye Relief |
3.5″ (89 mm) |
|
Parallax Adjustment |
Side Focus; 10 yd to ∞ |
|
Click Value |
0.1 MRAD (¼ inch @100 yd) per click |
|
Total Adjustment (Wind/Elev) |
± 21 MRAD each axis |
|
Optical Coating |
16-layer fully multi-coated |
|
Chassis Material |
6061-T6 aluminum, hard-coat anodized |
|
Finish / Color |
Matte black |
|
Illumination |
Red; 6 levels with off-positions |
|
Length |
269 mm |
|
Weight |
16.6 oz (470 g) |
|
Waterproof / Fogproof |
Yes (nitrogen-purged & sealed) |
|
Shockproof |
Yes |
|
Country of Origin |
China |
