Hawke AIRMAX 30 FFP SF 6-24x50 Rifle Scope AMX Reticle
Hawke AIRMAX 30 FFP SF 6-24x50 Rifle Scope AMX Reticle
Couldn't load pickup availability

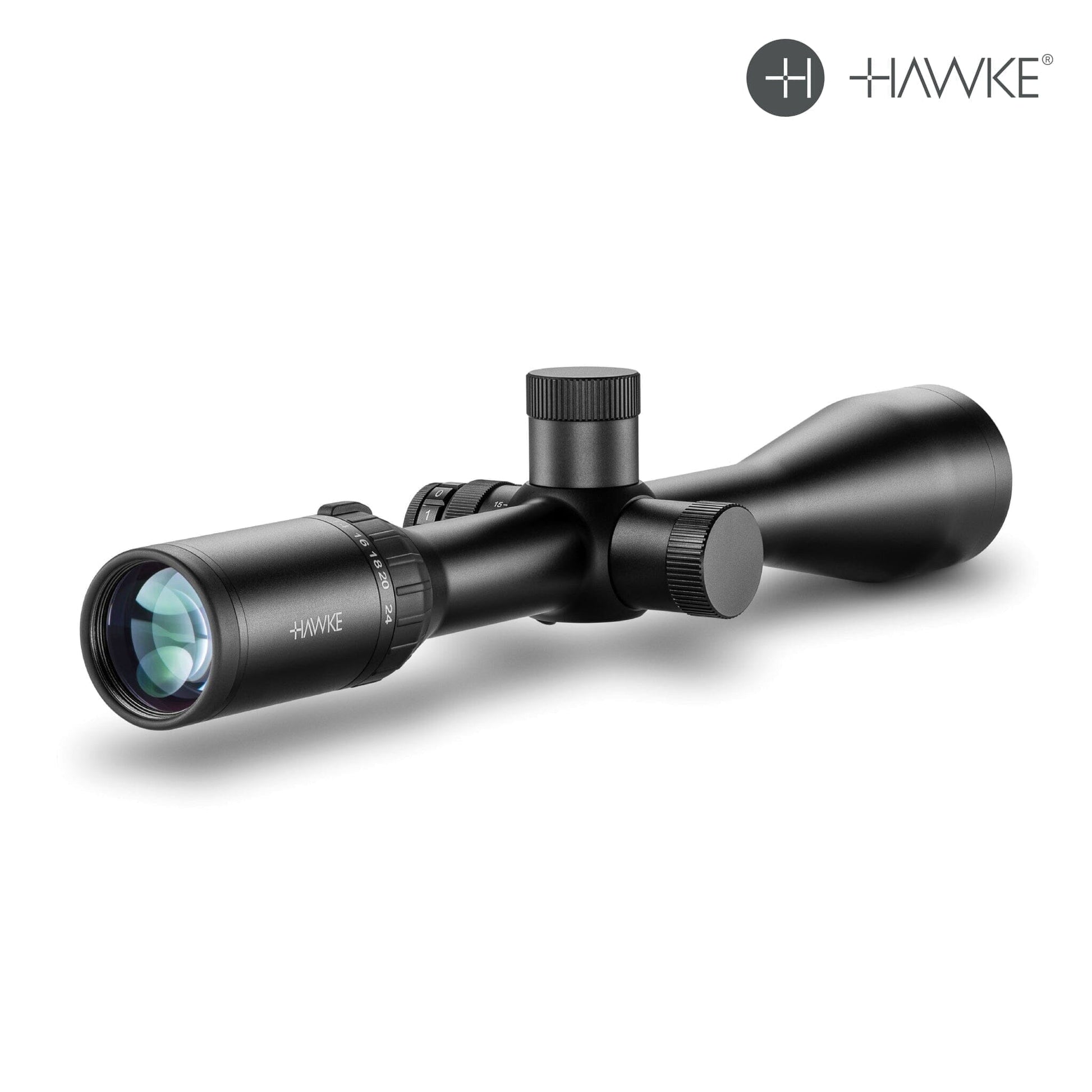

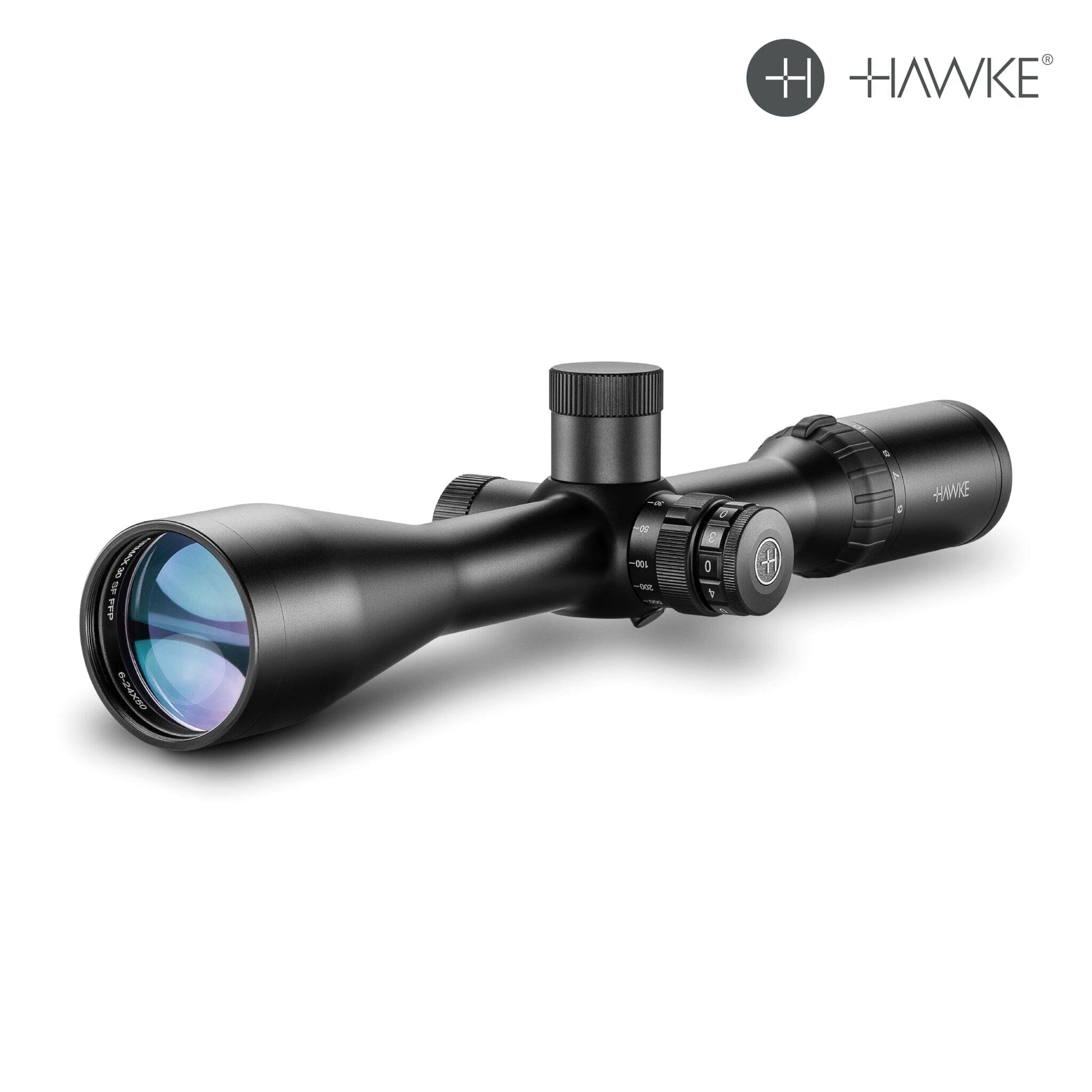

Hawke AIRMAX 30 FFP SF 6–24×50 Rifle Scope AMX IR Reticle
Features

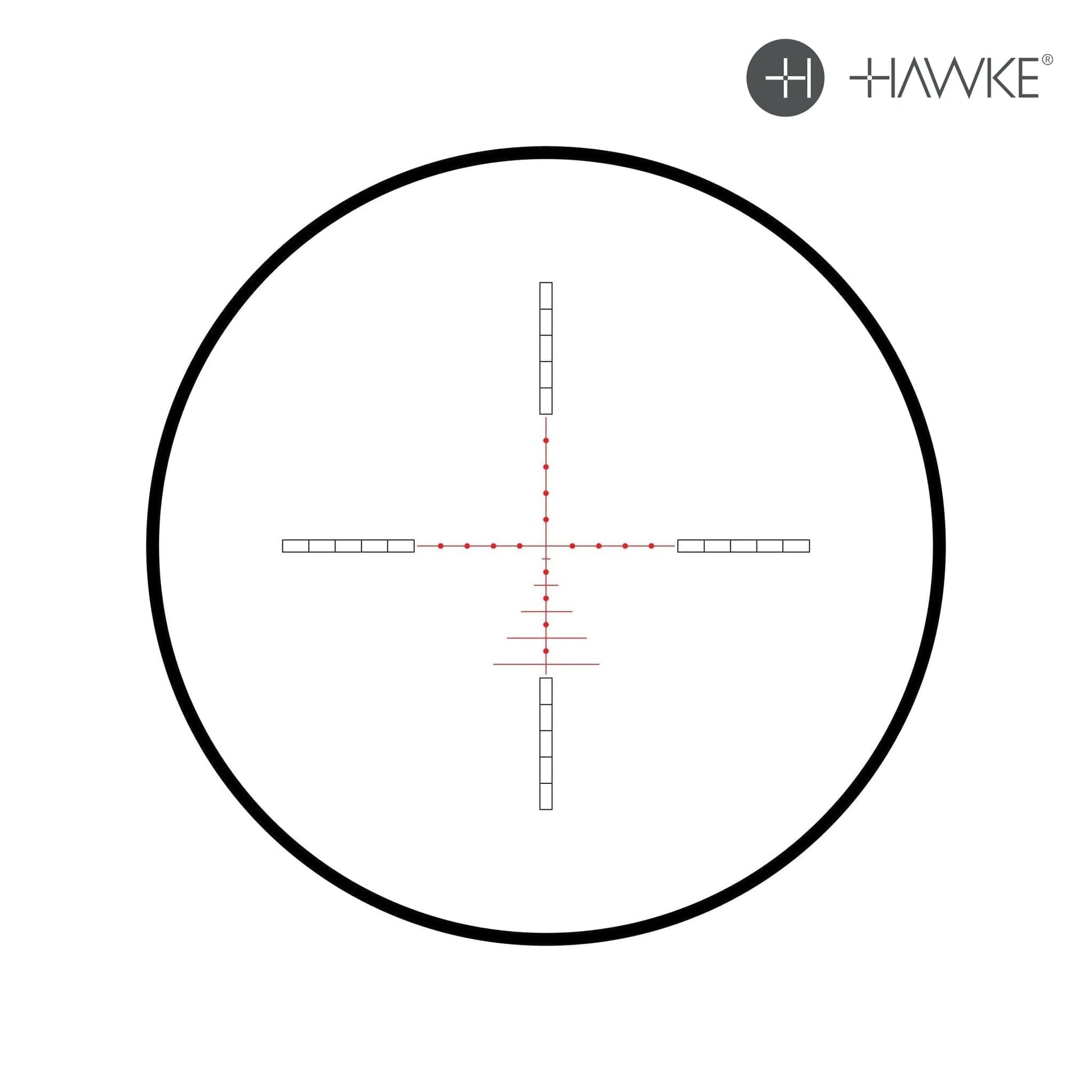

- First Focal Plane AMX IR Reticle: Glass-etched mil-based AMX pattern in the first focal plane for true subtensions at all magnifications; red LED illumination with six daylight-bright levels (plus off-positions) for precise ranging and hold-overs.
- Wide 6–24× Zoom Range: High-torque zoom ring and removable throw lever enable rapid transitions from close-quarters to extended-range engagements.
- 30mm Mono-Tube Chassis: One-piece forged aluminium tube offers exceptional rigidity, consistent zero retention under recoil, and all-calibre rating.
- Side-Focus Parallax Correction: Side-wheel adjustment from 10 yd to ∞ ensures pin-sharp, parallax-free clarity at any distance.
- Capped Target Turrets: Resettable windage & elevation knobs with 0.1 MRAD per-click graduation and ±16 MRAD total travel; protective caps prevent accidental shifts.
- 16-Layer Fully Multi-Coated Optics: Anti-reflective coatings on every air-to-glass surface maximize light transmission, contrast, and edge-to-edge sharpness.
- Fast-Focus Eyebell: Rapid diopter adjustment for a crisp sight picture without tools.
- Rugged, Weather-Resistant Design: O-ring and nitrogen sealed to IP67 (submersible to 1 m); fog-proof and shock-proof for reliable performance in all conditions.
Technical Specifications for Hawke AIRMAX 30 FFP SF 6–24×50 Rifle Scope AMX IR Reticle
Specification |
Details |
Product Title |
Hawke AIRMAX 30 FFP SF 6–24×50 Rifle Scope (AMX IR Reticle) |
Model / MPN |
13352 |
SKU |
13352 |
UPC |
5054492133529 |
Magnification Range |
6–24× |
Objective Lens Diameter |
50 mm |
Tube Diameter |
30 mm |
Focal Plane |
First focal plane |
Reticle |
AMX IR: glass-etched mil pattern, illuminated (6 levels) |
Illumination Control |
Red LED; 6 brightness settings (with off-positions) |
Parallax Adjustment |
Side focus, 10 yd–∞ |
Turret Graduation |
0.1 MRAD per click |
Total Windage / Elevation |
±16 MRAD each |
Eye Relief |
3.0″ (76 mm) constant |
Field of View @ 100 yd |
21.9 ft (6.7 m) @ 6×; 5.5 ft (1.7 m) @ 24× |
Exit Pupil |
8.3–2.1 mm |
Length |
13.0″ (329 mm) |
Weight |
23.6 oz (670 g) |
Optical Coatings |
16-layer fully multi-coated |
Chassis Material / Finish |
Forged aluminium, matte-black anodized |
Weatherproof Rating |
IP67 (submersible to 1 m); fog- and shock-proof |
All-Calibre Rated |
Yes |
Included Accessories |
Removable throw lever; side-focus wheel; sunshade; flip-up covers; lens cloth; instruction manual |
