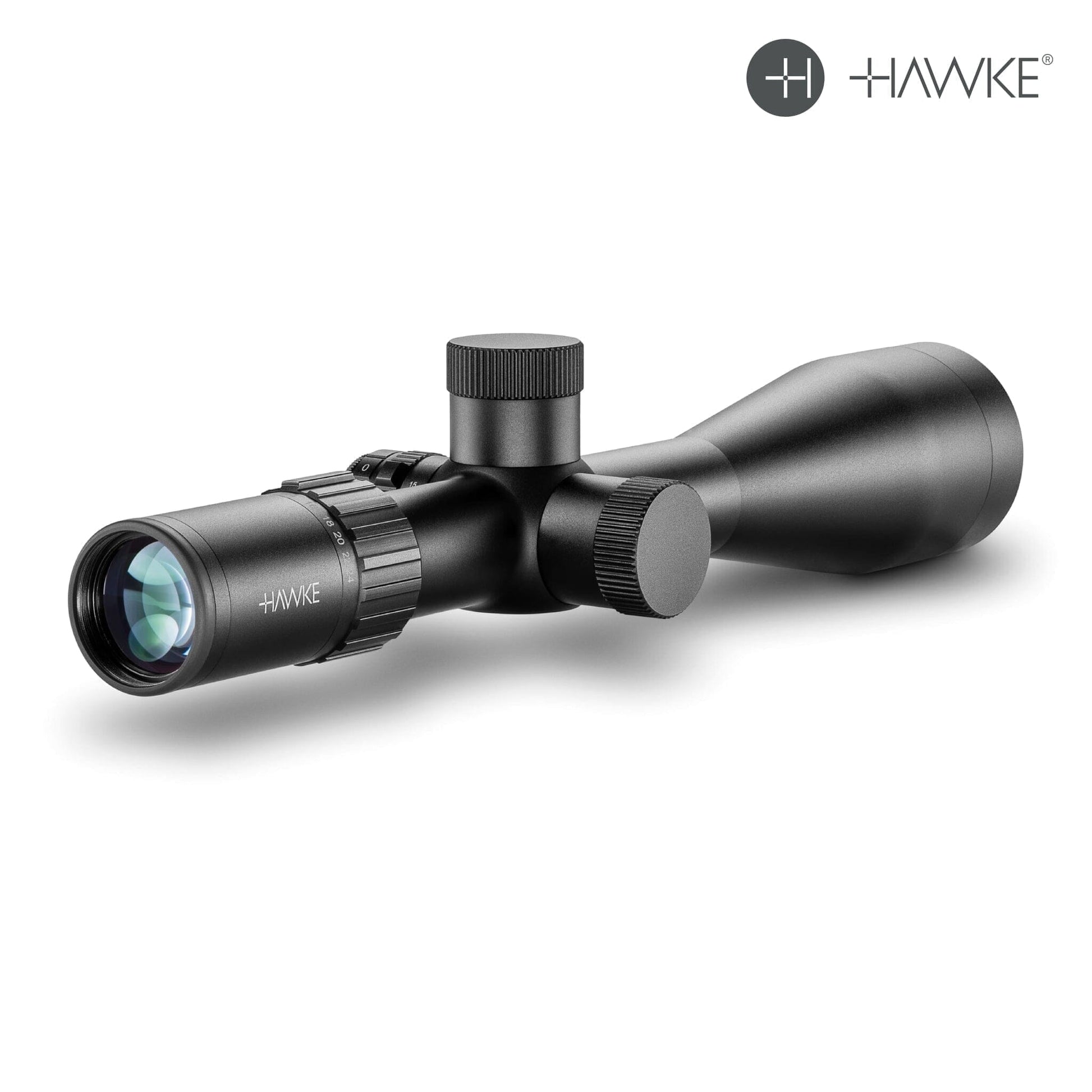

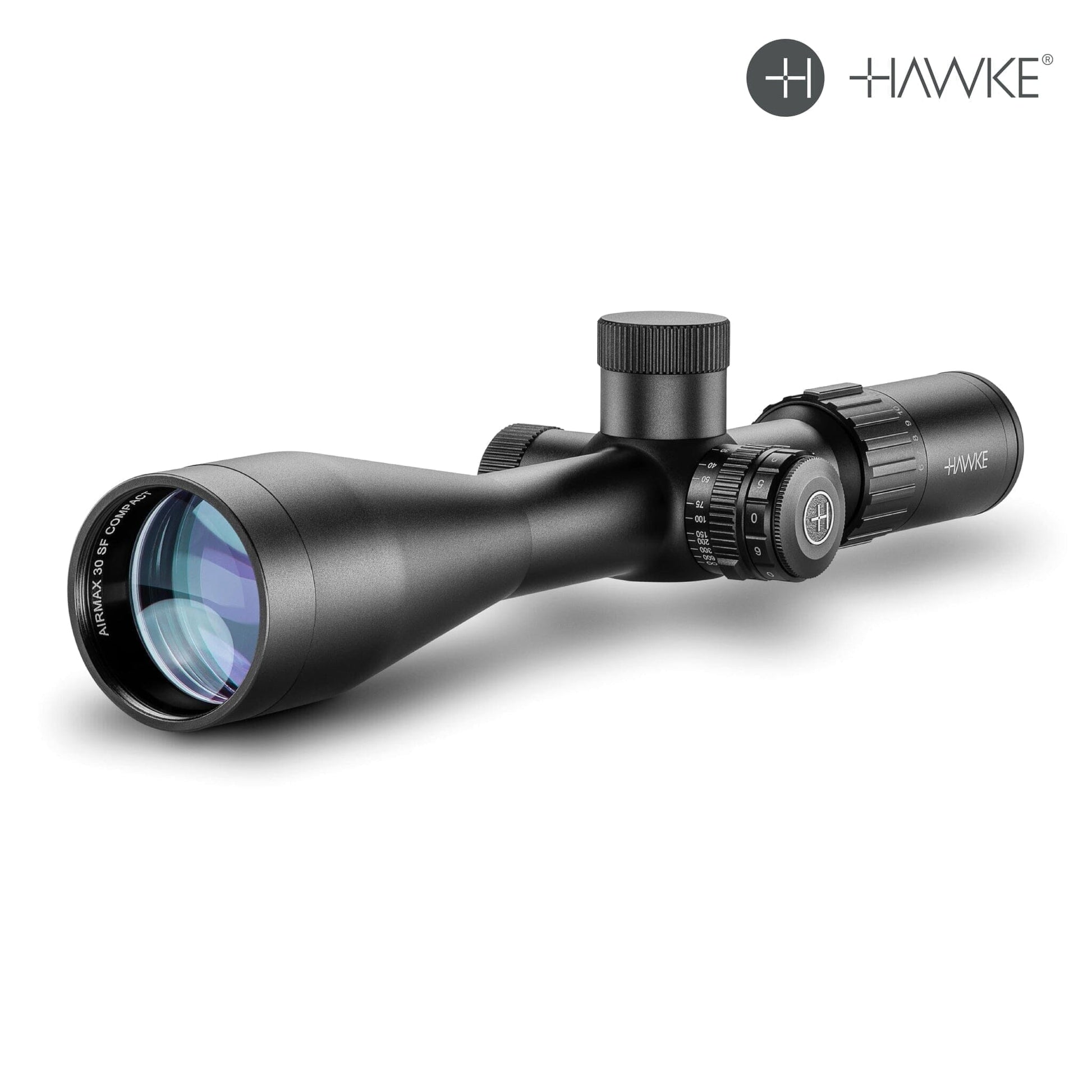

Hawke AIRMAX 30 SF COMPACT 6–24×50 Rifle Scope AMX IR Reticle
Features

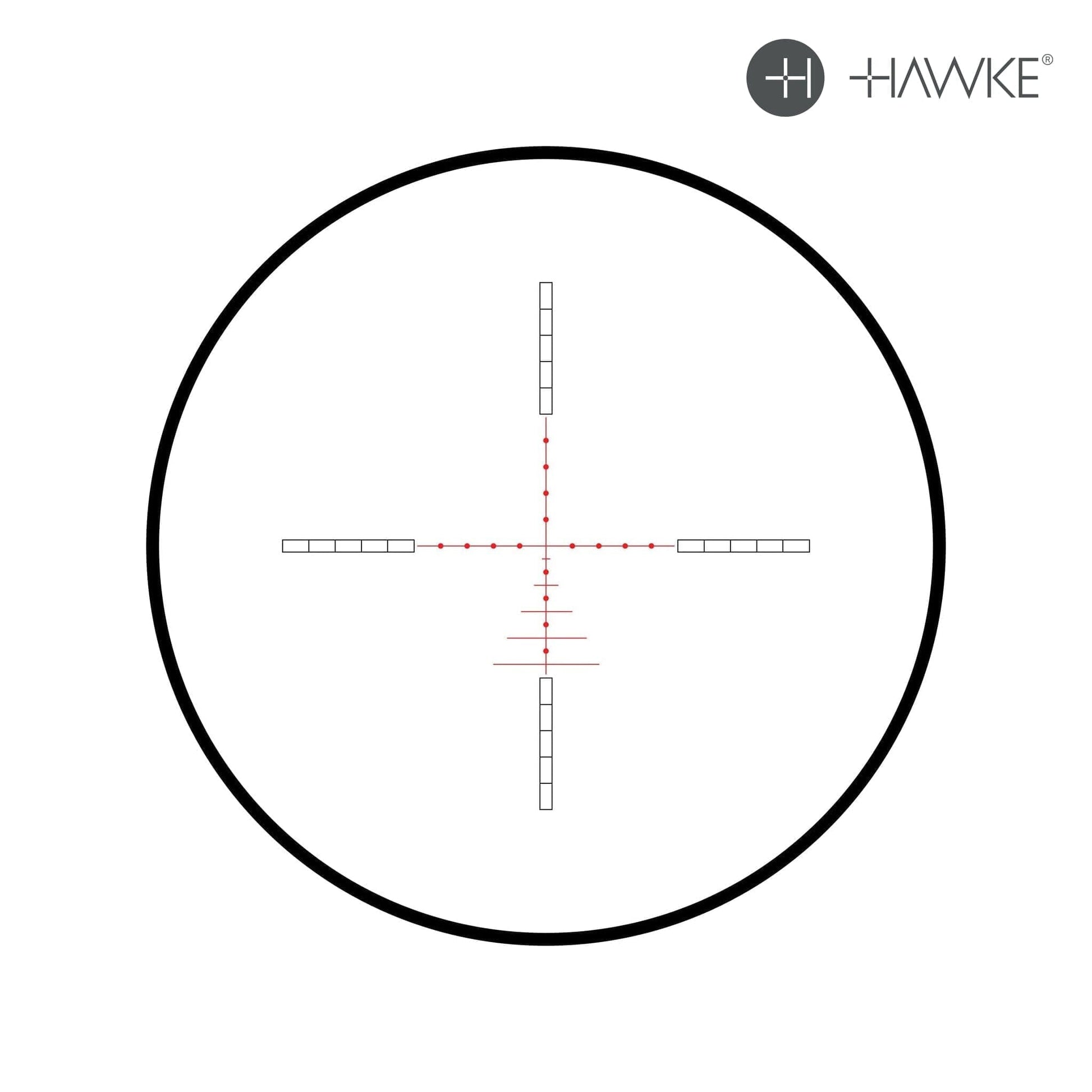

- First Focal Plane AMX IR Reticle: Glass-etched mil-based AMX pattern in the first focal plane remains true at all magnifications, with red LED illumination and six daylight-bright levels (plus off-positions) for precise ranging and hold-overs.
- Wide 6–24× Zoom Range: High-torque zoom ring and removable throw-lever enable rapid transitions from close-quarters to extended-range shooting.
- 30 mm Mono-Tube Chassis: One-piece forged aluminium tube offers exceptional rigidity, shockproof and fog-proof performance, and all-calibre rating.
- Side-Focus Parallax Correction: Side-wheel adjustment from 10 yd to ∞ delivers pin-sharp, parallax-free clarity at any distance.
- Capped Target Turrets: Resettable windage & elevation knobs, 0.1 MRAD (0.1 MIL) per click, 16 MRAD total travel, protected by caps to prevent accidental shifts.
- 16-Layer Fully Multi-Coated Optics: Anti-reflective coatings on every air-to-glass surface maximize light transmission, contrast, and edge-to-edge sharpness.
- Fast-Focus Eyebell: Rapid diopter adjustment for a crisp sight picture without tools.
- Weatherproof Construction: O-ring and nitrogen sealed to IP67 (submersible to 1 m), fog- and shock-proof for reliable operation in all conditions.
- Included Accessories: Throw-lever, 3″ side-wheel, flip-up lens covers, sunshade, lens cloth, CR2032 battery, instruction manual.
Technical Specifications for Hawke AIRMAX 30 SF COMPACT 6–24×50 Rifle Scope AMX IR Reticle
Specification |
Details |
Model / MPN |
Airmax 30 SF Compact 6–24×50 AMX IR (13220) |
SKU |
AMXFFP62450 |
UPC |
5054492132201 |
Magnification Range |
6–24× |
Objective Lens Diameter |
50 mm |
Tube Diameter |
30 mm |
Focal Plane |
First Focal Plane |
Reticle |
AMX IR: glass-etched mil pattern, 6 red LED levels |
Illumination Control |
LED-powered; 6 brightness levels with off-positions |
Parallax Adjustment |
Side focus, 10 yd–∞ |
Turret Graduation |
0.1 MRAD (0.1 MIL) per click |
Total Windage/Elevation |
16 MRAD each |
Eye Relief |
3.0″ (76 mm) constant |
Field of View @ 100 yd |
21.9 ft (6 m) @ 6×; 5.5 ft (1.7 m) @ 24× |
Exit Pupil |
8.3–2.1 mm |
Length |
13.0″ (329 mm) |
Weight |
23.6 oz (670 g) |
Optical Coatings |
16-layer fully multi-coated |
Chassis Material / Finish |
Forged aluminium, matte-black anodized |
Weatherproof Rating |
IP67 (submersible to 1 m); fog- and shock-proof |
All-Calibre Rated |
Yes |
Included Accessories |
Throw-lever; 3″ side-wheel; flip-up covers; sunshade; lens cloth; CR2032 battery; manual |
