Hawke AIRMAX 30 WA SF 4-16x50 Rifle Scope AMX Reticle
Hawke AIRMAX 30 WA SF 4-16x50 Rifle Scope AMX Reticle
Couldn't load pickup availability

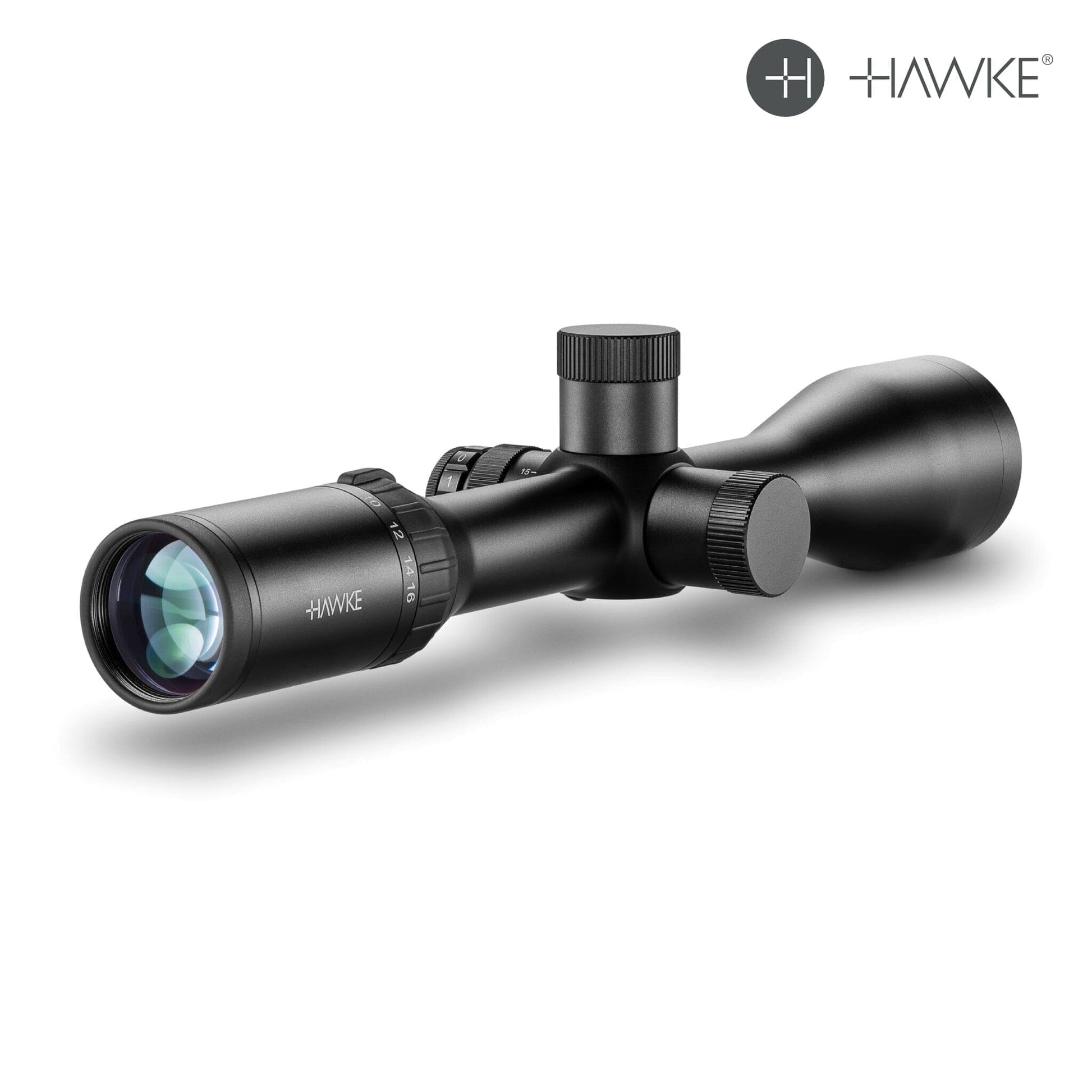

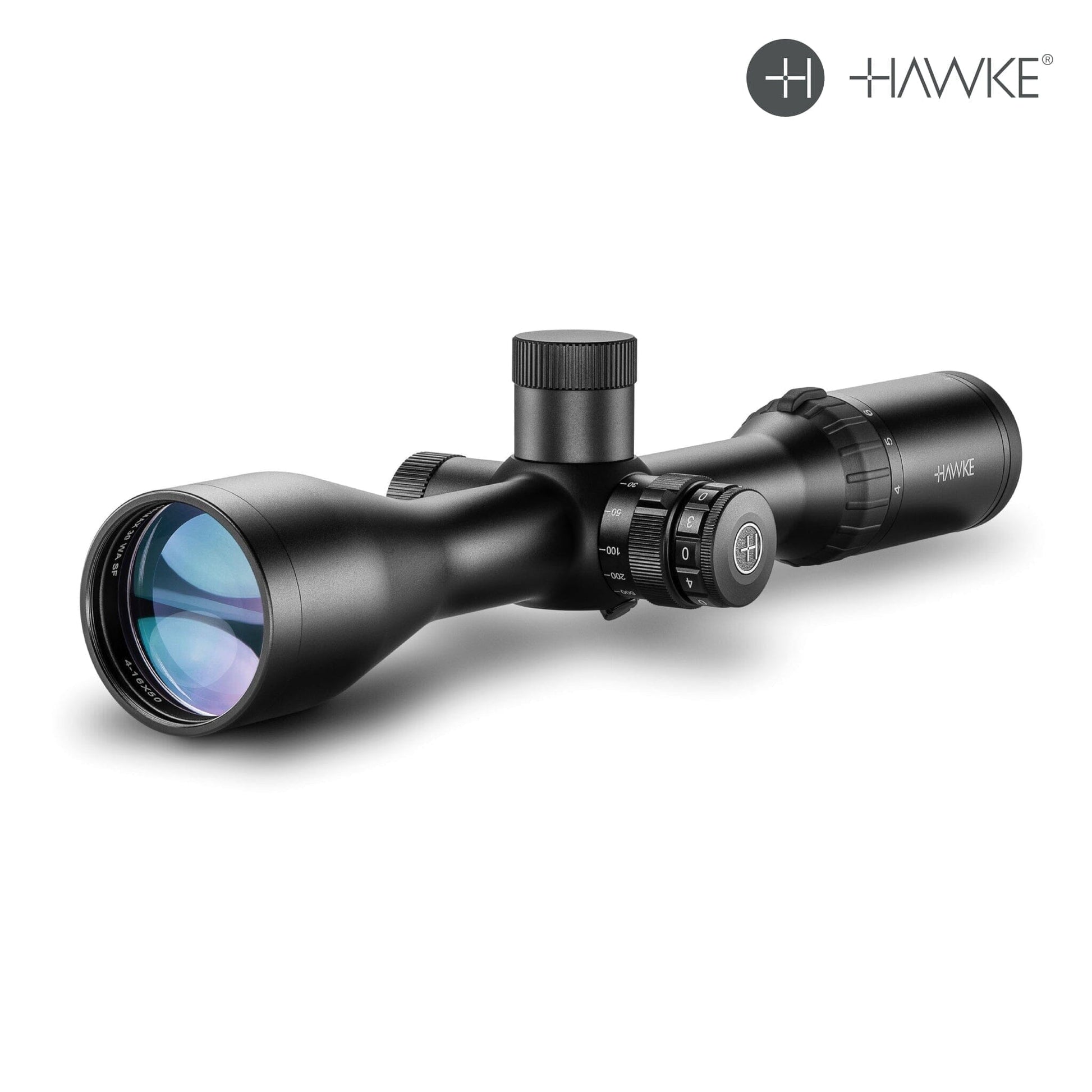

Hawke AIRMAX 30 WA SF 4–16×50 Rifle Scope AMX IR Reticle
Features

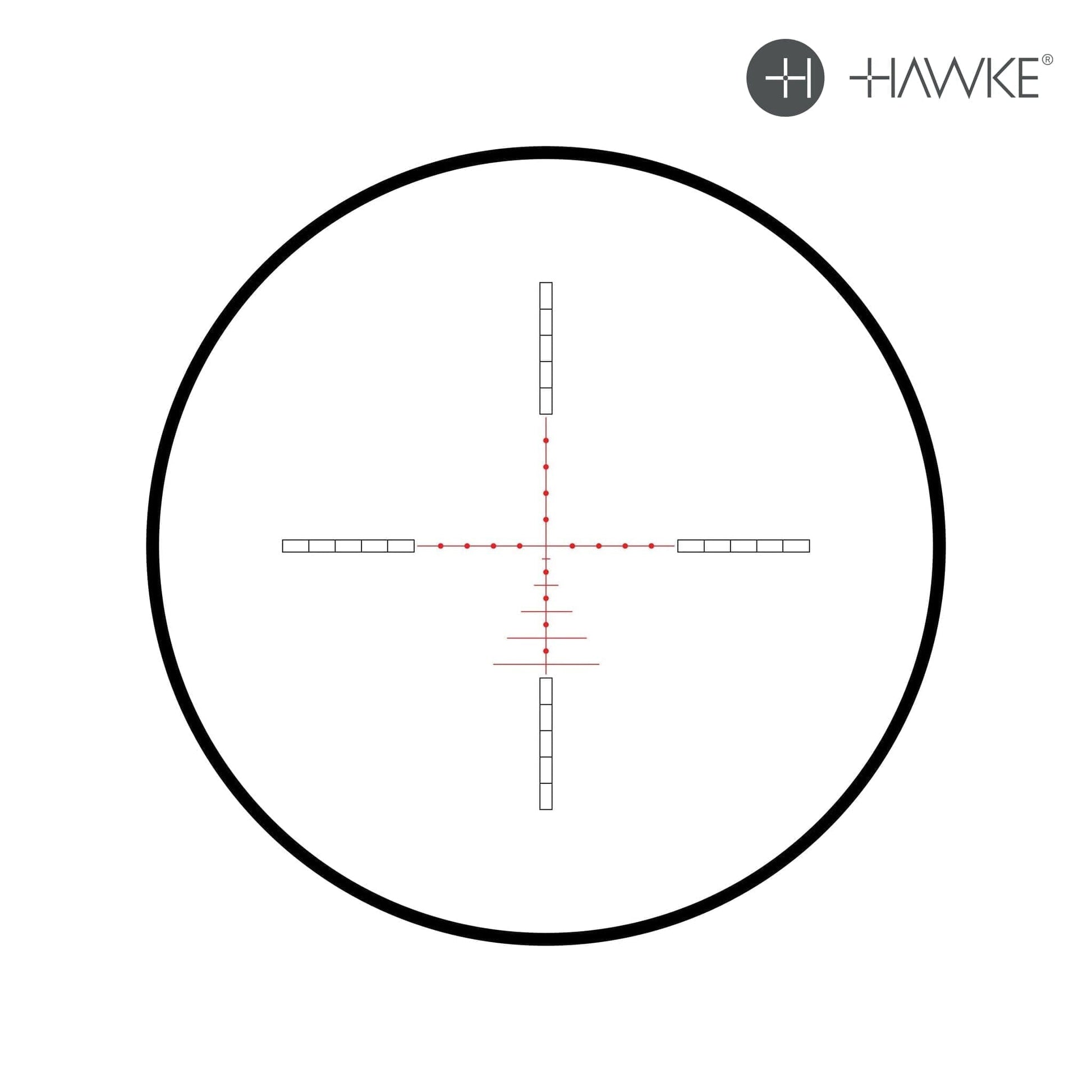

- First Focal Plane AMX IR Reticle: Glass-etched mil-dot AMX pattern in the first focal plane maintains true subtensions at any magnification; red LED illumination with six daylight-bright levels (plus off-positions) for precise ranging and hold-overs.
- Wide 4–16× Zoom Range: High-torque zoom ring and removable throw-lever enable rapid transitions between close-quarters and extended-range shooting.
- 30 mm Mono-Tube Chassis: Forged aluminium tube provides exceptional rigidity, shockproof and fog-proof performance, and all-calibre rating.
- Side-Focus Parallax Correction: Side-wheel adjustment from 10 yd to ∞ delivers pin-sharp, parallax-free clarity at any distance.
- Capped Target Turrets: Resettable 0.1 MRAD per-click windage and elevation turrets with 27 MRAD total travel; protective caps prevent accidental shifts.
- 16-Layer Fully Multi-Coated Optics: Anti-reflective coatings on every air-to-glass surface maximize light transmission, contrast, and edge-to-edge sharpness.
- Fast-Focus Eyebell: Quick diopter adjustment for a crisp sight picture without tools.
- Weatherproof Design: O-ring and nitrogen sealed to IP67 (submersible to 1 m); fog-proof and shock-proof for reliable operation in all conditions.
- Included Accessories: Removable throw-lever; 3″ side-focus wheel; sunshade; metal flip-up lens covers; lens cloth; CR2032 battery; instruction manual.
Technical Specifications for Hawke AIRMAX 30 WA SF 4–16×50 Rifle Scope AMX IR Reticle
Specification |
Details |
Model / MPN |
Airmax 30 WA SF 4–16×50 AMX IR (13311) |
SKU |
AMXFFP41650 |
UPC |
5054492133116 |
Magnification Range |
4–16× |
Objective Lens Diameter |
50 mm |
Tube Diameter |
30 mm |
Focal Plane |
First Focal Plane |
Reticle |
AMX IR: glass-etched mil-dot, illuminated (6 levels) |
Illumination Control |
Red LED; 6 brightness settings (with off-positions) |
Parallax Adjustment |
Side focus, 10 yd–∞ |
Turret Graduation |
0.1 MRAD per click |
Total Windage / Elevation |
27 MRAD each |
Eye Relief |
4.0″ (102 mm) constant |
Field of View @ 100 yd |
30.7–7.7 ft (9.4–2.4 m) |
Exit Pupil |
12.5–3.1 mm |
Length |
13.7″ (348 mm) |
Weight |
26.8 oz (760 g) |
Optical Coatings |
16-layer fully multi-coated |
Chassis Material / Finish |
Forged aluminium, matte-black anodized |
Weatherproof Rating |
IP67 (submersible to 1 m); fog-proof; shock-proof |
All-Calibre Rated |
Yes |
Warranty |
Hawke No-Fault Lifetime Warranty |
