Hawke AIRMAX 30 WA SF 6-24x50 Rifle Scope AMX Reticle
Hawke AIRMAX 30 WA SF 6-24x50 Rifle Scope AMX Reticle
Couldn't load pickup availability

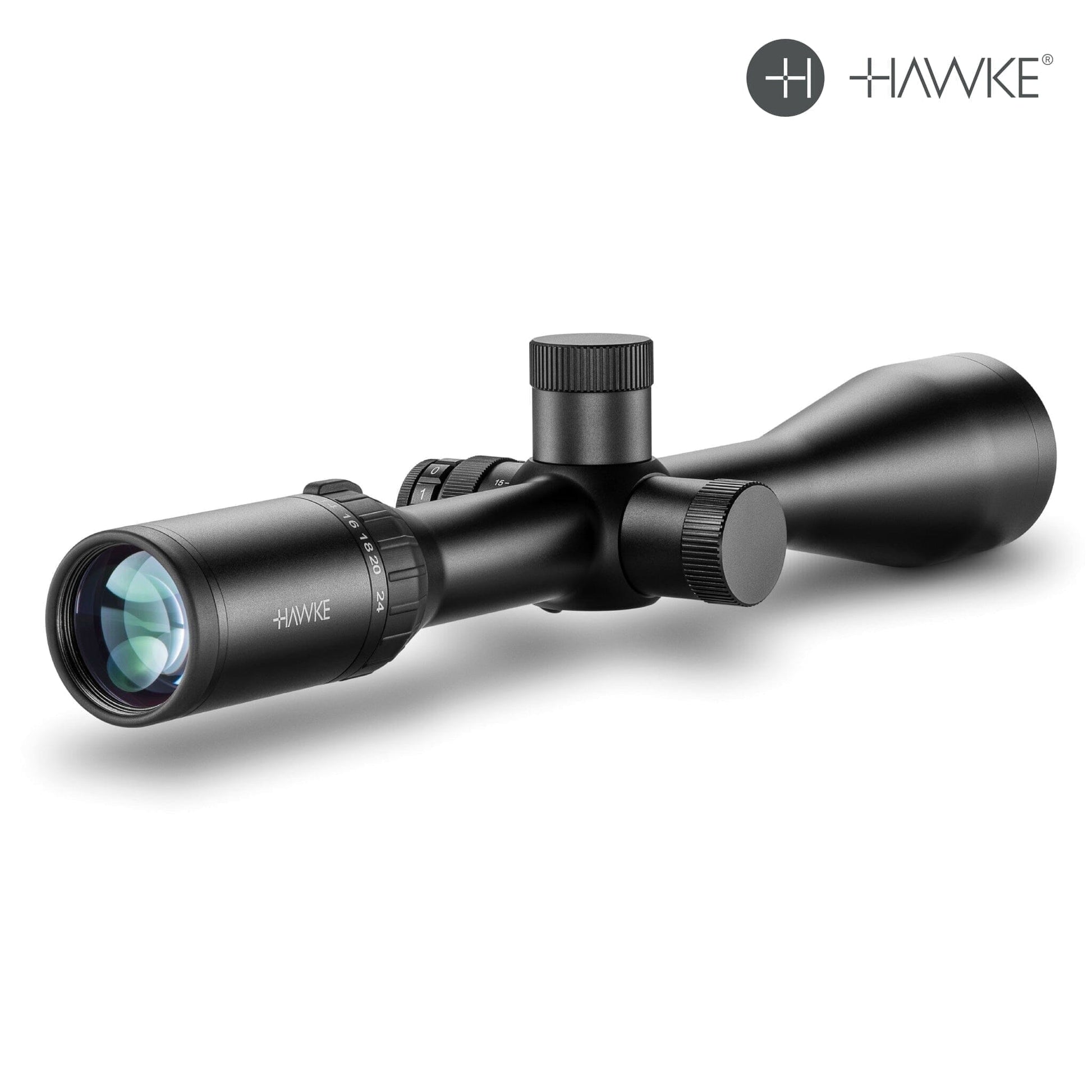

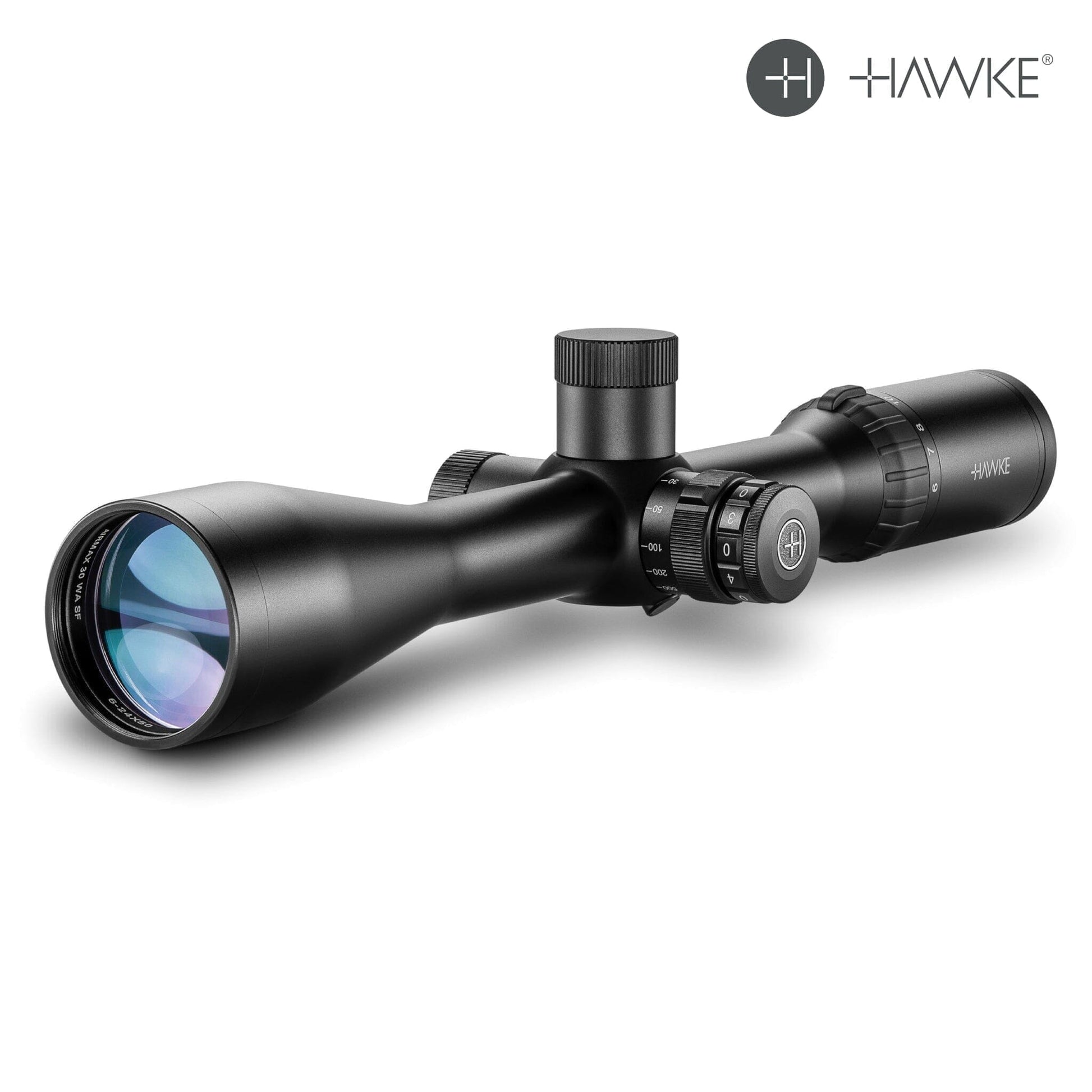

Hawke AIRMAX 30 WA SF 6–24×50 Rifle Scope AMX IR Reticle
Features

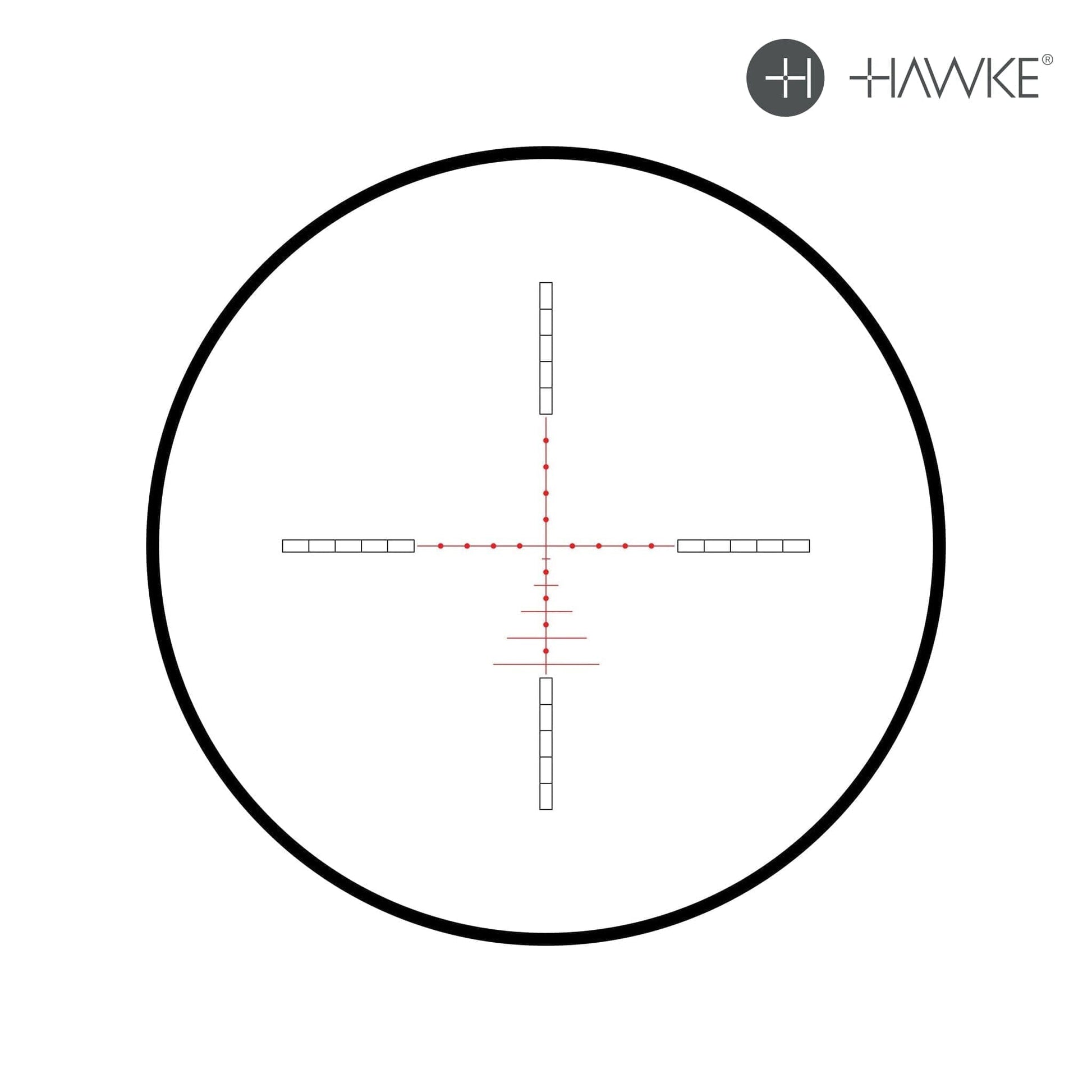

- First Focal Plane AMX IR Reticle: Glass-etched mil-dot AMX pattern in the first focal plane for true subtensions at all magnifications; illuminated by a red LED with six daylight-bright levels (plus off-positions) for precise ranging and hold-overs.
- Wide-Angle 6–24× Zoom: High-torque zoom ring with removable throw-lever enables rapid transitions between close-quarters and extended-range engagements.
- 30 mm Mono-Tube Chassis: One-piece forged aluminum tube offers exceptional rigidity, shock- and fog-proof performance, and all-calibre rating.
- Side-Focus Parallax Correction: Side-wheel adjustment from 10 yd to ∞ ensures pin-sharp, parallax-free clarity at any distance.
- Capped Target Turrets: Resettable windage & elevation knobs with 0.1 MRAD per-click graduation and ±17 MRAD total travel; protective caps prevent accidental shifts.
- 16-Layer Fully Multi-Coated Optics: Anti-reflective coatings on every air-to-glass surface maximize light transmission, contrast, and edge-to-edge sharpness.
- Fast-Focus Eyebell: Rapid diopter adjustment for a crisp sight picture without tools.
- Weatherproof Construction: O-ring and nitrogen sealed to IP67 (submersible to 1 m); fog- and shock-proof for reliable performance in all conditions.
- Included Accessories: Removable throw-lever; 3″ side-focus wheel; 4″ sunshade; metal flip-up lens covers; lens cloth; CR2032 battery; instruction manual.
Technical Specifications for Hawke AIRMAX 30 WA SF 6–24×50 Rifle Scope AMX IR Reticle
Specification |
Details |
Product Title |
Hawke AIRMAX 30 WA SF 6–24×50 Rifle Scope |
Model / MPN |
13321 |
SKU |
13321 |
UPC |
5054492133215 |
Magnification Range |
6–24× |
Objective Lens Diameter |
50 mm |
Tube Diameter |
30 mm |
Focal Plane |
First Focal Plane |
Reticle |
AMX IR (glass-etched mil-dot; illuminated, 6 levels) |
Illumination Control |
Red LED; 6 brightness settings (with off-positions) |
Parallax Adjustment |
Side focus, 10 yd–∞ |
Turret Graduation |
0.1 MRAD per click |
Total Windage / Elevation |
±17 MRAD each |
Eye Relief |
4.0″ (102 mm) constant |
Field of View @ 100 yd |
20.3–5.1 ft (6.2–1.6 m) |
Exit Pupil |
8.3–2.1 mm |
Length |
14.9″ (378 mm) |
Weight |
27.2 oz (770 g) |
Optical Coatings |
16-layer fully multi-coated |
Chassis Material / Finish |
Forged aluminum, matte-black anodized |
Weatherproof Rating |
IP67 (submersible to 1 m); fog-/shock-proof |
All-Calibre Rated |
Yes |
Included Accessories |
Throw-lever; side-focus wheel; sunshade; flip-up covers; lens cloth; battery; manual |
