Hawke AIRMAX 30 WA SF 8-32x50 Rifle Scope AMX Reticle
Hawke AIRMAX 30 WA SF 8-32x50 Rifle Scope AMX Reticle
Couldn't load pickup availability
Hawke AIRMAX 30 WA SF 8–32×50 Rifle Scope AMX IR Reticle
Features

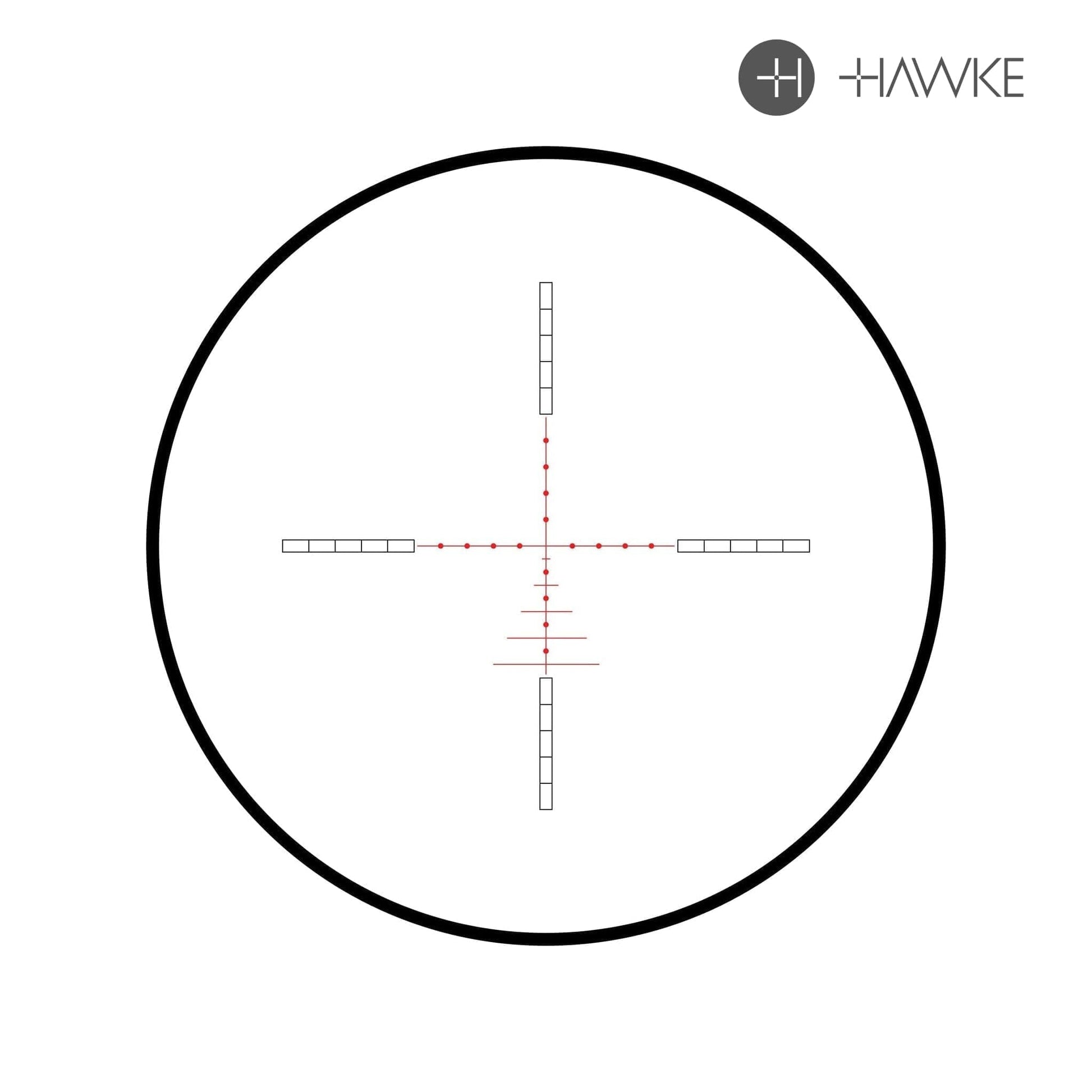

- First Focal Plane AMX IR Reticle: Glass-etched mil-dot AMX pattern in the first focal plane for true subtensions at any magnification; illuminated by a red LED with six daylight-bright levels (plus off-positions) for precise ranging and hold-overs.
- Wide-Angle 8–32× Zoom: High-torque zoom ring and removable throw-lever allow rapid transitions from close-quarters to extreme long-range engagements.
- 30 mm Mono-Tube Chassis: One-piece forged aluminum tube provides exceptional rigidity, consistent zero retention under heavy recoil, and is rated for all calibres.
- Side-Focus Parallax Correction: Dedicated side-wheel focuses from 10 yd to ∞ for pin-sharp, parallax-free clarity at any distance.
- Capped Target Turrets: Resettable windage & elevation knobs with 0.1 MRAD per-click graduation and ±16 MRAD total travel; protective caps prevent accidental adjustments.
- 16-Layer Fully Multi-Coated Optics: Anti-reflective coatings on all air-to-glass surfaces maximize light transmission, contrast, and edge-to-edge sharpness.
- Fast-Focus Eyebell: Rapid diopter adjustment on the ocular for a crisp sight picture without tools.
- Rugged, Weather-Resistant Design: O-ring and nitrogen sealed to IP67 (submersible to 1 m); fog-proof and shock-proof for reliable performance in all conditions.
- Included Accessories: Removable throw-lever; 3″ side-focus wheel; 4″ sunshade; metal flip-up lens covers; lens cloth; CR2032 battery; instruction manual.
Technical Specifications for Hawke AIRMAX 30 WA SF 8–32×50 Rifle Scope AMX IR Reticle
Specification |
Details |
Product Title |
Hawke AIRMAX 30 WA SF 8–32×50 Rifle Scope |
Model / MPN |
13341 |
SKU |
HAW-13341 |
UPC |
5054492133413 |
Magnification Range |
8–32× |
Objective Lens Diameter |
50 mm |
Tube Diameter |
30 mm |
Focal Plane |
First Focal Plane |
Reticle |
AMX IR: glass-etched mil-dot, illuminated |
Illumination Control |
Red LED; 6 brightness settings (with off-positions) |
Parallax Adjustment |
Side focus, 10 yd–∞ |
Turret Graduation |
0.1 MRAD per click |
Total Windage / Elevation |
±16 MRAD each |
Eye Relief |
4.0″ (102 mm) constant |
Field of View @ 100 yd |
16.1–4.0 ft (4.9–1.2 m) |
Exit Pupil |
6.3–1.6 mm |
Length |
15.3″ (388 mm) |
Weight |
27.5 oz (780 g) |
Optical Coatings |
16-layer fully multi-coated |
Chassis Material / Finish |
Forged aluminum, matte-black anodized |
Weatherproof Rating |
IP67 (submersible to 1 m); fog- & shock-proof |
All-Calibre Rated |
Yes |
Included Accessories |
See Features above |
