Hawke Sport Optics

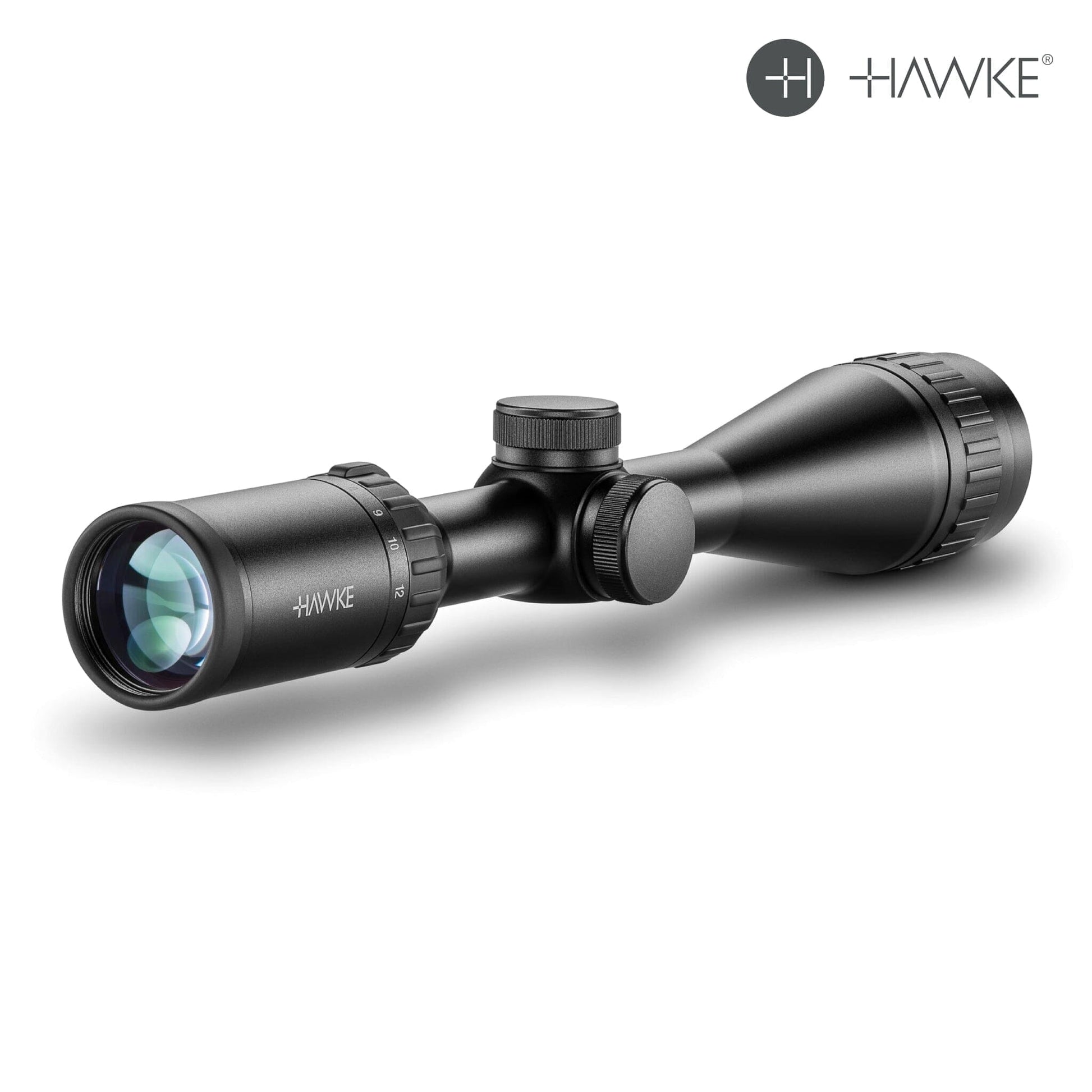

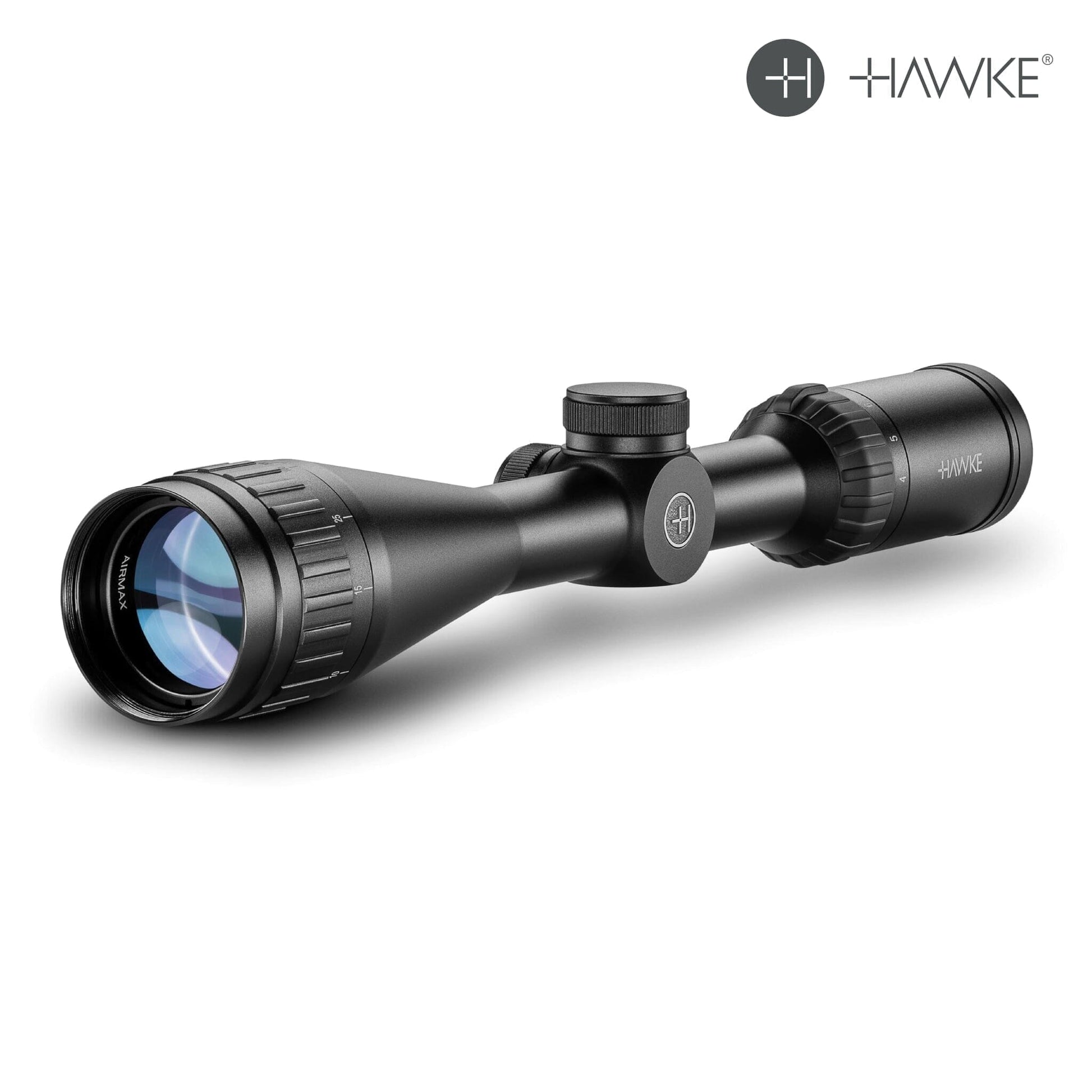

Hawke AIRMAX 4-12x40 AO Rifle Scope AMX Reticle

Hawke AIRMAX 4-12x40 AO Rifle Scope AMX Reticle

Regular price $289.99 USD
Regular price Sale price $289.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Hawke AIRMAX 4–12×40 AO Rifle Scope AMX IR Reticle

Features

  • Adjustable Objective (AO): Side-focus 15–∞ adjustment removes parallax error for crisp shots with airguns or rimfires.
  • First Focal Plane AMX IR Reticle: Glass-etched mil-dot AMX pattern stays accurate at all magnifications; red LED illumination with six daylight-bright levels (plus off‐positions) for low-light use.
  • Wide 4–12× Zoom Range: High-torque zoom ring and removable throw-lever allow rapid magnification changes from close-quarters to mid-range.
  • 30 mm Mono-Tube Chassis: One-piece forged aluminum body provides rock-solid strength, all-calibre rating, and reliable zero retention.
  • Fast-Focus Eyebell: Quick diopter adjustment for a razor-sharp sight picture without tools.
  • 16-Layer Fully Multi-Coated Optics: Anti-reflective coatings maximize light transmission, contrast, and edge-to-edge clarity.
  • Weatherproof Construction: O-ring and nitrogen sealed to IP67 (submersible to 1 m); fog-proof and shock-proof for all-condition reliability.
  • Included Accessories: Removable throw-lever, flip-up lens covers, throw-lever, lens cloth, instruction manual.

Technical Specifications for Hawke AIRMAX 4–12×40 AO Rifle Scope AMX IR Reticle

Specification

Details

Product Title

Hawke AIRMAX 4–12×40 AO Rifle Scope (AMX IR Reticle)

Model / MPN

13130

SKU

13130

UPC

5054492131303

Magnification Range

4–12×

Objective Lens Diameter

40 mm

Tube Diameter

30 mm

Focal Plane

First Focal Plane

Reticle

AMX IR: glass-etched mil-dot (illuminated, 6 levels)

Illumination Control

Red LED, 6 brightness settings (off-positions between)

Parallax Adjustment

Adjustable Objective 15 yd–∞

Exit Pupil

10–3.3 mm

Eye Relief

3.5″ (90 mm) constant

Field of View @ 100 yd

24.4 ft (7.4 m) @ 4×; 8.2 ft (2.5 m) @ 12×

Length

13.9″ (353 mm)

Weight

19.8 oz (561 g)

Optical Coatings

16-layer fully multi-coated

Chassis Material / Finish

Forged aluminum, matte-black anodized

Weatherproof Rating

IP67 (submersible to 1 m); fog-proof; shock-proof

All-Calibre Rated

Yes

Included Accessories

Throw-lever; flip-up lens covers; lens cloth; manual

SEO Keywords
Hawke AIRMAX 4–12×40 AO, AMX IR reticle, adjustable objective riflescope, 30 mm mono-tube scope.
