Hawke AIRMAX 4-12x50 AO Rifle Scope AMX Reticle
Hawke AIRMAX 4-12x50 AO Rifle Scope AMX Reticle
Couldn't load pickup availability
Hawke AIRMAX 4–12×50 AO Rifle Scope AMX IR Reticle
Features

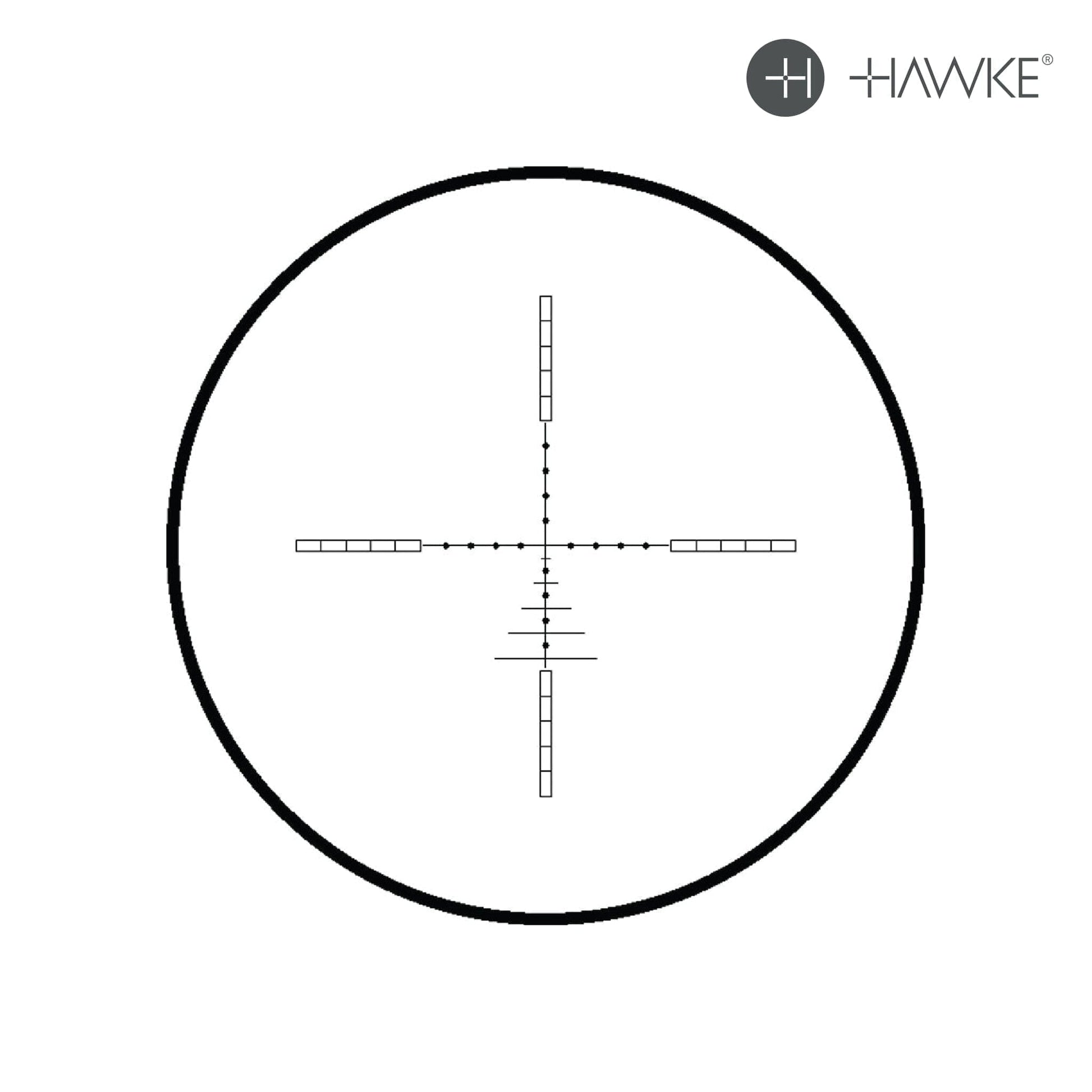

- First Focal Plane AMX IR Reticle: Glass-etched mil-dot AMX pattern in the first focal plane stays true at all magnifications, with red LED illumination and six daylight-bright settings (plus off-positions) for precise ranging and hold-overs.
- Adjustable Objective (AO): Side-focus parallax correction from 15 yd to ∞ eliminates optical error, ideal for airguns and rimfires.
- Wide 4–12× Zoom Range: High-torque zoom ring with removable throw-lever enables rapid transitions between close-quarters and mid-range engagements.
- 30 mm Mono-Tube Chassis: One-piece forged aluminium tube provides rock-solid rigidity, all-calibre rating, and shock-/fog-proof performance.
- Capped Target Turrets: Resettable ¼ MOA (0.1 MRAD) per-click windage & elevation turrets with ±25 MOA (±7.3 MRAD) total travel; protective caps prevent accidental shifts.
- 16-Layer Fully Multi-Coated Optics: Anti-reflective coatings on every air-to-glass surface maximize light transmission, contrast, and edge-to-edge clarity.
- Fast-Focus Eyebell: Quick diopter adjustment for a razor-sharp sight picture without tools.
- Weatherproof Construction: O-ring and nitrogen sealed to IP67 (submersible to 1 m); fog- and shock-proof for reliable performance in all conditions.
- Included Accessories: Removable throw-lever, metal flip-up lens covers, lens cloth, CR2032 battery, and instruction manual.
Technical Specifications for Hawke AIRMAX 4–12×50 AO Rifle Scope AMX IR Reticle
Specification |
Details |
Product Title |
Hawke AIRMAX 4–12×50 AO Rifle Scope (AMX IR Reticle) |
Model / MPN |
13140 |
SKU |
13140 |
UPC |
5054492131402 |
Magnification Range |
4–12× |
Objective Lens Diameter |
50 mm |
Tube Diameter |
30 mm |
Reticle Focal Plane |
First Focal Plane |
Reticle |
AMX IR: glass-etched mil-dot, illuminated (6 red levels) |
Illumination Control |
Red LED; 6 brightness settings (with off-positions) |
Parallax Adjustment |
Side-focus AO, 15 yd–∞ |
Turret Graduation |
¼ MOA (0.1 MRAD) per click |
Total Windage/Elevation Travel |
±25 MOA (±7.3 MRAD) each |
Eye Relief |
3.5″ (90 mm) constant |
Field of View @ 100 yd |
27.3–9.1 ft (8.3–2.8 m) |
Exit Pupil |
12.5–4.2 mm |
Length |
15.4″ (391 mm) |
Weight |
21.7 oz (615 g) |
Optical Coatings |
16-layer fully multi-coated |
Chassis Material / Finish |
Forged aluminium, matte-black anodized |
Weatherproof Rating |
IP67 (submersible to 1 m); fog- & shock-proof |
All-Calibre Rated |
Yes |
Included Accessories |
Throw-lever; flip-up covers; lens cloth; CR2032 battery; manual |
