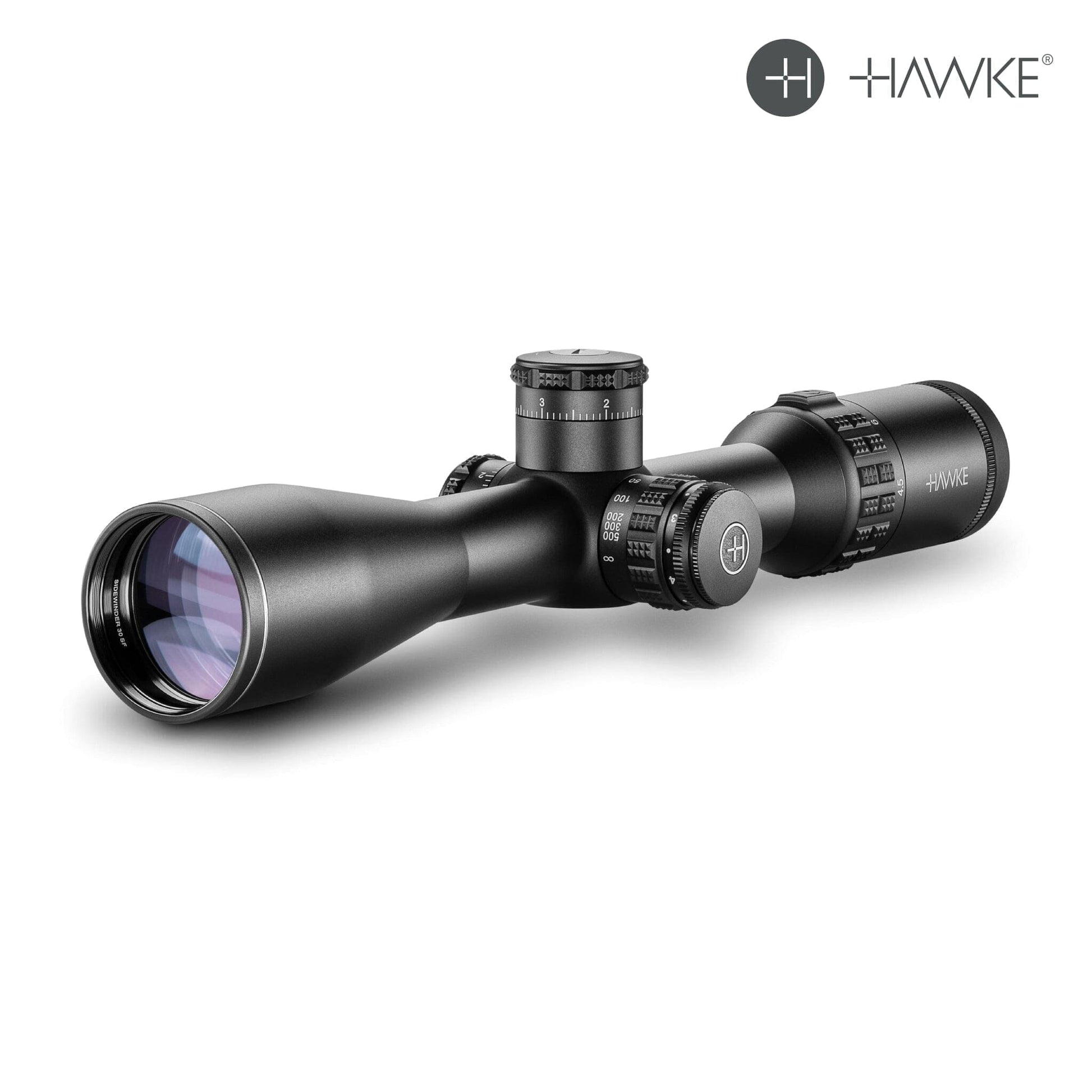

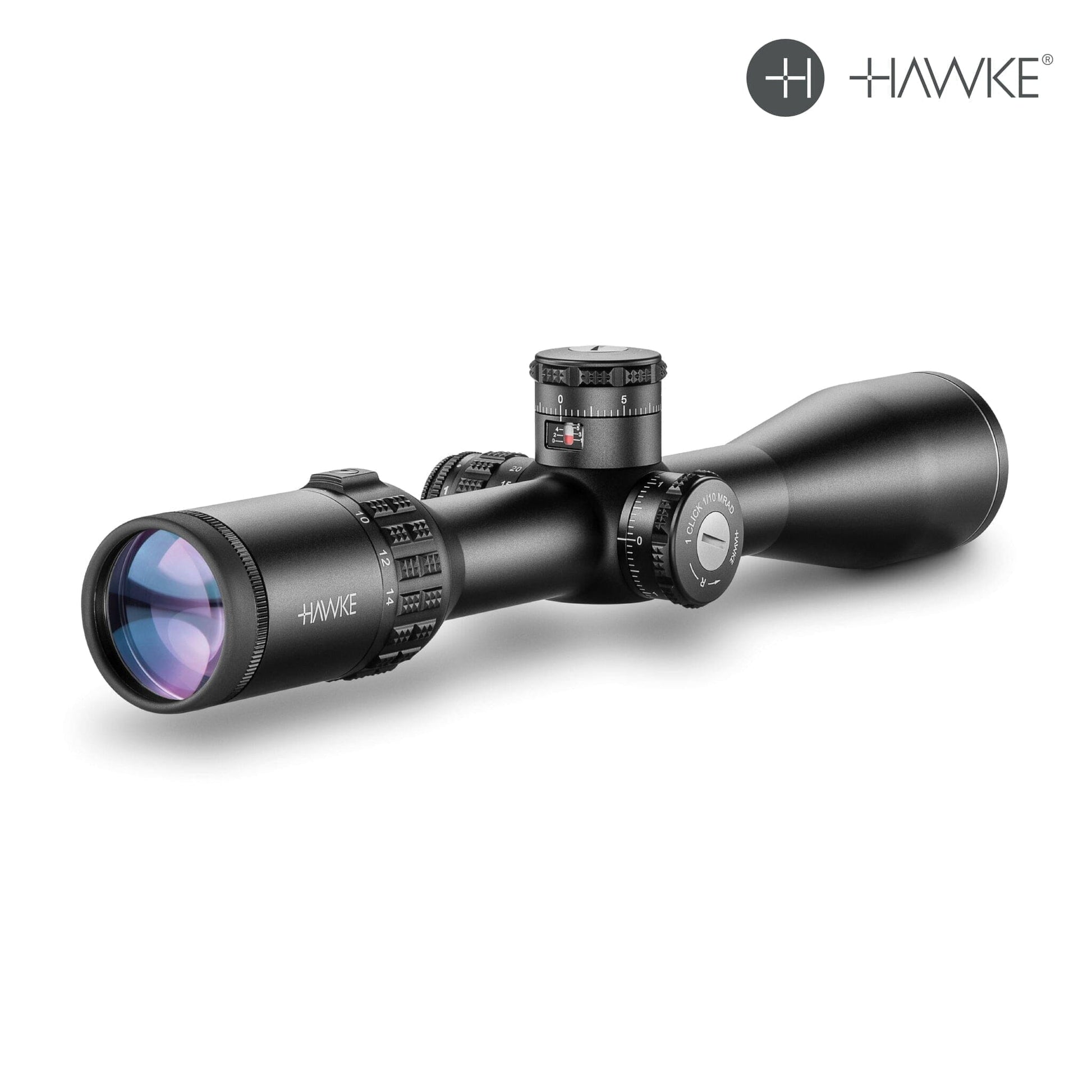

Hawke Sidewinder 30 SF 4.5–14×44 Rifle Scope 10× Half-Mil Reticle
Features

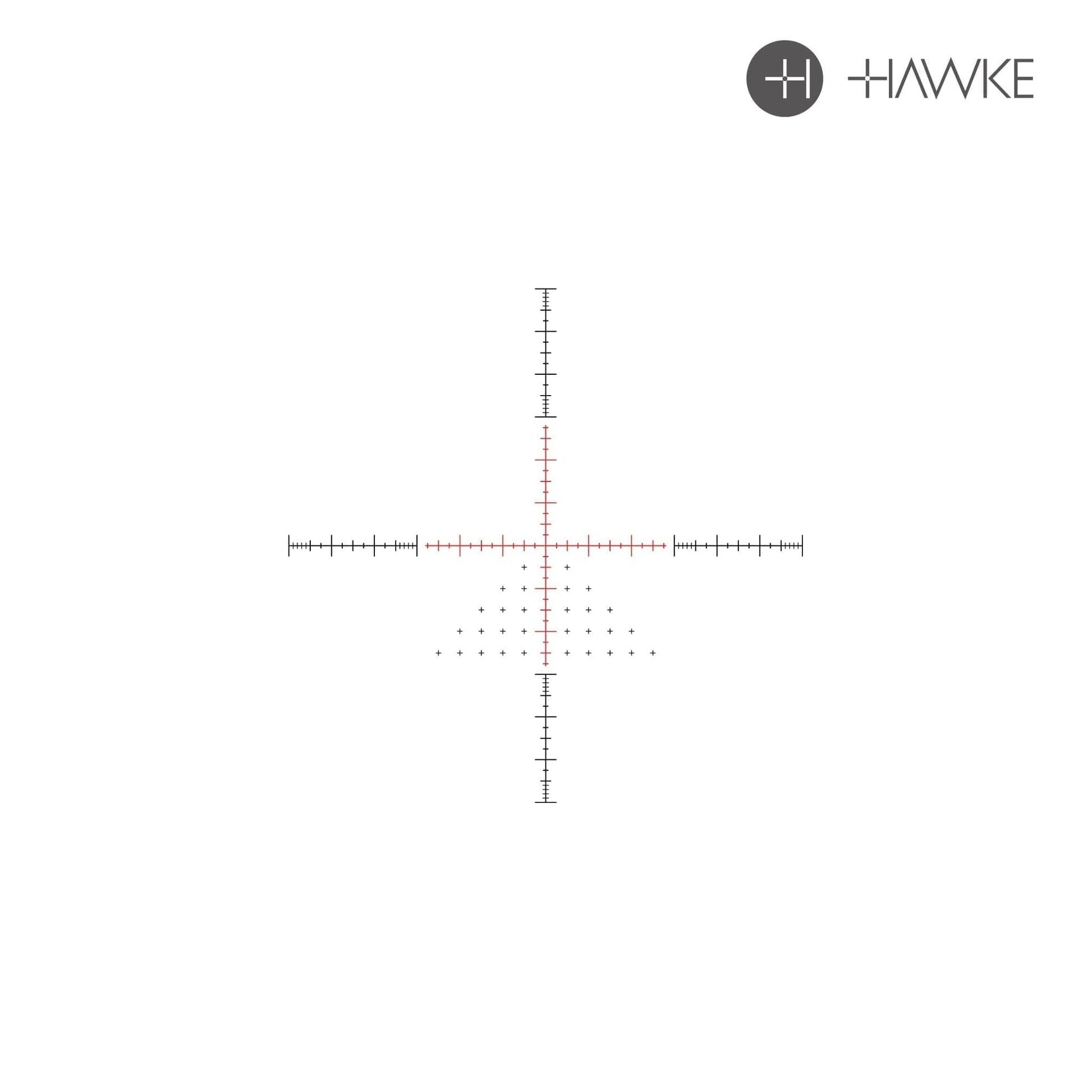

- 10× Half-Mil Reticle (SFP): Second-focal-plane “10× Half-Mil” pattern with 0.5 Mil center hashes and 0.2 Mil outer ticks—true subtensions at 10×; ideal for bracketing and ranging.
- H5 Optical System: 18-layer, fully multi-coated, low-dispersion crown glass delivers exceptional light transmission, contrast, and edge-to-edge clarity.
- Ultra-Wide 24° Field of View: Massive 28.2 ft (@ 100 yd) at low power for maximum situational awareness.
- Generous Eye Relief & Eyebox: 100 mm (4″) constant eye relief and high-volume eyebox for comfortable, rapid acquisition.
- Precision Locking Turrets: Resettable 0.1 MRAD (⅒ Mil) per click with witness windows; 28 MRAD total windage and elevation travel.
- Side-Focus Parallax Correction: Index-matched wheel from 9 m (10 yd) to ∞—removable for custom setup.
- Fast-Focus Eyebell: Diopter adjustment with locking ring for a razor-sharp sight picture.
- 30 mm Mono-Tube Chassis: One-piece forged aluminum, nitrogen-purged and O-ring sealed to IP67; shock- and fog-proof; all-calibre rated.
Technical Specifications
|
Specification |
Details |
|
Product Title |
Hawke Sidewinder 30 SF 4.5–14×44 Rifle Scope (10× Half-Mil) |
|
Model / MPN |
17140 |
|
SKU |
17140 |
|
UPC |
5054492171408 |
|
Magnification Range |
4.5–14× |
|
Objective Lens Diameter |
44 mm |
|
Tube Diameter |
30 mm |
|
Focal Plane |
Second focal plane |
|
Reticle |
10× Half-Mil (0.5 Mil hashes; 0.2 Mil outer ticks) |
|
Illumination |
None |
|
Parallax Adjustment |
Side-focus: 9 m/10 yd–∞ |
|
Turret Graduation |
0.1 MRAD per click |
|
Total Windage/Elevation |
±28 MRAD |
|
Eye Relief |
100 mm constant |
|
Field of View |
9.4–3 m @ 100 m (28.2–9 ft @ 100 yd) |
|
Exit Pupil |
9.8–3.1 mm |
|
Length |
339 mm (13.3″) |
|
Weight |
680 g (24 oz) |
|
Optical Coatings |
18-layer fully multi-coated |
|
Chassis Material / Finish |
Forged aluminum, matte-black anodized |
|
Weatherproof Rating |
IP67 (submersible to 1 m); fog- and shock-proof |
|
All-Calibre Rated |
Yes |
|
Included Accessories |
Removable throw-lever; 100 mm side-focus wheel; fast-focus eyebell lock ring; lens cloth; scope & reticle guide |
