Hawke SIDEWINDER 30 SF 6-24x56 Rifle Scope 20x Half Mil Reticle
Hawke SIDEWINDER 30 SF 6-24x56 Rifle Scope 20x Half Mil Reticle
Couldn't load pickup availability

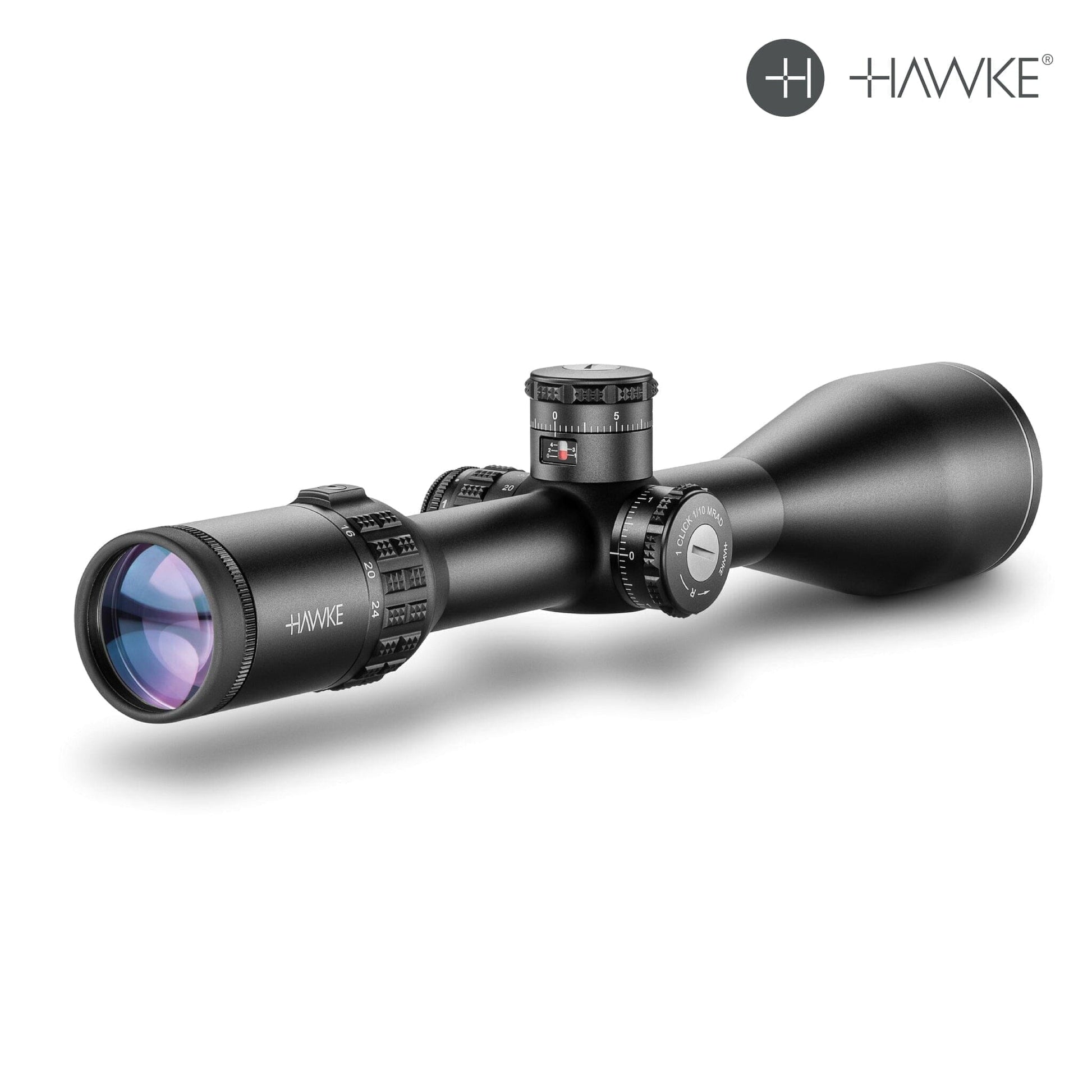

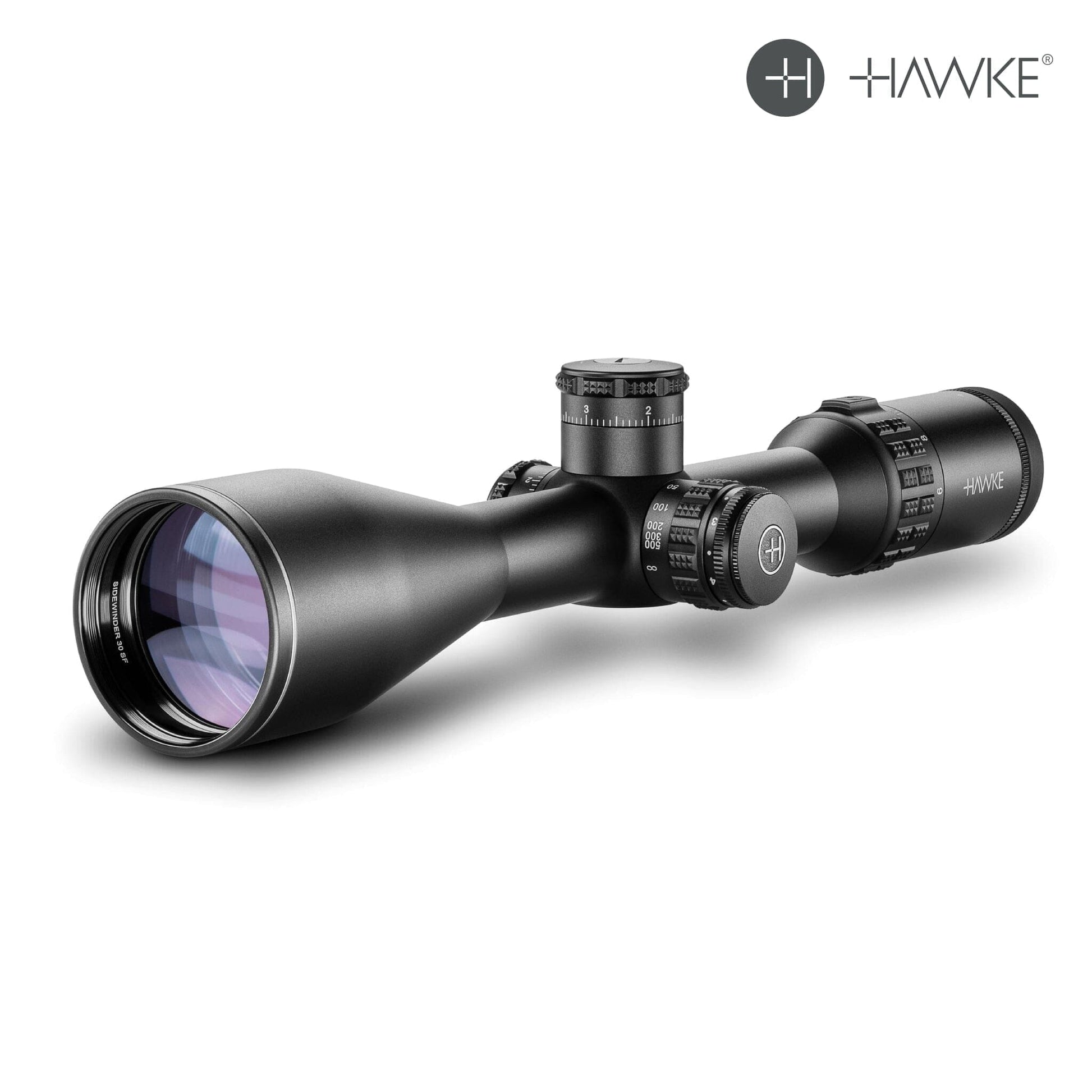

Hawke Sidewinder 30 SF 6–24×56 Rifle Scope 20× Half-Mil Reticle
Features

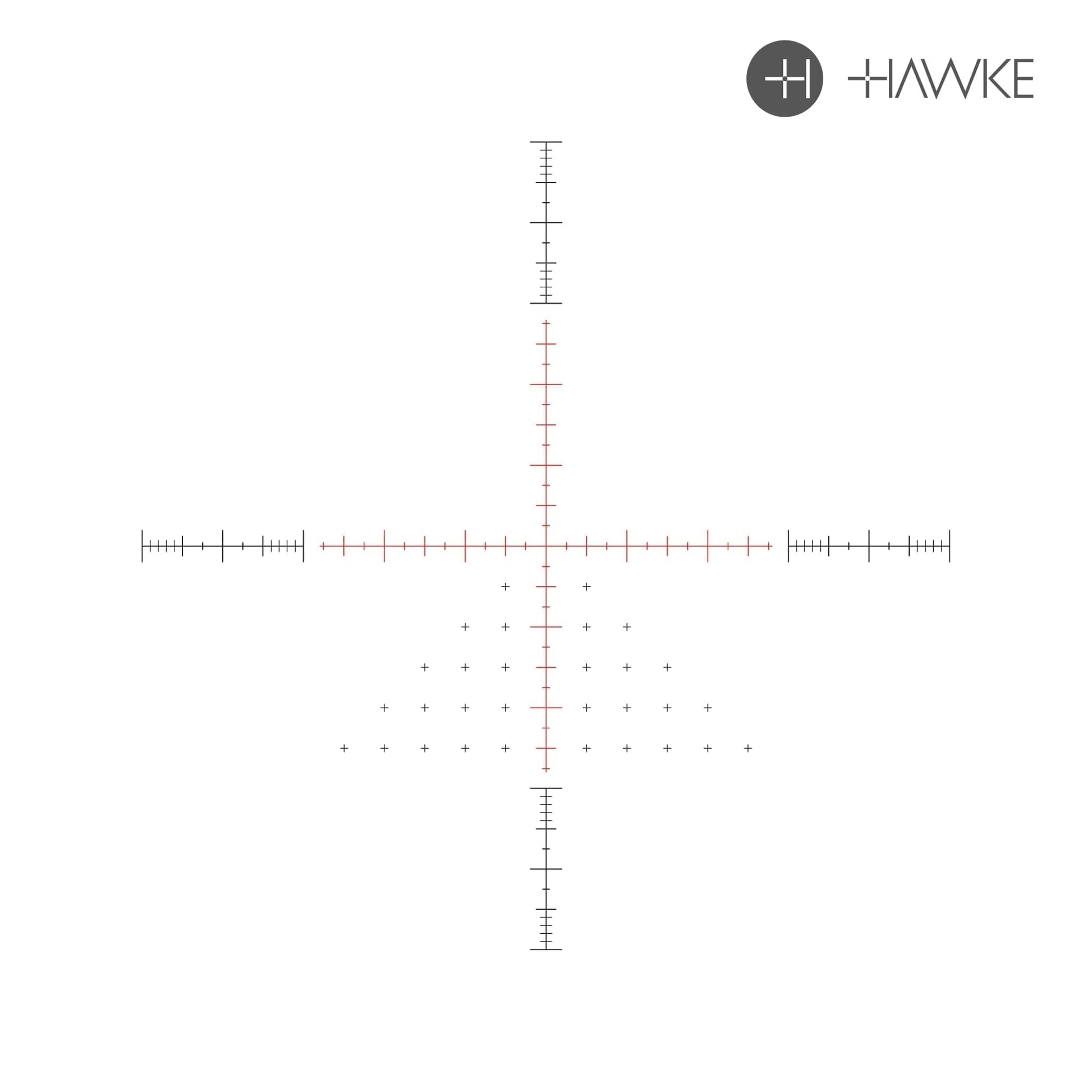

- “20× Half-Mil” Reticle (FFP): Glass-etched 0.5 Mil center hashes with 0.2 Mil outer ticks—true subtensions at all magnifications for precise ranging and hold-over.
- H5 Optical System: 18-layer fully multi-coated, low-dispersion crown glass delivers exceptional light transmission, contrast, and edge-to-edge clarity.
- Wide 6–24× Zoom Range: High-torque magnification ring with removable throw-lever for rapid transitions from close-quarters to extreme long-range.
- 30 mm Mono-Tube Chassis: One-piece forged aluminum tube, nitrogen-purged and O-ring sealed to IP67 (submersible to 1 m); shock- and fog-proof; all-caliber rated.
- Side-Focus Parallax Correction: Index-matched side-wheel adjusts from 9 m/10 yd to ∞ for pin-sharp, parallax-free imaging.
- Resettable Locking Turrets: 0.1 Mil per click with witness windows and protective caps; ±20 Mil total windage & elevation travel.
- Fast-Focus Eyebell: Diopter adjustment with locking ring for a razor-sharp sight picture.
- Generous Eye Relief & Eyebox: 102 mm (4″) constant eye relief and a spacious eyebox for stress-free acquisition.
Technical Specifications for Hawke Sidewinder 30 SF 6–24×56 Rifle Scope 20× Half-Mil Reticle
Specification |
Details |
Model / MPN |
17260 |
SKU |
HAW-17260 |
UPC |
5054492172603 |
Magnification Range |
6–24× |
Objective Lens Diameter |
56 mm |
Tube Diameter |
30 mm |
Focal Plane |
First focal plane |
Reticle |
20× Half-Mil (0.5 Mil hashes; 0.2 Mil ticks) |
Illumination |
None |
Parallax Adjustment |
Side-focus: 9 m/10 yd–∞ |
Turret Graduation |
0.1 Mil per click |
Total Windage / Elevation |
±20 Mil |
Eye Relief |
102 mm constant |
Field of View @ 100 yd |
21.3–5.4 ft (6.5–1.6 m) |
Exit Pupil |
9.3–2.3 mm |
Length |
363 mm (14.3″) |
Weight |
775 g (27.3 oz) |
Optical Coatings |
18-layer fully multi-coated |
Chassis Material / Finish |
Forged aluminum, matte-black anodized |
Weatherproof Rating |
IP67 (submersible to 1 m); fog- & shock-proof |
All-Caliber Rated |
Yes |
Included Accessories |
• Removable throw-lever• 4″ sunshade• 100 mm side-focus wheel• Fast-focus eyebell lock ring• Lens cloth• Scope & reticle guide |
