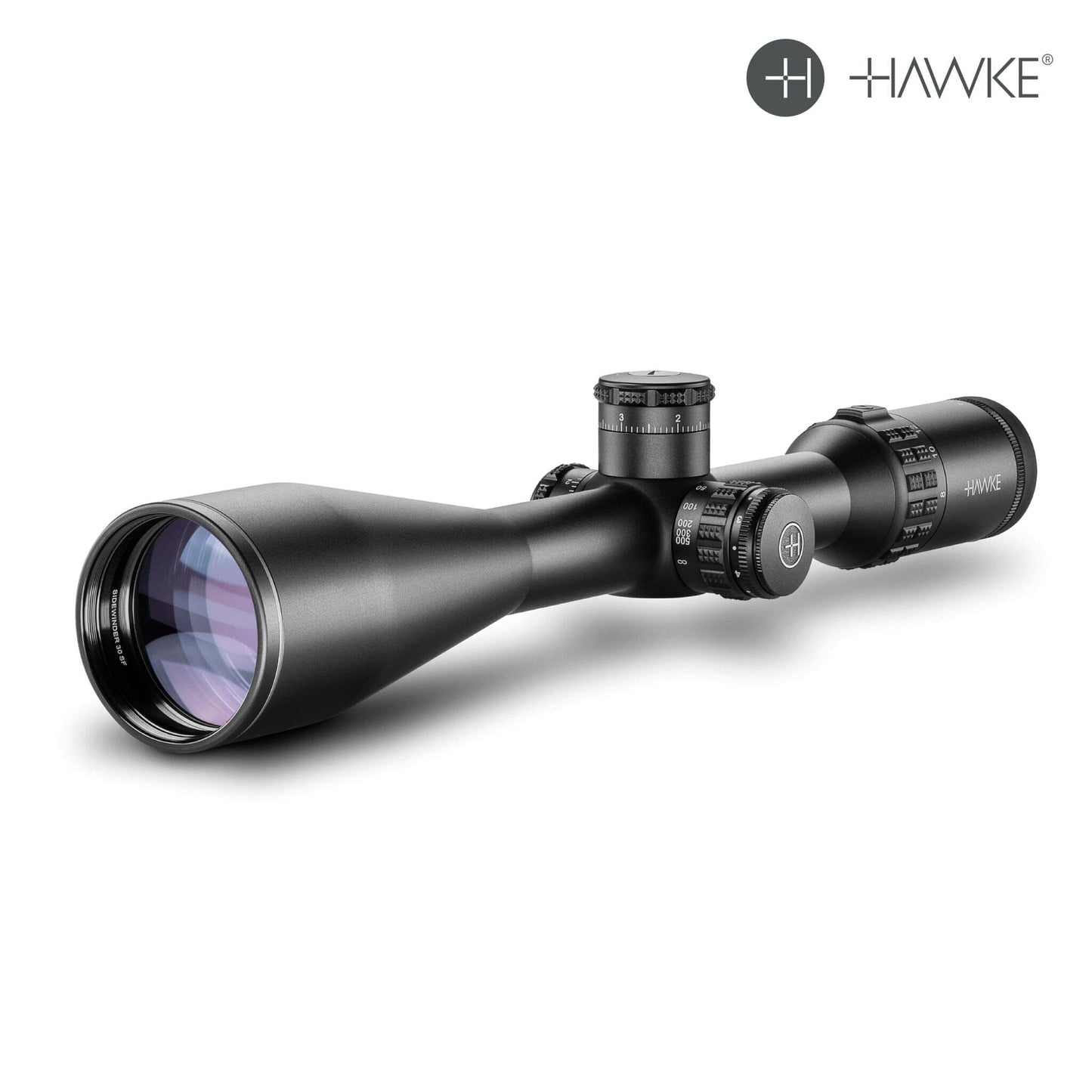

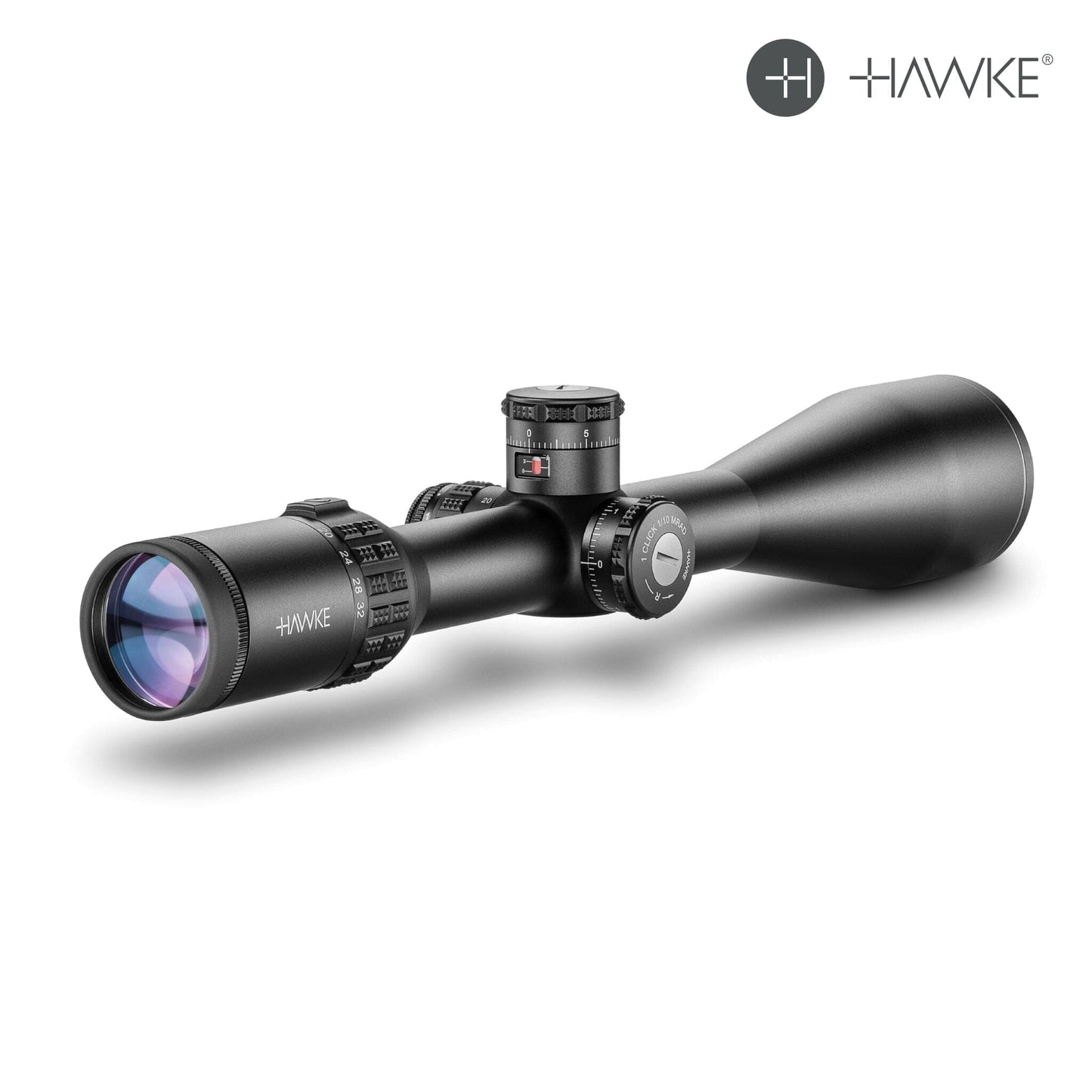

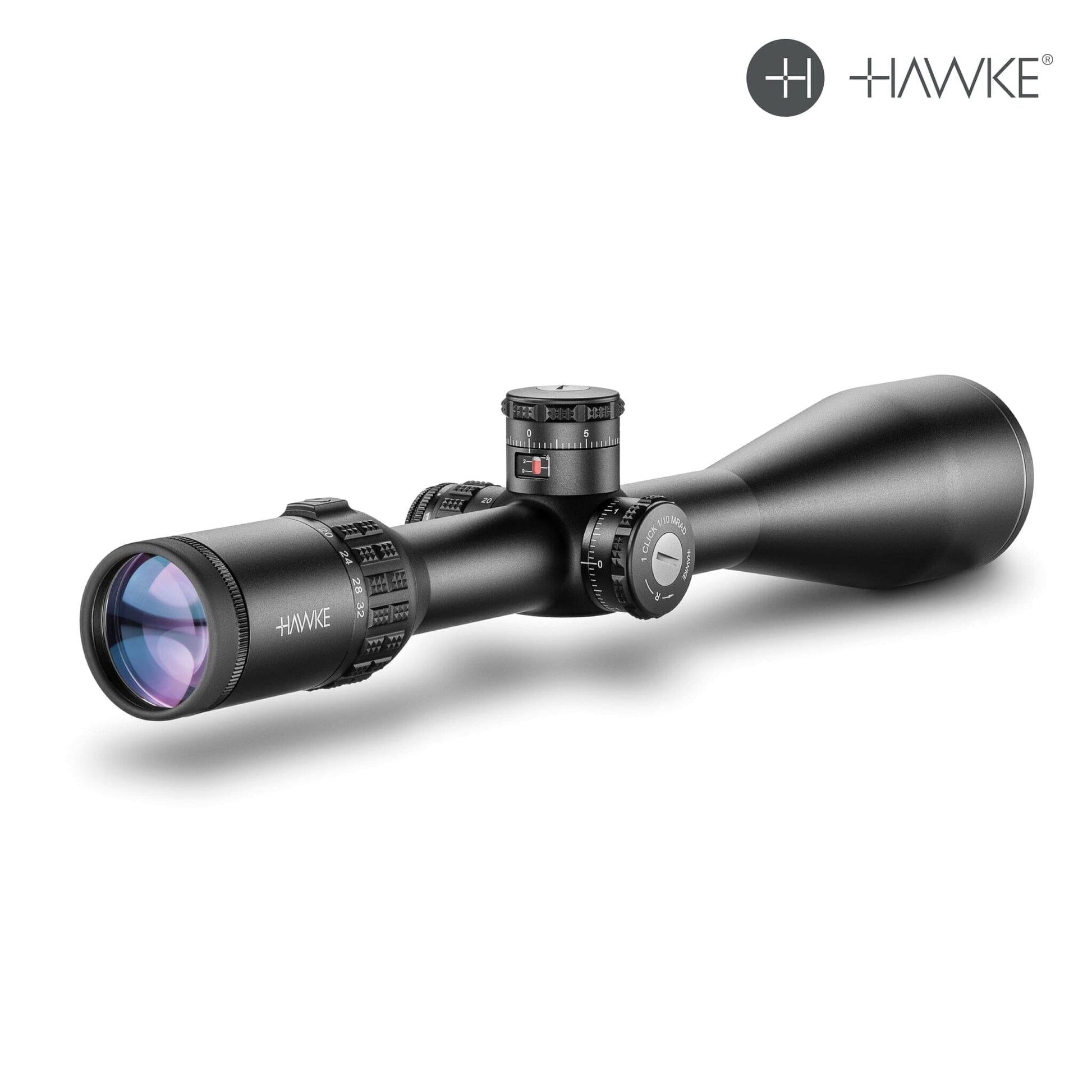

Hawke SIDEWINDER 30 SF 8-32x56 Rifle Scope 20x Half Mil Reticle
Hawke SIDEWINDER 30 SF 8-32x56 Rifle Scope 20x Half Mil Reticle
Couldn't load pickup availability
Hawke Sidewinder 30 SF 8–32×56 Rifle Scope 20× Half-Mil Reticle
Features

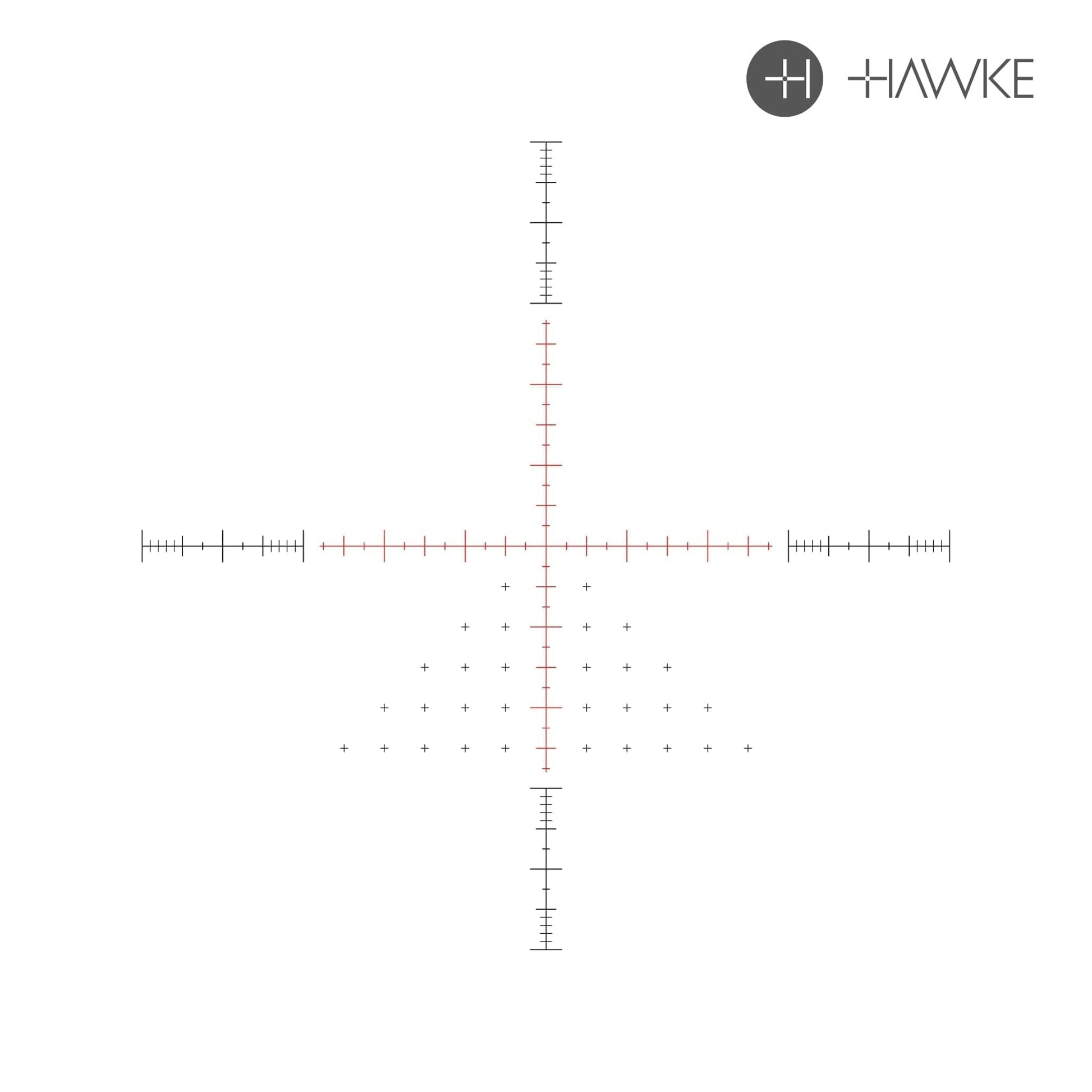

- 20× Half-Mil Reticle (SFP): Glass-etched 0.5 Mil center hashes with 0.2 Mil outer ticks—true subtensions at any magnification for precise ranging and hold-overs.
- H5 Optical System: 18-layer fully multi-coated, low-dispersion crown glass delivers outstanding light transmission, contrast, and edge-to-edge clarity.
- Wide 8–32× Zoom Range: High-torque magnification ring with removable throw-lever enables rapid transitions from close-quarters to extreme long-range.
- 30 mm Mono-Tube Chassis: One-piece forged aluminum tube, nitrogen-purged and O-ring sealed to IP67 (submersible to 1 m); shock- and fog-proof; all-caliber rated.
- Side-Focus Parallax Correction: Index-matched side-wheel adjusts from 9 m/10 yd to ∞ for pin-sharp, parallax-free imaging.
- Resettable Locking Turrets: 0.1 Mil per click with witness windows and protective caps; ±20 Mil total windage & elevation travel.
- Fast-Focus Eyebell: Diopter adjustment with locking ring for a razor-sharp sight picture.
- Generous Eye Relief & Eyebox: 102 mm (4″) constant eye relief and a spacious eyebox for stress-free acquisition.
Technical Specifications for Hawke Sidewinder 30 SF 8–32×56 Rifle Scope 20× Half-Mil Reticle
Specification |
Details |
Model / MPN |
17270 |
SKU |
17270 |
UPC |
5054492172702 |
Magnification Range |
8–32× |
Objective Lens Diameter |
56 mm |
Tube Diameter |
30 mm |
Focal Plane |
First focal plane |
Reticle |
20× Half-Mil: 0.5 Mil hashes; 0.2 Mil ticks |
Illumination |
None |
Parallax Adjustment |
Side-focus: 9 m/10 yd–∞ |
Turret Graduation |
0.1 Mil per click |
Total Windage / Elevation |
±20 Mil |
Eye Relief |
102 mm constant |
Field of View @ 100 yd |
15.9–3.9 ft (4.8–1.2 m) |
Exit Pupil |
7.0–1.8 mm |
Length |
390 mm (15.4″) |
Weight |
775 g (27.3 oz) |
Optical Coatings |
18-layer fully multi-coated |
Chassis Material / Finish |
Forged aluminum, matte-black anodized |
Weatherproof Rating |
IP67 (submersible to 1 m); fog- & shock-proof |
All-Caliber Rated |
Yes |
Included Accessories |
• Removable throw-lever • 4″ sunshade • 100 mm side-focus wheel • Fast-focus eyebell lock ring • Lens cloth • Scope & reticle guide |
