Holosun
Holosun IRIS-4 Quad-Function Laser and Illuminator – Green/IR Laser with IR and White Light
Holosun IRIS-4 Quad-Function Laser and Illuminator – Green/IR Laser with IR and White Light
Couldn't load pickup availability
Holosun IRIS-4 Quad-Function Laser and Illuminator – Green/IR Laser with IR and White Light
(Model IRIS-GR4)
Features
- Quad-Function VCSEL System: Coaxial 5 mW visible green laser, 0.7 mW IR laser, 60 mW IR illuminator, and 1 000 lumen white light—all optimized for power efficiency and uniform beam profile.
- Compact, Low-Profile Housing: CNC-machined 7075-T6 aluminum chassis with hard-coat anodize; 43 % lighter, 29 % lower, and 28 % narrower than prior models.

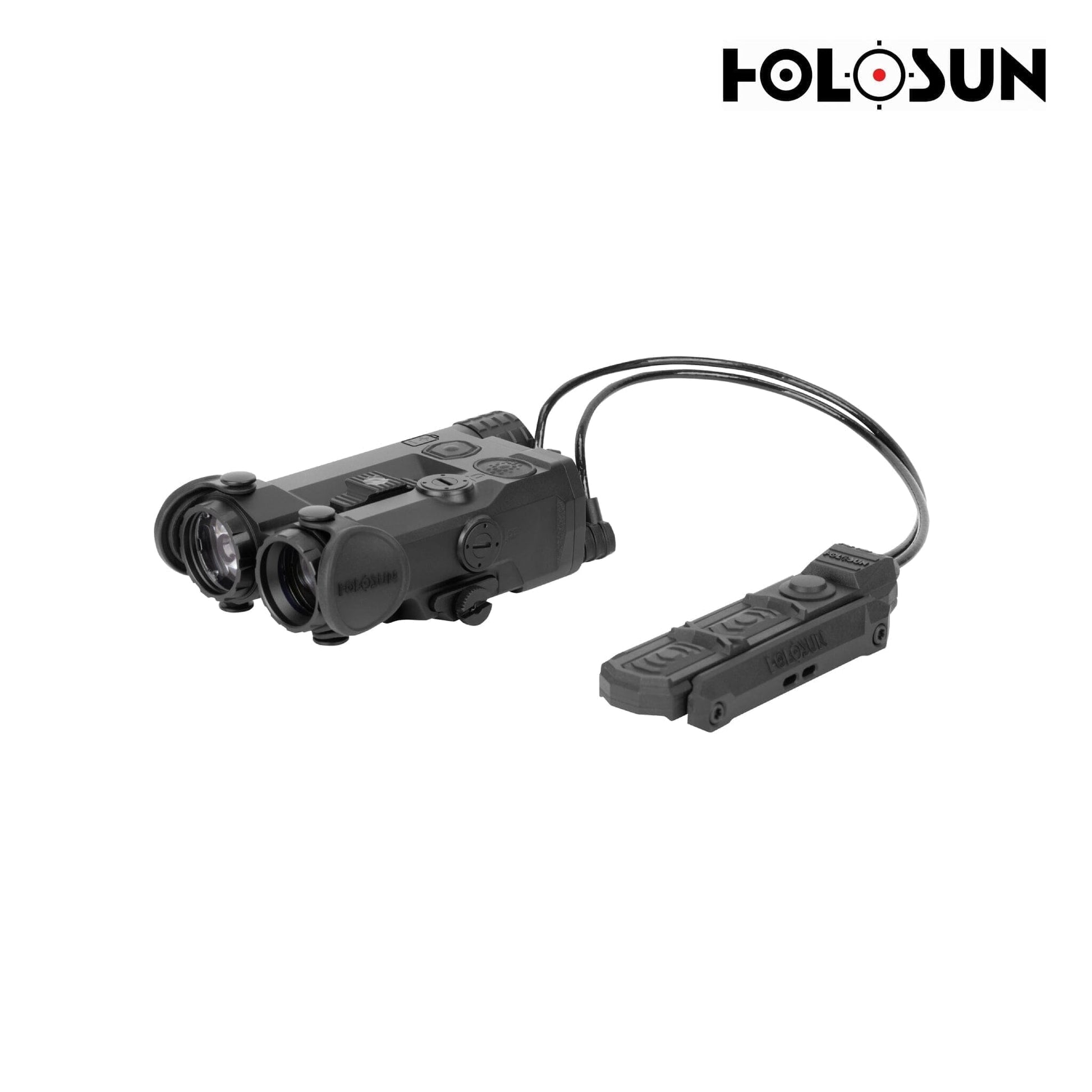

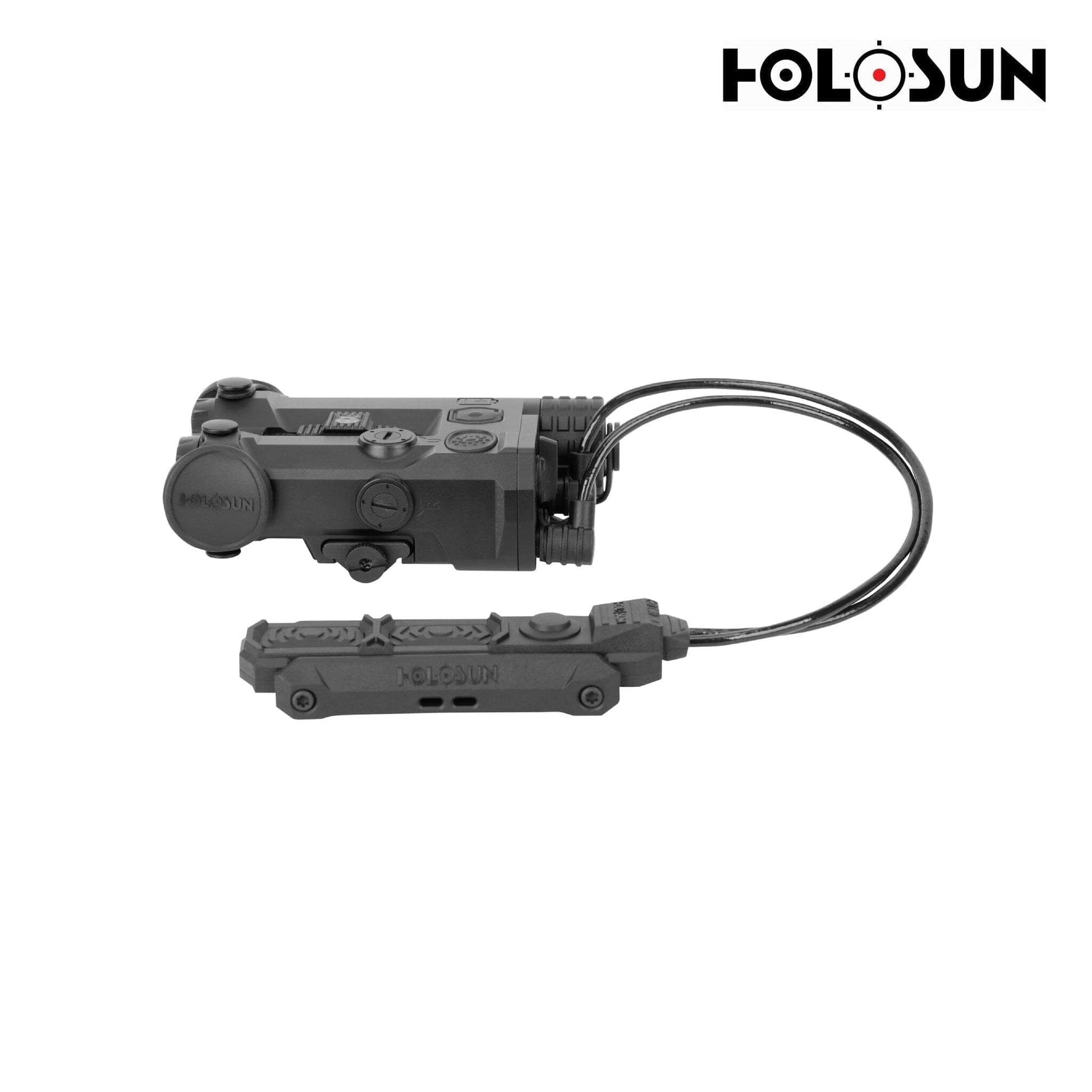

- Ambidextrous Controls: Three-button remote switch allows momentary/constant activation of each function; onboard rear-facing power and mode selectors for direct access.
- Tool-Less Windage & Elevation: ½ MOA per-click adjustments with up to 100 MOA total travel for each axis.
- Quick-Adjust Illuminator Focus: Rotating collar toggles IR illuminator between flood and spot patterns to suit engagement distance.
- IPX8 Waterproof & Dustproof: Fully sealed against submersion beyond 1 m and complete dust ingress for unfailing performance.
- Picatinny-Rail Mount: Integrated MIL-STD-1913 clamp with tool-less lever for rapid attachment/removal—no adapters required.
- CR123A Power: Single CR123A cell housed in a tool-less slide-out tray for swift field replacement.
Technical Specifications for Holosun IRIS-4 Quad-Function Laser and Illuminator – Green/IR Laser with IR and White Light
|
Specification |
Details |
|
Product Title |
Holosun IRIS-4 Laser Sight with IR Illuminator Green/IR Laser |
|
Model / MPN |
IRIS-GR4 |
|
SKU |
IRIS-GR4 |
|
UPC |
810047073895 |
|
Visible Laser Pointer |
5 mW VCSEL (520 nm) |
|
Infrared Laser Pointer |
0.7 mW VCSEL (850 nm) |
|
IR Illuminator |
60 mW VCSEL (850 nm) |
|
White Light Output |
1 000 lumens (25 000 cd) |
|
Activation |
Three-button remote; onboard fire button; rear mode/power switches |
|
Windage & Elevation Adjust |
0.5 MOA per click; ± 50 MOA (100 MOA total) |
|
Focus Control |
Flood ↔ Spot via rotating collar |
|
Housing Material |
CNC-machined 7075-T6 aluminum, hard-coat anodize |
|
Finish / Color |
Matte black |
|
Mount Interface |
Picatinny MIL-STD-1913 clamp (tool-less lever) |
|
Battery Type |
1 × CR123A |
|
Battery Tray |
Tool-less, slide-out |
|
Dimensions (L × W × H) |
4.2″ × 2.3″ × 1.4″ (106.7 × 58.4 × 35.6 mm) |
|
Weight |
8.5 oz (241 g) |
|
Ingress Protection |
IPX8 (submersible > 1 m; dustproof) |
|
Operating Temperature |
–4 °F to 123 °F (–20 °C to 51 °C) |
|
Country of Origin |
China |
