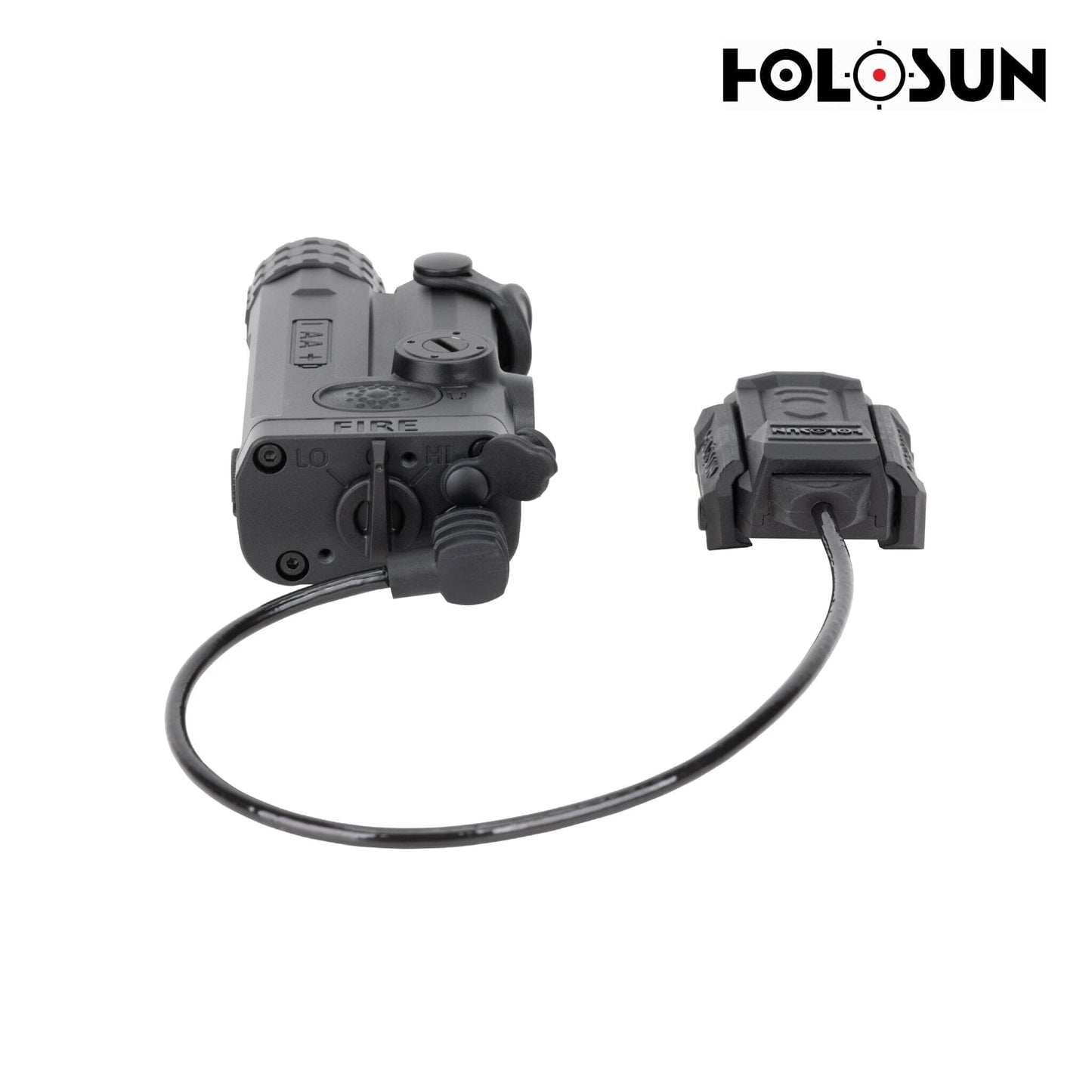

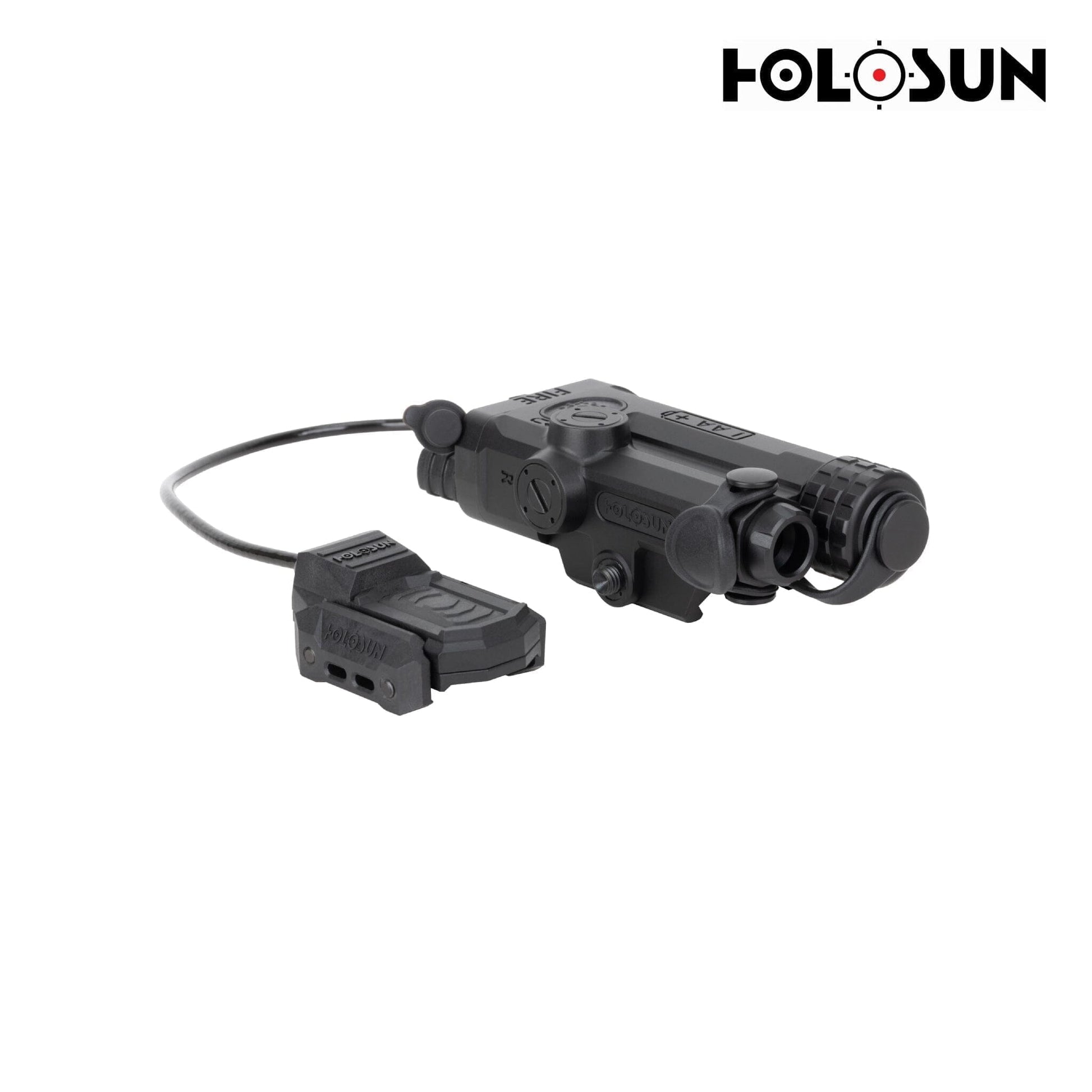

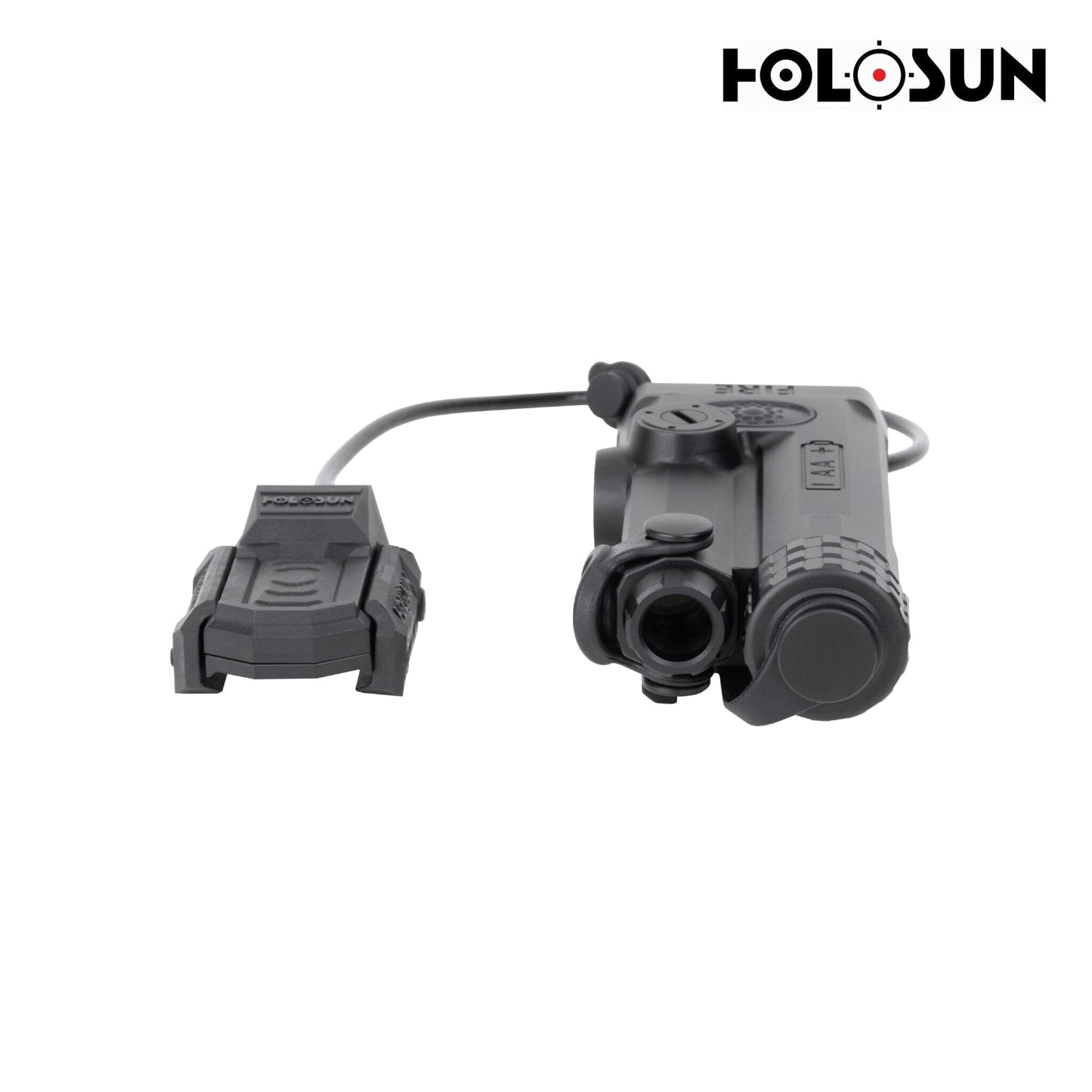

Holosun IRIS Integrated Rifle Infrared System – Laser and Illuminator
Holosun IRIS Integrated Rifle Infrared System – Laser and Illuminator
Couldn't load pickup availability
Holosun IRIS Integrated Rifle Infrared System – Laser and Illuminator (Model IRIS)
Features
- Dual-Function Laser & Illuminator: Coaxial 5 mW visible green VCSEL pointer plus 0.7 mW IR VCSEL laser and 60 mW IR illuminator for night-vision applications.
- Compact, Low-Profile Housing: CNC-machined 7075-T6 aluminum chassis with hard-coat anodize for durability and minimal bulk.
- IPX8 Waterproof & Dustproof: Rated for submersion beyond 1 m and complete dust ingress protection.
- Tool-Less Windage & Elevation: 0.5 MOA per-click adjustments (± 50 MOA total travel) for precise zeroing in the field.
- Quick-Adjust Focus: Rotating collar allows rapid switching between flood and spot IR-illuminator patterns.
- Ambidextrous Controls: Side-mounted mode selector and top fire button for momentary or constant-on operation without altering grip.
- Picatinny-Rail Compatible: Includes clamp for direct attachment to MIL-STD-1913 rails—no adapters required.
- Battery Powered: Runs on one CR123A cell; removable, tool-less slide-out tray for fast replacement.
Technical Specifications Holosun IRIS Integrated Rifle Infrared System – Laser and Illuminator
|
Specification |
Details |
|
Product Title |
Holosun IRIS Integrated Rifle Infrared System – Laser & Illuminator |
|
Model / MPN |
IRIS |
|
SKU |
IRIS |
|
UPC |
810047073260 |
|
Visible Laser |
5 mW green VCSEL |
|
IR Laser |
0.7 mW infrared VCSEL |
|
IR Illuminator |
60 mW infrared VCSEL |
|
Wavelengths |
520 nm (green); 850 nm (IR) |
|
Battery Type |
1 × CR123A |
|
Battery Tray |
Tool-less, slide-out |
|
Adjustment Click Value |
0.5 MOA per click; ± 50 MOA total travel |
|
Housing Material |
CNC-machined 7075-T6 aluminum, hard-coat anodize |
|
Finish / Color |
Matte black |
|
Mount Interface |
Picatinny MIL-STD-1913 clamp (included) |
|
Controls |
Side selector; top fire button; LED mode indicator |
|
Dimensions (L × W × H) |
3.7″ × 1.7″ × 1.3″ (94 × 43 × 33 mm) |
|
Weight |
6.35 oz (180 g) |
|
Ingress Protection |
IPX8 (submersible > 1 m; dustproof) |
|
Operating Temperature |
–30 °C to 60 °C |
|
Country of Origin |
China |
