Leupold

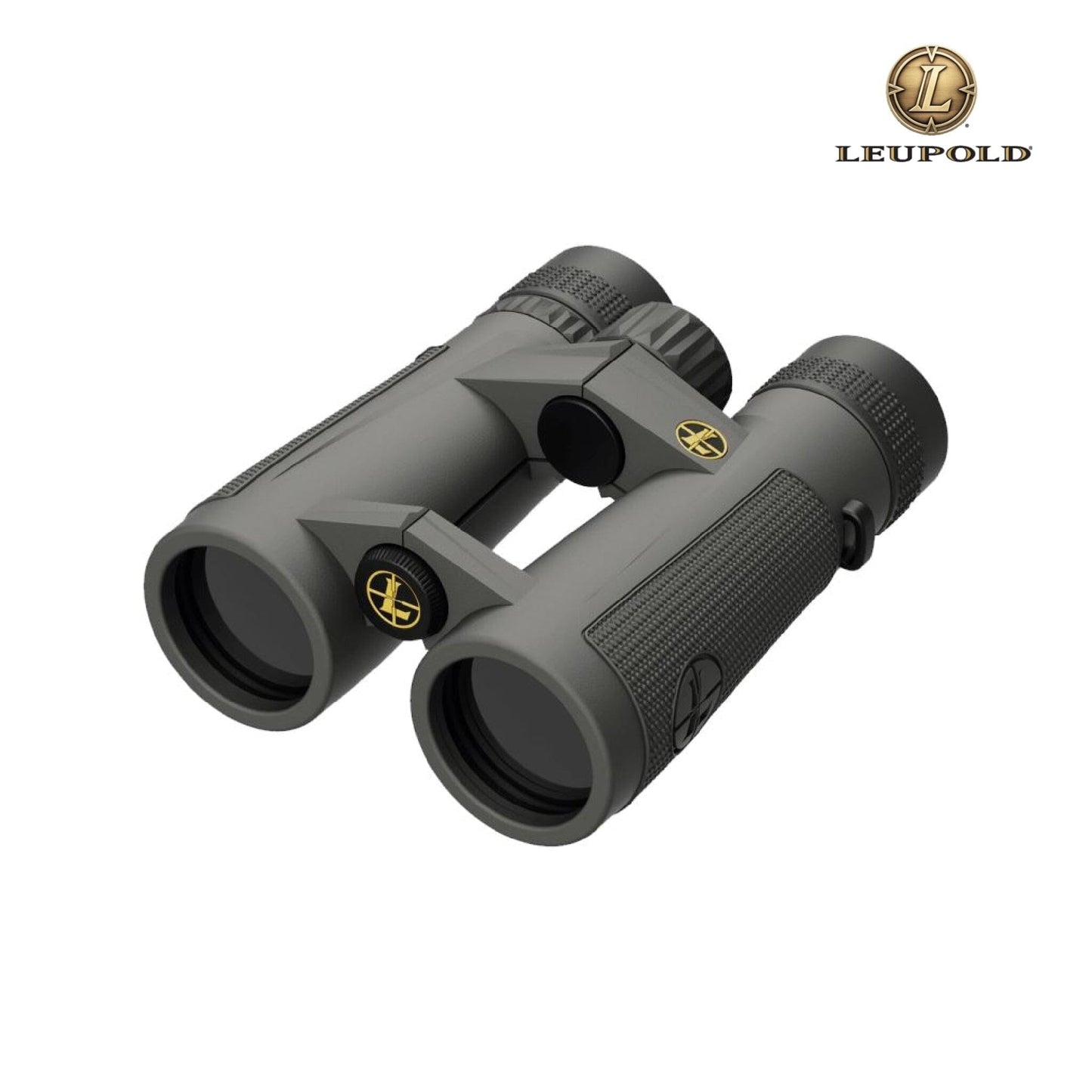

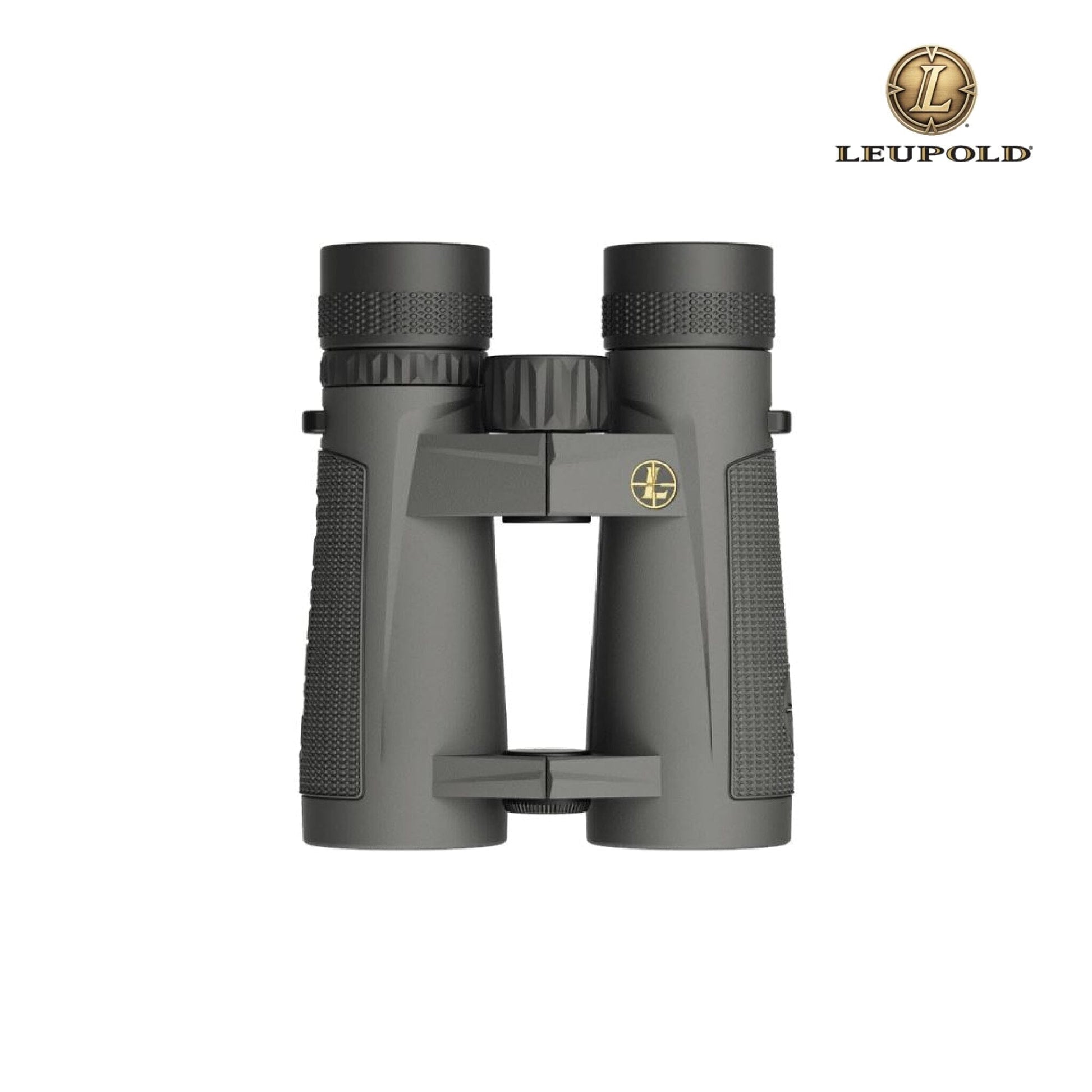

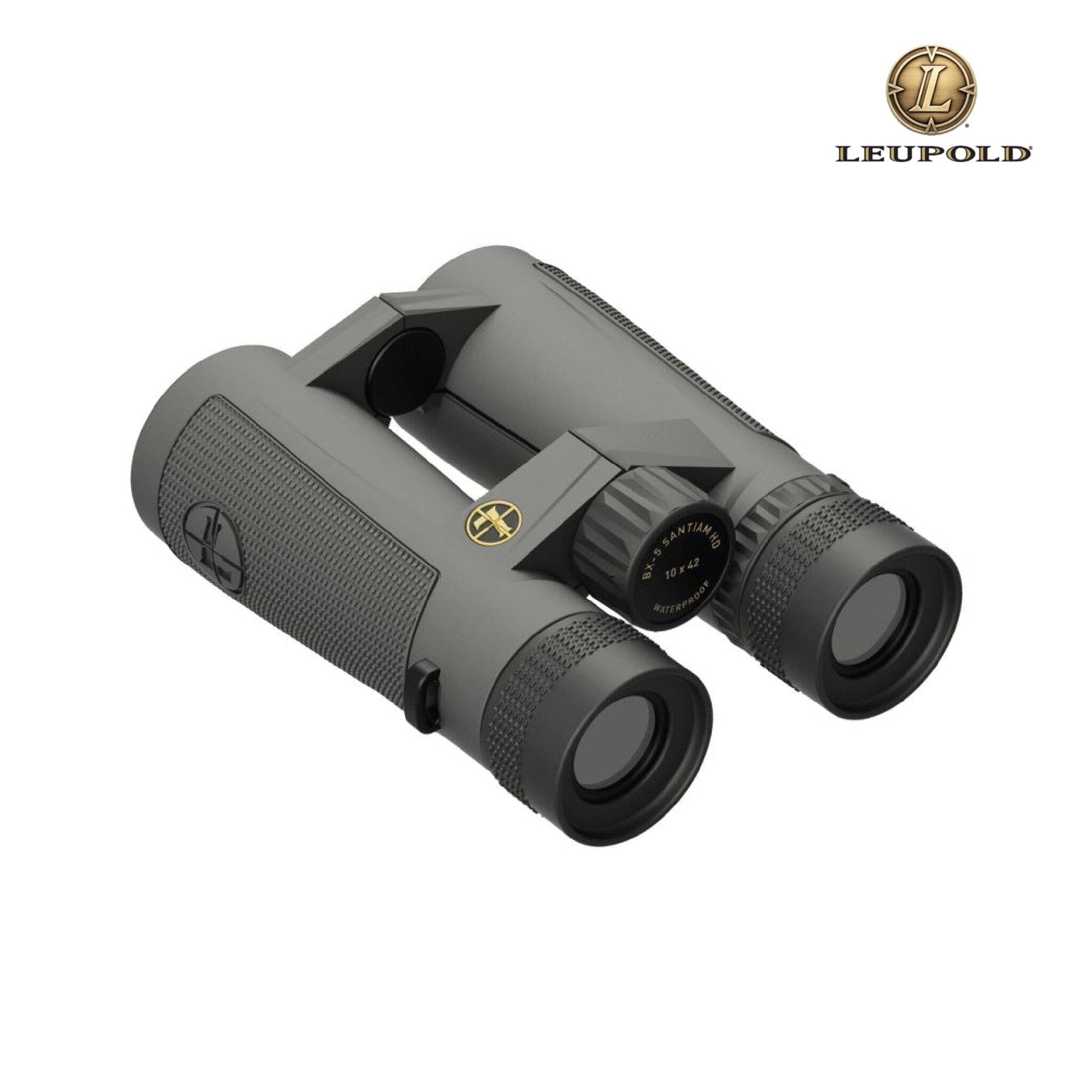

Leupold BX-5 Santiam HD 10x42 Binoculars

Leupold BX-5 Santiam HD 10x42 Binoculars

Regular price $999.99 USD
Regular price Sale price $999.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Leupold BX-5 Santiam HD 10×42 Binoculars (Shadow Gray)

Features

  • 10× Magnification: Strikes the ideal balance between field of view and detail—excellent for both tight timber and wide-open country.
  • Professional-Grade Optical System: Fully multi-coated extra-low-dispersion lenses and phase-coated BAK-4 prisms deliver industry-leading light transmission, glare reduction, and edge-to-edge clarity
  • Open-Bridge Chassis: Lightweight, ergonomic design with a generous eye box for fatigue-free, long-duration glassing sessions.
  • Twist-Up Eyecups: Three-position, field-replaceable eyecups with detents accommodate glasses or bare-eye viewing.
  • Fog- and Waterproof: Nitrogen-purged, O-ring sealed to IPX-7 standards (submersible to 1 m for 30 min) for all-weather reliability.
  • Tripod Adaptable: Built-in ¼-20 socket on the hinge accepts the included adapter for rock-steady hands-free observation.
  • Rugged Durability: Magnesium-alloy chassis with hard-coat anodize and slip-resistant rubber armor for secure grip in adverse conditions.
  • Leupold Lifetime Guarantee: Industry-leading coverage, no receipt required.

Technical Specifications for Leupold BX-5 Santiam HD 10×42 Binoculars (Shadow Gray)

Specification

Details

Model / MPN

174483

SKU

174483

UPC

030317018313

Magnification

10×

Objective Lens Diameter

42 mm

Linear FOV @ 1 000 yd

341 ft (104 m)

Angular FOV

6.5°

Exit Pupil

4.2 mm

Eye Relief

16.6 mm

Close Focus Distance

5 ft (1.5 m)

Interpupillary Distance

58–74 mm

Prism Type / Coating

BAK-4 / phase-coated

Optical Coatings

Fully multi-coated (Professional-Grade)

Dimensions (L × W × H)

5.9″ × 5.6″ × 2.7″ (150 × 142 × 69 mm)

Weight

24.3 oz (688 g)

Chassis Material / Finish

Magnesium alloy; hard-coat anodize (Shadow Gray)

Sealing

Nitrogen-purged; O-ring sealed (IPX-7)

Tripod Adapter

¼-20 socket (adapter included)

Warranty

Leupold Lifetime Guarantee

Included Accessories

  • GO Afield harness with integrated case
  • Neoprene lens covers
  • Microfiber lens cloth
  • Tripod adapter
  • Instruction manual
