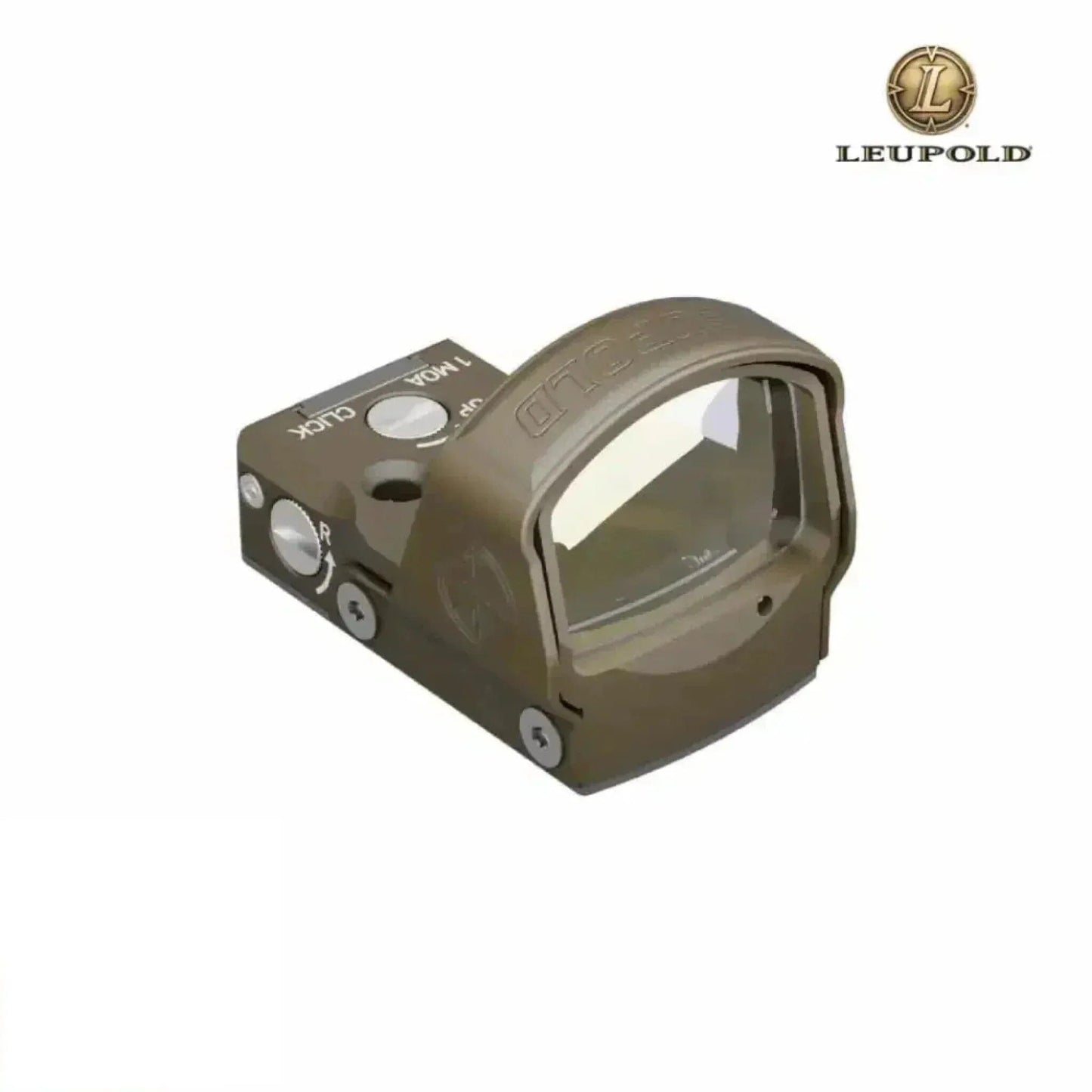

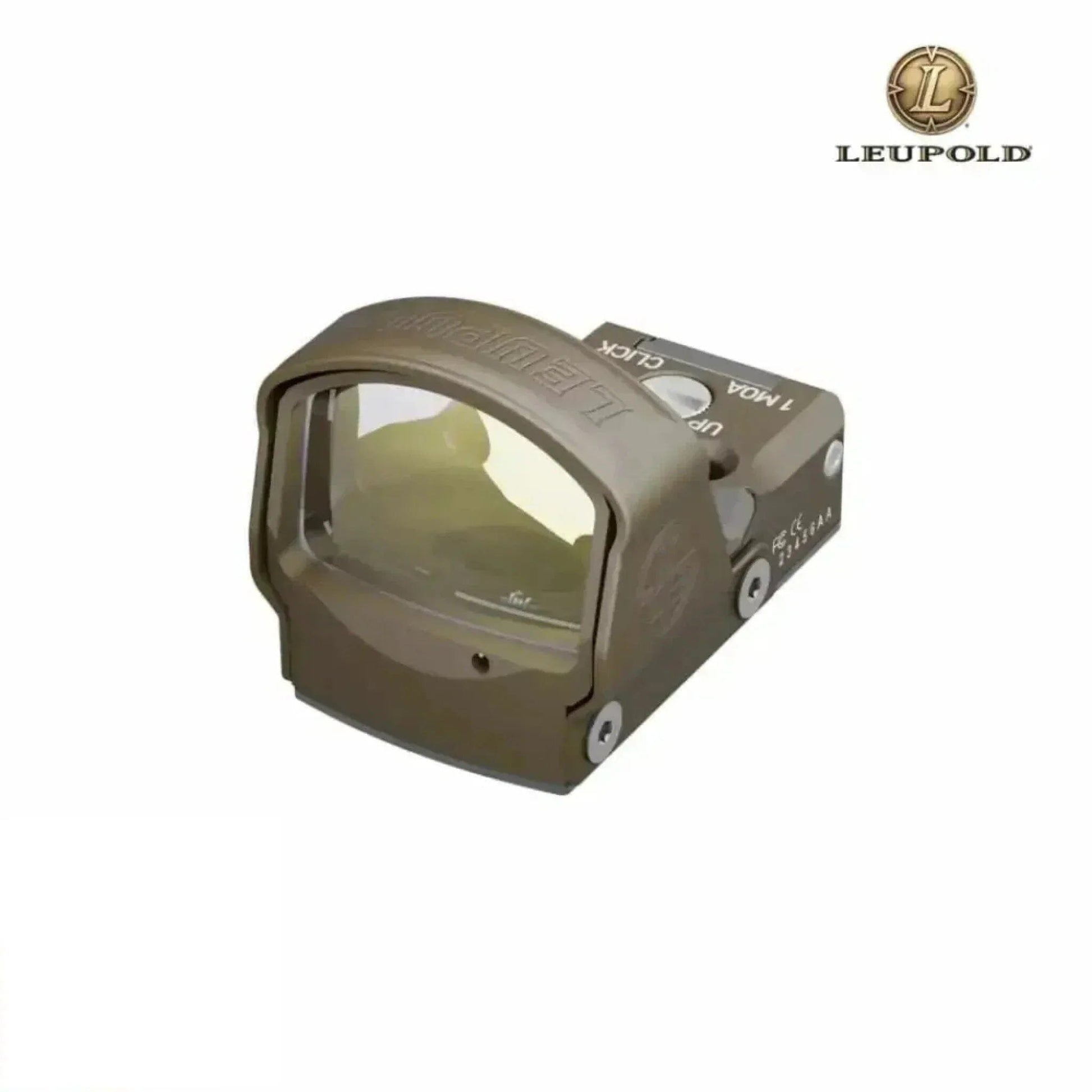

Leupold DeltaPoint PRO Red Dot Sight 2.5 MOA Dot Reticle FDE
Leupold DeltaPoint PRO Red Dot Sight 2.5 MOA Dot Reticle FDE
Couldn't load pickup availability
Leupold DeltaPoint PRO Red Dot Sight 2.5 MOA Dot Reticle FDE
Features
- 2.5 MOA Glass-Etched Reticle: Provides a precise aiming point that holds zero under heavy recoil.
- Eight Daylight-Bright Settings: Adjust the dot intensity for any lighting condition (non-NV model).
- Motion Sensor Technology (MST): Auto-activates on movement and shuts off after ~5 minutes of inactivity to save battery.
- Unlimited Eye Relief & Parallax-Free: Engage targets quickly with both eyes open; parallax-free optical design keeps the dot on-target regardless of eye position.
- Rugged, Waterproof Construction: CNC-machined 6061-T6 aluminum housing; IPX7 waterproof to 1 m for 30 min; shock-proof to .50 BMG recoil.
- Tool-Less Top-Loading Battery Compartment: Swap the DL1/3N cell without removing the sight.
- Standard RMS®/SMS® Footprint: Direct-mount to dozens of pistols and rifles without adapters.
- Made in USA & Lifetime-Guaranteed: Built and assembled stateside; backed by Leupold’s Lifetime Guarantee.
Technical Specifications for Leupold DeltaPoint PRO Red Dot Sight 2.5 MOA Dot Reticle FDE
Specification |
Details |
Model / MPN |
175840 |
SKU |
175840 |
UPC |
030317020460 |
Finish |
Cerakote® Flat Dark Earth |
Reticle |
2.5 MOA red dot (glass-etched) |
Illumination Settings |
8 daylight-bright levels |
Battery |
(1) DL1/3N; up to 300 hr life (MST off) |
Eye Relief |
Unlimited |
Parallax |
Parallax-free |
Adjustment Graduation |
1 MOA per click |
Adjustment Range |
±60 MOA (elevation & windage) |
Mount Footprint |
RMS® / SMS® standard |
Housing Material |
6061-T6 aluminum |
Waterproof Rating |
IPX7 (1 m for 30 min) |
Shock Resistance |
Rated to withstand .50 BMG recoil |
Weight |
1.1 oz (31 g) |
Dimensions (L × W × H) |
2.25″ × 0.90″ × 1.25″ (57 × 23 × 32 mm) |
Included Accessories
- Motion Sensor Technology (MST) module (installed)
- Lens cloth
- User manual
