Leupold

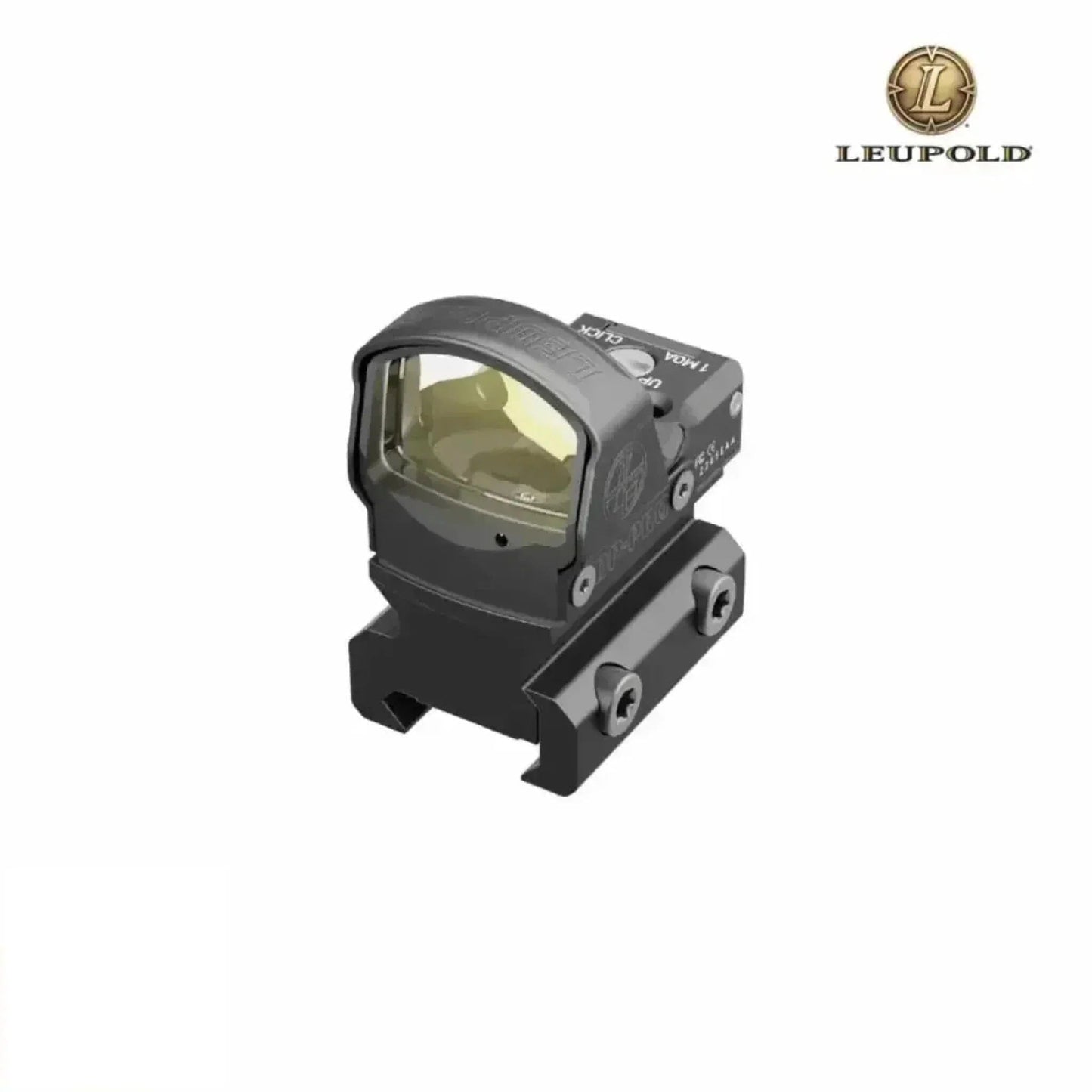

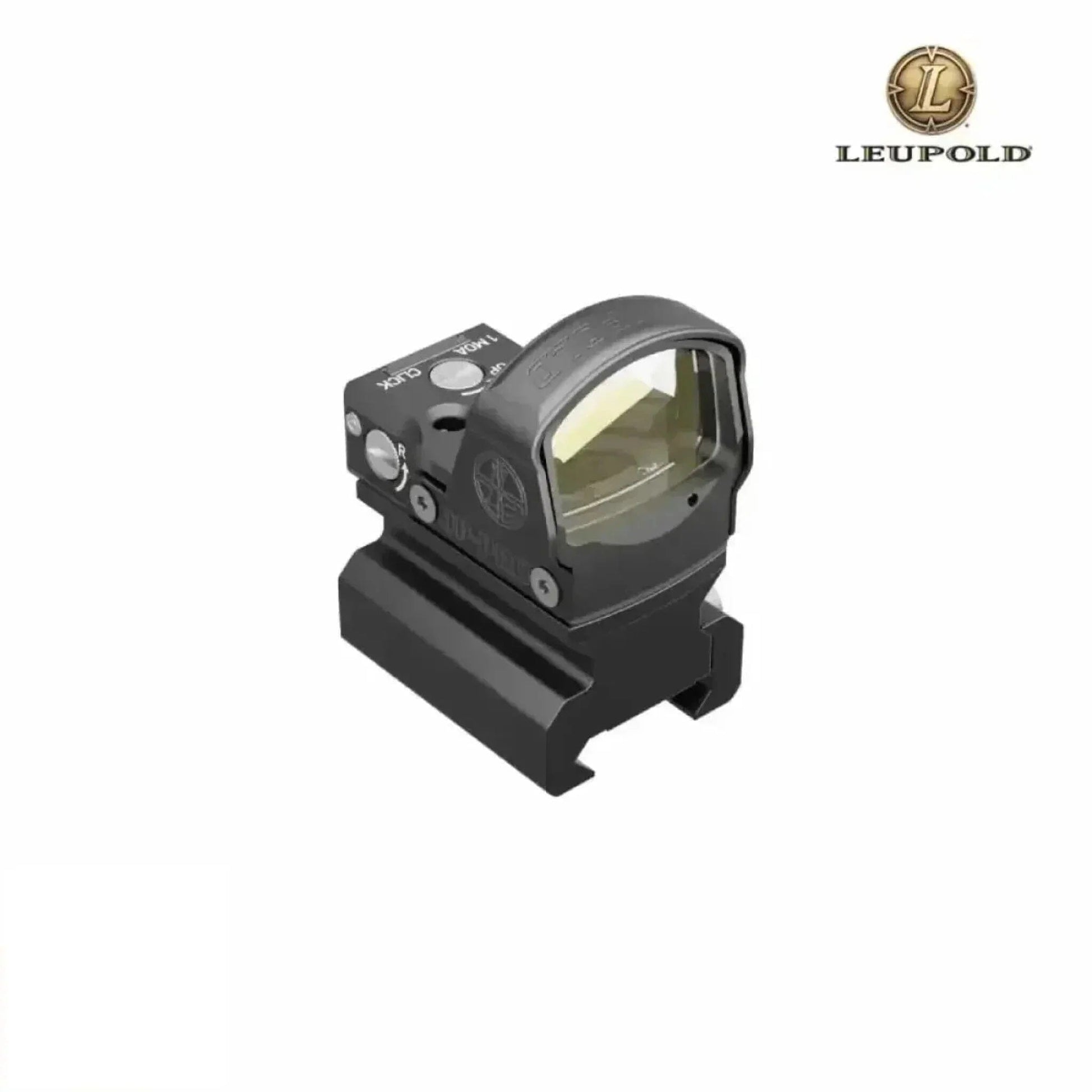

Leupold DeltaPoint PRO Red Dot Sight 2.5 MOA Dot Reticle with AR Mount
Leupold DeltaPoint PRO Red Dot Sight 2.5 MOA Dot Reticle with AR Mount
Couldn't load pickup availability
Leupold DeltaPoint PRO Red Dot Sight 2.5 MOA Dot Reticle with AR Mount
Features
- 2.5 MOA Glass-Etched Reticle: Crisp, precise aiming point that remains clear under heavy recoil.
- Eight Daylight-Bright Settings: Dial in optimal dot intensity for any lighting condition—non-NV model.
- Motion Sensor Technology (MST): Powers up the dot on motion and shuts off after ~5 min of inactivity to conserve battery.
- Unlimited Eye Relief & Parallax-Free: Engage targets rapidly with both eyes open; dot stays on-target regardless of head position.
- Rugged, Waterproof Construction: CNC-machined 6061-T6 aluminum housing; IPX7 waterproof to 1 m for 30 min; shock-proof to .50 BMG recoil.
- Tool-Less Top-Loading Battery Compartment: Change the DL1/3N cell without removing the sight.
- Includes Low-Profile AR Mount: Positions the DeltaPoint PRO at the optimal height on any Picatinny rail for co-witness with iron sights.
- Made in USA & Lifetime-Guaranteed: Built and assembled stateside; covered by Leupold’s Lifetime Guarantee.
Technical Specifications for Leupold DeltaPoint PRO Red Dot Sight 2.5 MOA Dot Reticle with AR Mount
Specification |
Details |
Model / MPN |
177156 |
SKU |
177156 |
UPC |
030317022310 |
Finish |
Matte Black |
Reticle |
2.5 MOA red dot (glass-etched) |
Illumination Settings |
8 daylight-bright levels |
Battery |
(1) DL1/3N; up to 300 hr life (MST off) |
Eye Relief |
Unlimited |
Parallax |
Parallax-free |
Adjustment Graduation |
1 MOA per click |
Adjustment Range |
±60 MOA (elevation & windage) |
Mount Included |
Low-profile clamp for MIL-STD-1913 Picatinny rail |
Housing Material |
6061-T6 aluminum |
Waterproof Rating |
IPX7 (1 m for 30 min) |
Shock Resistance |
Rated to withstand .50 BMG recoil |
Weight |
1.95 oz (55 g) |
Dimensions (L×W×H) |
1.82″ × 1.31″ × 1.30″ (46.2 × 33.3 × 33 mm) |
Included Accessories
- Low-profile AR mount clamp
- Motion Sensor Technology (MST) module (installed)
- Lens cloth
- User manual
