Leupold Mark 3HD 1.5-4x20 P5 Rifle Scope FireDot TMR Reticle
Leupold Mark 3HD 1.5-4x20 P5 Rifle Scope FireDot TMR Reticle
Couldn't load pickup availability
Leupold Mark 3HD 1.5–4×20 P5 Rifle Scope FireDot TMR Reticle
Features
- 3:1 Zoom Ratio: 1.5–4× magnification for rapid transitions between close-quarters and mid-range shots.
- Elite Optical System™ (HD): Fully multi-coated lenses and prisms deliver exceptional light transmission, contrast, and edge-to-edge clarity.

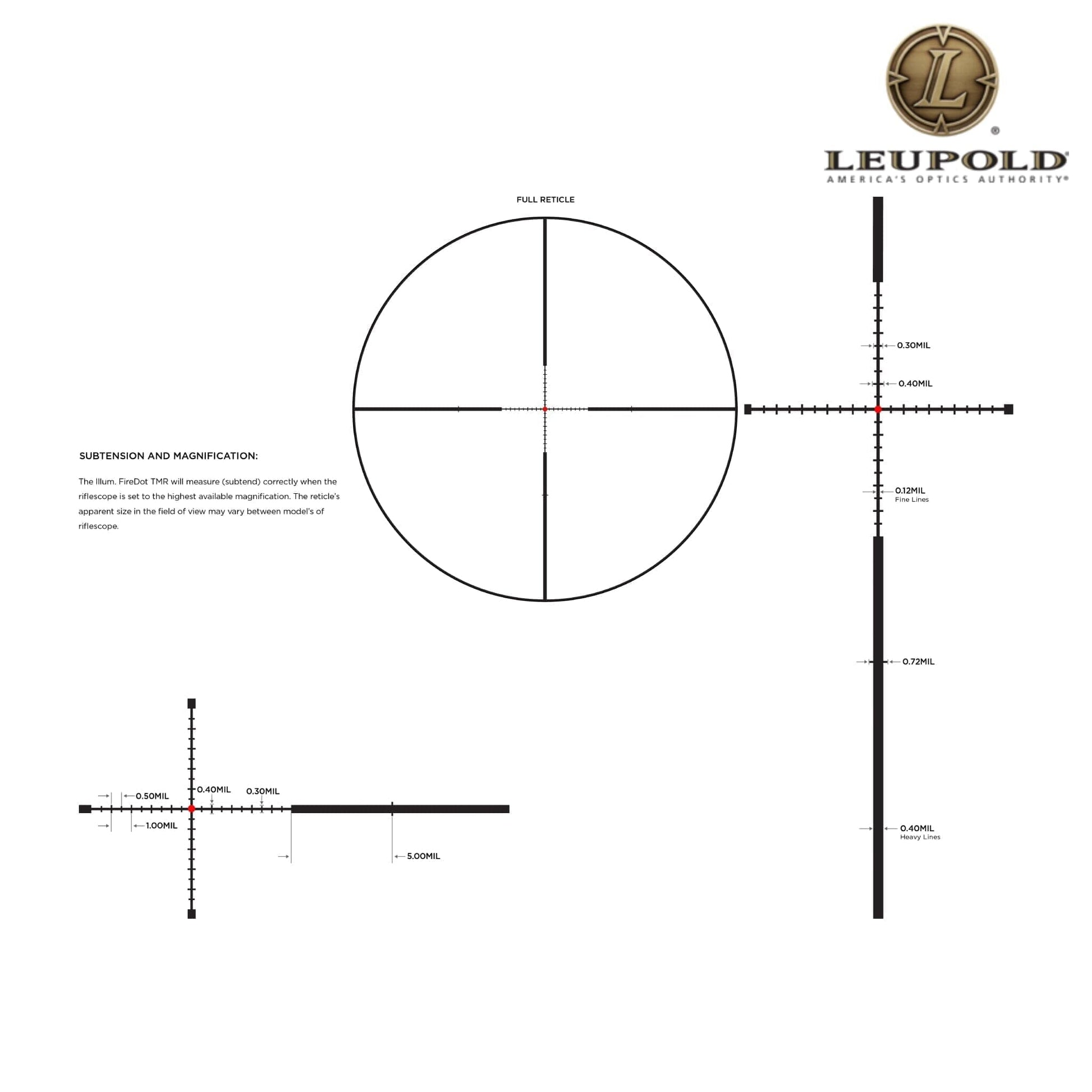

- FireDot® TMR Illuminated Reticle: Second-focal-plane TMR pattern calibrated in MIL-radians, glass-etched for crisp illumination; seven daylight-bright settings via top-hat dial.
- P5 ZeroStop™ Turret: Exposed, finger-click elevation dial with 0.1 MIL increments, integrated ZeroStop to return quickly to your zero reference.
- Exposed Windage Adjustment: 0.1 MIL clicks, 1 MIL per revolution, lockable ZeroLock™ cap prevents accidental shifts.
- Integrated Throw Lever: Low-profile lever makes fast magnification changes simple.
- Motion Sensor Technology™ (MST): Auto-powers the illuminated reticle on movement, powers off after ~5 min of inactivity to extend battery life.
- Rugged Construction: CNC-machined 30 mm main-tube 6061-T6 aluminum; waterproof, fog- and shock-proof (0.50 BMG rated).
- Compact & Lightweight: Designed for tactical and hunting rifles needing a wide field of view with minimal added bulk.
Technical Specifications for Leupold Mark 3HD 1.5–4×20 P5 Rifle Scope FireDot TMR Reticle
Specification |
Details |
Model / MPN |
180664 |
SKU |
180664 |
UPC |
030317028671 |
Magnification |
1.5 × ⇄ 4 × |
Objective Lens Diameter |
20 mm |
Main Tube Diameter |
30 mm |
Reticle |
FireDot® TMR (SFP, MIL-rad) |
Reticle Illumination |
Red LED; 7 daylight-bright settings |
Elevation Adjustment |
P5 ZeroStop™; 0.1 MIL per click; ±33.5 MIL total |
Windage Adjustment |
0.1 MIL per click; ±33.5 MIL total; ZeroLock™ cap |
Parallax |
Fixed at 150 yd |
Eye Relief |
4.2″ (low) ⇄ 3.7″ (high) |
Field of View @ 100 yd |
74.2 ft (low) ⇄ 29.4 ft (high) |
Length |
9.4 in (239 mm) |
Weight |
13.1 oz (371 g) |
Adjustment Type |
MIL-rad (1/10 MIL clicks) |
Magnification Type |
Variable |
Finish / Housing Material |
Matte-black hard-coat anodize; 6061-T6 aluminum |
Waterproof / Fog-Proof / Shock-Proof |
Yes (IPX7; 0.50 BMG rated) |
Battery |
(1) CR2032; ~1 600 hr life @ low intensity |
Included Accessories
- Integrated throw lever
- Removable ZeroLock™ windage cap
- (1) CR2032 battery
- Lens covers
- User manual
