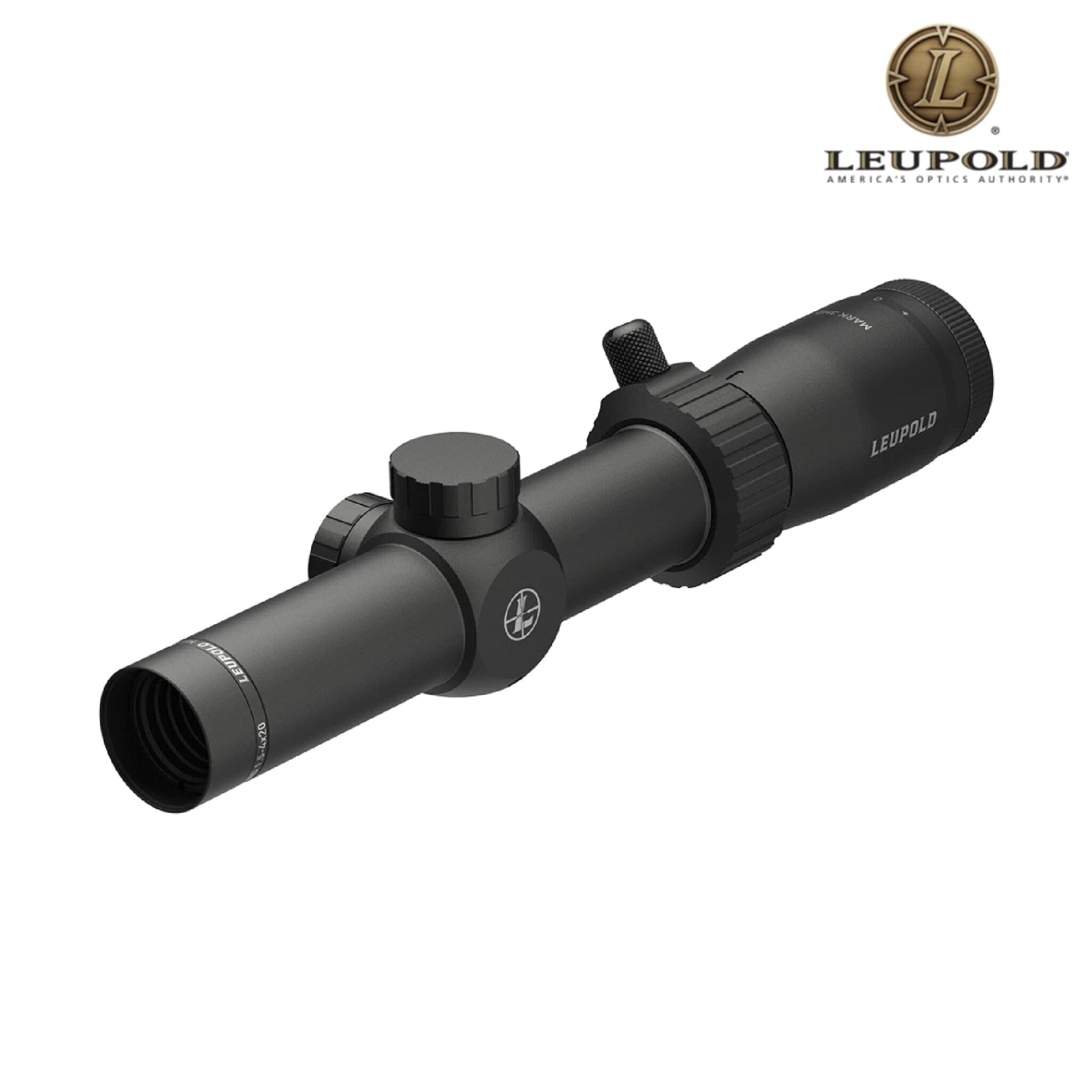

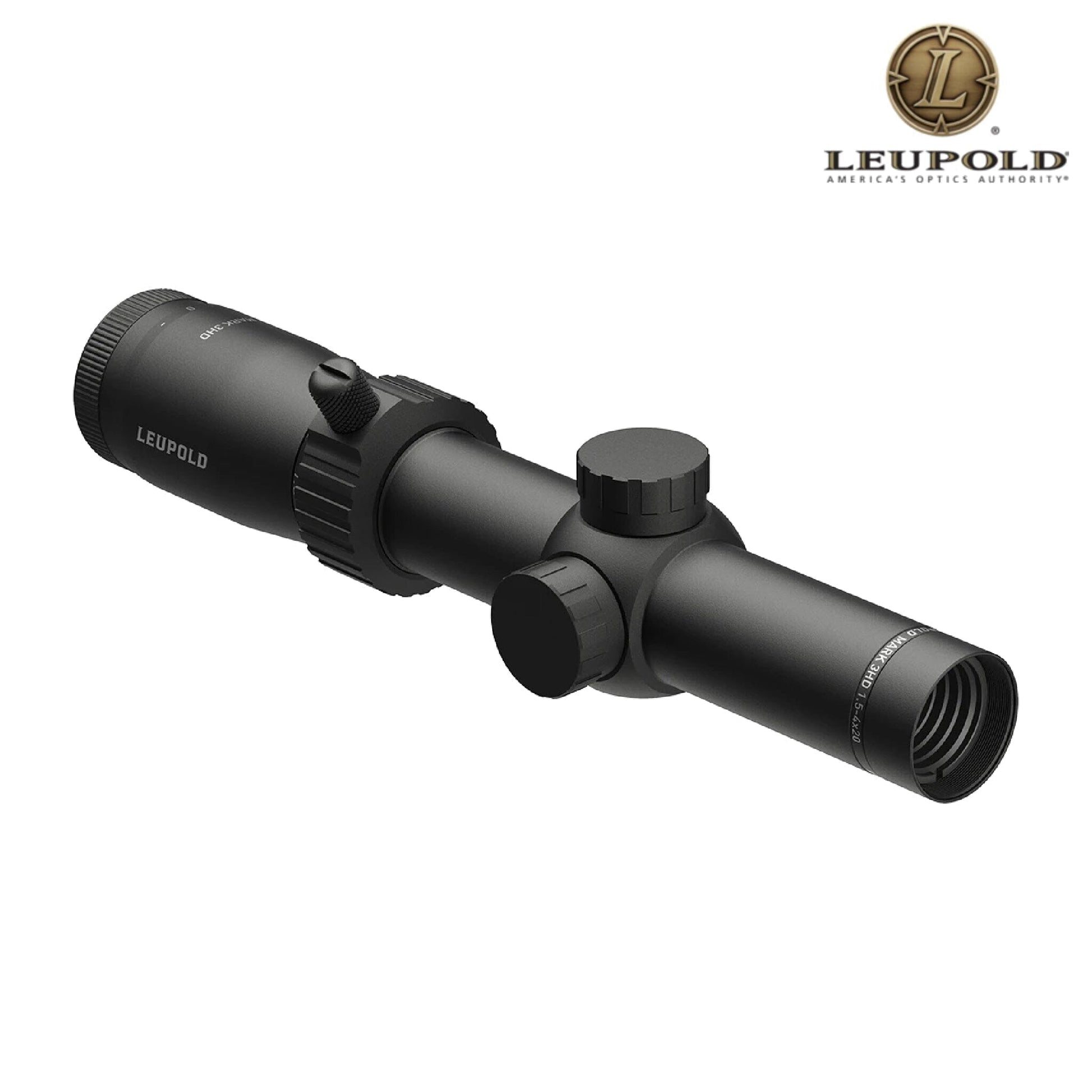

Leupold Mark 3HD 1.5-4x20 Rifle Scope AR Ballistic Reticle
Leupold Mark 3HD 1.5-4x20 Rifle Scope AR Ballistic Reticle
Couldn't load pickup availability
Leupold Mark 3HD 1.5–4×20 Rifle Scope AR-Ballistic Reticle
Features
- 3:1 Zoom Ratio: Quick throw-lever magnification changes from 1.5× (wide field) to 4× (precision) for close-quarters to mid-range engagements.
- Elite Optical System™ (HD): Fully multi-coated lenses and prisms deliver exceptional light transmission, contrast, and edge-to-edge sharpness.
- AR-Ballistic Second Focal Plane Reticle: Glass-etched MIL-rad BDC pattern calibrated for AR-platform ballistics—non-illuminated for zero power draw.

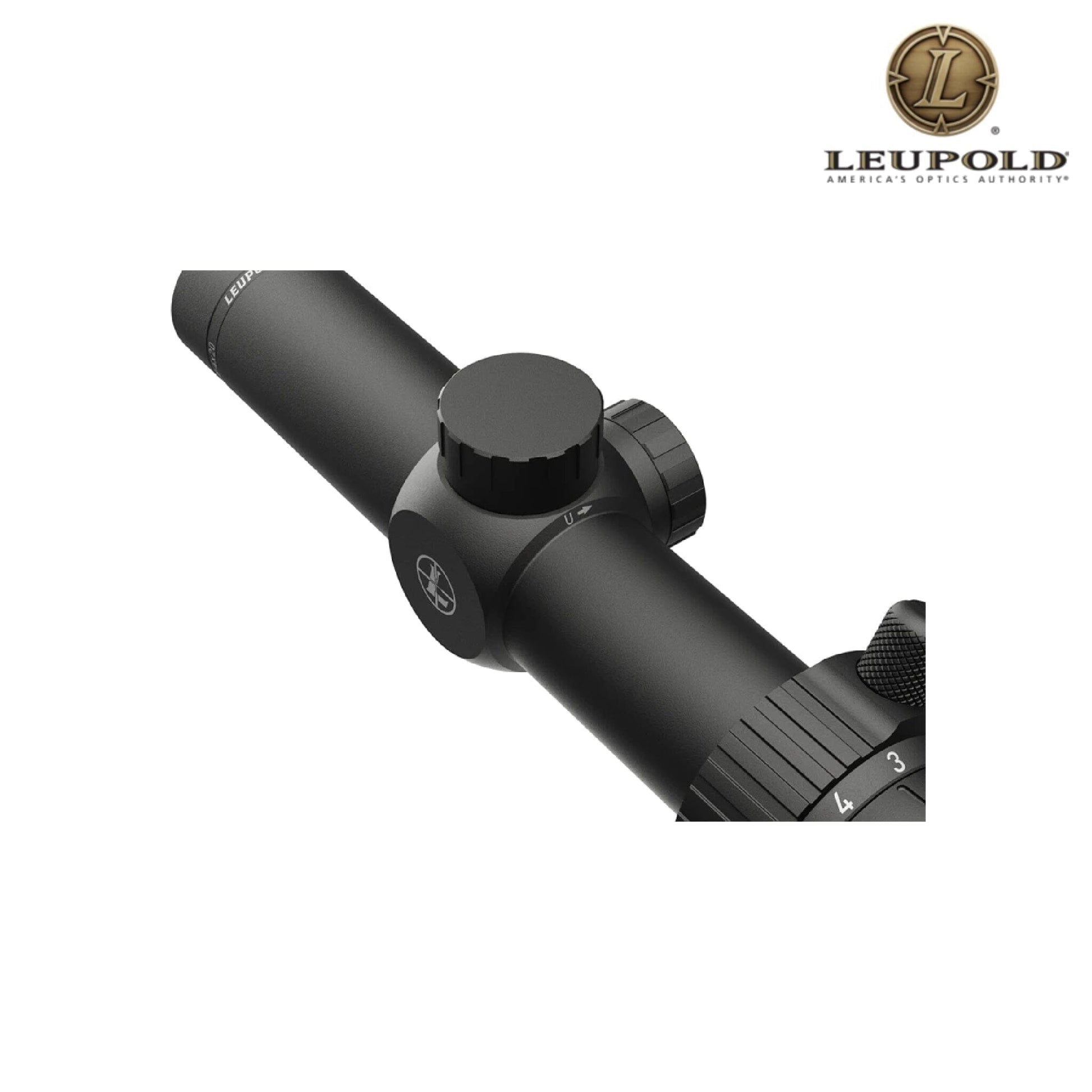

- Exposed Elevation Turret: Finger-click 0.1 MIL adjustments with positive tactile feedback; ±33.5 MIL total.
- Windage Adjustment Under Low-Profile Cap: 0.1 MIL per click, ±33.5 MIL total; cap prevents accidental shifts.
- Integrated Throw Lever: Low-profile lever for rapid, reliable zoom changes.
- Rugged 30 mm Main Tube: CNC-machined 6061-T6 aluminum; waterproof, fog- and shock-proof to .50 BMG.
- Compact & Lightweight: Only 13.1 oz for minimal added bulk on tactical platforms.
Technical Specifications for Leupold Mark 3HD 1.5–4×20 Rifle Scope AR-Ballistic Reticle
Specification |
Details |
Model / MPN |
180670 |
SKU |
180670 |
UPC |
030317028725 |
Magnification |
1.5 × ⇄ 4 × |
Objective Lens Diameter |
20 mm |
Main Tube Diameter |
30 mm |
Reticle |
AR-Ballistic (SFP, non-illuminated) |
Elevation Adjustment |
Exposed turret; 0.1 MIL per click; ±33.5 MIL total |
Windage Adjustment |
0.1 MIL per click under low-profile cap; ±33.5 MIL total |
Parallax |
Fixed at 150 yd |
Eye Relief |
4.2″ (low) ⇄ 3.7″ (high) |
Field of View @ 100 yd |
74.2 ft (low) ⇄ 29.4 ft (high) |
Length |
9.4″ (239 mm) |
Weight |
13.1 oz (371 g) |
Finish / Housing Material |
Matte-black hard-coat anodize; 6061-T6 aluminum |
Waterproof / Fog-Proof / Shock |
Yes (IPX7; .50 BMG-rated) |
Battery |
None (non-illuminated reticle) |
Included Accessories
- Removable throw lever
- Low-profile windage cap
- Lens covers
- User manual
