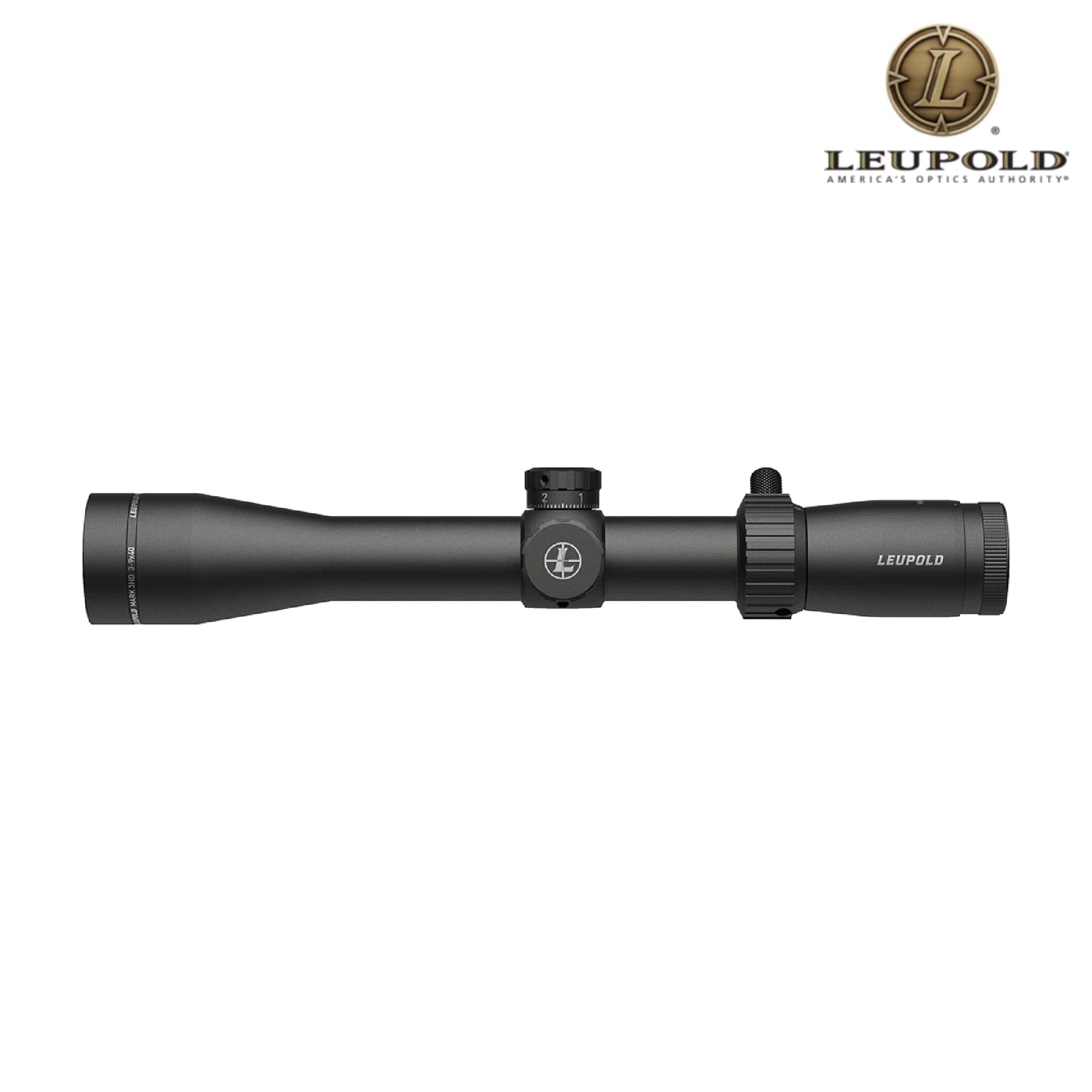

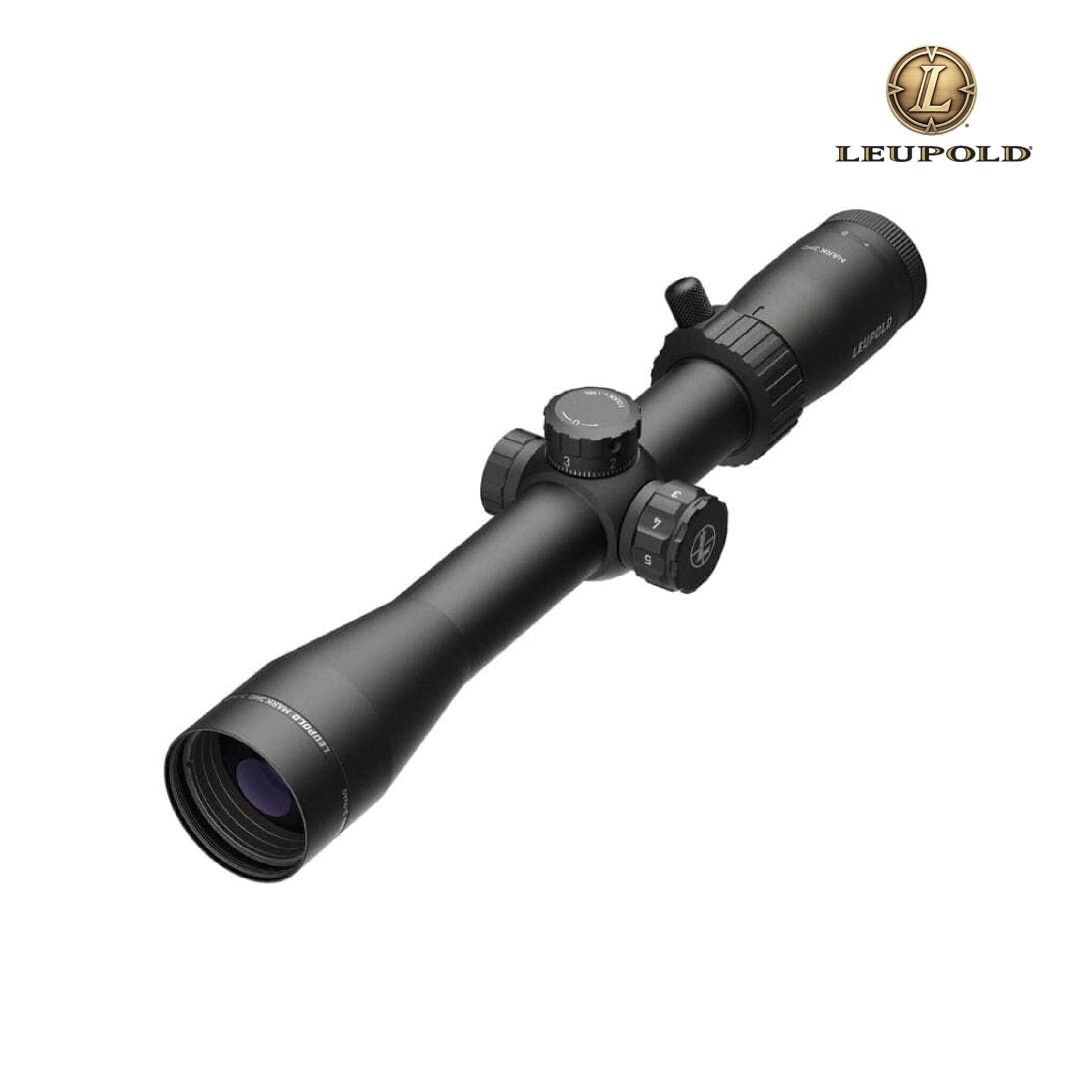

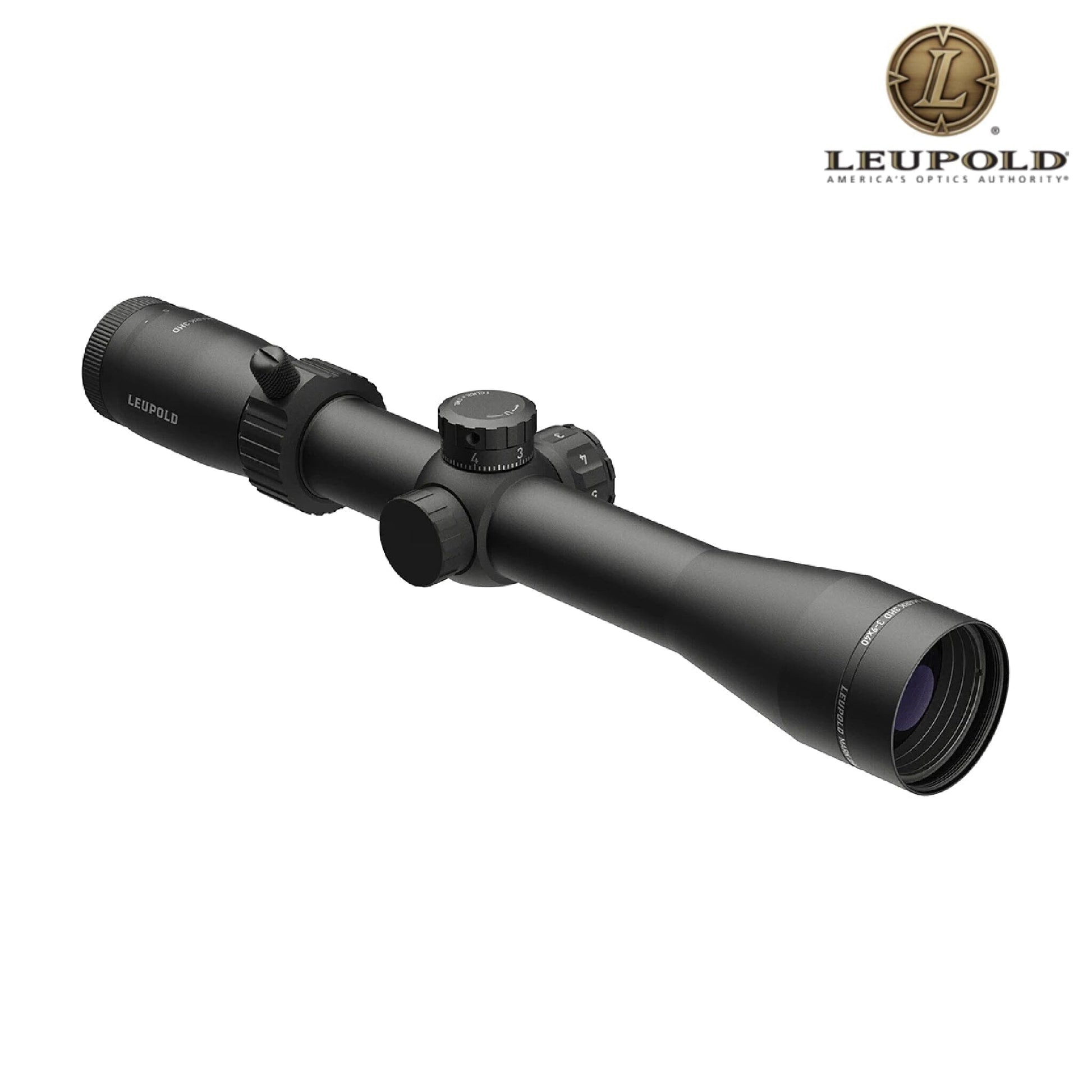

Leupold Mark 3HD 3–9×40 P5 Rifle Scope Illuminated FireDot TMR Reticle
Leupold Mark 3HD 3–9×40 P5 Rifle Scope Illuminated FireDot TMR Reticle
Couldn't load pickup availability
Leupold Mark 3HD 3–9×40 P5 Rifle Scope Illuminated FireDot TMR Reticle
Features
- 3:1 Zoom Ratio: Rapid throw-lever changes between 3× (wide field) and 9× (precision) for versatile engagement ranges.
- Elite Optical System™ (HD): Fully multi-coated lenses and prisms deliver exceptional light transmission, contrast, and edge-to-edge clarity.

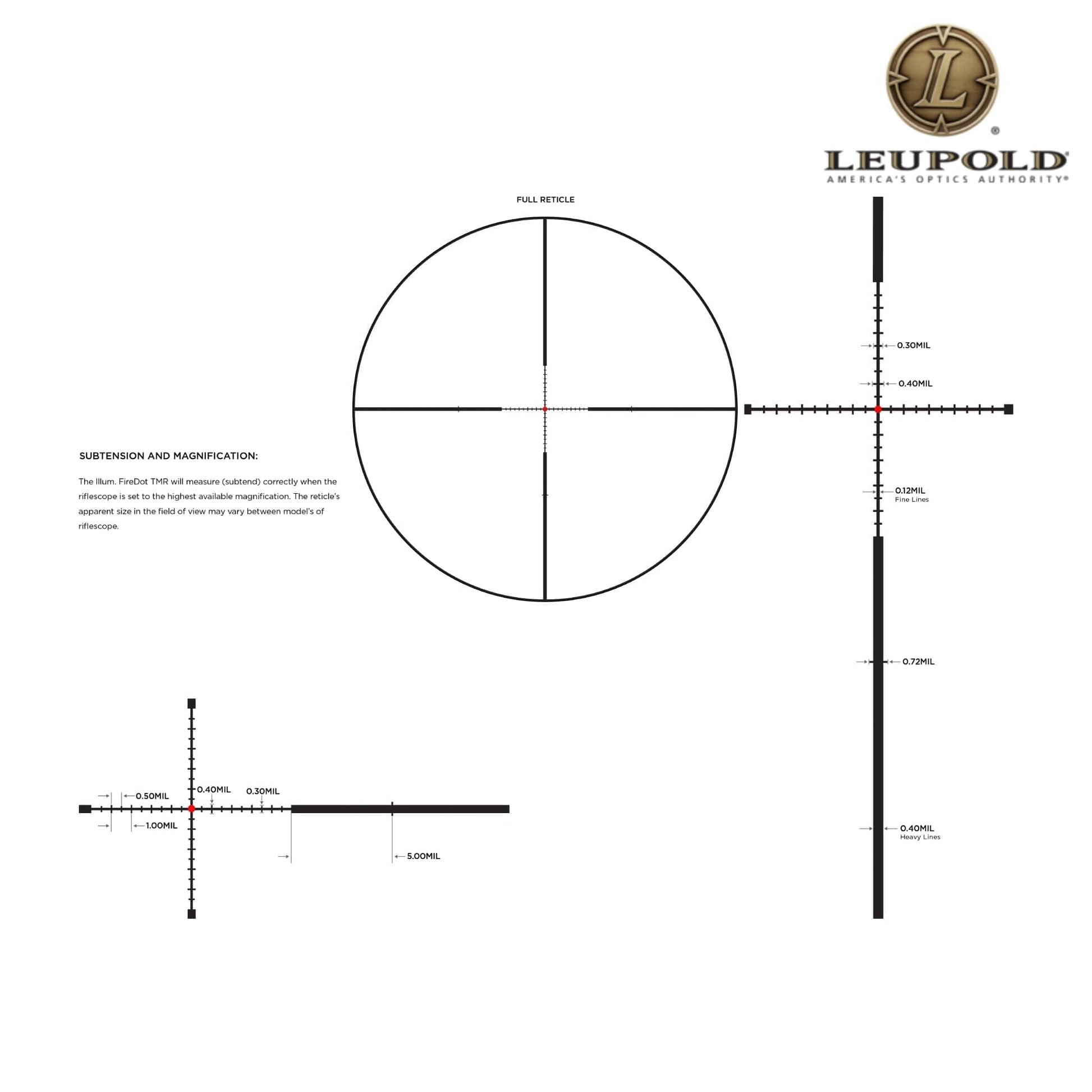

- FireDot® TMR Illuminated Reticle: Second-focal-plane TMR pattern calibrated in MIL-radians; glass-etched for crisp red-LED illumination with seven daylight-bright settings and top-hat dial.
- P5 ZeroStop™ Turret: Exposed, finger-click elevation dial with 0.1 MIL increments and a positive ZeroStop for instant return to zero.
- Exposed Windage with ZeroLock™ Cap: 0.1 MIL clicks with a lockable cap to prevent accidental shifts.
- Integrated Throw Lever: Low-profile lever for fast, reliable magnification changes.
- Rugged 30 mm Main Tube: CNC-machined 6061-T6 aluminum; waterproof, fog- and shock-proof to .50 BMG recoil.
- Compact & Lightweight: Only 15.8 oz (448 g) for minimal added bulk.
Technical Specifications for Leupold Mark 3HD 3–9×40 P5 Rifle Scope Illuminated FireDot TMR Reticle
Specification |
Details |
Model / MPN |
180666 |
SKU |
180666 |
UPC |
030317028732 |
Magnification |
3 × ⇄ 9 × |
Objective Lens Diameter |
40 mm |
Main Tube Diameter |
30 mm |
Reticle |
FireDot TMR (FFP, LED-illuminated) |
Reticle Illumination |
Red LED; 7 daylight-bright settings |
Elevation Adjustment |
P5 ZeroStop™; 0.1 MIL per click; ±36 MIL total |
Windage Adjustment |
0.1 MIL per click; ±36 MIL total; ZeroLock™ cap |
Parallax |
Fixed at 150 yd |
Eye Relief |
3.7″–4.2″ (94–107 mm) |
Field of View @ 100 yd |
33.5 ft (3×) ⇄ 14.1 ft (9×) |
Length |
12.6″ (320 mm) |
Weight |
15.8 oz (448 g) |
Adjustment Type |
MIL-radian (1/10) |
Finish / Housing Material |
Matte-black hard-coat anodize; 6061-T6 aluminum |
Waterproof / Fog-Proof / Shock |
Yes (IPX7; .50 BMG-rated) |
Battery |
(1) CR2032; ~1 600 hr life @ low intensity |
Included Accessories
- Integrated magnification throw lever
- ZeroLock™ windage cap
- Flip-up lens covers
- (1) CR2032 battery
- User manual
