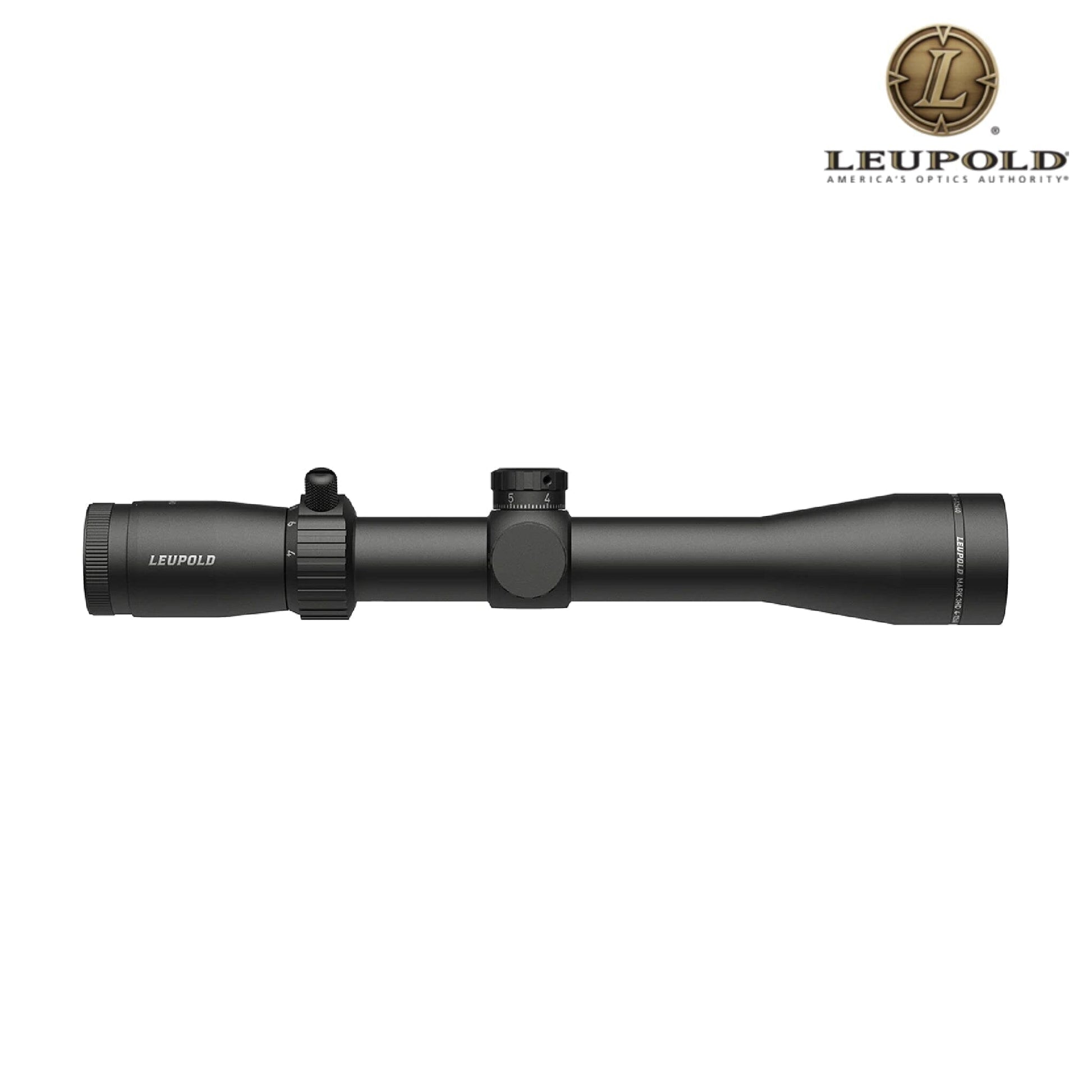

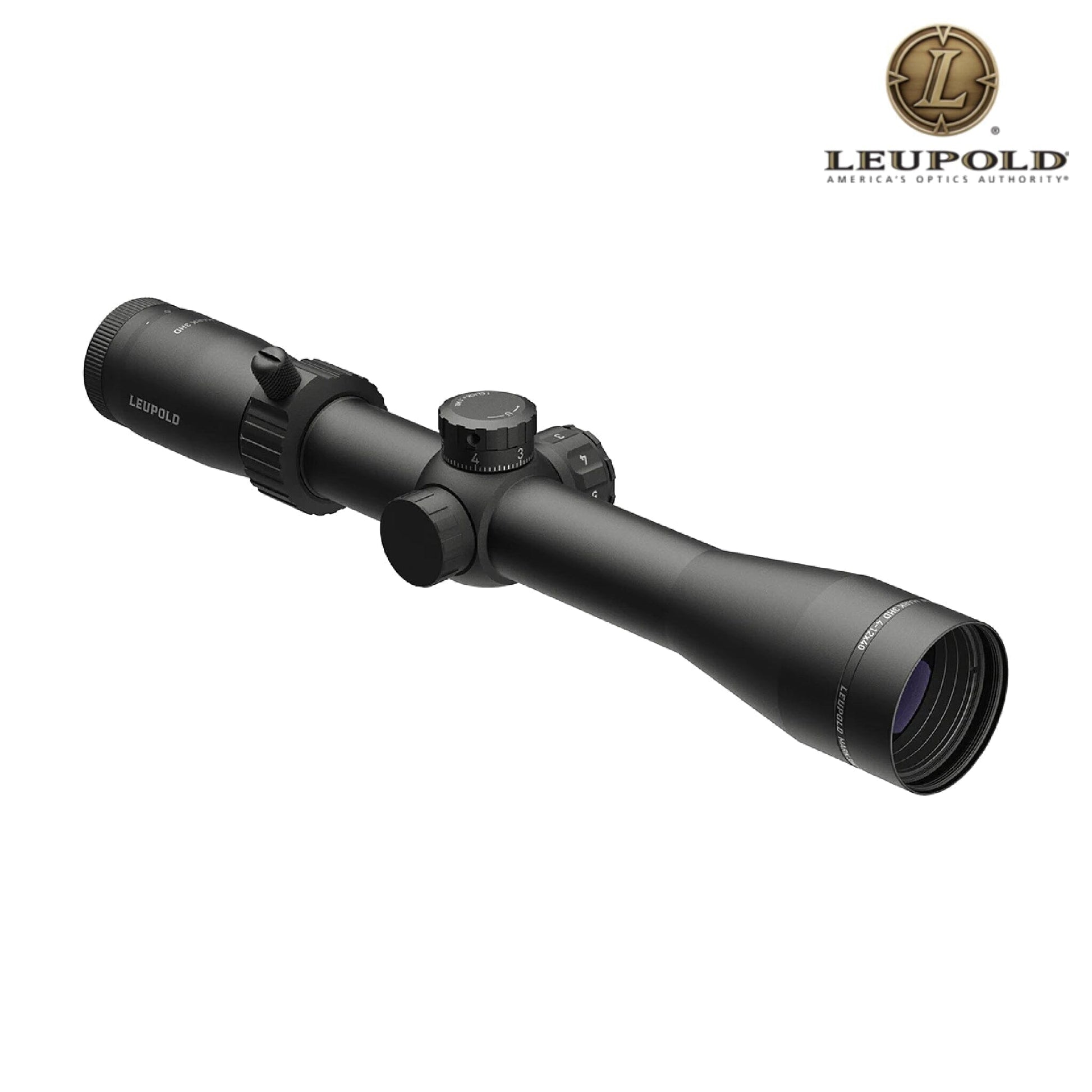

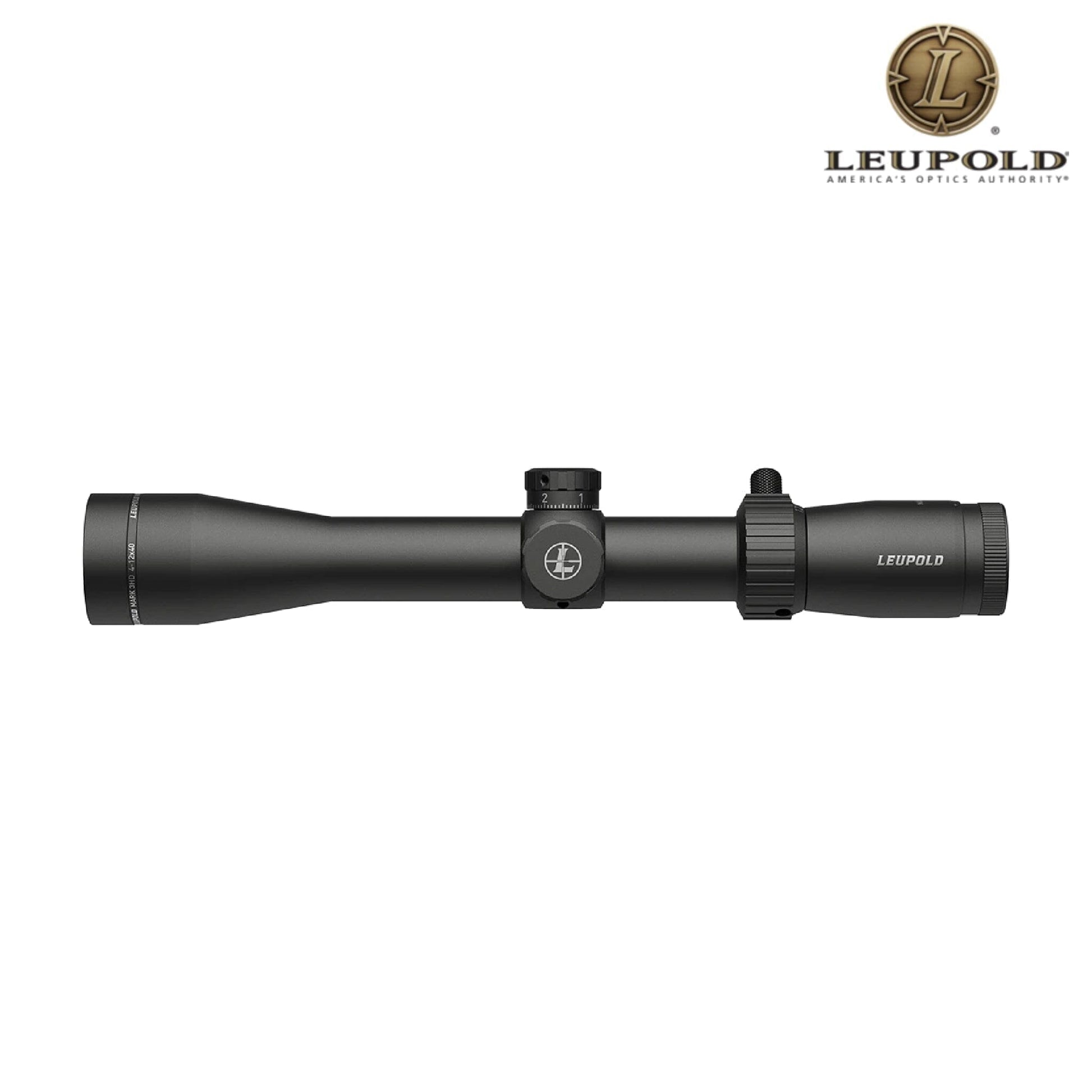

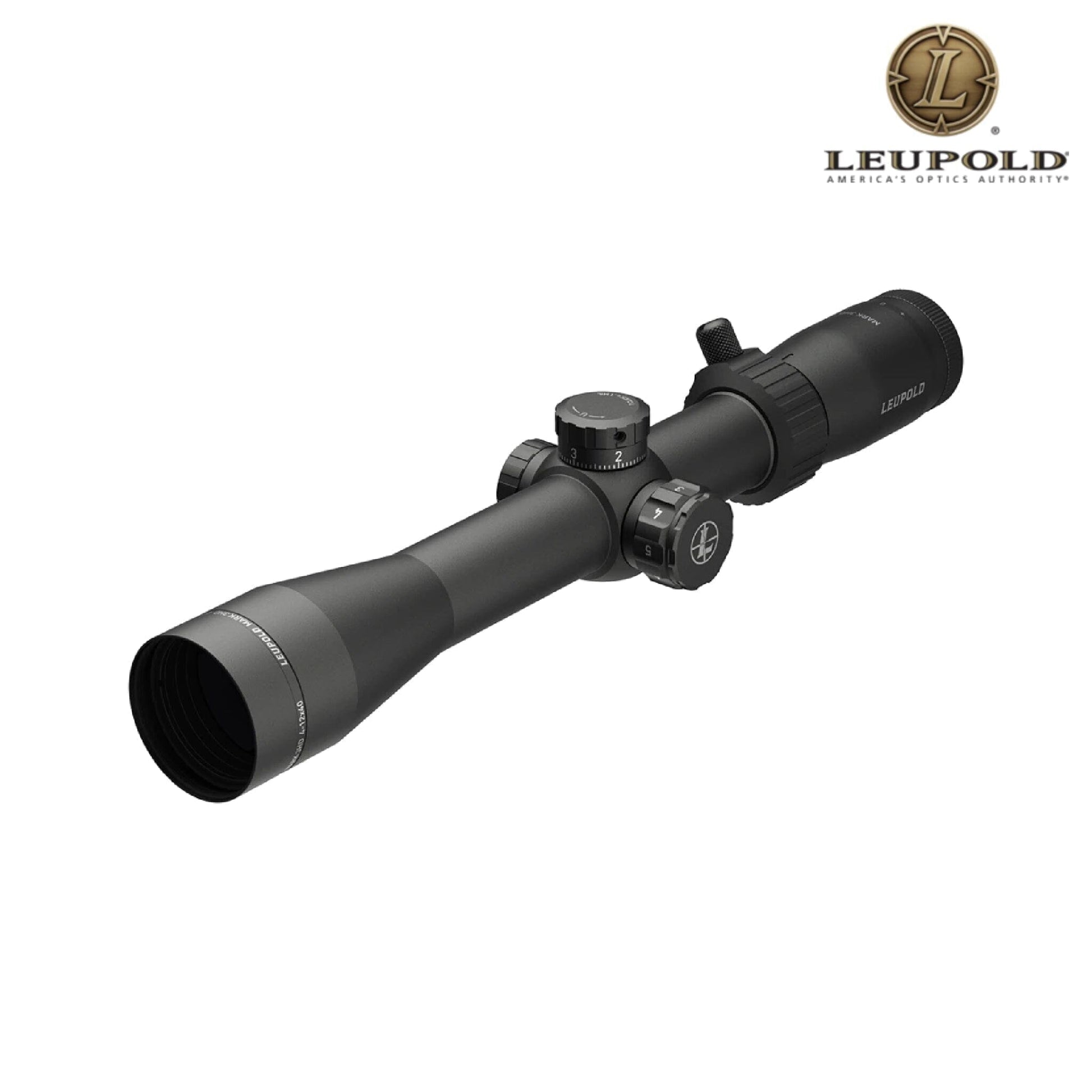

Leupold Mark 3HD 4–12×40 P5 Rifle Scope Illuminated FireDot TMR Reticle
Leupold Mark 3HD 4–12×40 P5 Rifle Scope Illuminated FireDot TMR Reticle
Couldn't load pickup availability
Leupold Mark 3HD 4–12×40 P5 Rifle Scope Illuminated FireDot TMR Reticle
Features
- 3:1 Zoom Ratio: Low-profile throw lever for rapid changes between 4× (wide field) and 12× (precision) magnification.
- Elite Optical System™: Fully multi-coated lenses and prisms deliver exceptional light transmission, contrast, and edge-to-edge clarity.

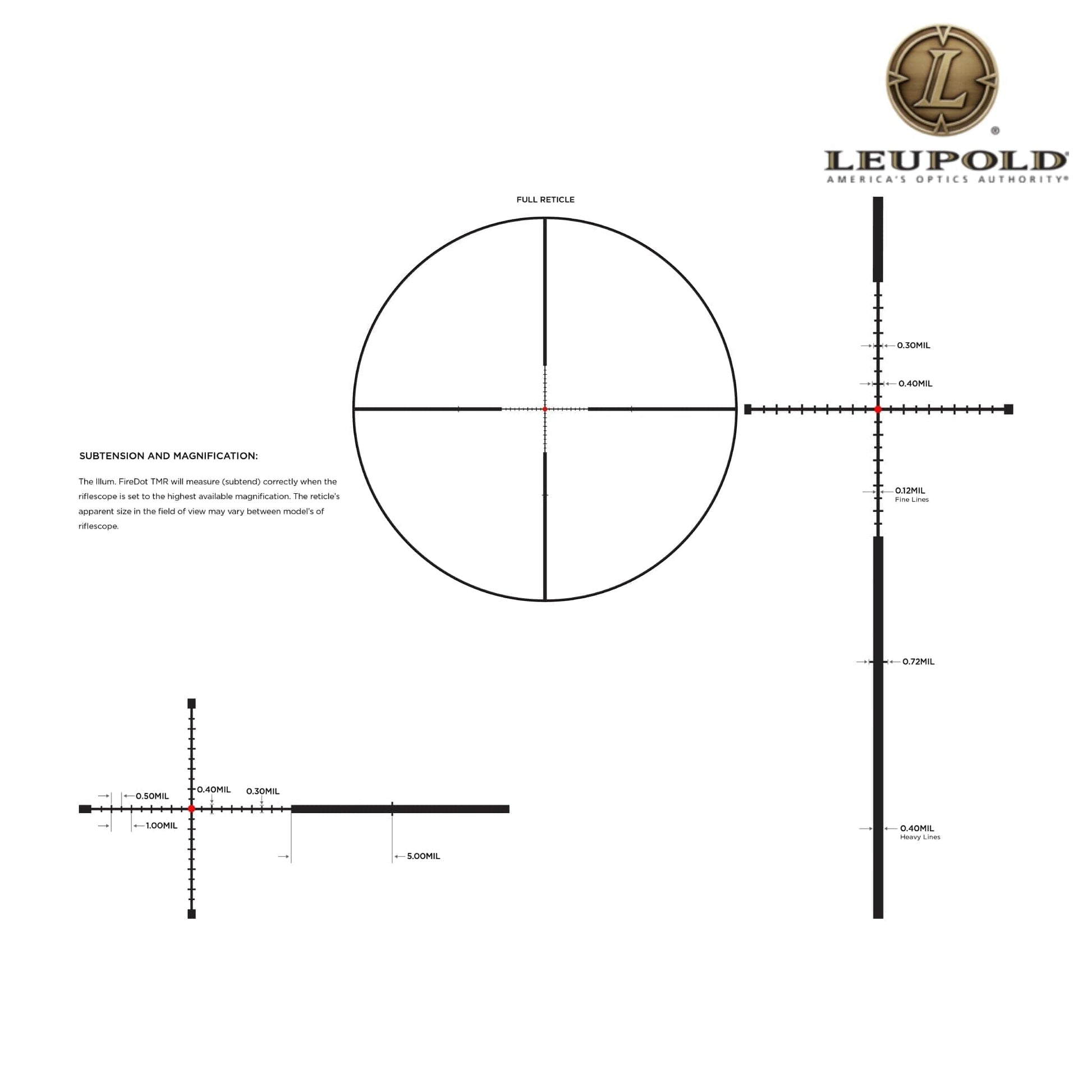

- FireDot® TMR Illumination: Second-focal-plane TMR reticle in MIL-radians; glass-etched for crisp red-LED illumination with seven daylight-bright settings via the top-hat dial.
- P5 ZeroStop™ Turret: Exposed, finger-click elevation dial with 0.1 MIL per click and a positive ZeroStop to instantly return to your zero.
- Exposed Windage with ZeroLock™ Cap: 0.1 MIL per click, ±33.5 MIL total; lockable cap prevents accidental shifts.
- Rugged 30 mm Main Tube: CNC-machined 6061-T6 aluminum; waterproof, fog- and shock-proof (rated to absorb .50 BMG recoil).
- Compact & Lightweight: Only 13.1 oz (371 g) and 12.6″ (320 mm) long—ideal for tactical and hunting platforms.
Technical Specifications for Leupold Mark 3HD 4–12×40 P5 Rifle Scope Illuminated FireDot TMR Reticle
Specification |
Details |
Model / MPN |
180668 |
SKU |
180668 |
UPC |
0030317028763 |
Magnification |
4 × ⇄ 12 × |
Objective Lens Diameter |
40 mm |
Main Tube Diameter |
30 mm |
Reticle |
FireDot TMR (FFP, LED-illuminated) |
Illumination Settings |
7 daylight-bright levels |
Elevation Adjustment |
P5 ZeroStop™; 0.1 MIL per click; ±33.5 MIL total |
Windage Adjustment |
0.1 MIL per click; ±33.5 MIL total; ZeroLock™ cap |
Parallax |
Fixed at 150 yd |
Eye Relief |
3.7″ (94 mm) constant |
Field of View @ 100 yd |
23.2 ft (4×) ⇄ 8.2 ft (12×) |
Length |
12.6″ (320 mm) |
Weight |
13.1 oz (371 g) |
Finish / Material |
Matte-black hard-coat anodize; 6061-T6 aluminum |
Waterproof / Fog-Proof |
Yes (IPX7) |
Shock-Proof |
Yes (rated to .50 BMG recoil) |
Battery |
(1) CR2032; ~1 600 hr life @ low intensity |
Included Accessories
- Integrated magnification throw lever
- Removable ZeroLock™ windage cap
- Flip-up lens covers
- (1) CR2032 battery
- User manual
