Leupold MARK 4 12-40x60 Tactical Spotting Scope H-32
Leupold MARK 4 12-40x60 Tactical Spotting Scope H-32
Couldn't load pickup availability

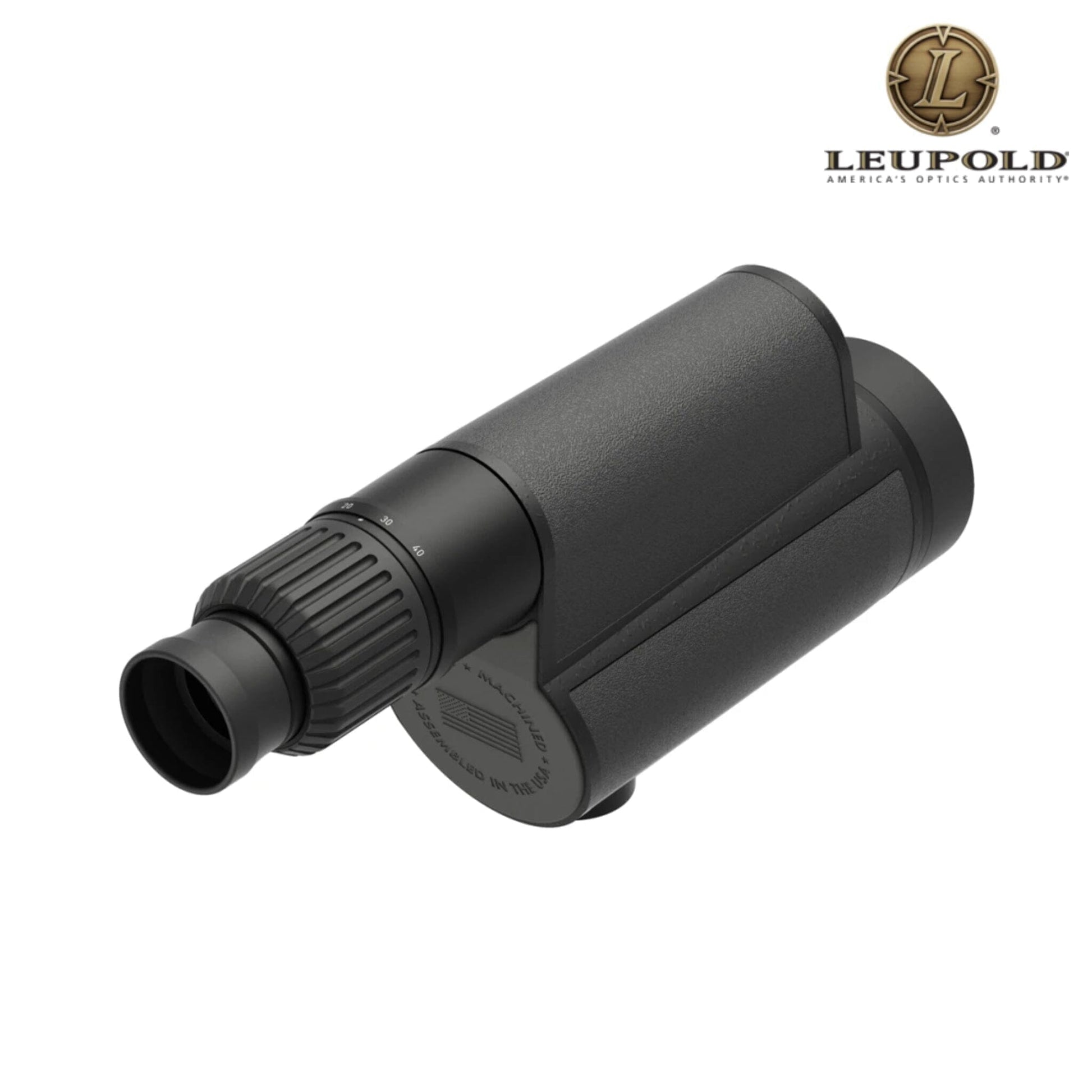

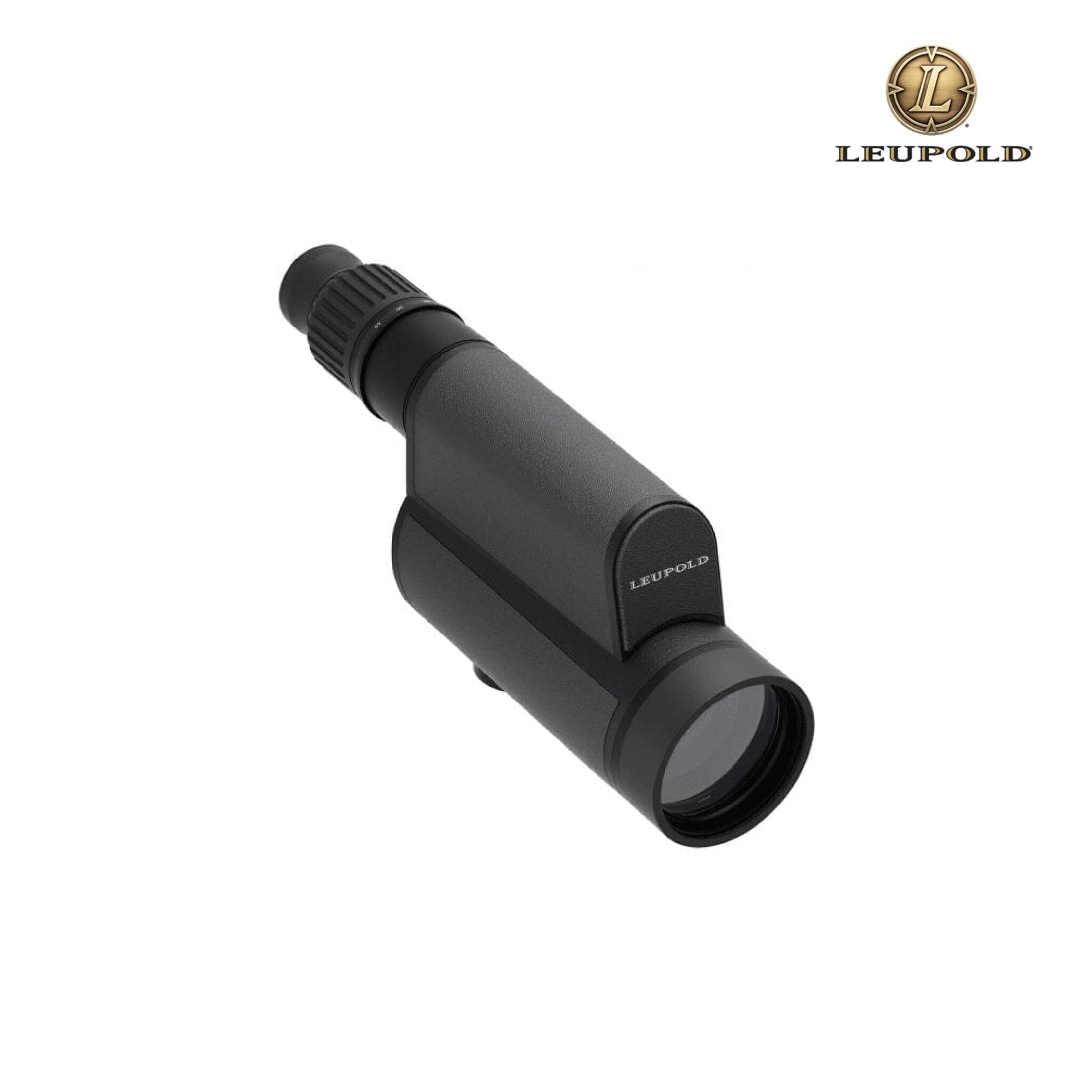

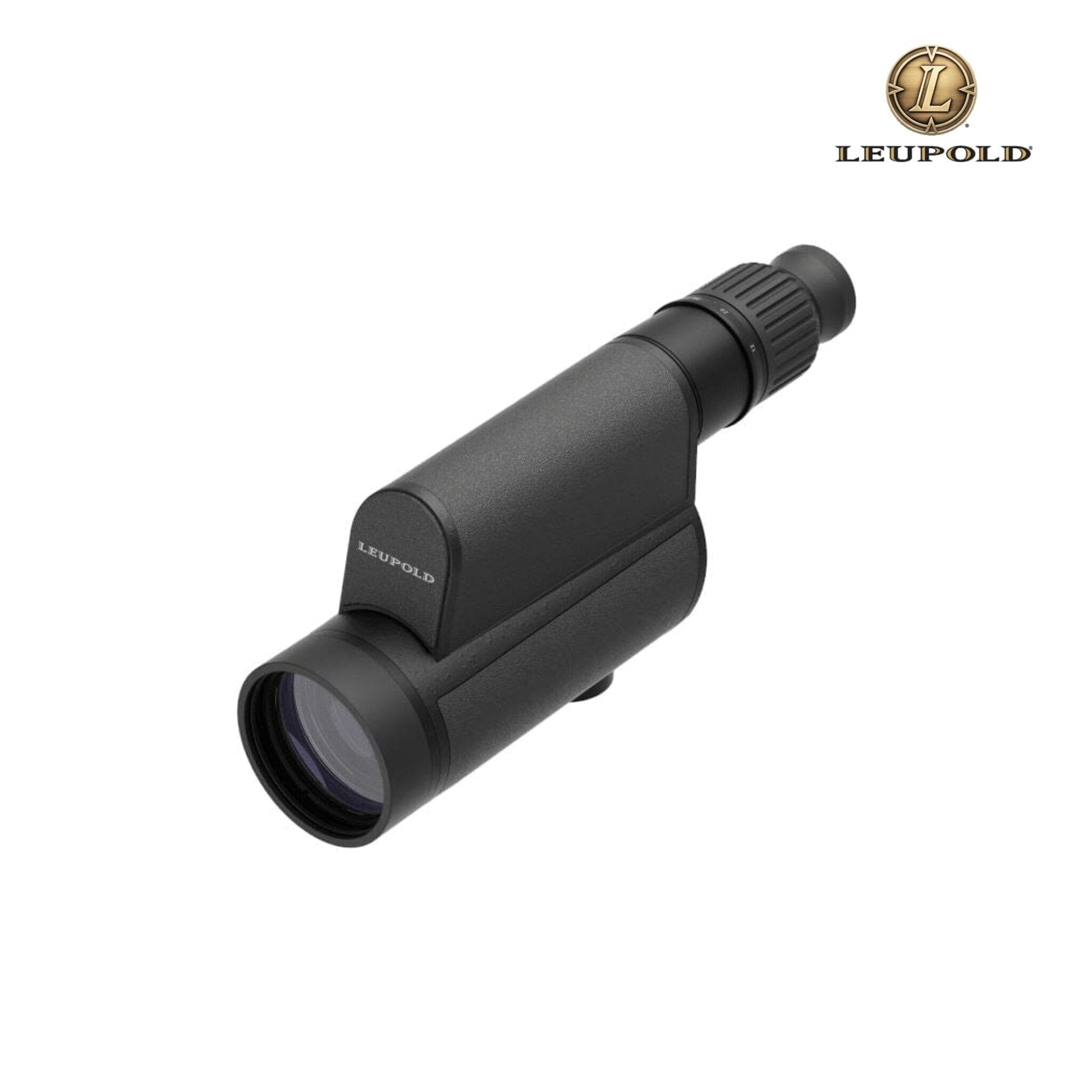

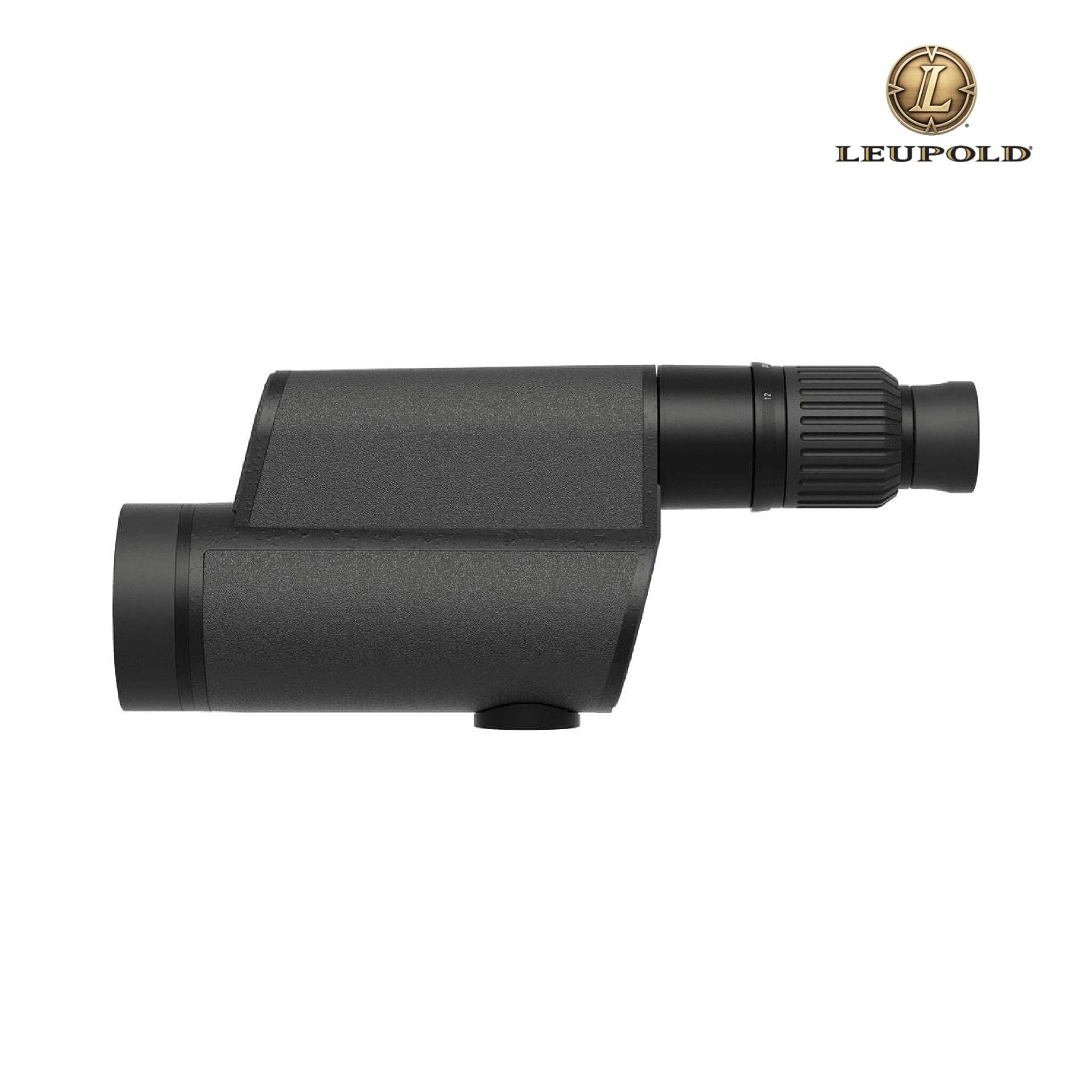

Leupold MARK 4 12–40×60 Tactical Spotting Scope H-32
Features
- Xtended Twilight® Lens System: Advanced glass and coatings maximize light transmission for exceptional low-light performance.
- DiamondCoat® 2: Ion-assist coating delivers superior abrasion resistance and easier cleaning.
- Folded Light-Path Design: Compact chassis with internal prism relay for a shorter overall length.

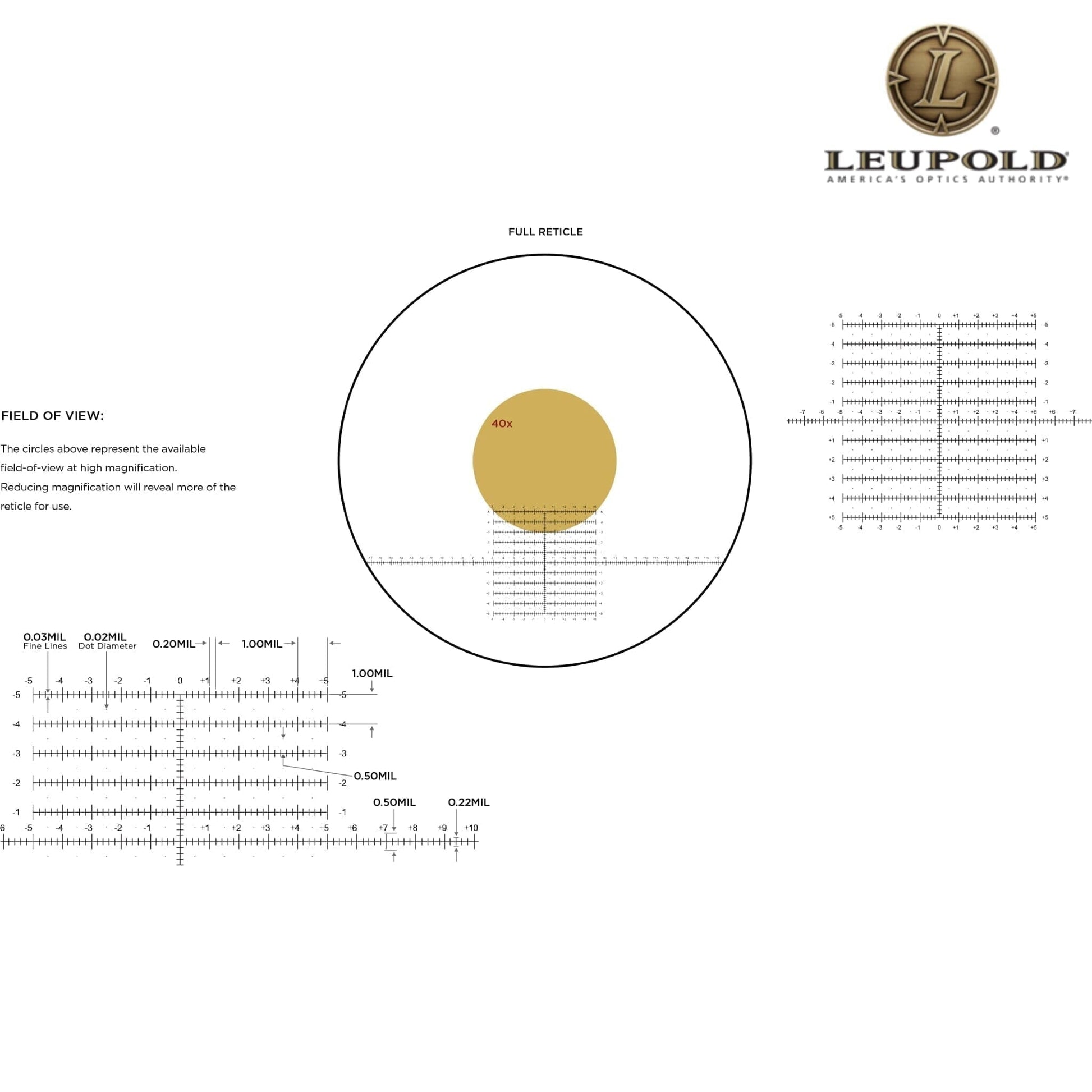

- H-32® Reticle: First-focal-plane Horus™ reticle provides precise hold-over marks calibrated in MIL-radians for range estimation and wind holds.
- Rugged Construction: Magnesium-alloy housing with armor-coated finish; engineered to survive impacts, drops, and extreme conditions.
- 100% Waterproof & Fogproof: O-ring sealed and nitrogen-purged to IPX7 standards.
- Tripod-Ready: Standard ¼-20 socket for secure mounting on spotting-scope tripods.
Technical Specifications for Leupold MARK 4 12–40×60 Tactical Spotting Scope H-32
|
Specification |
Details |
|
Model / MPN |
67185 |
|
SKU |
67185 |
|
UPC |
030317671853 |
|
Magnification |
12 × ⇄ 40 × |
|
Objective Lens Diameter |
60 mm |
|
Exit Pupil (Low ×) |
4.8 mm |
|
Exit Pupil (High ×) |
1.5 mm |
|
Linear FOV @ 1 000 yd |
168 ft (51 m) @ 12× ⇄ 52 ft (16 m) @ 40× |
|
Angular FOV (Low ×) |
3.2° |
|
Angular FOV (High ×) |
1.0° |
|
Eye Relief (Low ×) |
30 mm |
|
Eye Relief (High ×) |
30 mm |
|
Close Focus Distance |
36 ft (11 m) |
|
Interpupillary Adjustment |
56 – 75 mm |
|
Reticle Position |
First Focal Plane |
|
Reticle Type |
H-32® Horus™ (MIL-rad) |
|
Coatings |
DiamondCoat 2; fully multi-coated lenses & prisms |
|
Chassis Material / Finish |
Magnesium alloy; armor-coated (matte black) |
|
Tripod Mount |
¼-20 socket |
|
Waterproof / Fogproof |
Yes (IPX7) |
|
Length |
12.4″ (315 mm) |
|
Weight |
37 oz (1 050 g) |
Included Accessories

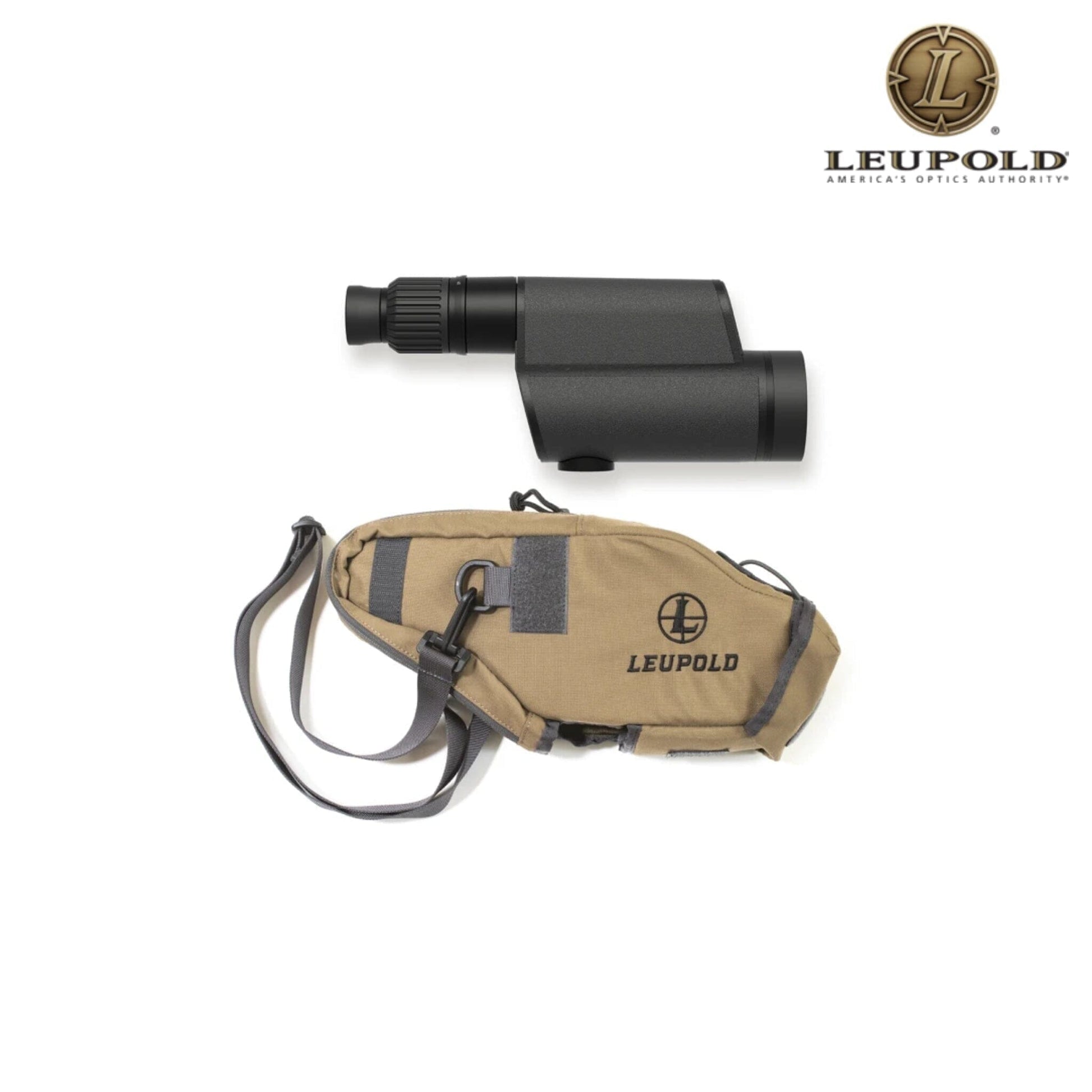

- Stay-On protective case
- Microfiber lens cloth
- User manual
